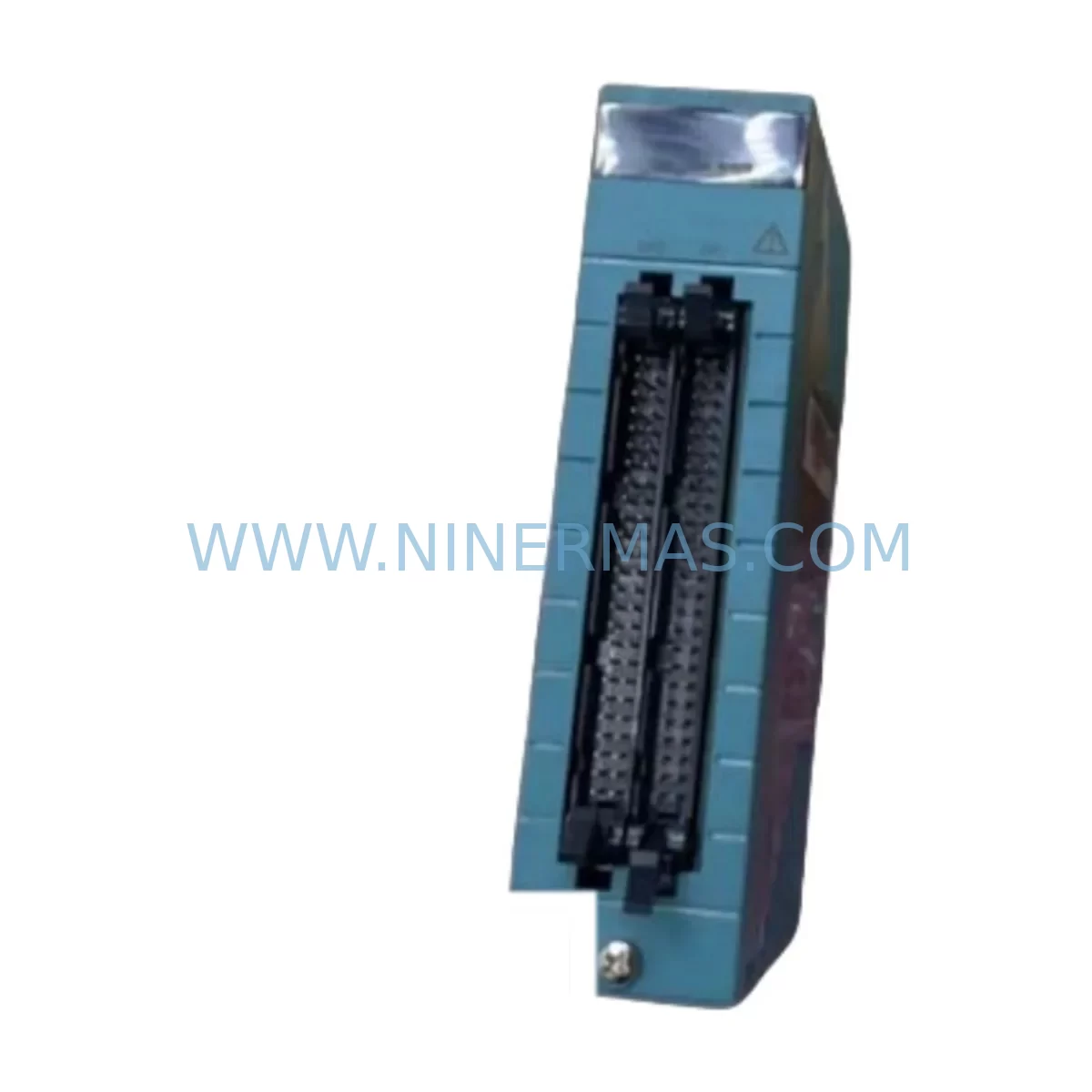

The YOKOGAWA NFDV561-P00 is an original communication module designed for the YOKOGAWA STARDOM FCN/FCJ series autonomous controllers, widely deployed in process automation, utility control, and remote monitoring applications across oil & gas, water treatment, power generation, and chemical manufacturing industries. As a service-ready spare part sourced and verified by NINERMAS, the NFDV561-P00 is stocked to support rapid field replacement, scheduled maintenance shutdowns, and long-term spare parts inventory programs.

Unplanned downtime caused by a failed communication module can cascade into production losses, safety incidents, and costly emergency procurement. Maintaining a certified replacement unit of the NFDV561-P00 in your spare parts cabinet is a proven strategy for minimizing mean time to repair (MTTR) and keeping your STARDOM-based control architecture operational. NINERMAS supplies this module with full functional testing, secure packaging, and a 12-month warranty from the date of shipment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer evaluates the replacement of the NFDV561-P00 communication module in a STARDOM FCN/FCJ controller, the replacement event should be treated as a broader system health checkpoint — not an isolated swap. Communication module failures in autonomous controllers are frequently symptomatic of upstream power instability, backplane degradation, or network-layer faults that will recur if not addressed concurrently.

Begin by verifying the YOKOGAWA NFCP100-S00 power supply module output voltage and ripple characteristics. A degraded power supply is one of the most common root causes of premature communication module failure in FCN-series cabinets. Alongside the power supply, inspect the NFBU100-S00 base unit and backplane for physical damage, oxidized connector pins, or signs of thermal stress — the NFDV561-P00 interfaces directly with the backplane bus, and any impedance mismatch will affect communication reliability.

For I/O integrity, audit the NFAI141-S00 analog input modules and NFDO141-S00 digital output modules installed in adjacent slots. Faulty I/O modules can generate bus contention that manifests as communication errors on the NFDV561-P00, leading to misdiagnosis. If the STARDOM system is integrated into a broader DCS or SCADA network, also verify the Ethernet communication cables (Cat5e or Cat6 shielded) connecting the FCN controller to the network switch — cable degradation and connector corrosion are frequent culprits in industrial environments with vibration or humidity exposure.

In control cabinets where the STARDOM FCN operates alongside relay logic or motor control circuits, inspect the 24VDC terminal blocks and DIN rail-mounted fuse holders supplying the controller rack. Voltage transients from contactor switching can couple into the controller power rail if surge protection is inadequate. Consider verifying the condition of signal isolators on any 4–20mA loops feeding the FCN’s analog inputs, as ground loop currents can introduce noise that stresses communication hardware over time.

For sites running legacy STARDOM configurations integrated with YOKOGAWA FAST/TOOLS SCADA or connected to a CENTUM VP DCS via OPC or Vnet/IP, confirm that the replacement NFDV561-P00 firmware revision is compatible with the host system software version before installation. NINERMAS technical support can assist with firmware compatibility verification prior to shipment.

Finally, if the STARDOM FCN cabinet includes an HMI panel or operator terminal for local monitoring, test the HMI communication link after module replacement to confirm end-to-end data integrity. Documenting the pre- and post-replacement communication diagnostics in your CMMS (Computerized Maintenance Management System) will support future predictive maintenance scheduling and spare parts lifecycle planning.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the failed module is the NFDV561-P00 by checking the part number label on the module faceplate. Cross-reference with the STARDOM FCN system configuration file to identify the slot address and communication role (e.g., Ethernet, serial, or fieldbus interface).

Step 2 — System State Backup: Before powering down or hot-swapping (if supported by your FCN firmware version), export the current controller configuration using YOKOGAWA’s STARDOM Engineering Tool. Store the backup on a secure, offline medium. This step is critical for rapid restoration if the replacement module requires re-parameterization.

Step 3 — Safe Module Removal: Follow LOTO (Lockout/Tagout) procedures appropriate to your site safety plan. Remove the NFDV561-P00 from its backplane slot using the module extraction handle. Inspect the backplane connector for bent pins or debris before inserting the replacement unit.

Step 4 — Replacement Installation: Insert the new NINERMAS-supplied NFDV561-P00 firmly into the designated slot until the locking tabs engage. Restore power and observe the module status LEDs — a solid green RUN indicator confirms successful initialization. If the module enters fault state, re-check backplane seating and power supply voltage.

Step 5 — Communication Restoration & Testing: Restore the controller configuration from backup if required. Verify communication link status from the STARDOM Engineering Tool or SCADA host. Confirm all I/O data points are updating correctly and that no CRC or timeout alarms are active. Log the replacement event with timestamp, technician ID, and new module serial number.

Step 6 — Spare Parts Replenishment: After a successful replacement, immediately initiate a purchase order for a new NFDV561-P00 to restore your on-site spare inventory. NINERMAS maintains long-term supply capability for STARDOM FCN/FCJ series modules, including discontinued and hard-to-source part numbers, supporting old system life extension programs.
