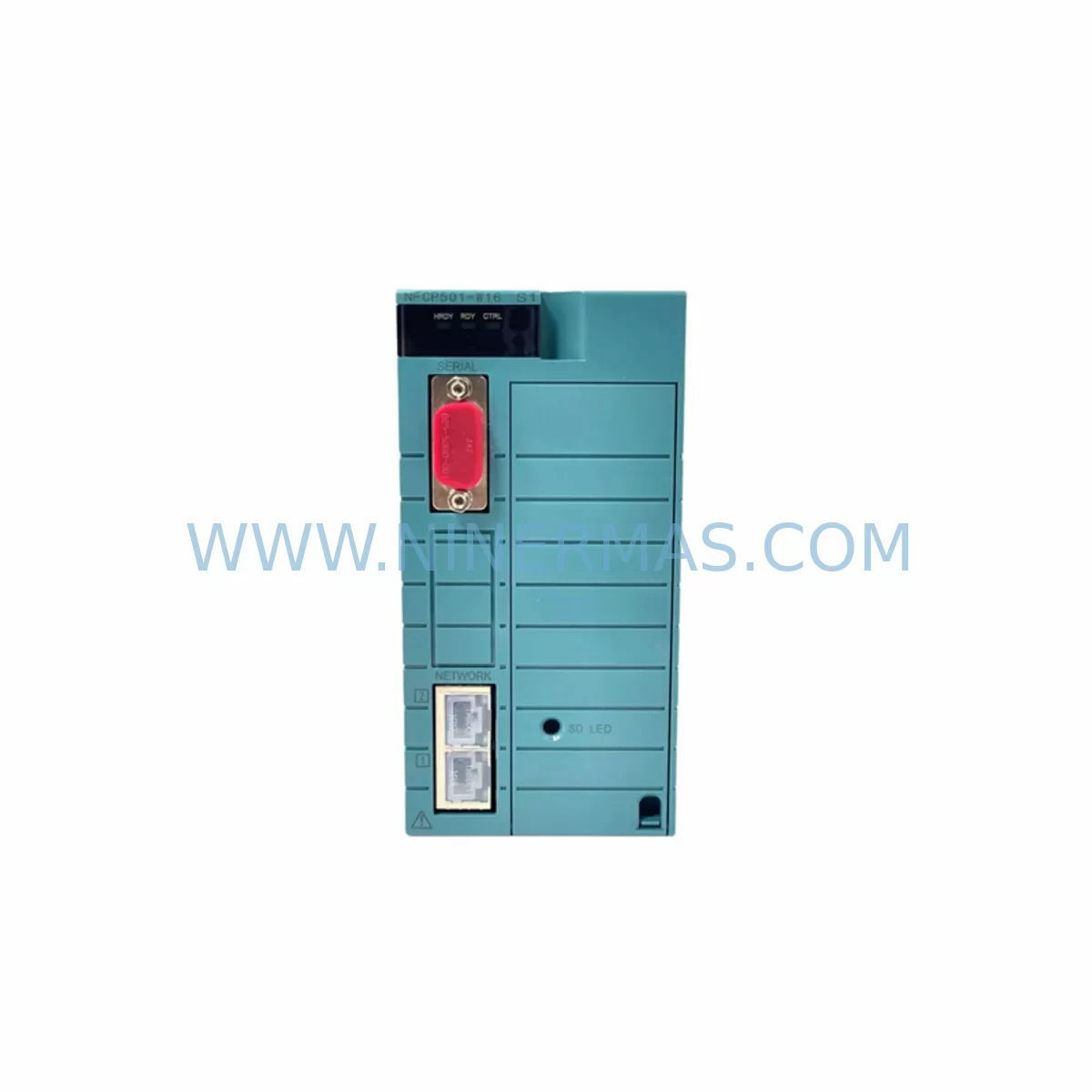

Yokogawa NFCP501-W05 S2 Retrofit-Compatible CPU for Legacy Systems

Yokogawa NFCP501-W05 S2 Retrofit-Compatible CPU for Legacy Systems

The Yokogawa NFCP501-W05 S2 is a high-performance CPU module engineered for the STARDOM FCN/FCJ autonomous controller platform. Designed with retrofit compatibility at its core, this S2-generation processor card enables seamless replacement of end-of-life NFCP501-W05 S1 units and earlier STARDOM CPU variants without requiring full system redesign. For plant engineers managing aging distributed control architectures in continuous process industries, the NFCP501-W05 S2 delivers a controlled, low-risk migration path that preserves existing I/O wiring, backplane slot assignments, and application logic integrity.

When planning a CPU replacement within an operational STARDOM rack, engineers must verify several critical compatibility parameters before committing to a swap. Power supply capacity is the first checkpoint: the NFCP501-W05 S2 draws its operating power from the rack’s NFCP502 or NFCP503 power supply module, and the existing unit must be confirmed to meet the S2 module’s current draw specifications. Terminal wiring on the backplane remains pin-compatible across S1 and S2 generations, eliminating the need for field rewiring in most retrofit scenarios. Backplane interface alignment must be confirmed against the NFCP500 base unit or NFCP510 expansion rack to ensure slot addressing is preserved. Module address configuration — set via DIP switches or software parameter tables depending on firmware revision — must be re-validated after installation to prevent address conflicts with co-resident I/O modules such as the NFAI835 analog input card or NFDO835 digital output module.

Program compatibility is a central concern in any CPU retrofit. The NFCP501-W05 S2 supports IEC 61131-3 structured programming environments and is compatible with the STARDOM Resource Configurator and VDS (Virtual DCS) software suite. Application programs developed on S1-generation hardware can typically be reloaded without modification, though engineers should validate function block library versions and confirm that any custom-coded logic referencing hardware-specific memory addresses is reviewed prior to hot-commissioning. HMI screen bindings — particularly those connected via OPC-DA or OPC-UA to SCADA platforms — should be tested in simulation mode before live cutover to confirm tag mapping continuity.

Communication link integrity is equally critical. The NFCP501-W05 S2 supports Ethernet-based control networking and can interface with Yokogawa’s NFLC100 Ethernet communication module for upstream CENTUM VP or ProSafe-RS integration. In legacy installations where serial Modbus RTU links are present, the NFBUS100 serial communication module must be confirmed as compatible with the S2 CPU’s communication scheduler. Engineers should also account for installation space: the NFCP501-W05 S2 occupies a single slot in the STARDOM FCN rack and its physical envelope is identical to the S1 predecessor, making it a true drop-in replacement with no panel modification required.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful NFCP501-W05 S2 retrofit begins with a structured pre-replacement audit of the existing STARDOM rack assembly. Engineers should document the current firmware version running on the incumbent S1 CPU, export the full application program backup via the Resource Configurator, and capture a snapshot of all active I/O module configurations — including NFAI835 analog input modules, NFDO835 digital output modules, and any NFBI800-series bus interface cards installed in the same rack. This baseline documentation ensures that the replacement CPU can be commissioned to an identical functional state with minimal risk of configuration drift.

Power budget verification is the next critical step. The NFCP502 redundant power supply module or NFCP503 single-channel power supply must be confirmed to have sufficient headroom to support the S2 CPU alongside all co-installed I/O modules. In racks where power loading is near capacity — common in legacy installations where modules have been added incrementally over years of operation — a power audit may reveal the need to upgrade the power supply before proceeding with the CPU swap.

Communication architecture review is equally important. In systems where the NFCP501-W05 S2 serves as the primary controller node in a multi-drop Modbus network, the NFBUS100 serial communication module’s baud rate, parity, and station address settings must be preserved exactly. For Ethernet-connected systems interfacing with upstream CENTUM VP DCS or ProSafe-RS safety controllers via the NFLC100 Ethernet module, IP address assignments and routing table entries should be documented and re-applied post-swap. Any SCADA or HMI systems — including Yokogawa’s FAST/TOOLS or third-party platforms connected via OPC — should be placed in manual override or simulation mode during the cutover window to prevent spurious alarms or control actions.

For installations involving signal isolation between field instruments and the STARDOM rack, NFCP501-W05 S2 retrofits often coincide with inspection of signal isolator modules and surge protection devices installed on the terminal strip. Replacing aging isolators alongside the CPU during a planned maintenance window reduces the probability of a secondary failure shortly after the primary retrofit is complete. Programming cable connections — typically via the front-panel USB or Ethernet port — should be tested with the engineering workstation before the old CPU is removed to confirm software tool compatibility with the S2 hardware revision.

Downtime Control During System Migration

Minimizing unplanned downtime during a STARDOM CPU retrofit requires a disciplined cutover methodology. The recommended approach is a cold-swap procedure executed during a scheduled maintenance window, with all field I/O placed in a safe hold state prior to power-down. Before removing the NFCP501-W05 S1, the operator should confirm that all analog output modules — such as the NFAO835 — are set to their last-value hold or safe-state output, and that all digital output modules are de-energized or latched to their fail-safe positions.

The physical swap of the CPU module takes less than five minutes in a standard STARDOM FCN rack, as the module is secured by a single front-panel latch and connects via the backplane edge connector. After seating the NFCP501-W05 S2, the engineer should power up the rack in diagnostic mode, confirm that the module self-test LED sequence completes without fault indication, and verify that all I/O modules are recognized on the backplane scan. The application program is then downloaded from the engineering workstation, I/O forcing is released, and the system is returned to automatic control — typically within a 30-to-60-minute maintenance window for a well-prepared team.

For processes where even brief interruptions are unacceptable, a parallel commissioning approach can be used: the replacement NFCP501-W05 S2 is pre-configured and program-loaded on a bench rack, then swapped into the live system with the program already resident in flash memory. This approach reduces the in-field commissioning time to under 15 minutes and eliminates the risk of program download errors under time pressure. NINERMAS maintains in-stock inventory of NFCP501-W05 S2 modules with pre-shipment functional testing completed, enabling rapid dispatch to support time-critical retrofit schedules.

Retrofit Support FAQ

Q1: Is the NFCP501-W05 S2 a direct replacement for the NFCP501-W05 S1?
Yes. The S2 generation is designed as a form-fit-function replacement for the S1 CPU module within the STARDOM FCN/FCJ platform. The physical slot footprint, backplane connector pinout, and power supply interface are identical. Application programs developed on S1 hardware are compatible with the S2 CPU, though a firmware version check and program re-validation are recommended as part of standard commissioning practice.

Q2: What pre-shipment testing is performed on the NFCP501-W05 S2?
Every NFCP501-W05 S2 unit dispatched by NINERMAS undergoes full functional verification prior to shipment. This includes power-on self-test confirmation, backplane interface check, communication port validation, and firmware version verification. A test report is available upon request. All units are covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions.

Q3: Can the NFCP501-W05 S2 interface with both CENTUM VP and ProSafe-RS systems?
Yes, subject to the communication module configuration in the STARDOM rack. Integration with CENTUM VP is achieved via the NFLC100 Ethernet communication module using standard OPC-DA or OPC-UA protocols. ProSafe-RS safety system integration follows Yokogawa’s defined safety communication architecture. Customers are advised to confirm their specific system topology with their automation engineer before finalizing the retrofit plan.

Q4: What is NINERMAS’s long-term supply commitment for NFCP501-W05 S2?
NINERMAS maintains a dedicated inventory program for STARDOM FCN/FCJ spare parts, including the NFCP501-W05 S2, to support customers with long-lifecycle automation systems. We provide a 12-month warranty on all supplied modules and offer procurement planning support for customers requiring multi-year spare parts commitments. Contact our team at sale@ninermas.com to discuss volume pricing, lead-time guarantees, and long-term supply agreements.
