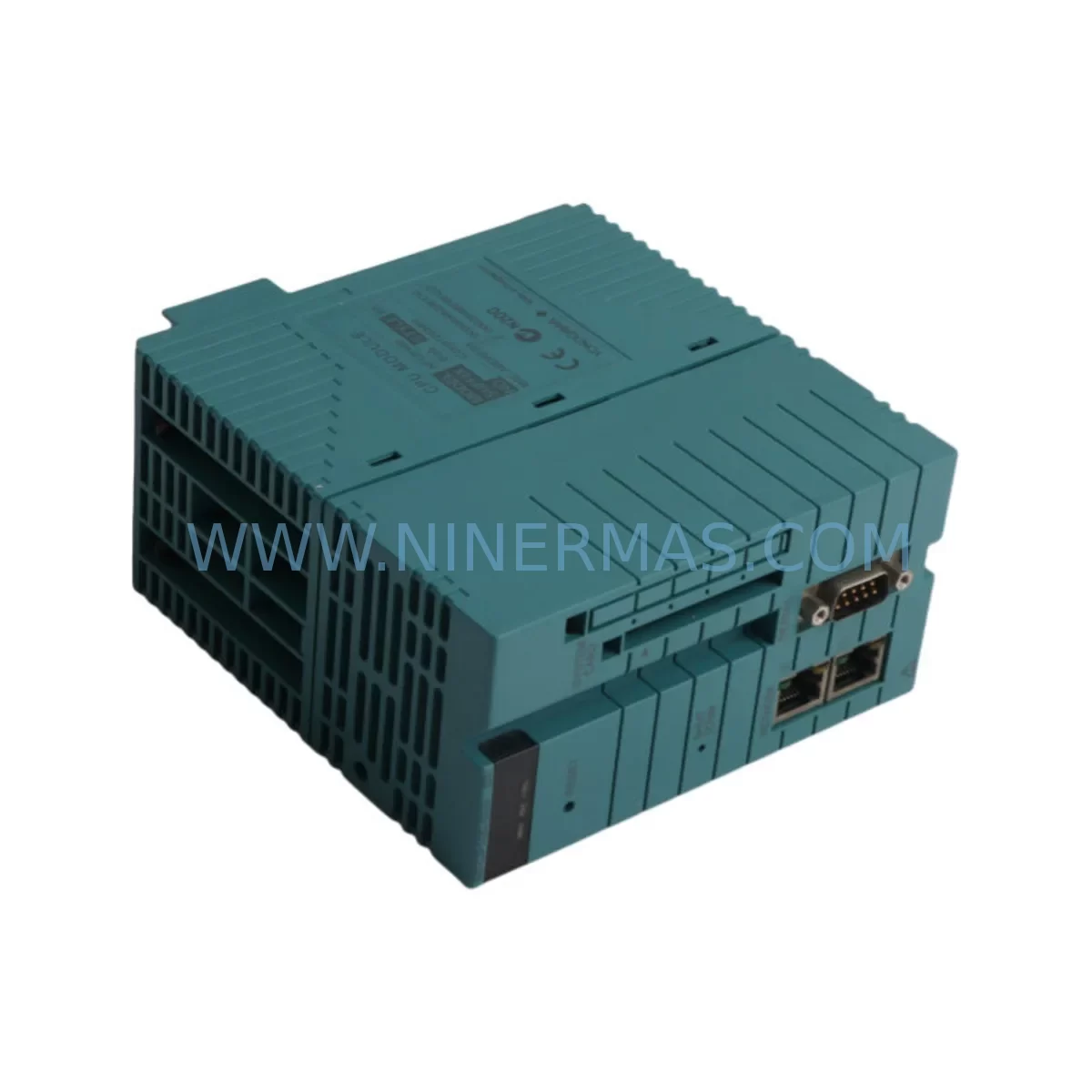

The Yokogawa NFCP100-S00-S3 is an original field control processor (FCP) module designed for the CENTUM VP and CENTUM CS 3000 distributed control system (DCS) platform. As a core processing unit within the field control station (FCS), this module is responsible for executing control logic, managing I/O communication, and maintaining real-time process data exchange across the DCS network. For maintenance engineers and procurement teams operating legacy CENTUM installations, securing a verified, service-ready NFCP100-S00-S3 spare is a critical step in protecting uptime, reducing unplanned shutdown risk, and extending the operational life of existing control infrastructure.

NINERMAS maintains pre-tested inventory of the NFCP100-S00-S3 to support emergency replacement, scheduled annual overhaul, and long-term spare parts stocking programs. Each unit undergoes pre-shipment functional verification and ships with a 12-month warranty, ensuring that maintenance teams can deploy with confidence — even in high-criticality process environments such as refining, petrochemical, power generation, and specialty chemical manufacturing.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the NFCP100-S00-S3 in a live CENTUM VP field control station, a thorough cabinet inspection is essential to prevent repeat failures and ensure system stability after the swap. Maintenance engineers should treat the FCP replacement as an opportunity to audit the entire FCS node — not just the processor module itself.

Begin with the power supply subsystem. The PW482-10 redundant power supply module feeds the FCS backplane; any voltage ripple or aging capacitors in this unit can cause intermittent FCP resets that mimic processor faults. Verify output voltage stability under load before commissioning the replacement NFCP100-S00-S3.

Next, inspect the backplane and bus infrastructure. The ESB2-01 enhanced signal bus module governs I/O communication between the FCP and field I/O modules. A degraded ESB bus can cause data loss or scan cycle overruns that appear as FCP errors. Confirm bus integrity and check for corrosion or loose seating on the backplane connectors.

On the I/O side, review the analog input modules connected to this FCS node. The AAI143-S00 16-channel analog input module and AIP827 analog input module are common companions in CENTUM VP installations. Verify that all channel calibration data is backed up before the FCP swap, as some firmware versions require re-association of I/O tags after processor replacement.

For digital output circuits, inspect the ADV551-P00 digital output module for contact wear or blown output channels. A failing DO module can generate spurious alarms that are incorrectly attributed to the FCP during fault isolation. Similarly, check the ATA4D-00 terminal assembly for loose wiring, oxidized terminals, or insulation breakdown — especially in high-humidity or high-vibration environments.

Communication integrity is equally important. The CP451-10 and SCP451-11 communication processor modules manage Vnet/IP and serial fieldbus connectivity within the FCS. If the NFCP100-S00-S3 failure was preceded by communication timeouts or network alarms, these modules should be inspected and their firmware versions verified against the current CENTUM VP release notes.

For multiplexed signal paths, the AMM12C analog multiplexer module and AFV30D field communication module may also require attention, particularly in installations where signal isolation or fieldbus segment health has not been audited in the past 12–18 months. Proactive replacement of aging signal isolators and fuse blocks in the same cabinet during the FCP maintenance window significantly reduces the probability of a secondary failure within the next maintenance cycle.

Procurement engineers should consider stocking a minimum of one spare NFCP100-S00-S3 per FCS node cluster, alongside matched spares for the PW482-10 power supply and ESB2-01 bus module, to support a complete FCS node recovery within a single maintenance shift.

Site Replacement Workflow

Step 1 — Pre-replacement preparation: Back up the FCS configuration database using CENTUM VP Engineering Environment (ENG). Export all tag assignments, control drawings, and I/O mapping files. Confirm the replacement NFCP100-S00-S3 firmware version matches the existing FCS node or is within the supported upgrade path per Yokogawa TI documentation.

Step 2 — Safe isolation: Place the affected FCS node in manual control mode via the HIS (Human Interface Station) operator console. Notify process operators and confirm all critical loops are in manual or have been handed off to redundant FCS nodes where available. De-energize the FCS node following site lockout/tagout (LOTO) procedures.

Step 3 — Module swap: Remove the faulty NFCP100-S00-S3 from the backplane slot. Inspect the slot connector for bent pins or contamination. Insert the replacement module firmly until the locking tabs engage. Restore power and observe the module status LEDs — the RUN indicator should illuminate within 60–90 seconds of a successful boot sequence.

Step 4 — Configuration restore and verification: Using CENTUM VP ENG, download the backed-up FCS configuration to the replacement processor. Perform a full I/O check across all connected AAI, ADV, and AIP modules. Verify communication status on the Vnet/IP network and confirm all control loops return to AUTO mode with correct PV readings.

Step 5 — Return to service: Document the replacement in the site maintenance log, including the serial number of the removed module, the replacement unit serial number, firmware version, and test results. Retain the removed NFCP100-S00-S3 for failure analysis or return to NINERMAS for evaluation under the 12-month warranty policy if applicable.

Spare Parts Support FAQ

Q1: Is the NFCP100-S00-S3 compatible with both CENTUM VP and CENTUM CS 3000 systems?
The NFCP100-S00-S3 is designed for the CENTUM VP platform. Compatibility with CENTUM CS 3000 depends on the specific revision and firmware version of the target FCS node. NINERMAS recommends confirming the target system’s software release and FCS hardware generation before ordering. Our technical team can assist with compatibility verification based on your system’s engineering documentation.

Q2: What pre-shipment testing is performed on each NFCP100-S00-S3 unit?
Each unit in NINERMAS inventory undergoes power-on functional verification, communication interface testing, and visual inspection for physical damage or component aging before shipment. Units that do not pass all test criteria are quarantined and not offered for sale. A test report summary is available upon request for critical procurement applications.

Q3: How should we structure our spare parts inventory strategy for CENTUM VP FCP modules?
For sites operating three or more FCS nodes, industry best practice recommends maintaining at least one NFCP100-S00-S3 spare per node cluster in on-site storage, with a secondary reserve held at a regional warehouse or with a trusted supplier such as NINERMAS. Given that Yokogawa has transitioned CENTUM CS 3000 to end-of-life status, long-term supply availability for original FCP modules is finite. Early procurement and reserved inventory agreements are strongly advised for sites planning to operate beyond 2027.

Q4: What does the 12-month warranty cover, and what is the return process?
The NINERMAS 12-month warranty covers functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, contact NINERMAS at sale@ninermas.com with the order reference, unit serial number, and a description of the failure symptom. Our team will arrange return logistics and provide a replacement or credit within the agreed service timeline.
