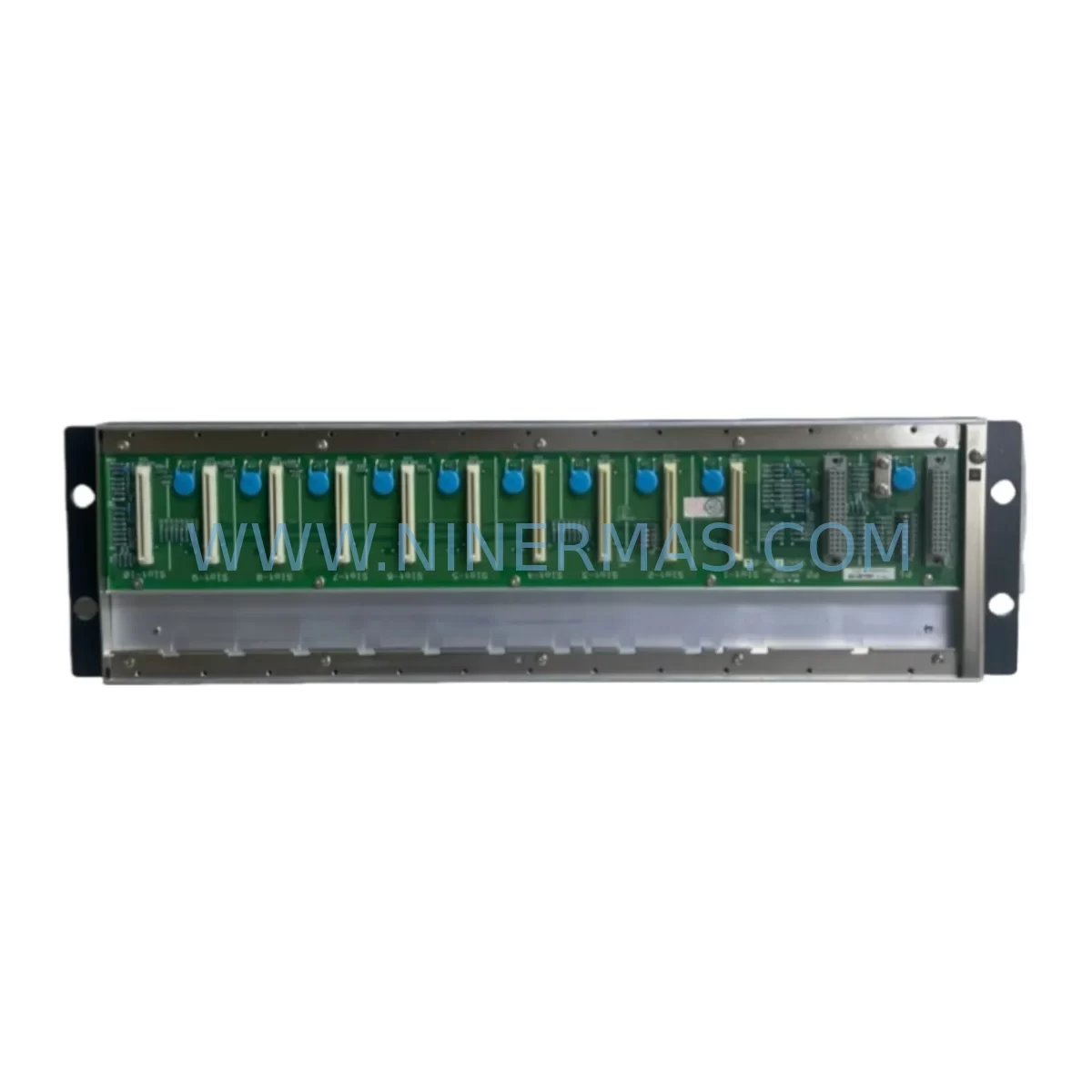

YOKOGAWA NFBU200-S00 Retrofit-Compatible Bus Unit for Legacy Systems

YOKOGAWA NFBU200-S00 Retrofit-Compatible Bus Unit for Legacy Systems

The YOKOGAWA NFBU200-S00 is a bus unit module designed for integration within YOKOGAWA’s STARDOM and CENTUM distributed control system platforms. As legacy automation infrastructure ages and original spare parts become increasingly difficult to source, the NFBU200-S00 serves as a critical retrofit-compatible replacement for facilities operating aging control cabinets, field control stations, and multi-drop communication backbones. NINERMAS maintains verified stock of the NFBU200-S00 to support unplanned maintenance events, planned turnaround upgrades, and long-term spare parts programs across processing industries including oil and gas, petrochemical, power generation, and water treatment.

When replacing a bus unit in a live STARDOM or CENTUM environment, engineers must confirm several key parameters before committing to a swap. Power supply capacity within the control cabinet must be verified against the module’s rated consumption. Terminal wiring assignments on the existing backplane must be documented and cross-referenced with the NFBU200-S00 pinout to avoid signal mismatches during reinstatement. Backplane interface compatibility — particularly slot addressing and bus protocol version — must be validated against the host controller firmware revision. Where the NFBU200-S00 interfaces with an FCN or FCJ autonomous controller, module address configuration must be confirmed prior to insertion to prevent address conflicts on the field network segment.

Program logic compatibility is a frequent concern during bus unit replacement. In CENTUM VP and CENTUM CS 3000 environments, the function block assignments tied to the bus unit’s I/O mapping must remain intact across the swap. Operators should verify that HMI faceplates referencing tags routed through the NFBU200-S00 continue to resolve correctly after the replacement module is commissioned. Communication link integrity — particularly for Vnet/IP or RS-485 multi-drop segments — should be confirmed using loop-back diagnostics before returning the loop to automatic control.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful NFBU200-S00 retrofit begins well before the module arrives on site. Maintenance teams should audit the existing control cabinet layout to confirm available rack space and verify that the host backplane — typically a YOKOGAWA NFBU-series or equivalent rack assembly — is mechanically and electrically compatible with the replacement unit. In multi-rack STARDOM configurations, the bus unit’s role in daisy-chaining I/O expansion modules such as the NFAI141-S00 analog input module or the NFDO141-S00 digital output module must be mapped out to ensure signal continuity across the entire I/O chain.

Power distribution within the cabinet is a common bottleneck during retrofit projects. The NFBU200-S00 draws regulated DC power from the cabinet power supply — often a YOKOGAWA NFPS100-S00 or equivalent redundant power unit. Engineers should confirm that the existing power supply has sufficient headroom to support the replacement module alongside co-installed units such as communication modules, signal isolators, and any newly added I/O cards. Where power margins are tight, a supplementary power module may need to be provisioned as part of the retrofit bill of materials.

Communication protocol migration is increasingly relevant in sites transitioning from legacy serial fieldbus architectures to Ethernet-based control networks. The NFBU200-S00 supports the bus communication layer that underpins field device connectivity in STARDOM-based systems. Where a site is simultaneously migrating from RS-485 multi-drop to Vnet/IP, the bus unit replacement should be coordinated with updates to the FCN autonomous controller firmware and any associated YOKOGAWA NFCP100-S00 communication processor modules. HMI systems — whether running YOKOGAWA’s FAST/TOOLS SCADA platform or a third-party supervisory layer — must be reconfigured to reflect any tag address changes introduced during the migration.

For sites managing I/O expansion across multiple field control stations, the NFBU200-S00 replacement must account for module addressing on the internal bus. Address switches or firmware-configured node IDs must be set to match the original module’s assignment before the unit is powered on. Failure to replicate the original address configuration is a leading cause of post-replacement communication faults in STARDOM multi-drop topologies. Where the original address settings are undocumented, NINERMAS recommends a staged commissioning approach: bring the replacement module online in a test slot, verify bus enumeration, then migrate to the production slot during a controlled maintenance window.

Signal isolation requirements should also be reviewed during retrofit planning. In mixed-signal cabinets where the NFBU200-S00 sits adjacent to high-voltage switching gear or variable frequency drives, signal isolators on analog input channels connected downstream of the bus unit may need to be inspected or replaced. Galvanic isolation between field wiring and the control bus is essential for protecting the NFBU200-S00 and co-installed modules such as the NFAI141-S00 from induced noise and ground loop interference.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any bus unit replacement project. NINERMAS recommends a structured pre-swap checklist that includes: exporting the current controller configuration from the FCN or FCJ unit using YOKOGAWA’s Resource Configurator tool; capturing a full backup of the CENTUM VP or CS 3000 project database; and photographing all terminal wiring on the existing bus unit before disconnection. These steps protect the original program logic and wiring topology, enabling rapid restoration if the replacement module requires additional configuration.

Where process continuity is critical — such as in continuous chemical reactors or power generation control loops — a hot-standby or redundant control path should be confirmed as active before the primary bus unit is taken offline. In CENTUM VP dual-redundant configurations, the standby controller should be verified as synchronized and ready to assume control before the primary bus unit is isolated. This approach limits the control gap to the physical swap and power-on sequence, typically under 15 minutes for a prepared maintenance team.

Post-replacement commissioning should follow a structured loop-check sequence: verify bus communication link status on the FCN diagnostic display; confirm I/O module enumeration on the downstream rack; validate analog input and output signal levels against field instrument readings; and perform a functional test of all interlocks and control loops routed through the replaced bus unit before returning the system to automatic mode. NINERMAS provides pre-shipment test documentation for each NFBU200-S00 unit to support site acceptance testing and reduce commissioning time.

Retrofit Support FAQ

Q1: Is the NFBU200-S00 a direct drop-in replacement for the original YOKOGAWA bus unit in STARDOM FCN systems?
A: The NFBU200-S00 is designed as a retrofit-compatible replacement for the original YOKOGAWA STARDOM bus unit. Physical dimensions, backplane connector pinout, and bus protocol are consistent with the original specification. Customers should confirm firmware revision compatibility with their FCN controller version prior to installation. NINERMAS can provide compatibility guidance based on your system’s hardware revision.

Q2: What pre-shipment testing is performed on the NFBU200-S00 before dispatch?
A: Each NFBU200-S00 unit supplied by NINERMAS undergoes functional verification prior to shipment, including power-on self-test, bus communication enumeration, and I/O channel continuity checks where applicable. Test records are available upon request and can be included with the shipment documentation to support site acceptance testing.

Q3: How should terminal wiring be managed when replacing the NFBU200-S00 in an existing control cabinet?
A: Before disconnecting the existing unit, photograph all terminal connections and cross-reference with the original wiring schedule. The NFBU200-S00 terminal layout follows the standard YOKOGAWA STARDOM bus unit specification. Any deviations in field wiring — particularly on analog signal channels — should be identified and corrected before the replacement unit is powered on. NINERMAS recommends engaging a qualified YOKOGAWA system integrator for first-time replacements in critical process environments.

Q4: What warranty and inventory support does NINERMAS provide for the NFBU200-S00?
A: NINERMAS provides a 12-month warranty from the date of shipment on all NFBU200-S00 units. Warranty coverage includes functional failure under normal operating conditions. NINERMAS maintains ongoing inventory of the NFBU200-S00 to support both emergency replacement orders and long-term spare parts programs. Contact our team to discuss volume pricing, reserved stock arrangements, and lead time commitments for planned maintenance schedules.
