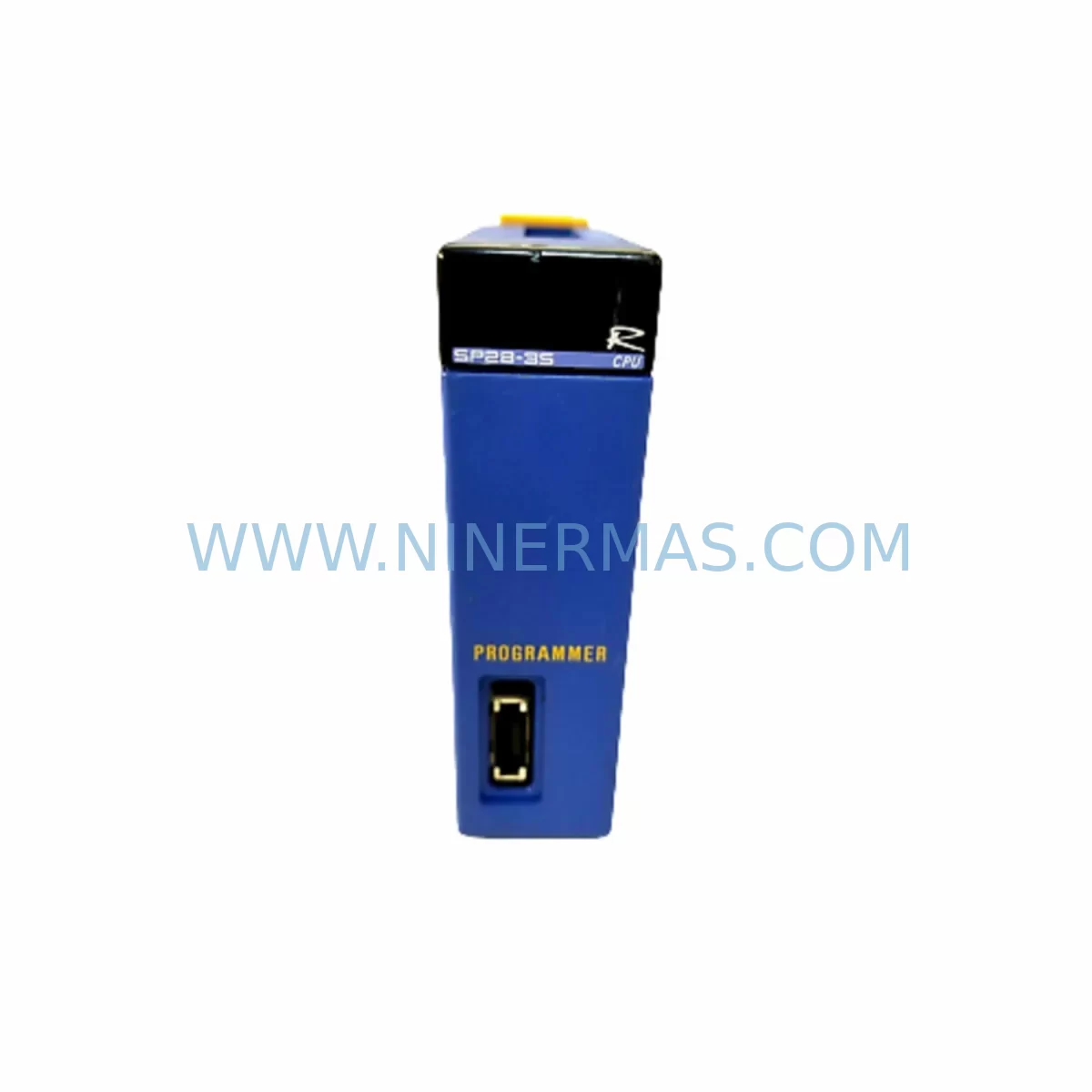

The YOKOGAWA F3SP28-3S is a sequence CPU module designed for the FA-M3 programmable controller platform — one of YOKOGAWA’s most widely deployed automation architectures in process manufacturing, utilities, and discrete production environments. For maintenance engineers managing aging FA-M3 systems, the F3SP28-3S represents a critical spare that directly governs program execution, I/O scan cycles, and inter-module communication across the control cabinet. Sourcing a verified, service-ready replacement is essential to minimizing unplanned downtime and restoring production continuity with confidence.

At NINERMAS, every F3SP28-3S unit is sourced from authorized supply channels, individually tested against YOKOGAWA’s original electrical and functional specifications, and shipped with a 12-month warranty. Whether you are responding to an emergency CPU fault, building a preventive spare parts inventory, or executing a planned annual overhaul, this module is available for immediate dispatch to support your maintenance timeline.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a CPU fault is detected on the F3SP28-3S, the failure rarely occurs in isolation. A thorough site inspection should extend to the entire FA-M3 control cabinet to prevent secondary failures and ensure a stable return to operation. Maintenance engineers should begin by verifying the FA-M3 power supply module — typically an F3PU□□ series unit — since CPU instability is frequently caused by voltage ripple or insufficient current capacity rather than a defective CPU itself. Confirm that the backplane bus voltage is within specification before inserting the replacement module.

Next, inspect the I/O modules installed in adjacent slots. Digital input modules such as the F3XD□□ series and digital output modules such as the F3YD□□ series should be checked for blown fuses, damaged terminal blocks, and correct wiring continuity. Analog I/O modules — including F3AD□□ input and F3DA□□ output types — should be verified for signal integrity, particularly in process control loops where a CPU restart may cause transient output spikes that affect downstream instrumentation.

Communication modules are another critical checkpoint. If the FA-M3 system uses YOKOGAWA’s F3LE□□ Ethernet communication module or an F3LC□□ link module for inter-controller data exchange, confirm that network parameters and station addresses are correctly retained after the CPU swap. In systems integrated with YOKOGAWA CENTUM VP or ProSafe-RS safety controllers, re-establishing communication links after a CPU replacement requires careful parameter verification to avoid process upsets.

For cabinets that include relay output modules or external relay panels, inspect coil drive circuits and contact wear on any intermediate relays connected to the F3YR□□ relay output modules. Signal isolators installed between the FA-M3 I/O and field instruments should also be tested to confirm that 4–20 mA loops are intact and that isolation barriers have not been compromised by the fault event that caused the CPU failure.

Procurement engineers building long-term spare parts inventories for FA-M3 systems should consider stocking the F3SP28-3S alongside complementary modules: at minimum, one power supply module, one digital I/O module pair, and one communication module per system. This multi-layer inventory strategy significantly reduces mean time to repair (MTTR) and protects against supply chain disruptions for discontinued or long-lead-time YOKOGAWA components.

Site Replacement Workflow

Step 1 — Pre-Replacement Preparation: Back up the existing CPU program using YOKOGAWA’s WideField3 programming software via the RS-232C or Ethernet port before powering down. Confirm the backup file integrity and document the current I/O configuration, communication parameters, and module slot assignments.

Step 2 — Safe Shutdown: Follow your site’s lockout/tagout (LOTO) procedure. Power down the FA-M3 base unit via the system power supply. Verify that all output modules are de-energized and that field devices are in a safe state before proceeding.

Step 3 — Module Removal: Release the F3SP28-3S from its slot by pressing the module ejector levers. Handle the module by its edges to avoid ESD damage. Inspect the backplane connector for bent pins or contamination before inserting the replacement unit.

Step 4 — Replacement Installation: Insert the new F3SP28-3S into the CPU slot, ensuring full engagement with the backplane connector. Secure the module locking tabs. Restore power and confirm that the module’s RUN/ERR indicators respond correctly during the self-diagnostic sequence.

Step 5 — Program Restore and Verification: Download the backed-up program to the new CPU using WideField3. Verify I/O assignments, communication link status, and analog loop integrity. Conduct a controlled test run before returning the system to full production mode.

Step 6 — Documentation: Record the replacement date, new module serial number, and post-replacement test results in your maintenance log. Update your spare parts inventory to reflect the consumed unit and initiate a replenishment order to maintain buffer stock.

Spare Parts Support FAQ

Q1: Is the F3SP28-3S compatible with all FA-M3 base units?
The F3SP28-3S is designed for use with YOKOGAWA FA-M3 standard base units. Compatibility depends on the specific base unit model and firmware revision. We recommend confirming your base unit model number — such as F3BU□□ series — before ordering. Our technical team can assist with compatibility verification prior to shipment.

Q2: How is the F3SP28-3S tested before shipment?
Every unit undergoes functional testing against YOKOGAWA’s original electrical specifications, including power-on self-diagnostics, memory integrity checks, and communication port verification. Units that do not pass all test criteria are not shipped. A test report is available upon request.

Q3: What is the warranty coverage and what does it include?
All F3SP28-3S units supplied by NINERMAS carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage, or environmental conditions outside the specified range. Warranty claims are processed with priority to minimize your downtime.

Q4: Can NINERMAS support long-term supply for FA-M3 spare parts programs?
Yes. NINERMAS specializes in long-lifecycle spare parts supply for industrial automation systems, including discontinued and hard-to-source YOKOGAWA FA-M3 components. We support annual procurement planning, consignment stock arrangements, and multi-year supply agreements for maintenance teams managing legacy FA-M3 installations. Contact our team to discuss a tailored spare parts program for your facility.
