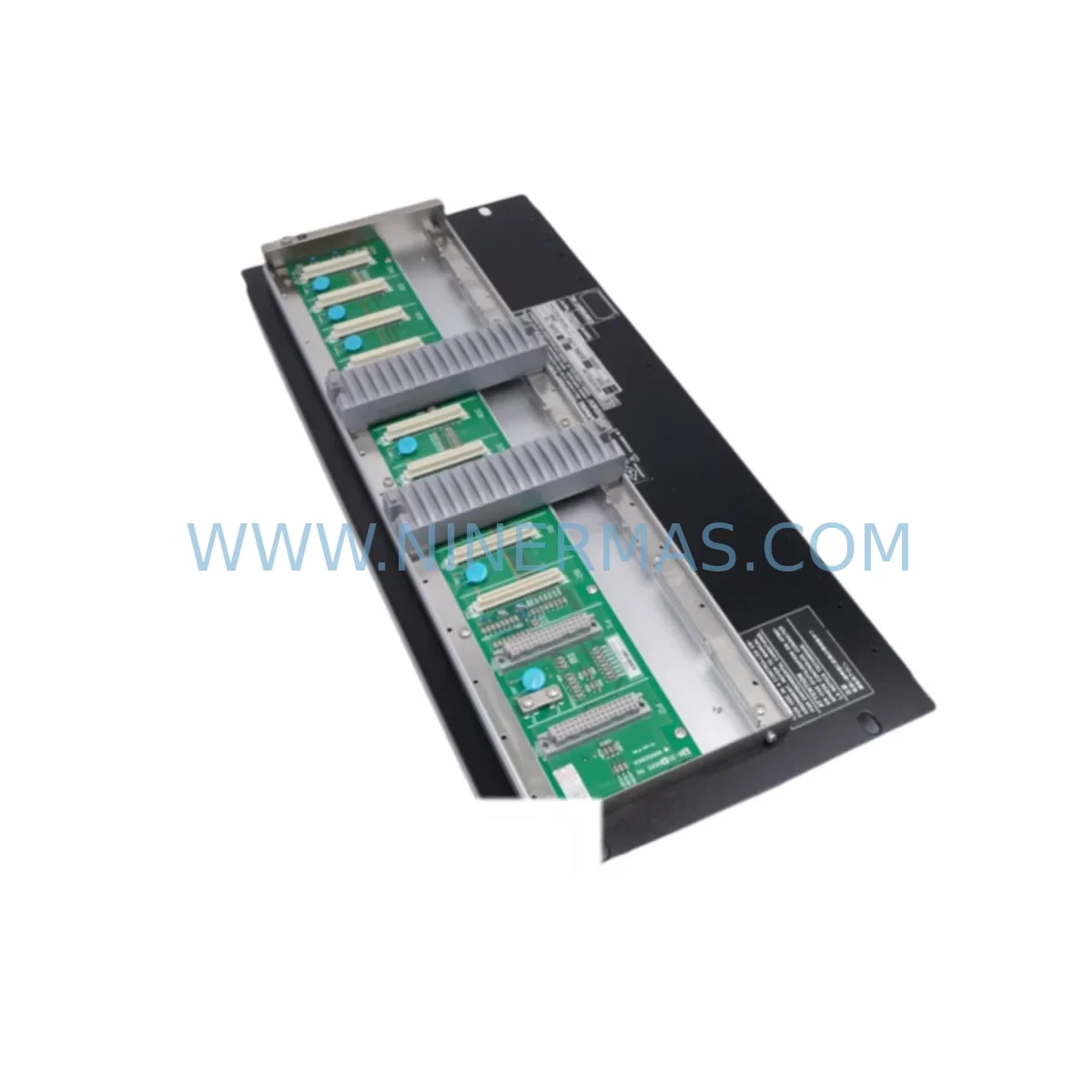

Yokogawa ANB10D-421 Retrofit-Compatible Network Bus Module

Yokogawa ANB10D-421 Retrofit-Compatible Network Bus Module for Legacy CENTUM VP & CS 3000 Systems

The Yokogawa ANB10D-421 is a network bus communication module originally designed for the CENTUM VP and CS 3000 distributed control system (DCS) platforms. As these systems age into their second and third decades of operation, procurement teams and maintenance engineers across the oil & gas, petrochemical, power generation, and pulp & paper industries face increasing pressure to source verified, retrofit-compatible spare parts that can be installed without triggering a full system migration. NINERMAS supplies the ANB10D-421 as a tested, ready-to-deploy replacement module backed by a 12-month warranty and rapid international shipping.

The ANB10D-421 serves as the communication backbone between field control stations (FCS), engineering workstations (EWS), and operator interface nodes within the Vnet/IP and legacy V-net bus architecture. When this module fails or reaches end-of-life, the entire control loop communication path is at risk. Sourcing a verified retrofit-compatible unit — rather than attempting a full platform upgrade — is the most cost-effective and operationally safe approach for facilities running continuous or semi-continuous processes where unplanned downtime carries significant financial and safety consequences.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful ANB10D-421 replacement begins well before the module arrives on site. Maintenance planners should first audit the FCU rack configuration to confirm the exact slot position, adjacent module types, and backplane revision. In a typical CENTUM VP field control station, the ANB10D-421 occupies a dedicated communication slot alongside I/O modules such as the AAI141-S (analog input, 16-channel, HART-compatible) and AAI543-H (analog output), as well as digital I/O modules like the ADV151-P and ADV551-P. These I/O modules continue operating normally during the network bus module swap, provided the FCS is placed in a controlled hold state rather than a full shutdown.

Power supply integrity is a critical pre-check. The FCU relies on redundant power modules — typically the PWR48-10 or PWR48-11 — to maintain backplane voltage during the swap window. Engineers should verify that both power rails are within specification and that the UPS feeding the control cabinet has sufficient runtime to cover the planned maintenance window. A degraded power module discovered during the swap can extend downtime significantly.

For sites running dual-redundant FCS configurations, the ANB10D-421 replacement can often be performed on the standby FCS first, with a controlled switchover before the primary unit is serviced. This approach, supported by the CENTUM VP redundancy architecture, can reduce effective process impact to near zero. The ESB10D (Ethernet switch blade) and associated Vnet/IP network switches should be inspected at the same time, as aging network infrastructure is a common secondary failure point in legacy DCS environments.

Where the control system interfaces with a Modbus RTU or FOUNDATION Fieldbus H1 segment via a gateway module such as the ALF111 (FF-H1 interface module) or an external protocol converter, engineers must confirm that the communication link re-establishes correctly after the ANB10D-421 is restored to service. The FCS domain controller will automatically re-synchronize Vnet/IP node tables upon module restart, but field device communication should be verified loop-by-loop using the CENTUM VP test function or a portable HART communicator.

HMI continuity is another key consideration. Operator stations running CENTUM VP HIS (Human Interface Station) software will display a communication alarm during the swap window. Pre-briefing the control room team and placing affected loops in manual or cascade-hold mode prevents spurious trips. After the ANB10D-421 is reinstalled and the FCS returns to online status, HMI faceplates, trend histories, and alarm setpoints are fully restored without any reconfiguration — a significant advantage of like-for-like module replacement over platform migration.

For facilities considering a broader upgrade path, the ANB10D-421 replacement is often the first step in a phased modernization that may eventually include migration to CENTUM VP R6 or the newer CENTUM VP LS platform. During this planning phase, components such as the BCV0103 (Vnet/IP bus coupler), the SCP451 (sequence control processor), and the FCU05D (field control unit chassis) are commonly evaluated for remaining service life alongside the network bus module.

Downtime Control During System Migration

Minimizing process interruption during an ANB10D-421 swap requires a structured approach to change management. The recommended sequence is: (1) notify the control room and place all FCS-controlled loops in manual or hold; (2) initiate a controlled FCS shutdown via the CENTUM VP engineering workstation, saving the current control database to the EWS hard drive as a backup; (3) physically remove the failed ANB10D-421, noting the rotary address switch position; (4) install the replacement module with the address switch set identically; (5) power up the FCS and confirm Vnet/IP node registration on the domain controller; (6) verify all I/O module communication status in the FCS diagnostic screen; (7) return loops to automatic control in a staged sequence, starting with non-critical utilities before process-critical loops.

This sequence typically achieves a total controlled outage window of 45–90 minutes for a single FCS, depending on the number of I/O modules and the complexity of the loop restoration sequence. Pre-staging the replacement ANB10D-421 on site — with address switch pre-set and test report reviewed — is the single most effective way to compress this window. NINERMAS ships all modules with address switch positions documented and pre-shipment test results included, enabling engineers to complete pre-installation checks before the maintenance window opens.

For sites where even a 45-minute outage is unacceptable, a parallel hot-standby FCS configuration should be evaluated as part of the broader system modernization plan. In this architecture, the ANB10D-421 in the standby FCS can be replaced during normal operation, with a bumpless switchover performed before the primary FCS is taken offline.

Retrofit Support FAQ

Q: Is the ANB10D-421 a direct drop-in replacement for the original Yokogawa module?
A: Yes. The ANB10D-421 supplied by NINERMAS is a verified retrofit-compatible unit that matches the original form factor, backplane connector, and Vnet/IP communication specification. No hardware modification or software re-licensing is required for a like-for-like replacement in CENTUM VP or CS 3000 systems.

Q: What pre-shipment testing is performed on each ANB10D-421?
A: Every unit undergoes a full functional test covering power-up self-diagnostics, Vnet/IP communication initialization, and backplane interface verification before dispatch. A test report is available on request and can be provided to your site QA team prior to installation.

Q: How do I confirm the correct module address setting before installation?
A: The module address is set via a rotary switch on the front face of the ANB10D-421. Before removing the failed unit, photograph or record the switch position. The replacement module must be set to the identical address before installation. NINERMAS can pre-configure the address switch to your specification if you provide the setting at time of order.

Q: What is the warranty coverage and what does it include?
A: All ANB10D-421 modules supplied by NINERMAS carry a 12-month warranty from the date of delivery. The warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or physical impact. Warranty claims are processed directly with NINERMAS — contact sale@ninermas.com for support.
