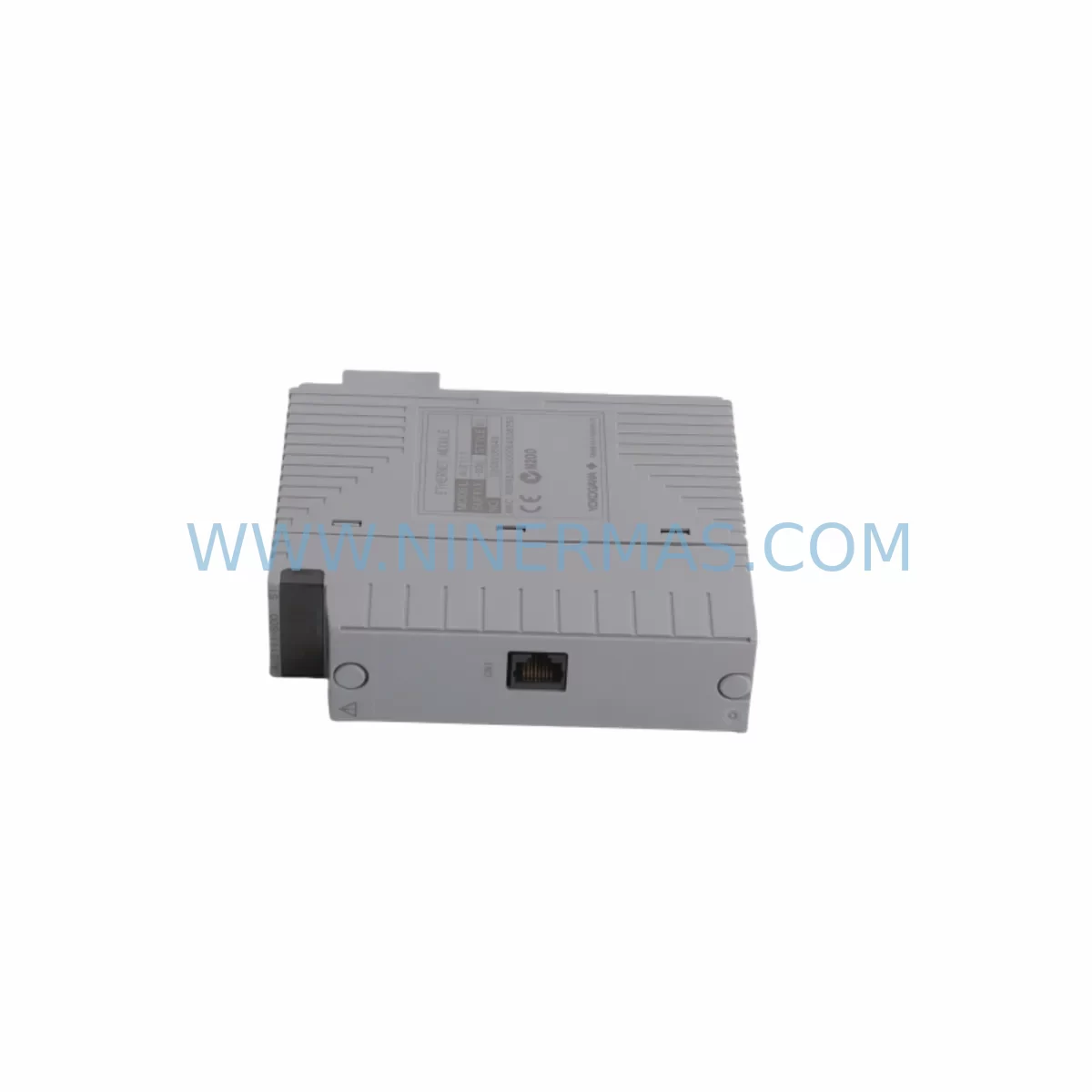

Yokogawa ALE111-S00-S1 Retrofit Analog Input Terminal

Yokogawa ALE111-S00-S1 Retrofit Analog Input Terminal: Seamless Upgrade for Legacy Centum VP and CS3000 Systems

The Yokogawa ALE111-S00-S1 is an analog input terminal board engineered for use within the CENTUM VP and CS3000 Distributed Control System (DCS) platforms. As industrial facilities worldwide face the challenge of maintaining aging control infrastructure, the ALE111-S00-S1 has become a critical spare part for plants operating legacy Yokogawa DCS architectures. Whether you are executing a planned shutdown replacement, responding to an unplanned module failure, or undertaking a phased control system modernization, this terminal board provides a verified retrofit-compatible solution that preserves your existing wiring topology and minimizes engineering rework.

Designed to interface directly with the CENTUM VP field control station, the ALE111-S00-S1 accepts 4–20 mA analog input signals from field transmitters and feeds them into the controller’s I/O processing layer. Its compact form factor and standardized terminal pitch make it a direct mechanical and electrical replacement for end-of-life units in the same module slot, eliminating the need for panel modifications or new cable runs in most retrofit scenarios.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the ALE111-S00-S1 into an existing CENTUM VP or CS3000 system requires a structured pre-installation review. Before removing the failed module, engineers should document the current I/O tag assignments using the CENTUM VP Engineering Builder and export the relevant function block definitions. This ensures that the replacement module can be re-commissioned without loss of control logic or alarm setpoints.

In systems where the ALE111-S00-S1 shares a field control station with analog output modules such as the AAI143-S00 or AAI543-S00, it is important to verify that the FCS I/O bus load remains within specification after the swap. Overloaded bus segments can cause intermittent communication faults that are difficult to diagnose during live plant operation. Similarly, if the control station includes multi-point analog input cards like the AIP827, cross-check the channel address assignments to avoid duplication errors in the I/O database.

For plants that are simultaneously upgrading their field junction boxes or marshalling panels, the ATA4D-00 terminal assembly is commonly used alongside the ALE111-S00-S1 to provide a clean, labeled termination point for field cables. This combination simplifies loop testing and reduces the risk of wiring errors during the cutover window. Where the existing installation uses an older ESB-11 node bus coupler, confirm that the coupler firmware is compatible with the replacement module’s communication protocol to avoid node initialization failures at startup.

Power supply integrity is a frequently overlooked aspect of terminal board replacement. The PW482-10 power supply module, commonly deployed in CENTUM VP cabinets, should be inspected for output voltage stability and ripple before the new ALE111-S00-S1 is energized. A degraded power supply can cause the replacement module to report false hardware faults, leading to unnecessary troubleshooting delays. If the cabinet also houses a CP451-10 controller module, verify that the controller’s I/O scan cycle is not adversely affected by the temporary removal of the analog input board during the replacement procedure.

In modernization projects that involve migrating from CS3000 to CENTUM VP, the AFV30D field communication module may be introduced to support FOUNDATION Fieldbus or HART device integration alongside the conventional analog inputs handled by the ALE111-S00-S1. In such hybrid configurations, careful attention must be paid to the I/O module address map to ensure that the new fieldbus devices do not conflict with the existing analog input channels. The ADV551-P00 digital input module, if present in the same station, should also be included in the pre-migration I/O audit to confirm that all discrete signals are correctly mapped in the upgraded system.

Where HMI screens reference the analog input tags associated with the ALE111-S00-S1, the EC401-10 communication interface or equivalent gateway should be checked to confirm that tag name changes or address remapping do not break existing HMI faceplates. Operators should be briefed on any temporary display anomalies that may occur during the module swap window, and a fallback procedure should be documented in case the replacement module requires a firmware update before it can be recognized by the FCS.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing a live analog input terminal board in a running DCS environment. The recommended approach is to schedule the ALE111-S00-S1 replacement during a planned maintenance window, with the affected control loops placed in manual mode and field operators stationed at the relevant process equipment to maintain safe operating conditions during the cutover.

Before the module is removed, the engineering team should capture a full backup of the FCS database, including all function block parameters, tuning constants, and I/O assignments. This backup serves as the recovery baseline if the replacement module requires re-commissioning from scratch. In CENTUM VP systems, the online download function allows the new module to be recognized by the controller without a full FCS restart, significantly reducing the time that control loops must remain in manual mode.

Field loop checks should be performed on all channels of the replacement ALE111-S00-S1 before the loops are returned to automatic control. Each 4–20 mA input should be verified against the corresponding field transmitter output using a calibrated loop calibrator, and the engineering unit conversion in the FCS function block should be confirmed against the original design documentation. Alarm setpoints should be re-verified in the HMI after the module is online to ensure that no setpoint data was lost during the replacement procedure.

For facilities that cannot tolerate any interruption to process measurement, a hot-standby redundancy configuration using a paired analog input module in the same FCS node can be considered as a longer-term engineering solution. However, for the majority of retrofit scenarios involving the ALE111-S00-S1, a well-planned like-for-like replacement executed during a scheduled maintenance window remains the most cost-effective and lowest-risk approach to restoring full DCS functionality.

Retrofit Support FAQ

Q1: Is the ALE111-S00-S1 a direct replacement for the original ALE111 module in my CS3000 system?
A: Yes. The ALE111-S00-S1 is designed as a direct mechanical and electrical replacement for the ALE111 series terminal board used in both CENTUM VP and CS3000 field control stations. No wiring modifications are required in most installations. After installation, re-download the I/O assignment from the Engineering PC to confirm channel recognition by the FCS.

Q2: What pre-shipment testing is performed on the ALE111-S00-S1?
A: Each unit undergoes a functional test prior to shipment, including power-on verification, channel continuity checks, and communication interface validation. A test report is available upon request. The module is covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: How do I confirm wiring compatibility before installing the replacement module?
A: Compare the terminal pitch and channel numbering of the replacement ALE111-S00-S1 against your existing wiring schedule and the original module’s terminal diagram. In most CENTUM VP and CS3000 installations, the field cable terminations can be transferred directly to the replacement module without re-labeling. If your installation uses a marshalling panel with an ATA4D-00 terminal assembly, verify that the cross-wiring between the marshalling panel and the I/O module slot is consistent with the replacement module’s pinout.

Q4: What is the lead time and stock availability for the ALE111-S00-S1?
A: We maintain inventory of the ALE111-S00-S1 to support urgent maintenance requirements. Standard lead time for in-stock units is 3–7 business days for international shipment. For large-quantity orders or long-term spare parts agreements, please contact our sales team to discuss availability and pricing. All units are sourced from verified supply channels and are subject to pre-shipment inspection before dispatch.
