Yokogawa AIP171 Service-Ready Spare Part for Industrial Maintenance

Yokogawa AIP171 Service-Ready Spare Part for Industrial Maintenance

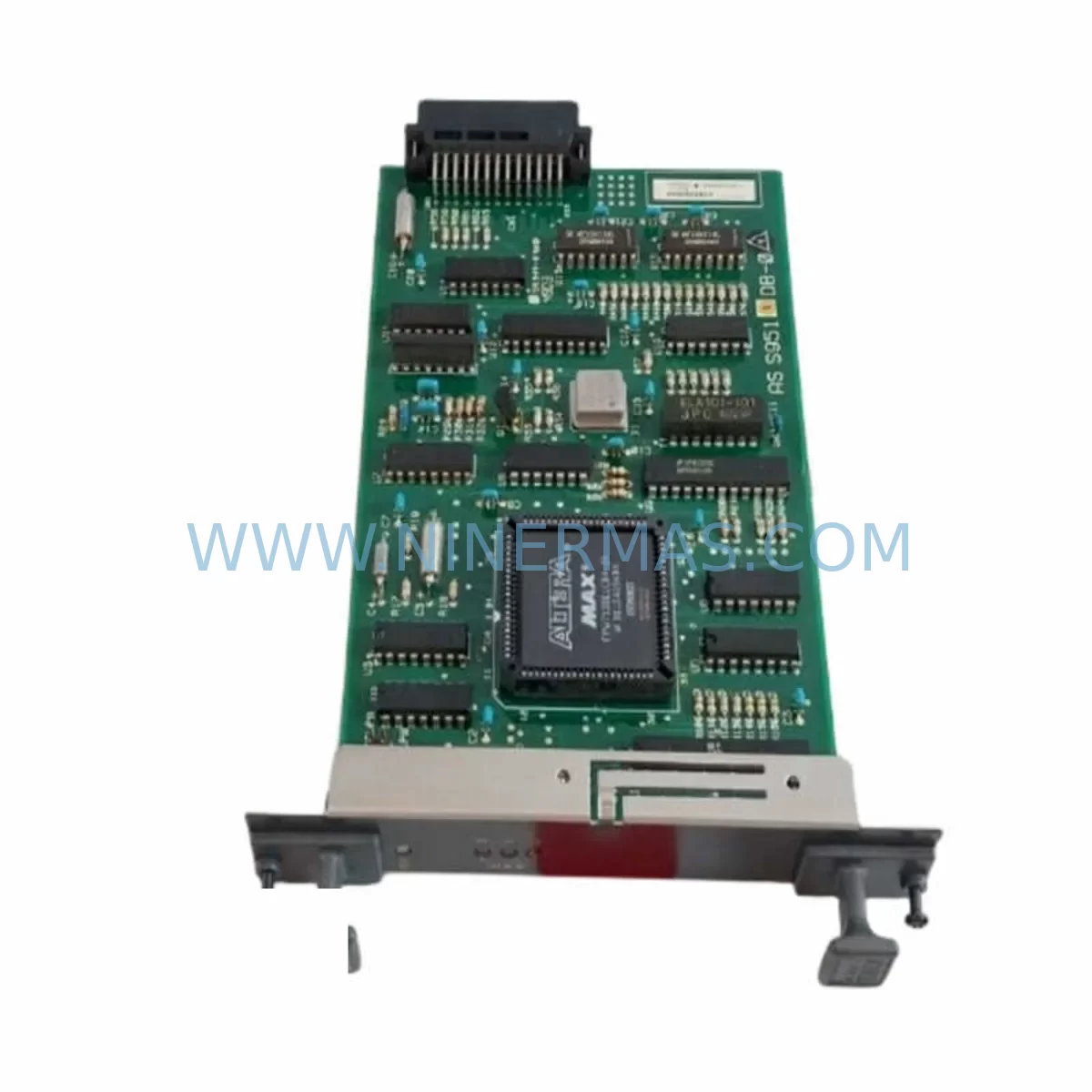

The Yokogawa AIP171 is a ruggedized interface module engineered for reliable operation in harsh industrial environments. Designed for integration within Yokogawa’s CENTUM VP and CS 3000 Distributed Control Systems (DCS), the AIP171 serves as a critical signal interface component between field instrumentation and the process control network. For maintenance engineers managing aging DCS infrastructure in oil & gas, petrochemical, power generation, and chemical processing facilities, maintaining a verified spare of the AIP171 is a fundamental element of any proactive maintenance strategy.

Unplanned downtime caused by interface module failure can cascade rapidly across a control loop, triggering process shutdowns, safety system activations, and costly production losses. The AIP171’s role in signal conditioning and I/O routing means that a failed unit can isolate entire field device clusters from the control system. Sourcing a pre-tested, service-ready replacement in advance — rather than reactively — is the single most effective way to compress mean time to repair (MTTR) and restore normal operations within hours rather than days.

At NINERMAS, every AIP171 unit is sourced through verified industrial supply channels, subjected to pre-shipment functional testing, and dispatched with full documentation. Our 12-month warranty covers operational defects under normal industrial service conditions, giving procurement engineers the confidence to stock this module as a long-term spare without risk of shelf-life obsolescence concerns.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules replacement of the AIP171, the scope of inspection should extend beyond the module itself. The AIP171 interfaces directly with the field control station backplane — meaning the Yokogawa AFV10D or AFV30D field control unit and associated ESB bus coupler modules should be inspected for connector wear, backplane slot integrity, and bus communication errors logged in the CENTUM VP engineering station.

On the field side, the AIP171 connects to marshalling cabinets via terminal blocks and signal cables. During a planned replacement window, engineers should verify the condition of Yokogawa ADM11J or ADM51J analog input modules sharing the same I/O nest, as signal cross-contamination or ground loop issues can originate from adjacent modules rather than the AIP171 itself. Checking Yokogawa AAI141 or AAI543 analog I/O modules in the same field control station is recommended as part of a comprehensive loop integrity check.

Power supply integrity is equally critical. The Yokogawa PW481 or PW482 power supply modules feeding the FCS rack should be load-tested and output voltage verified — undervoltage conditions are a common root cause of intermittent interface module faults that are misdiagnosed as module failure. Redundant power supply configurations should be confirmed as fully operational before the AIP171 replacement is commissioned.

Communication continuity must also be validated. The Yokogawa ACM12 or ACM22 communication modules handling Vnet/IP or ESB network traffic should be checked for packet error rates and link status. If the facility uses Yokogawa YFGW410 or YFGW510 field wireless management stations for WirelessHART device integration, gateway connectivity should be confirmed post-replacement to ensure no field device has been inadvertently isolated.

For facilities running legacy CS 3000 systems alongside CENTUM VP in a hybrid architecture, procurement engineers should also maintain spares for Yokogawa CP451 or CP461 controller modules and associated EB401 ESB bus interface units, as these components share the same maintenance cycle and failure risk profile as the AIP171 in aging installations.

Finally, HMI and historian continuity should be verified: the Yokogawa FAST/TOOLS or Exaquantum historian data acquisition links should be confirmed active after module swap to ensure no process data gaps occur during the maintenance window.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the AIP171 SKU and revision level against the installed unit’s nameplate. Cross-reference with the CENTUM VP hardware compatibility matrix to ensure the replacement module matches the firmware revision of the field control station. Mismatched firmware revisions between the AIP171 and the FCS controller can cause initialization failures — verify this before removing the installed unit.

Step 2 — Safe Isolation: Place the affected control loop in manual mode at the DCS operator station. Notify the operations team and document the loop tag numbers affected. If the AIP171 supports hot-swap in the installed FCS configuration, confirm this capability before proceeding — not all CENTUM VP FCS configurations support online module replacement without a controller restart.

Step 3 — Physical Replacement: Remove the faulty AIP171 using ESD-safe handling procedures. Inspect the backplane connector for bent pins or corrosion. Seat the replacement module firmly and verify the module status LED sequence matches the expected initialization pattern per the Yokogawa hardware manual.

Step 4 — Loop Recommissioning: From the CENTUM VP engineering station, perform a module recognition scan and confirm the AIP171 appears online with correct I/O assignments. Verify analog input/output signal values against field device readings. Return the control loop to automatic mode only after confirming stable process variable readings within expected range.

Step 5 — Documentation: Record the replacement in the site CMMS (e.g., SAP PM or Maximo), update the spare parts inventory, and flag the removed unit for failure analysis if root cause investigation is required. Replenish the AIP171 spare stock immediately to maintain minimum inventory levels.

Spare Parts Support FAQ

Q1: Is the AIP171 compatible with both CENTUM VP and CS 3000 systems?
The AIP171 is primarily associated with Yokogawa’s CENTUM VP and CS 3000 DCS platforms. Compatibility depends on the specific field control station model and firmware revision installed at your site. NINERMAS recommends providing your FCS model number and installed firmware version when ordering to allow our technical team to confirm compatibility before shipment.

Q2: What pre-shipment testing is performed on the AIP171?
Every AIP171 unit dispatched by NINERMAS undergoes functional verification testing prior to shipment. This includes power-on initialization checks, I/O signal path continuity verification, and visual inspection for physical damage. A test report is available on request and can be included with the shipment documentation.

Q3: Can NINERMAS support long-term or scheduled spare parts supply for the AIP171?
Yes. NINERMAS offers long-term spare parts supply agreements for the AIP171 and associated CENTUM VP / CS 3000 components. For facilities with annual maintenance shutdowns or multi-year spare parts programs, we can reserve stock, provide staged delivery schedules, and issue blanket purchase order arrangements. Contact our sales team to discuss your site’s specific requirements.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers operational defects arising under normal industrial service conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or use outside the module’s rated environmental specifications. In the event of a warranty claim, NINERMAS will arrange replacement or repair at no additional cost, subject to failure analysis confirmation.
