YOKOGAWA AFV10D S2 Service-Ready Spare Part for Industrial Maintenance

YOKOGAWA AFV10D S2 Service-Ready Spare Part for Industrial Maintenance

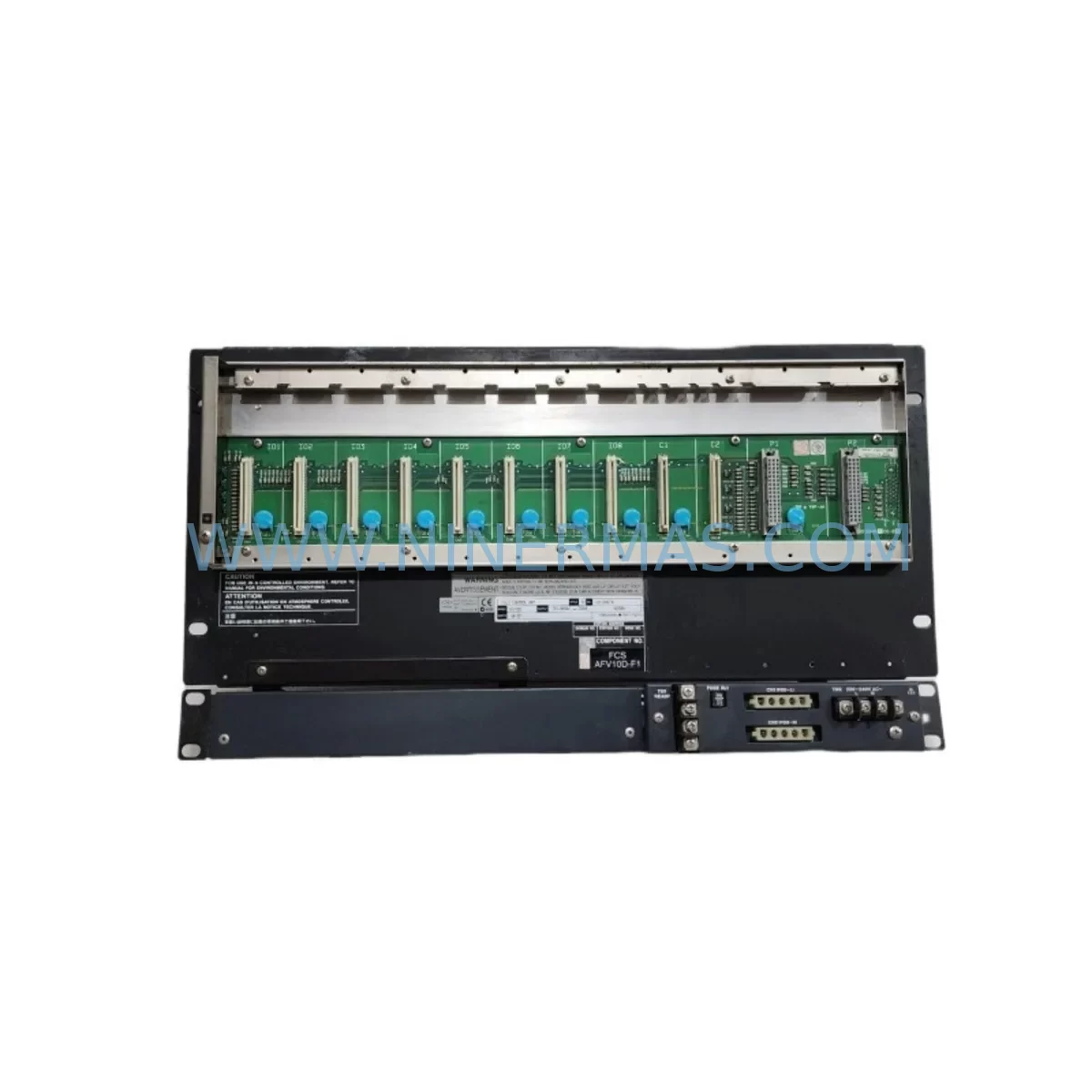

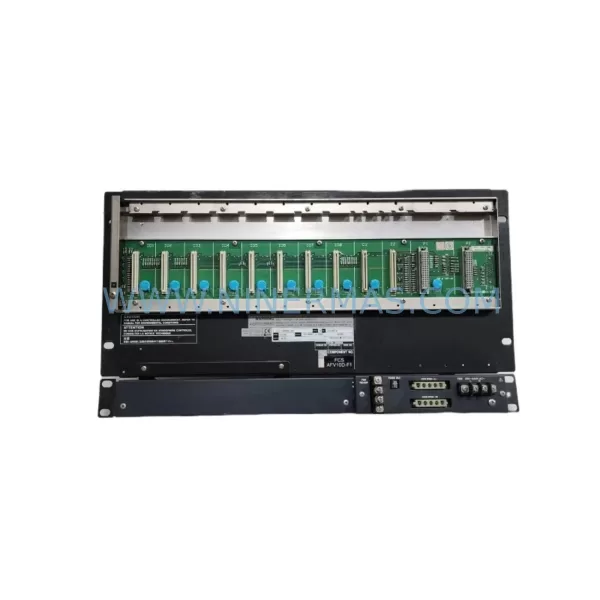

The YOKOGAWA AFV10D S2 is a ruggedized, duplexed field control module engineered for continuous operation in demanding industrial environments. As a critical node within the YOKOGAWA CENTUM VP distributed control system (DCS), this module handles real-time process control, I/O communication, and field device interfacing across a wide range of process industries including oil & gas, petrochemical, power generation, and specialty chemicals. When this module fails or reaches end-of-life, the consequences can be immediate and severe — unplanned downtime, process interruption, and costly production losses.

At NINERMAS, we stock the AFV10D S2 as a verified, service-ready spare part, tested prior to shipment and backed by a 12-month warranty. Whether you are managing a planned annual shutdown, responding to an emergency fault, or building a strategic spare parts inventory for long-term system continuity, the AFV10D S2 we supply is ready for direct installation into your existing CENTUM VP control architecture.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

For maintenance engineers responsible for YOKOGAWA CENTUM VP systems, the AFV10D S2 rarely fails in isolation. When a field control module triggers a fault or redundancy switchover alarm, a thorough site inspection should extend beyond the module itself. The FCU backplane that houses the AFV10D S2 should be inspected for corrosion, connector wear, and secure seating — a degraded backplane can cause intermittent faults that mimic module failure. Similarly, the YOKOGAWA PW481 or equivalent FCU power supply module should be checked for output voltage stability, as undervoltage conditions accelerate module wear and can cause false fault trips.

The Vnet/IP communication network connecting the AFV10D S2 to the YOKOGAWA CENTUM VP HIS (Human Interface Station) and EWS (Engineering Workstation) should be verified for packet loss and latency. Faulty Vnet/IP network switches or degraded fiber patch cables between field control stations can cause the DCS to misreport module health. If your site uses YOKOGAWA ANB10D or ANR10D node interface units, these should also be inspected during any AFV10D S2 replacement event, as they share the same communication bus.

On the I/O side, the YOKOGAWA AAI141 analog input modules and AAI841 analog output modules connected downstream of the AFV10D S2 should be verified for signal integrity. Loose terminal block connections on YOKOGAWA TB series terminal boards are a common source of intermittent I/O faults that are often misattributed to the field control module. Inspect all field wiring terminations and confirm that signal isolators — particularly for thermocouple and RTD inputs — are functioning within specification.

For sites running legacy CENTUM CS 3000 systems being migrated to CENTUM VP, the AFV10D S2 plays a key role in the transition architecture. Procurement engineers should confirm compatibility with the existing FCU chassis generation before ordering. In parallel, it is advisable to stock YOKOGAWA ACF11 communication interface modules and YOKOGAWA AIP588 I/O power supply units as companion spares, since these components share the same service lifecycle and are frequently replaced together during major overhauls.

Relay output modules such as the YOKOGAWA ADV151 digital output module should also be included in any spare parts review triggered by an AFV10D S2 fault event, particularly in applications where the field control module directly supervises discrete output circuits for motor starters, solenoid valves, or emergency shutdown (ESD) systems. Ensuring these downstream components are healthy before reinstating the replaced AFV10D S2 reduces the risk of repeat faults and unnecessary repeat downtime.

Site Replacement Workflow

Step 1 — Fault Confirmation: Before initiating a module swap, confirm the fault via the CENTUM VP HIS alarm summary and system diagnostic screen. Verify that the AFV10D S2 fault is not caused by an upstream power or communication issue. Check the redundant module status — if the standby module has already taken over, the system may still be in controlled operation, allowing a planned rather than emergency replacement.

Step 2 — Spare Verification: Confirm that the replacement AFV10D S2 matches the exact suffix revision (S2) and firmware compatibility level required by your CENTUM VP system version. NINERMAS provides pre-shipment test documentation for each unit. Review the test report before installation.

Step 3 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure for the affected FCU. In duplexed configurations, the faulty module can typically be hot-swapped without shutting down the FCU, but this must be confirmed against your site-specific CENTUM VP engineering documentation and safety procedures.

Step 4 — Module Replacement: Remove the faulty AFV10D S2 by releasing the front panel latch and sliding the module from the backplane. Insert the replacement unit, confirm the backplane connector is fully seated, and secure the latch. The CENTUM VP system will automatically detect the new module and initiate synchronization with the active module.

Step 5 — System Verification: Monitor the HIS diagnostic screen for module synchronization completion. Confirm that all I/O channels associated with the replaced FCU are reporting correctly. Run a loop check on critical analog and digital I/O points before returning the process loop to automatic control.

Step 6 — Documentation: Record the replacement in your CMMS (Computerized Maintenance Management System), including the removed module’s serial number, fault symptom, replacement date, and the new module’s serial number and test report reference. Update your spare parts inventory accordingly.

Spare Parts Support FAQ

Q1: Is the AFV10D S2 compatible with both CENTUM VP and CENTUM CS 3000 systems?
The AFV10D S2 is primarily designed for YOKOGAWA CENTUM VP field control units. Compatibility with CENTUM CS 3000 depends on the specific FCU chassis generation and firmware version in use at your site. NINERMAS recommends providing your FCU model number and CENTUM VP system version when placing an order so we can confirm compatibility before shipment.

Q2: What does the 12-month warranty cover, and what is the claims process?
Our 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each unit is tested prior to dispatch and shipped with a test report. In the event of a warranty claim, contact sale@ninermas.com with the order reference, fault description, and site installation details. We will arrange a replacement or repair within the agreed lead time.

Q3: How should the AFV10D S2 be stored as a long-term inventory spare?
Store the module in its original anti-static packaging in a climate-controlled environment: temperature 10°C to 30°C, relative humidity below 70% non-condensing. Avoid storage near strong electromagnetic fields or corrosive atmospheres. Inspect stored units annually and rotate stock on a first-in, first-out basis. NINERMAS can supply units in sealed, long-term storage packaging on request.

Q4: Can NINERMAS support long-term or repeat supply of the AFV10D S2?
Yes. NINERMAS maintains ongoing sourcing relationships for YOKOGAWA CENTUM VP spare parts, including the AFV10D S2. We support blanket purchase orders, scheduled delivery programs, and emergency expedite requests. For sites managing multiple FCUs or planning a multi-year maintenance contract, contact our team to discuss volume pricing and guaranteed availability agreements.
