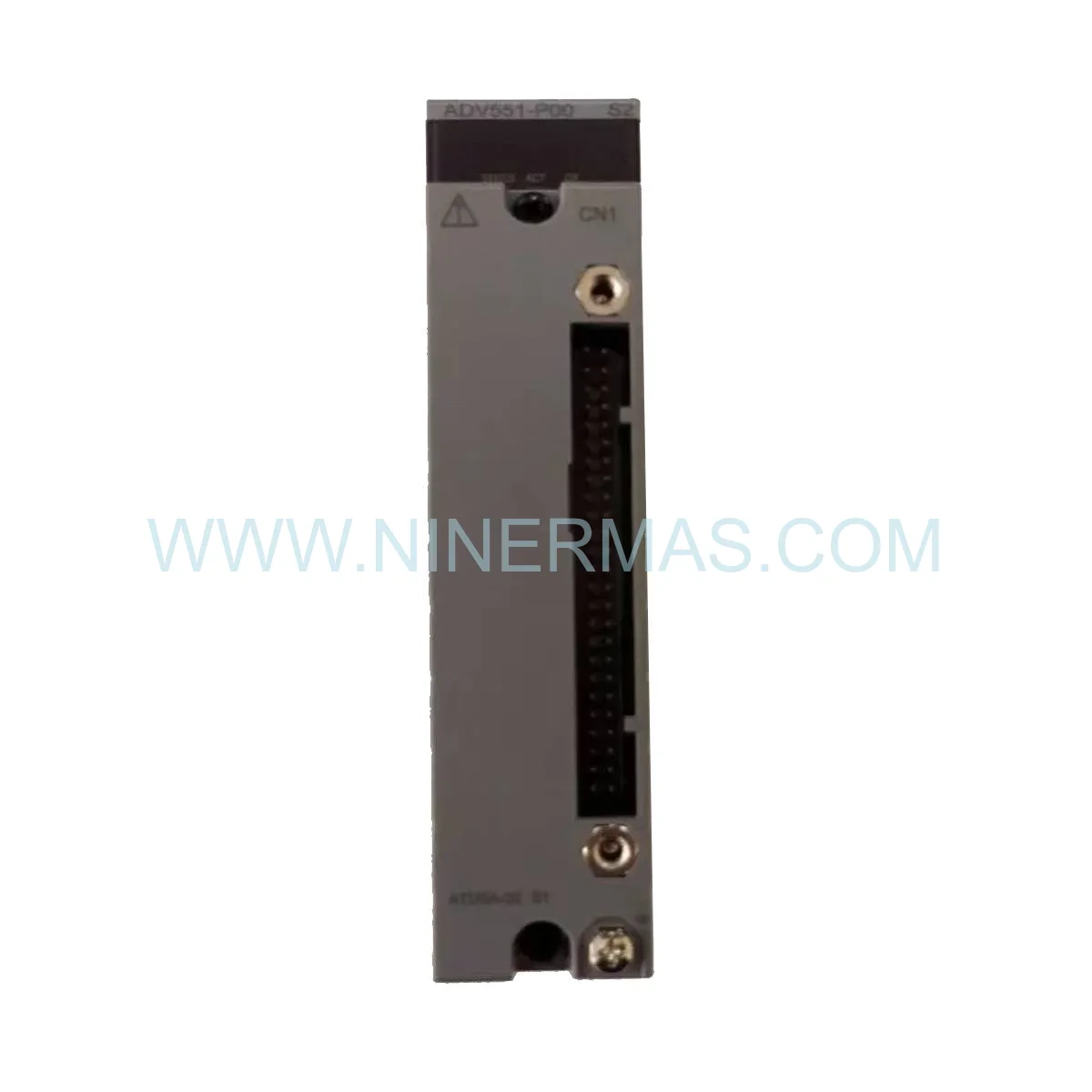

Yokogawa ADV551-P00 S2 — 32-Ch Digital Output Module for DCS Retrofit

Yokogawa ADV551-P00 S2 — Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades across chemical plants, power generation facilities, and advanced manufacturing lines, I consistently identify the Yokogawa ADV551-P00 S2 as a cornerstone component in DCS modernization programs. Its 32-channel 24V DC digital output architecture delivers the high-density switching density that aging control infrastructures demand — without requiring a full platform overhaul. The Yokogawa ADV551-P00 S2 effectively bridges the gap between legacy field wiring and contemporary distributed control logic, enabling phased migration strategies that protect capital investment while unlocking measurable performance gains.

From a backward-compatibility standpoint, this module’s channel-to-channel isolation and standard DIN rail form factor allow it to slot directly into existing panel layouts designed for earlier-generation Yokogawa I/O hardware. Engineering teams executing CENTUM CS — CENTUM VP migration projects routinely leverage this module to maintain field device continuity — solenoid valves, motor starters, and actuator banks remain wired as-is while the control layer is modernized. This Legacy Compatibility eliminates costly field rewiring, compressing project timelines by weeks.

From a risk and cost perspective, deploying the ADV551-P00 S2 as part of a structured Retrofit Solution dramatically reduces migration exposure. Rather than a high-risk cutover, plant operators can execute a staged replacement strategy — validating output behavior loop-by-loop before full commissioning. The result: lower unplanned downtime risk, reduced engineering rework, and a clear, auditable upgrade path that satisfies both operations and safety management requirements.

Upgrade Highlights & Compatibility

✅ High-Density Output Capacity: 32 discrete digital output channels in a single compact module — maximizing cabinet space efficiency during retrofit panel redesigns.

Seamless Integration: Native compatibility with Yokogawa CENTUM VP and ProSafe-RS platforms ensures zero-compromise Seamless Integration into both active and legacy DCS architectures.

✅ Enhanced Diagnostics for Legacy Systems: Built-in short-circuit and overload detection provides Performance Enhancement over older unmonitored output cards — enabling predictive maintenance in previously reactive environments.

Future-Proofing via Modular Design: Hot-swappable architecture supports live maintenance without process interruption — a critical advantage in continuous-operation facilities undergoing phased Hardware Upgrade programs.

✅ Broad Environmental Tolerance: Rated -20°C to +60°C operating range ensures reliable performance across tropical, arctic, and high-heat industrial environments without additional thermal management investment.

Isolation Architecture: Channel-to-bus isolation prevents fault cascading — a key safety requirement when integrating new I/O into partially modernized control systems with mixed-age field devices.

Modernization Use Cases & Success Stories

DCS Platform Migration — Chemical Processing Plant: A regional petrochemical facility executing a CENTUM CS 3000 — CENTUM VP System Migration deployed the ADV551-P00 S2 across 14 marshalling cabinets. The module’s pin-compatible footprint eliminated field rewiring for over 400 valve control loops. Commissioning time per cabinet dropped by 35% compared to previous migration projects using third-party I/O substitutes.

Turbine Supervisory Instrumentation (TSI) Upgrade — Power Generation: A combined-cycle power plant integrated the ADV551-P00 S2 into its turbine auxiliary control panels as part of a broader TSI modernization initiative. The module’s isolated output channels provided the electrical separation required between turbine protection logic and balance-of-plant control — a compliance requirement under IEC 61511. The retrofit was completed during a scheduled outage window with zero unplanned extensions.

Automotive Manufacturing Line Retrofit: A Tier-1 automotive supplier replaced end-of-life relay output cards with ADV551-P00 S2 modules across six production cells. The Performance Enhancement was immediate: diagnostic feedback reduced fault-to-recovery time from an average of 47 minutes to under 8 minutes, directly improving OEE metrics by 4.2 percentage points.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every Yokogawa ADV551-P00 S2 unit supplied through our channel is sourced as genuine, factory-sealed hardware — complete with original manufacturer packaging, documentation, and traceability records. No refurbished or remarked components.

Expedited Global Logistics: We maintain strategic inventory positions to support urgent retrofit and emergency replacement scenarios. Express air freight to major industrial hubs across Asia-Pacific, Europe, the Middle East, and the Americas — with typical lead times of 3-7 business days for in-stock units.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in legacy Yokogawa system architectures. Whether you need configuration guidance for a CENTUM CS migration, compatibility verification for mixed-generation I/O racks, or documentation for decommissioned platform variants, we provide hands-on technical assistance throughout your System Migration project lifecycle.

Retrofit FAQ — Upgrade Guide

Q1: Will the ADV551-P00 S2 physically fit into existing CENTUM CS 3000 I/O racks without mechanical modification?
The ADV551-P00 S2 is designed for DIN rail mounting and shares dimensional compatibility with the standard Yokogawa I/O module form factor used across CENTUM CS and VP generations. In most retrofit scenarios, the module slots directly into existing rack positions. We recommend verifying backplane connector pinout against your specific rack revision — our technical team can provide a compatibility matrix upon request.

Q2: How does the ADV551-P00 S2 handle communication between new CENTUM VP controllers and legacy field devices wired to older termination assemblies?
The module’s output stage interfaces directly with field wiring at the 24V DC level — independent of the controller communication layer above it. This means legacy field devices (solenoid valves, relays, motor starters) remain connected to their existing termination assemblies while the control logic migrates to the new platform. No field rewiring is required in the majority of System Migration configurations.

Q3: What are the recommended spare part substitution options if the ADV551-P00 S2 reaches end-of-availability in the future?
Yokogawa’s modular I/O architecture provides a structured upgrade path. The ADV551-P00 S2 can be succeeded by current-generation Yokogawa digital output modules within the CENTUM VP I/O family, maintaining software tag compatibility and minimizing re-engineering effort. Our team maintains cross-reference documentation for legacy-to-current substitution planning.

Q4: Can the ADV551-P00 S2 be integrated into a safety instrumented system (SIS) alongside ProSafe-RS?
The ADV551-P00 S2 is a standard (non-safety-rated) digital output module. In SIS architectures, it is appropriate for use in basic process control system (BPCS) layers operating in parallel with ProSafe-RS safety logic. For safety-rated output functions, Yokogawa’s dedicated SIL-certified I/O modules should be specified. Our engineers can assist with functional safety layer segregation planning.

Q5: What documentation is available to support FAT (Factory Acceptance Testing) and SAT (Site Acceptance Testing) for retrofit projects using the ADV551-P00 S2?
We supply original Yokogawa technical manuals, I/O module datasheets, and wiring diagrams with every unit. For retrofit projects requiring formal FAT/SAT documentation packages, we can coordinate with our technical partners to provide test procedure templates aligned with IEC 61511 and ISA-84 requirements.

Q6: Is the ADV551-P00 S2 suitable for use in hazardous area installations?
The ADV551-P00 S2 is designed for installation in non-hazardous (safe area) control rooms and marshalling cabinets. For hazardous area field device control, appropriate intrinsic safety barriers or galvanic isolators must be installed between the module outputs and field instruments located in classified zones. Our team can recommend compatible barrier solutions for your specific area classification requirements.
