YOKOGAWA ADV151-P10 Service-Ready Spare Part for Industrial Maintenance

YOKOGAWA ADV151-P10 Service-Ready Spare Part for Industrial Maintenance

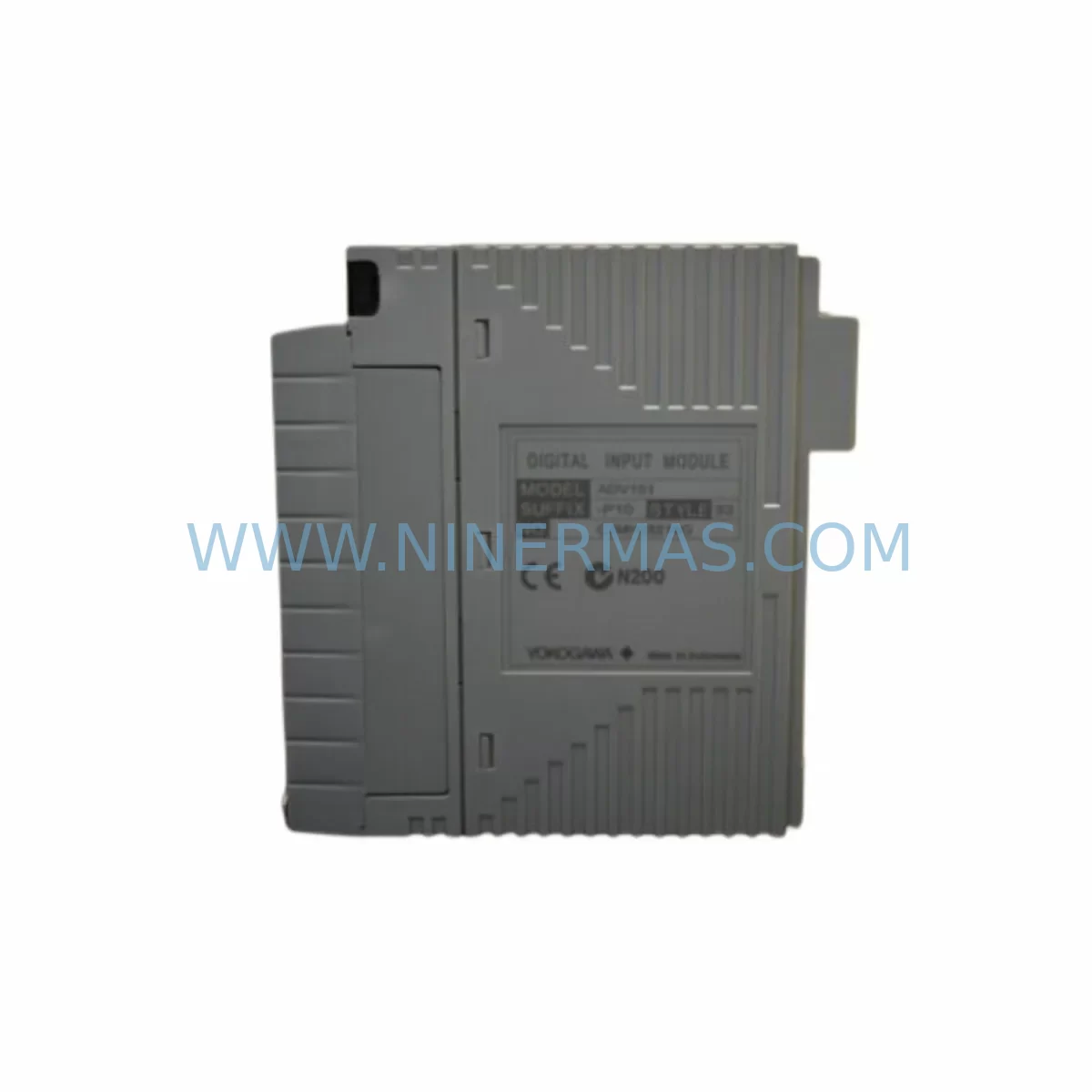

The YOKOGAWA ADV151-P10 is an original analog input module designed for deployment within YOKOGAWA CENTUM VP and CS 3000 distributed control systems. For maintenance engineers managing continuous process operations — whether in petrochemical, power generation, pulp and paper, or pharmaceutical environments — unplanned downtime caused by a failed analog input card can cascade into significant production losses. Stocking a verified, service-ready ADV151-P10 spare part is a proven strategy to minimize mean time to repair (MTTR) and restore control loop integrity without waiting on extended lead times from OEM channels.

The ADV151-P10 handles multi-channel analog signal acquisition, converting field-level 4–20 mA or voltage signals into digital values processed by the CENTUM VP controller. When this module fails or degrades — often presenting as signal drift, channel dropout, or erratic PV readings — the affected control loops lose feedback, potentially triggering process shutdowns or safety system interventions. A pre-tested, shelf-ready replacement unit allows site engineers to execute a hot-swap procedure within a single maintenance window, restoring full loop functionality without extended diagnostic delays.

At NINERMAS, each ADV151-P10 unit is inspected and function-tested prior to dispatch. We supply original YOKOGAWA modules sourced through verified industrial channels, backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Our inventory is maintained to support both emergency breakdown orders and planned annual overhaul procurement cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the ADV151-P10 in a live CENTUM VP or CS 3000 field control station is rarely an isolated task. Experienced maintenance engineers treat an analog input module failure as a trigger for a broader inspection of the surrounding electrical and control infrastructure. Before or during the ADV151-P10 replacement, the following components and subsystems should be evaluated to prevent repeat failures and ensure restored loop integrity:

Power Supply Modules (e.g., YOKOGAWA PW481, PW482 series): Verify that the FCS power rail supplying the node unit is within specification. Voltage sag or ripple on the 24 VDC bus can cause intermittent analog input errors that mimic module failure. A degraded power supply module should be replaced concurrently.

ESB Bus Coupler and Node Unit Backplane: Inspect the ESB bus coupler connecting the node unit to the field control station. Backplane connector corrosion or mechanical wear can cause communication faults that appear as module errors. The node unit backplane itself should be visually inspected for burn marks or connector damage.

Field Terminal Assemblies and Marshalling Cabinets: Check the terminal blocks and field wiring connections associated with the analog input channels served by the ADV151-P10. Loose terminations, corroded terminals, or damaged cable shields are common root causes of signal quality issues that lead to premature module replacement.

Signal Isolators and Barriers (e.g., YOKOGAWA MTL or equivalent Zener barriers): In hazardous area installations, the intrinsic safety barriers or galvanic isolators in the signal path should be tested. A failed isolator can inject noise or offset into the 4–20 mA loop, causing the ADV151-P10 to report erroneous values or trigger diagnostics.

Analog Output Modules (e.g., ADV551 series): If the affected control loop includes a paired analog output for valve or actuator control, inspect the corresponding output module. A degraded ADV551 or similar AO card may have contributed to loop instability that stressed the input module.

Communication Modules and V-net Interface Cards: Confirm that the V-net communication cards within the FCS are operating normally. Communication errors at the network level can cause false module fault indications and should be ruled out before condemning the ADV151-P10.

Digital Input / Output Modules (e.g., ADV161, ADV561 series): During the maintenance window, perform a visual and functional check of adjacent DI/DO modules in the same node unit. Shared power rail issues can affect multiple module types simultaneously.

HMI Workstations and Engineering Stations (CENTUM VP HIS): After module replacement, verify that the CENTUM VP Human Interface Station (HIS) correctly reflects the restored channel status and that no residual alarms or inhibits remain active from the fault period.

Fuses and Circuit Protection: Inspect the fuse holders and circuit breakers protecting the 24 VDC field power circuits associated with the replaced module’s channels. A blown fuse on a field power circuit is a common secondary finding during analog input module replacements.

Maintaining a small buffer stock of ADV151-P10 modules — alongside compatible power supply modules, ESB bus couplers, and terminal assemblies — is a best practice for sites running CENTUM VP or CS 3000 systems beyond their original design life. This approach supports rapid response to unplanned failures and reduces dependency on spot-market procurement during emergencies.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the failed module’s slot address and tag assignment in the CENTUM VP engineering environment (CENTUM VP Builder or CS 3000 System View). Document the channel configuration, range settings, and alarm limits before removal to ensure identical restoration after replacement.

Step 2 — Safety and Isolation: Follow site-specific lock-out/tag-out (LOTO) procedures for the affected field circuits. For hot-insertion-capable slots, confirm with the site DCS engineer whether a live swap is permitted under the current operating conditions. In many CENTUM VP configurations, the ADV151-P10 supports online replacement without FCS shutdown, significantly reducing downtime.

Step 3 — Module Removal and Inspection: Extract the failed ADV151-P10 from its slot. Inspect the backplane connector for pin damage or contamination. Retain the failed module for failure analysis if required by site maintenance records.

Step 4 — Replacement Installation: Insert the service-ready ADV151-P10 into the designated slot. The CENTUM VP system will automatically download the stored configuration to the new module upon recognition. Verify that the module status LED indicates normal operation.

Step 5 — Loop Verification: Confirm that all analog input channels are reading correctly against field instrument references. Check for any residual alarms on the HIS and clear inhibits applied during the fault period. Document the replacement in the site maintenance management system (CMMS).

Step 6 — Spare Stock Replenishment: Initiate a purchase order to replenish the consumed spare. For sites with multiple CENTUM VP or CS 3000 nodes using the ADV151-P10, maintaining a minimum of two units in the on-site spare parts store is recommended to cover simultaneous or back-to-back failures during high-demand production periods.

Spare Parts Support FAQ

Q1: Is the ADV151-P10 supplied by NINERMAS an original YOKOGAWA module or a third-party compatible?
All ADV151-P10 units supplied by NINERMAS are original YOKOGAWA manufactured modules. We do not supply counterfeit, cloned, or third-party compatible substitutes. Each unit is sourced through verified industrial supply channels and function-tested before dispatch.

Q2: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. If a supplied ADV151-P10 fails within the warranty period, NINERMAS will arrange replacement or repair at no additional cost. Claims are initiated by contacting sale@ninermas.com with the order reference and a description of the failure mode.

Q3: Can the ADV151-P10 be used as a direct replacement in both CENTUM VP and CS 3000 systems?
Yes. The ADV151-P10 is compatible with both CENTUM VP (R4.x through R6.x) and CS 3000 (R3.x) field control station node units. The CENTUM VP system automatically downloads the stored channel configuration upon module insertion, eliminating the need for manual re-engineering in most replacement scenarios. Always verify slot compatibility with your site’s system revision before installation.

Q4: What is the typical lead time, and can NINERMAS support long-term or blanket order supply agreements?
In-stock ADV151-P10 units are dispatched within 2–5 business days via DHL or FedEx international express. For sites requiring long-term supply assurance — particularly for aging CENTUM VP or CS 3000 installations where OEM availability is declining — NINERMAS offers blanket order and reserved stock arrangements. Contact sale@ninermas.com or call +0086 187 5021 5667 to discuss your site’s annual maintenance volume and establish a supply agreement.
