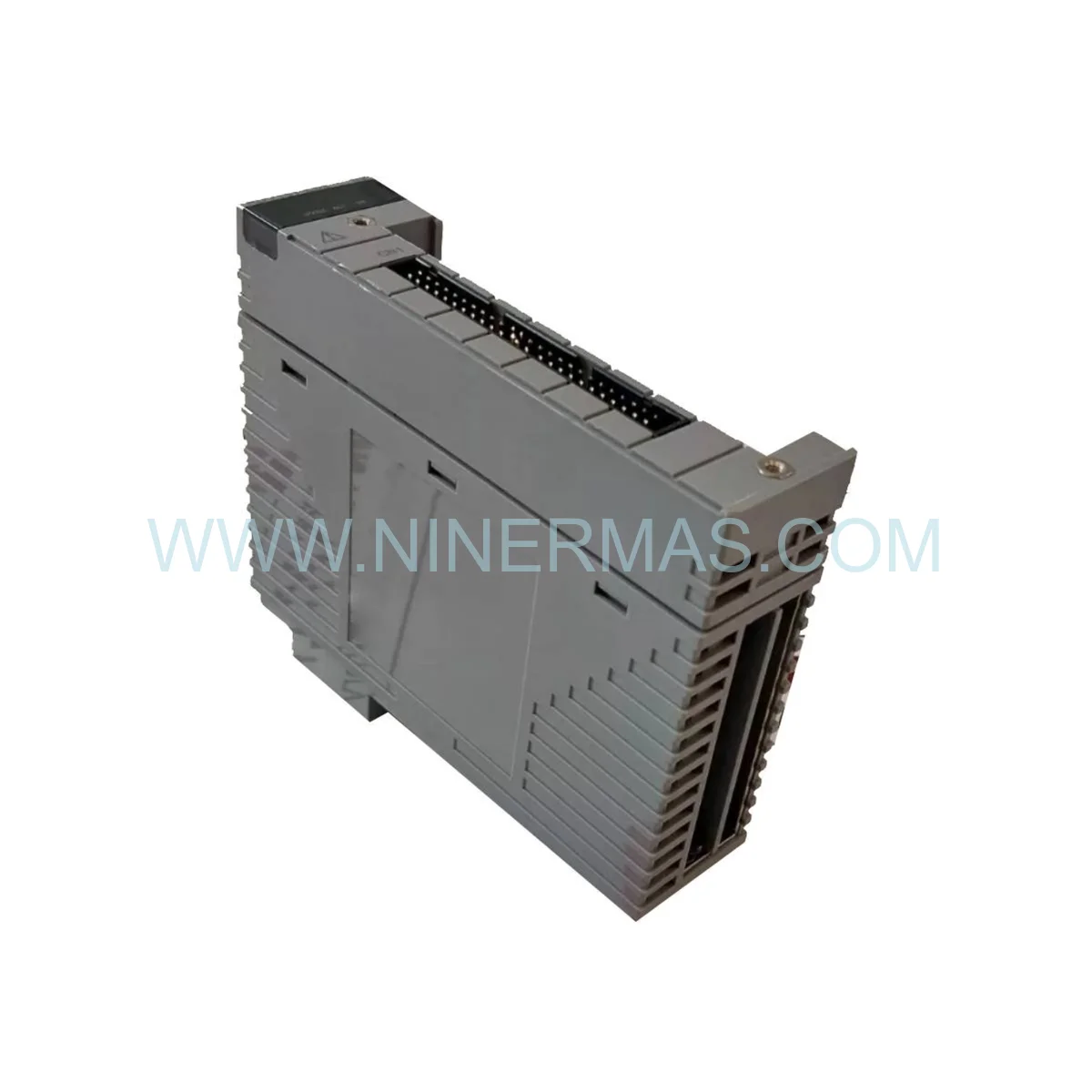

Yokogawa ADV151-E63/D5A00 Digital Input Module | New & Original in Stock

Yokogawa ADV151-E63/D5A00 | Reliable Automation Component for Mission-Critical Applications

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing continuous-process facilities, the ADV151-E63/D5A00 stands as a cornerstone I/O module for sustaining system availability in high-stakes environments. Its 2-channel discrete digital input architecture, paired with millisecond-resolution Sequence of Events (SOE) capture, directly supports Process Optimization by delivering forensic-quality event timestamps that accelerate root-cause analysis and minimize mean-time-to-repair (MTTR). Whether integrated into a Yokogawa CENTUM VP DCS or a ProSafe-RS safety instrumented system, the ADV151-E63/D5A00 ensures that every field signal transition is logged with the precision demanded by Mission-Critical operations.

Durability under harsh industrial conditions is a defining characteristic of this module. Rated for an operating temperature range of -40 °C to +70 °C and certified for Zone 2 / Division 2 hazardous area deployment, the ADV151-E63/D5A00 withstands the thermal cycling, vibration, and electromagnetic interference typical of petrochemical, power generation, and heavy manufacturing sites. During installation, engineers should verify that the ESB bus connector is fully seated and that per-channel LED indicators illuminate correctly before commissioning — a simple step that prevents the majority of field-reported signal integrity issues.

Maintaining a certified spare unit of the ADV151-E63/D5A00 in your critical-parts inventory is a recognized best practice in Operational Excellence programs. As legacy CENTUM CS 3000 and CENTUM VP installations age, sourcing genuine, factory-packaged modules becomes increasingly challenging. Securing an original spare eliminates the risk of extended downtime caused by counterfeit or refurbished components entering the control loop.

Key Operational Features

2-Channel Discrete Digital Input — Supports dry-contact and voltage-free field devices for flexible System Integration
24 V DC Rated Input (18-30 V DC range) — Broad voltage tolerance ensures compatibility across diverse power distribution architectures
1 ms SOE Time-Stamping — Millisecond event resolution critical for alarm sequencing and incident reconstruction in Mission-Critical environments
Zone 2 / Division 2 Explosion Protection — Enables direct hazardous-area deployment without supplementary barriers, reducing BOM complexity
1500 V AC Channel-to-Bus Galvanic Isolation — Protects Automation Components from ground loops and transient surges common in heavy industrial networks
Hot-Swap Capability — Online module replacement without system shutdown supports High Availability and continuous production targets
Redundancy-Ready Architecture — Seamlessly pairs with Yokogawa redundant power and ESB bus modules to achieve SIL 2/3 safety integrity levels

Maintenance & Performance Benchmarks

The ADV151-E63/D5A00 is engineered to adapt across industrial network architectures of varying scale — from compact skid-mounted control panels with fewer than 50 I/O points to enterprise-grade DCS installations managing thousands of field signals across multiple process units.

In small-to-medium installations, the module’s plug-and-play compatibility with the CENTUM VP I/O subsystem allows a single technician to commission a replacement unit in under 15 minutes using FieldMate Versatile Device Management Wizard. Pre-built function blocks for alarm management and vote logic eliminate custom coding, reducing human-error risk during maintenance windows.

For large-scale, multi-redundant architectures, the module integrates into V-Net/IP high-speed fieldbus segments without requiring additional protocol converters. Built-in self-diagnostics continuously monitor wiring continuity, power rail stability, and signal propagation delay, forwarding predictive maintenance alerts to the operator console before degradation escalates to a process trip. This proactive diagnostic posture is central to any Operational Excellence framework targeting sub-0.1% unplanned downtime ratios.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every ADV151-E63/D5A00 unit dispatched by our team is sourced directly from authorized Yokogawa distribution channels and ships in Original Factory Packaging with full traceability documentation. For in-stock orders, same-day dispatch is available on confirmed payments received before the daily cut-off, ensuring your maintenance team receives the module with minimal lead time.

We specialize in Global Supply for EOL and Legacy Modules — including discontinued CENTUM CS 3000 and early CENTUM VP I/O cards that are no longer available through standard distribution. Our worldwide logistics network covers express air freight to North America, Europe, Southeast Asia, and the Middle East, with full customs documentation and DDP (Delivered Duty Paid) options available upon request.

Each shipment includes an inspection report, original manufacturer label verification, and anti-static packaging compliant with IEC 61340-5-1 to protect sensitive Automation Components during transit.

Engineering Support & FAQ

Q1: What are the step-by-step procedures for replacing an ADV151-E63/D5A00 in a live CENTUM VP system?
A: Confirm hot-swap mode is enabled in the system configuration. Notify the operator console, then disengage the module latch and slide the unit out. Insert the replacement ADV151-E63/D5A00 until the bus connector clicks into place. The system will automatically re-initialize the module and restore I/O mapping within approximately 10 seconds. Verify per-channel LED status before returning the loop to automatic control.

Q2: Which firmware versions are compatible with the ADV151-E63/D5A00?
A: The module is compatible with CENTUM VP R4.01 and later, as well as CENTUM CS 3000 R3.08 and above. For ProSafe-RS integration, firmware R2.04 or higher is required. Always cross-reference the Yokogawa Software Release Notes for your specific system revision before upgrading.

Q3: Can the ADV151-E63/D5A00 be used in SIL 2 safety loops?
A: Yes. When configured within a redundant ProSafe-RS architecture and validated against IEC 61511, the module supports SIL 2 safety integrity levels. SIL 3 is achievable with triple-redundant voting configurations. Consult the Yokogawa Functional Safety Manual for detailed PFD and PFH data.

Q4: How is the 1-year warranty processed for this module?
A: Warranty claims are initiated by contacting our technical support team at sale@ninermas.com with the purchase order number, module serial number, and a description of the observed fault. We arrange return logistics at no cost to the customer and dispatch a replacement unit upon receipt and verification of the defective module. Typical turnaround is 5-7 business days.

Q5: What diagnostic data does the ADV151-E63/D5A00 report to the DCS operator console?
A: The module continuously reports channel input status, power rail voltage, wiring continuity, and communication bus health. Fault codes are mapped to standard Yokogawa alarm categories (Hardware Fault, Communication Error, Field Device Fault) and appear in the CENTUM VP HIS alarm summary with ISO 8601 timestamps for SOE correlation.

Q6: Is the ADV151-E63/D5A00 interchangeable with other ADV151 series variants?
A: The ADV151 series shares a common form factor, but suffix codes (e.g., -E63/D5A00) define specific input voltage ratings, explosion protection certifications, and SOE capabilities. Substituting a different suffix variant may result in incompatible signal levels or loss of hazardous-area certification. Always verify the complete model string before procurement.
