YOKOGAWA ADM12 S4 Service-Ready Spare Part for Industrial Maintenance

YOKOGAWA ADM12 S4 Service-Ready Spare Part for Industrial Maintenance

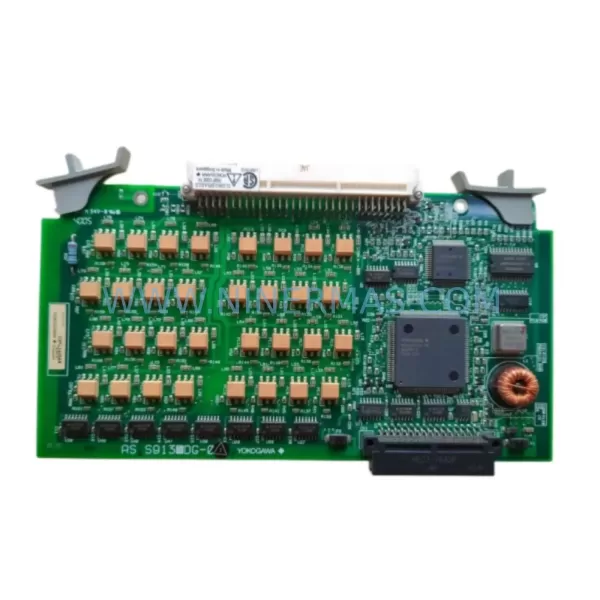

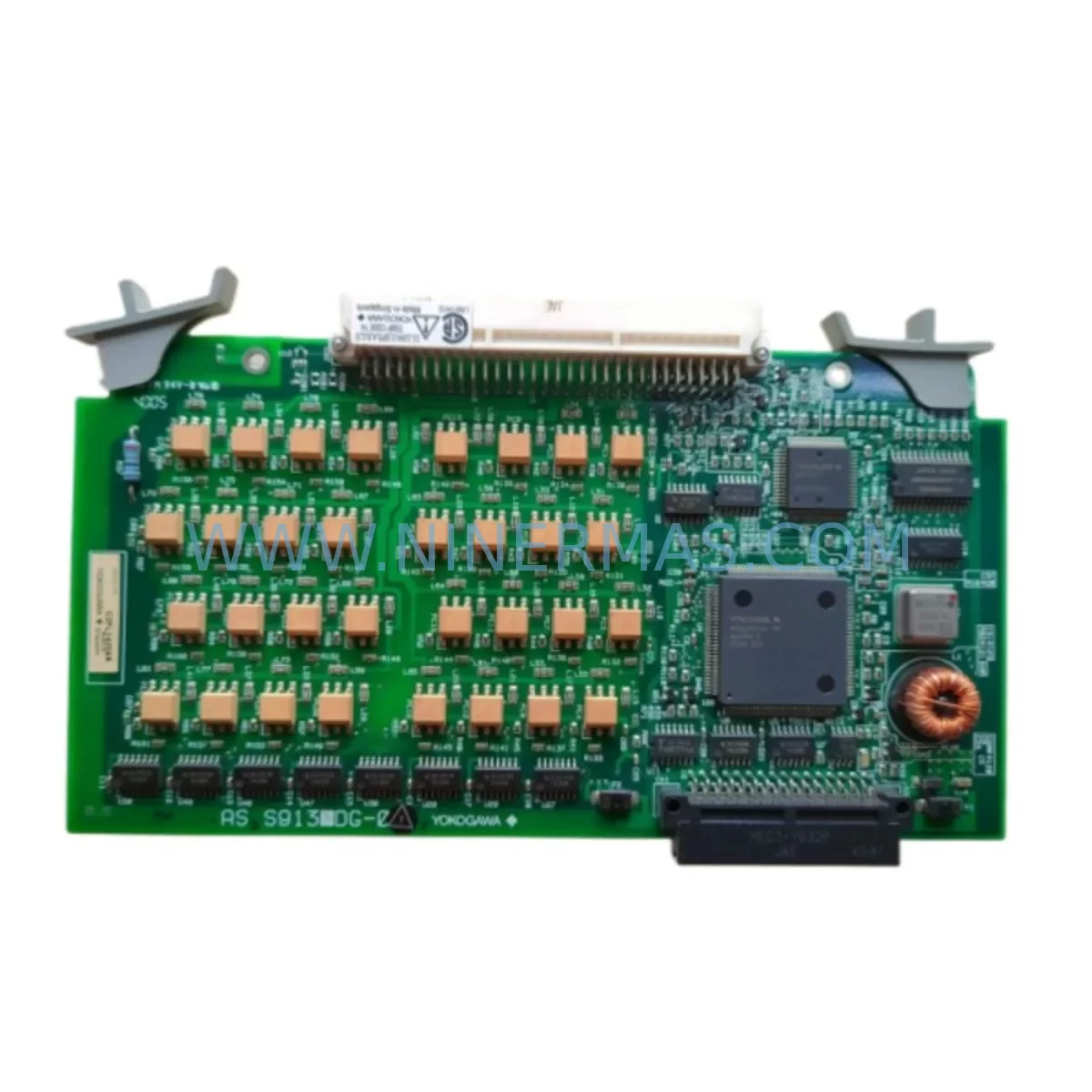

The YOKOGAWA ADM12 S4 is an original contact output I/O card designed for use in YOKOGAWA CENTUM VP and CS 3000 distributed control systems (DCS). As a critical field device interface module, the ADM12 S4 manages discrete contact output signals between the control system and field actuators, relays, solenoid valves, and motor starters. For maintenance engineers and procurement teams managing aging DCS infrastructure, securing a verified, service-ready ADM12 S4 spare is essential to minimizing unplanned downtime and sustaining continuous plant operation.

At NINERMAS, every ADM12 S4 unit is sourced as an original YOKOGAWA component, inspected, and tested prior to shipment. We support industrial facilities across petrochemical, power generation, pharmaceutical, pulp and paper, and refinery sectors where CENTUM VP and CS 3000 systems remain the backbone of process automation. Whether you are responding to an emergency fault, building a preventive maintenance spare inventory, or planning an annual shutdown overhaul, the ADM12 S4 is available with a 12-month warranty and reliable long-term supply commitment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a contact output I/O card such as the ADM12 S4 is flagged for replacement during a fault investigation or scheduled shutdown, experienced maintenance engineers know that the module itself is rarely the only component requiring attention. A thorough inspection of the surrounding control cabinet and associated field wiring is essential to prevent repeat failures and ensure a clean restoration of process control.

Begin by verifying the 24 VDC power supply module feeding the I/O node — a degraded power supply can cause intermittent contact output faults that mimic card failure. In CENTUM VP systems, the PW481 or equivalent power supply unit should be checked for output voltage stability and ripple. Next, inspect the terminal block assemblies and field wiring connected to the ADM12 S4 output channels. Loose terminations, corroded contacts, or undersized conductors are common contributors to contact output unreliability in humid or high-vibration environments.

If the ADM12 S4 is installed in a Field Control Station (FCS), also inspect the communication bus cables and backplane connectors within the node unit. A damaged backplane or a faulty ESB bus coupler can cause multiple I/O cards to report errors simultaneously. While replacing the ADM12 S4, it is good practice to also verify the adjacent AAM11 or AAM21 analog input modules for any sign of signal drift or channel failure, as these modules share the same node environment and maintenance window.

For plants with relay-driven field devices, check the intermediate relay panels and solid-state relay (SSR) modules connected to the ADM12 S4 outputs. Relay coil degradation or SSR aging can place excessive load on output channels, accelerating contact wear. Fuse holders and miniature circuit breakers (MCBs) protecting the output field circuits should also be tested for continuity and proper trip ratings.

In facilities running YOKOGAWA CENTUM VP with Vnet/IP communication, confirm that the network switch ports and fiber optic connections serving the FCS node remain clean and within specification. Communication errors at the network layer can cause false I/O card alarms and complicate fault isolation. Additionally, if the control cabinet houses an HMI engineering station or operator console connected to the same DCS domain, verify that the system software recognizes the replacement ADM12 S4 without requiring a full FCS download — in most CENTUM VP configurations, hot-swap replacement is supported without process interruption.

For procurement engineers building a strategic spare parts inventory, we recommend stocking at least one ADM12 S4 per FCS node that relies on contact output control for critical interlock or shutdown functions. Pairing this with a spare ADM12 series analog output card, a backup power supply module, and a set of pre-terminated field connector assemblies ensures that your maintenance team can respond to any single-point failure within the DCS cabinet without waiting for international shipment lead times.

Site Replacement Workflow

Replacing the YOKOGAWA ADM12 S4 on-site is a structured process that, when followed correctly, minimizes control system disruption and eliminates the risk of secondary faults introduced during the swap.

Step 1 — Fault Confirmation: Before pulling the card, confirm the fault via the CENTUM VP HIS (Human Interface Station) alarm summary. Verify that the ADM12 S4 is the source of the contact output fault and not a downstream relay, field device, or wiring issue. Use the DCS diagnostic screen to check channel-level status.

Step 2 — Safety Isolation: Coordinate with the control room operator to place the affected output channels in manual or safe state. For interlock-critical outputs, follow your site Management of Change (MOC) and Permit to Work (PTW) procedures before opening the control cabinet.

Step 3 — Card Removal: In CENTUM VP FCS node units, the ADM12 S4 is typically hot-swappable. Confirm hot-swap capability for your specific node configuration before proceeding. If hot-swap is supported, remove the card carefully by releasing the front locking mechanism and sliding the module out of the backplane slot. Avoid touching backplane connector pins.

Step 4 — Replacement Installation: Insert the new ADM12 S4 into the same slot. The DCS should automatically recognize the replacement module and restore channel configuration from the FCS database. Monitor the HIS for confirmation that all output channels return to normal status.

Step 5 — Functional Verification: Perform a channel-by-channel output test in coordination with field personnel to confirm that each contact output is operating correctly. Check relay actuation, solenoid valve response, and motor starter engagement as applicable.

Step 6 — Documentation: Record the replacement in your plant maintenance management system (CMMS), including the old card serial number, replacement date, and post-installation test results. Update your spare parts inventory accordingly.

This workflow applies equally to emergency replacements during unplanned shutdowns and to planned replacements during annual turnarounds. NINERMAS ships the ADM12 S4 with full test documentation to support your site acceptance process.

Spare Parts Support FAQ

Q1: Is the YOKOGAWA ADM12 S4 available as a new original part or only as refurbished?
NINERMAS supplies the ADM12 S4 as an original YOKOGAWA spare part. Each unit undergoes inspection and functional testing before shipment. We do not supply uncertified or counterfeit components. A 12-month warranty is provided on every unit shipped.

Q2: How do I confirm compatibility between the ADM12 S4 and my existing CENTUM VP or CS 3000 system?
Compatibility is confirmed by matching the module part number and suffix (ADM12 S4) against your FCS node unit model and CENTUM VP system version. In most cases, the ADM12 S4 is directly interchangeable within the same node slot without software reconfiguration. If you are unsure, provide your FCS model number and system version to our technical team and we will verify compatibility before shipment.

Q3: What is the typical lead time for ADM12 S4 shipment, and do you support emergency orders?
For in-stock units, NINERMAS ships within 1–3 business days. Emergency orders with expedited freight are supported. We recommend that facilities with critical CENTUM VP infrastructure maintain at least one ADM12 S4 in local spare inventory to eliminate lead time risk during unplanned shutdowns. Contact our team at sale@ninermas.com for real-time stock confirmation.

Q4: Does NINERMAS offer long-term supply support for discontinued or end-of-life YOKOGAWA modules?
Yes. NINERMAS specializes in long-term supply of original spare parts for YOKOGAWA CENTUM VP, CS 3000, and legacy DCS platforms. Even for modules that YOKOGAWA has discontinued, we maintain sourcing channels to support your plant’s extended operational life. All units are supplied with a 12-month warranty regardless of production status.
