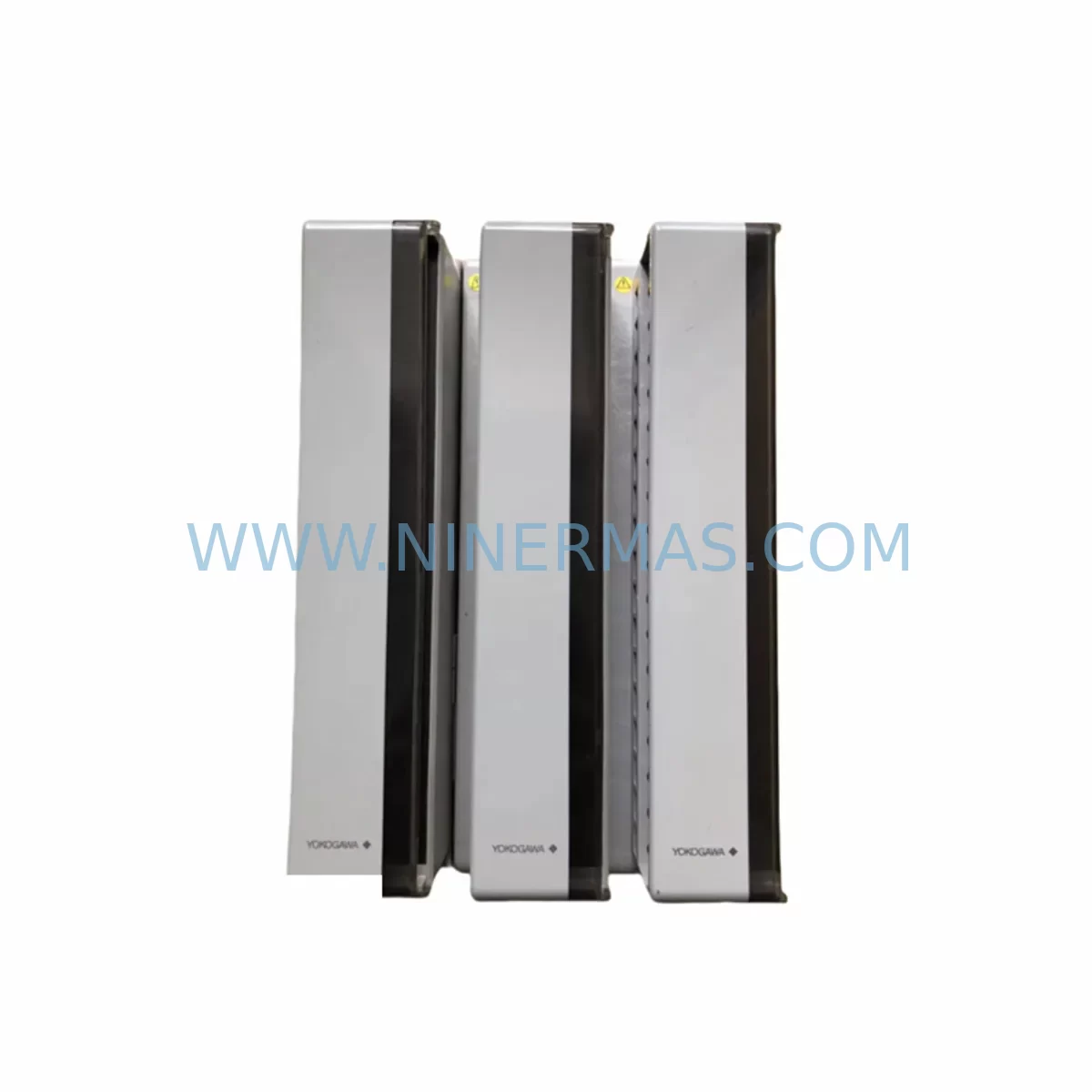

The Yokogawa ADM11T-S2 is an original analog input module designed for the FA-M3 range-free multi-controller series — one of Yokogawa’s most widely deployed PLC/DCS platforms in process automation, utilities, and discrete manufacturing. For maintenance engineers managing aging FA-M3 control systems, securing a verified, service-ready ADM11T-S2 spare is a critical step in preventing unplanned downtime and protecting production continuity. NINERMAS supplies original ADM11T-S2 units with full functional testing, documented traceability, and a 12-month warranty, ensuring your replacement program meets both engineering and procurement standards.

The ADM11T-S2 module handles multi-channel analog signal acquisition — typically thermocouple or mV-range inputs — and integrates directly into the FA-M3 backplane without firmware reconfiguration when replacing a like-for-like unit. This plug-and-replace compatibility is essential during emergency shutdowns, where minimizing re-commissioning time directly translates to reduced production loss. Maintenance teams operating legacy FA-M3 racks should treat the ADM11T-S2 as a priority line item in their annual spare parts budget, particularly in facilities where the module supports temperature monitoring, process variable feedback, or safety interlock inputs.

From a procurement risk perspective, the ADM11T-S2 is an end-of-life or limited-availability component in many regional markets. Sourcing from a specialist industrial spare parts supplier with verified stock, pre-shipment testing, and long-term supply capability is the most reliable strategy for facilities that cannot afford extended lead times. NINERMAS maintains dedicated inventory for FA-M3 series modules and can support both single-unit emergency orders and bulk annual maintenance contracts.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a replacement of the ADM11T-S2 during planned maintenance or responding to an unplanned fault, experienced maintenance engineers know that the module rarely fails in isolation. A thorough site inspection should extend to the surrounding FA-M3 rack components and the broader control loop to prevent repeat failures and ensure full system restoration.

Start with the FA-M3 power supply module (such as the PW481 or PW482 series) — an aging or under-spec power supply is a common root cause of analog module degradation, particularly in high-cycle environments. Verify output voltage stability under load before re-energizing the replacement ADM11T-S2. Next, inspect the FA-M3 CPU module (F3SP series) for firmware version compatibility and confirm that the I/O map assigned to the ADM11T-S2 slot remains intact after the swap.

Check all terminal block wiring connected to the ADM11T-S2 input channels — thermocouple extension cables are susceptible to insulation breakdown and cold-junction compensation errors over time. Replace any discolored or brittle wiring and verify correct polarity. If the module interfaces with signal isolators or signal conditioners upstream, confirm their output range matches the ADM11T-S2 input specification to avoid range mismatch alarms on restart.

For systems where the ADM11T-S2 feeds data to a Yokogawa CENTUM VP DCS or interfaces via FA-M3 communication modules (such as F3LC11 or F3LC31 Ethernet/serial link modules), verify that the communication configuration and tag assignments are preserved. In multi-rack configurations, also inspect the FA-M3 expansion cable and base unit connectors for oxidation or mechanical damage.

Additional components to include in the same maintenance window: FA-M3 digital output modules (e.g., ADV151 or ADV161 series) in the same rack, relay output modules used in interlock circuits tied to the analog inputs, fuse holders and miniature circuit breakers on the 24VDC instrument supply rail, and any HMI panels (such as Yokogawa’s ProSafe or third-party SCADA terminals) that display the process variables sourced from this module. A complete loop check — from field sensor through the ADM11T-S2 to the HMI display — is the recommended sign-off procedure before returning the system to automatic control.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the installed module part number matches ADM11T-S2. Check the FA-M3 system configuration tool (WideField3 or equivalent) for the slot address and I/O assignment of the module to be replaced. Export or photograph the current configuration as a backup.

Step 2 — Safe isolation: Place the FA-M3 CPU in STOP mode or isolate the affected rack per your site’s lockout/tagout procedure. De-energize the 24VDC instrument supply to the ADM11T-S2 input terminals before disconnecting field wiring.

Step 3 — Module swap: Disconnect terminal block connectors from the ADM11T-S2 front face. Release the module locking lever and slide the module out of the backplane slot. Insert the replacement ADM11T-S2 into the same slot — the FA-M3 backplane is hot-swap capable on supported configurations, but cold swap is recommended for thermocouple input modules to avoid cold-junction errors during initialization.

Step 4 — Re-commissioning: Reconnect field wiring in correct polarity order. Re-energize the instrument supply and return the CPU to RUN mode. Monitor all analog input channels for correct engineering unit readings. Compare live values against historical trend data or known process baselines to confirm accurate signal acquisition.

Step 5 — Documentation: Record the replacement date, new module serial number, and post-replacement loop check results in your maintenance management system (CMMS). Update the spare parts inventory to reflect consumption and initiate a replenishment order to maintain minimum stock levels for the ADM11T-S2 and associated FA-M3 modules.

This workflow supports a typical replacement time of under 60 minutes for a prepared maintenance team, minimizing production downtime and ensuring full system compatibility without requiring PLC reprogramming or hardware reconfiguration.
