Yokogawa AAP135-S03 Service-Ready Spare Part for Industrial Maintenance

Yokogawa AAP135-S03 Service-Ready Spare Part for Industrial Maintenance

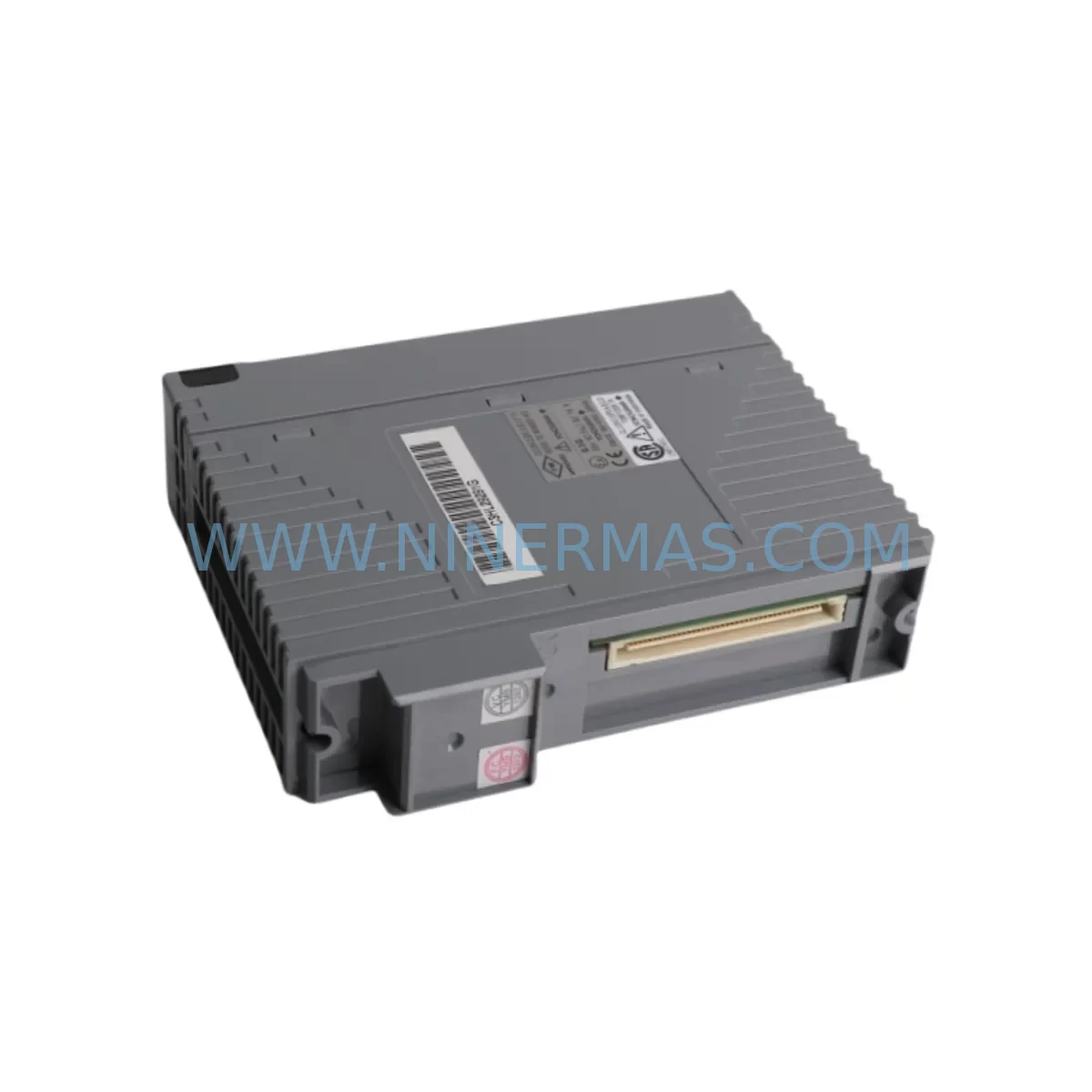

The Yokogawa AAP135-S03 is a communication module designed for use within the Yokogawa CENTUM VP distributed control system (DCS) platform — one of the most widely deployed process automation architectures in refining, petrochemical, power generation, and specialty chemical facilities worldwide. As aging CENTUM VP installations continue to operate beyond their original design life, maintaining a reliable inventory of original spare parts such as the AAP135-S03 is critical to sustaining uptime, avoiding unplanned shutdowns, and protecting the integrity of process control loops.

NINERMAS supplies the AAP135-S03 as a service-ready, original spare part, pre-tested before shipment and backed by a 12-month warranty. Each unit is inspected for communication integrity, connector condition, and firmware compatibility prior to dispatch, ensuring that your maintenance team receives a module that is ready for immediate installation without additional bench testing delays.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the AAP135-S03 communication module during a planned outage or emergency corrective maintenance event, experienced maintenance engineers know that a single module swap rarely tells the full story. The communication module sits at the intersection of the DCS backplane, field I/O, and network infrastructure — meaning that adjacent components must be evaluated simultaneously to prevent repeat failures and ensure a clean return to service.

During the same maintenance window, your team should inspect and — where appropriate — stock spares for the following associated components:

• Yokogawa AFV10D / AFV30D Field Control Station power supply modules — degraded power supply output is a leading cause of communication module faults; verify output voltage stability under load before reinstalling the AAP135-S03.
• Yokogawa ADM12C / ADM51C I/O modules — confirm that analog and digital I/O modules in the same field station are reading correctly after communication restoration; a faulty I/O module can mask a successful comms module replacement.
• Yokogawa AIP835 / AIP836 bus interface modules — these interface the field control station to the Vnet/IP or ESB bus; inspect for connector wear and firmware version alignment with the AAP135-S03.
• DCS backplane and rack connectors — inspect the backplane slot for bent pins, oxidation, or contamination that may have contributed to the original communication fault.
• Yokogawa PFCS / SFCS field control station CPU modules — if the communication fault was accompanied by controller alarms, the CPU module should be evaluated for memory or processing anomalies.
• Ethernet switches and Vnet/IP network infrastructure — verify switch port status, cable integrity, and VLAN configuration for the affected field station segment.
• Terminal blocks and field wiring terminations — loose or corroded terminations at the marshalling cabinet can introduce signal noise that stresses communication modules over time.
• Surge protection and signal isolators — in plants with high electromagnetic interference or frequent lightning events, signal isolators and surge arrestors on communication lines should be inspected and replaced on a scheduled basis.
• Yokogawa HIS (Human Interface Station) and SIOS software — after module replacement, confirm that the HIS correctly recognizes the restored field station and that all tags are communicating without error.
• UPS and cabinet cooling systems — thermal stress and power quality issues are systemic causes of communication module degradation; address root causes alongside the module replacement to prevent recurrence.

Proactive procurement of these associated spares — particularly power supply modules, I/O cards, and bus interface modules — is strongly recommended for facilities operating CENTUM VP systems beyond their original 10–15 year design life. NINERMAS can support multi-line spare parts quotations to help your procurement team consolidate sourcing and reduce per-unit costs.

Site Replacement Workflow

Replacing the Yokogawa AAP135-S03 on a live CENTUM VP system requires careful sequencing to minimize process disruption and ensure a clean handover back to automatic control. The following workflow reflects best practices for field replacement of DCS communication modules in operating process plants:

1. Pre-replacement verification: Confirm the replacement AAP135-S03 part number, hardware revision, and firmware version match the installed unit. Mismatched firmware versions between the communication module and the field control station CPU can cause initialization failures. Contact NINERMAS if revision clarification is required prior to shipment.
2. Process state assessment: Coordinate with the control room operator to identify which process loops are served by the affected field station. Place affected loops in manual control mode before proceeding with module removal.
3. Safe isolation: Follow your site’s lockout/tagout (LOTO) procedure for the field control station. De-energize the affected slot if hot-swap is not supported for this module type in your specific CENTUM VP configuration.
4. Module extraction and inspection: Remove the faulty AAP135-S03 and inspect the backplane connector for damage. Photograph the installation for reference before inserting the replacement unit.
5. Replacement installation: Insert the service-ready AAP135-S03, secure the module latch, and re-energize the field station. Monitor the HIS for communication restoration alarms and confirm all field tags return to scan within the expected timeframe.
6. Post-replacement validation: Verify communication status on the Yokogawa CENTUM VP engineering station. Confirm I/O module scan rates, controller redundancy status (if applicable), and alarm suppression lists are restored to normal operating state.
7. Return to automatic control: Transfer affected loops back to automatic control mode in coordination with the control room operator. Document the replacement in your CMMS with the new module serial number and installation date.

This structured approach reduces average corrective maintenance time and supports compliance with site maintenance management system (MMS) documentation requirements.

Spare Parts Support FAQ

Q1: Is the AAP135-S03 compatible with both CENTUM VP and CENTUM CS 3000 systems?
The AAP135-S03 is primarily associated with the Yokogawa CENTUM VP platform. Compatibility with CENTUM CS 3000 depends on the specific hardware revision and software version of your installed system. NINERMAS recommends providing your field control station model number and software revision when enquiring, so we can confirm compatibility before shipment.

Q2: What pre-shipment testing does NINERMAS perform on the AAP135-S03?
Each AAP135-S03 unit supplied by NINERMAS undergoes communication integrity testing, physical connector inspection, and firmware version verification prior to dispatch. Units that do not pass inspection are not shipped. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can NINERMAS support long-term or blanket order supply of the AAP135-S03?
Yes. NINERMAS supports multi-year spare parts programs and blanket purchase order arrangements for facilities requiring ongoing supply of CENTUM VP spare parts. Long-term supply agreements help procurement teams lock in pricing, reduce lead time risk, and maintain critical spare inventory levels without repeated spot-buy cycles. Contact our sales team to discuss your annual consumption requirements.

Q4: What information should I provide when requesting a quotation for the AAP135-S03?
To ensure accurate supply and compatibility confirmation, please provide: the full part number (AAP135-S03), your CENTUM VP field control station model, installed firmware/software version, required quantity, and preferred delivery timeline. For urgent breakdown supply, NINERMAS offers expedited processing — contact us directly at sale@ninermas.com or +0086 187 5021 5667.
