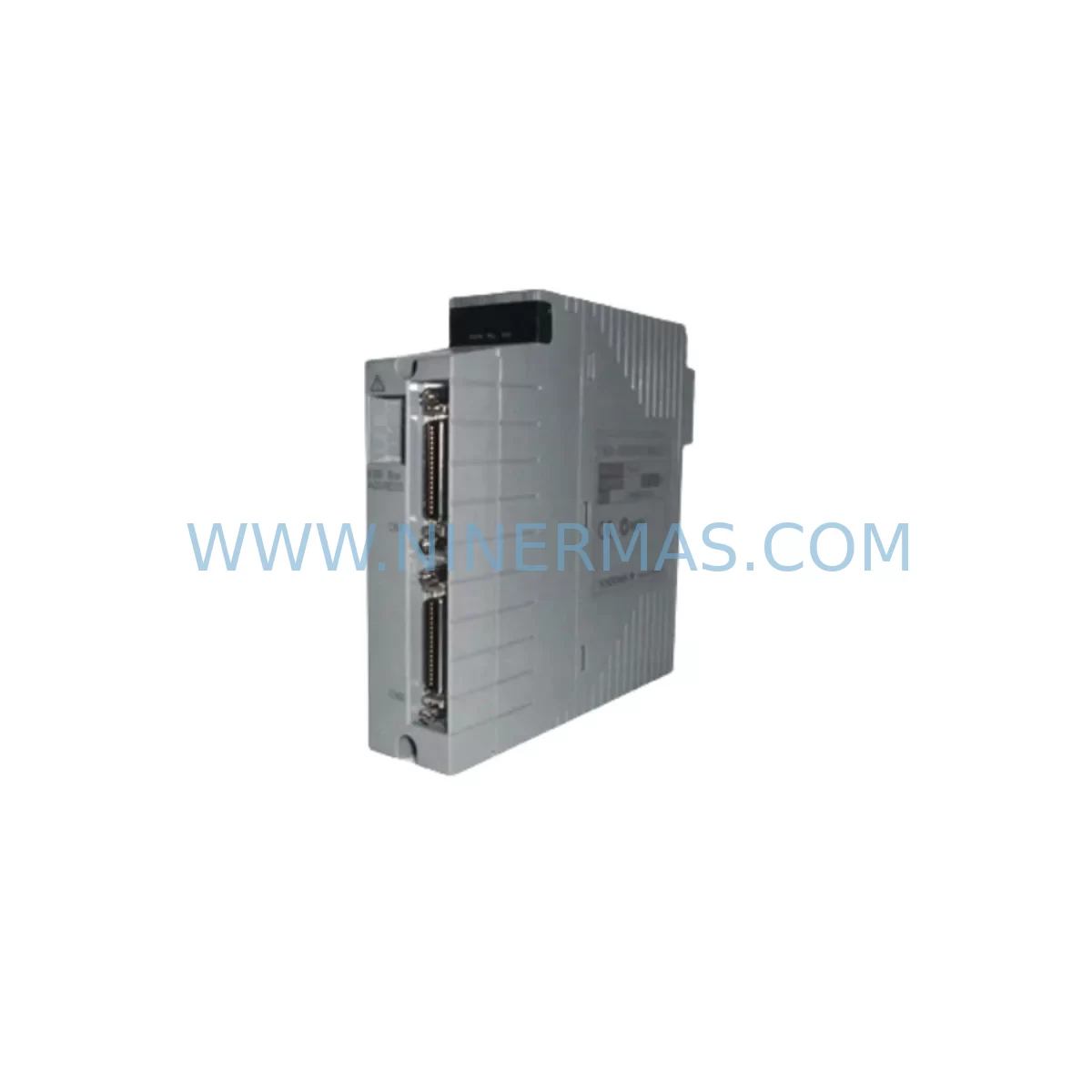

The Yokogawa AAM10-S1 is an analog input module designed for use within Yokogawa’s CENTUM VP distributed control system (DCS) platform. As a critical signal acquisition component, the AAM10-S1 receives 4–20 mA analog signals from field instruments including pressure transmitters, temperature sensors, and flow meters, converting them into digital values for real-time process monitoring and control. In safety-critical industries such as petrochemical refining, power generation, pharmaceutical manufacturing, and offshore oil and gas, the uninterrupted operation of this module is directly tied to plant uptime and regulatory compliance.

Maintaining a service-ready AAM10-S1 spare in your inventory is a fundamental risk mitigation strategy. Unexpected module failure can halt an entire process loop, triggering unplanned shutdowns that cost thousands of dollars per hour. With a pre-tested, original Yokogawa AAM10-S1 on the shelf, maintenance engineers can execute a controlled swap within a single maintenance window, restoring normal operation without extended diagnostic delays.

Each unit supplied by NINERMAS is sourced as an original Yokogawa component, subjected to pre-shipment functional testing, and backed by a 12-month warranty. This ensures that the module you receive is ready for immediate installation without additional bench testing on site.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the AAM10-S1 in a live CENTUM VP system, a disciplined maintenance approach requires more than a simple module swap. Maintenance engineers should treat the replacement as an opportunity to inspect the entire analog input loop and surrounding control infrastructure to prevent secondary failures.

Begin by verifying the integrity of the field wiring and terminal blocks connected to the AAM10-S1. Corroded or loose terminals on the marshalling cabinet can introduce signal noise or open-circuit faults that will affect the replacement module just as they affected the failed one. Inspect the associated AAI143-S00 or AAI543-S00 analog input terminal assemblies for signs of oxidation or mechanical damage, as these interface directly with the module’s field-side connections.

Next, confirm that the nest or backplane hosting the AAM10-S1 is functioning correctly. A faulty backplane connector or damaged slot can cause intermittent communication errors even with a new module installed. If the system uses an ATA4D-00 or similar I/O nest assembly, inspect the backplane bus connectors and power distribution rails before inserting the replacement module.

The CP451-10 or equivalent Field Control Station (FCS) processor should be checked for active alarms or diagnostic messages related to the failed module. Clear any latched faults after the replacement to ensure the FCS correctly recognizes the new AAM10-S1 and resumes normal scan cycles. If the system has been running with a degraded channel for an extended period, review the historian data to identify any process variables that may have drifted outside acceptable limits.

Power supply integrity is another critical checkpoint. The PW482-10 or equivalent DCS power supply module feeding the I/O nest should be verified for correct output voltage and load capacity. An aging or undersized power supply can cause intermittent module resets that mimic hardware failure. Keeping a spare PW482-10 alongside the AAM10-S1 in your critical spares inventory is a recommended practice for high-availability systems.

For plants operating HART-enabled field devices, confirm that the HART communication pass-through function of the replacement AAM10-S1 is correctly configured. This is particularly important when the module interfaces with smart transmitters that require periodic HART polling for diagnostics. If the system uses an AMM12C or similar HART multiplexer, verify that the multiplexer configuration is updated to reflect the new module address if required.

Signal isolators and surge protection devices installed between the field and the AAM10-S1 should also be inspected. Devices such as the AAB841 signal conditioner or equivalent DIN-rail isolators can degrade over time, introducing offset errors or reducing signal bandwidth. Replacing these components during the same maintenance window avoids a repeat intervention shortly after the module swap.

Finally, update the maintenance log and spare parts register to reflect the AAM10-S1 replacement. Record the module serial number, installation date, and any observations made during the swap. This documentation supports future root cause analysis and helps procurement engineers plan the next replenishment cycle before the spare shelf is depleted.

Site Replacement Workflow

The AAM10-S1 is designed for in-service replacement within the CENTUM VP architecture, minimizing the impact on running processes when proper procedures are followed. Before beginning the replacement, confirm that the affected process loops can be placed in manual control or that the field devices connected to the module are safely isolated. Coordinate with the control room operator to acknowledge any alarms that will be generated during the module removal.

Power down the specific I/O nest slot if the system supports hot-swap isolation, or follow the site-specific lockout/tagout (LOTO) procedure for the affected nest. Remove the failed AAM10-S1 by releasing the module locking mechanism and sliding it out of the backplane slot. Inspect the backplane connector pins for damage or contamination before inserting the replacement unit.

Insert the new AAM10-S1 firmly into the slot until the locking mechanism engages. Restore power to the nest and observe the module status LEDs to confirm successful initialization. Return to the FCS engineering station to verify that all 16 channels are reporting correctly and that no diagnostic alarms remain active. Restore the affected process loops to automatic control only after confirming stable signal readings across all channels.

This workflow is compatible with both CENTUM VP and CENTUM CS 3000 systems when the appropriate adapter hardware is used, making the AAM10-S1 a versatile replacement option for plants managing mixed-generation DCS infrastructure. Maintaining a documented replacement procedure reduces mean time to repair (MTTR) and ensures that even less experienced technicians can execute the swap safely and correctly.

Spare Parts Support FAQ

Q1: Is the AAM10-S1 compatible with both CENTUM VP and CENTUM CS 3000 systems?
The AAM10-S1 is natively designed for CENTUM VP Field Control Stations. Compatibility with CENTUM CS 3000 may require an adapter nest or specific firmware configuration. Contact NINERMAS with your FCS model and software revision to confirm compatibility before ordering.

Q2: What pre-shipment testing is performed on the AAM10-S1?
Each AAM10-S1 supplied by NINERMAS undergoes functional verification prior to dispatch. This includes power-on testing, channel signal integrity checks, and backplane communication verification. A test report is available upon request for quality-critical procurement processes.

Q3: How long does NINERMAS hold stock of the AAM10-S1, and can I reserve units for long-term supply?
NINERMAS maintains reserved inventory of the AAM10-S1 to support long-term supply commitments. For plants requiring guaranteed availability over a 12–36 month horizon, we offer reserved stock programs with agreed lead times and pricing. Contact our sales team to discuss a supply agreement tailored to your maintenance schedule.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, NINERMAS will arrange replacement or repair with minimal disruption to your spare parts inventory.

—
