Yokogawa AAI543-S00 Retrofit AO Module for Legacy Systems

Yokogawa AAI543-S00 Retrofit AO Module for Legacy Systems: Seamless Compatibility for Legacy DCS Upgrades

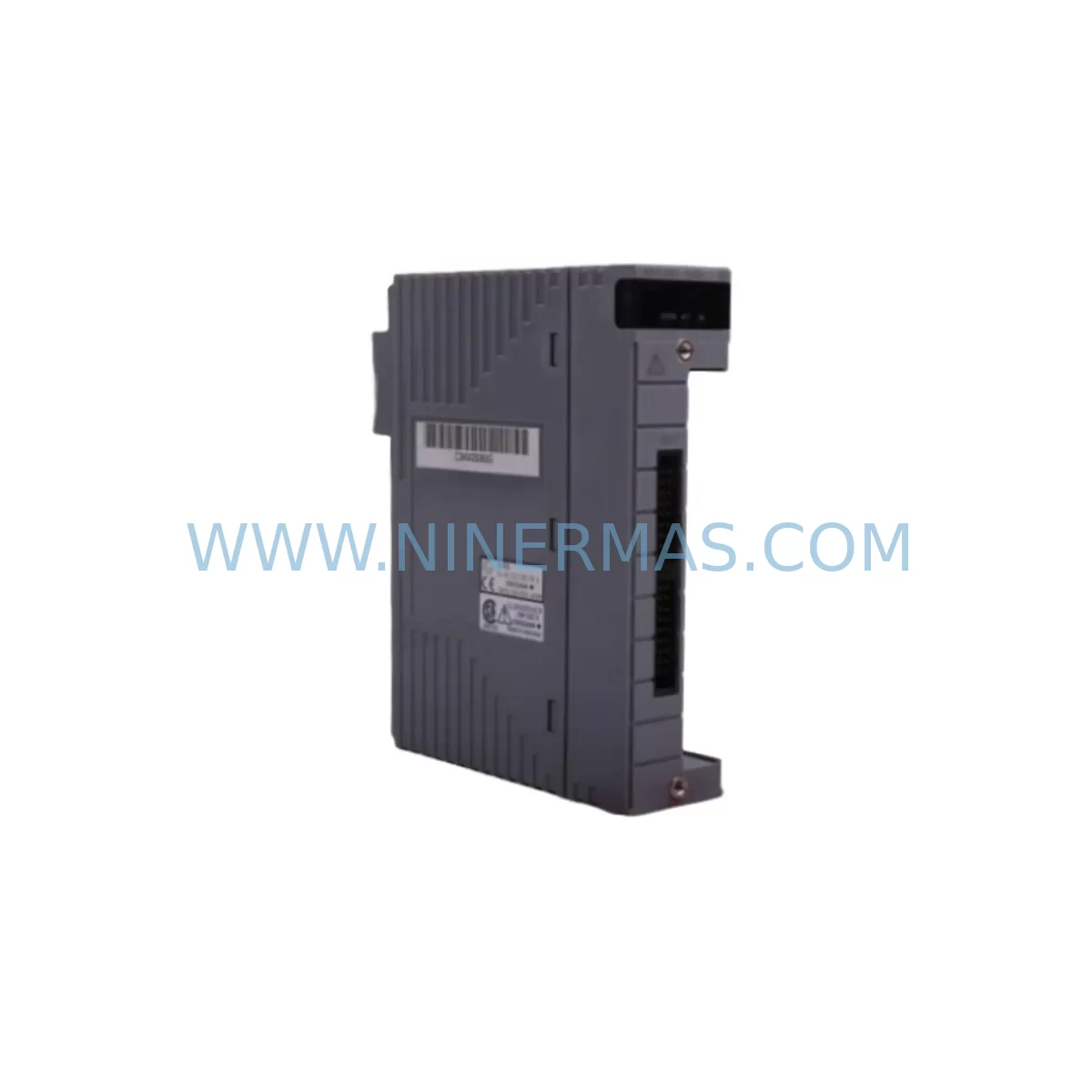

The Yokogawa AAI543-S00 is a ruggedized analog output module engineered for demanding industrial environments and designed to serve as a direct retrofit solution within legacy CENTUM VP and CENTUM CS 3000 distributed control system architectures. As aging automation infrastructure reaches end-of-life, facilities in the petrochemical, oil and gas, power generation, and advanced manufacturing sectors increasingly require reliable, drop-in compatible replacements that preserve existing program logic, terminal wiring, and backplane communication without forcing a full system overhaul. The AAI543-S00 addresses this need precisely, offering a proven upgrade path that minimizes capital expenditure while extending the operational lifespan of installed control platforms by years or even decades.

Designed to output 4–20 mA analog signals across multiple isolated channels, the AAI543-S00 integrates directly into Yokogawa CENTUM VP field control stations. Its ruggedized construction — including conformal coating and enhanced EMI shielding — makes it particularly suited for harsh environments where temperature extremes, humidity, vibration, and corrosive atmospheres are routine operational conditions. For facilities managing legacy DCS infrastructure, this module represents a critical spare part and a strategic upgrade component that supports long-term system continuity.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the AAI543-S00 into an existing CENTUM VP or CENTUM CS 3000 system begins with a thorough pre-retrofit assessment. Engineers must first audit the installed rack configuration, confirming available slot positions within the field control station and verifying that the existing ESB-11 bus module or equivalent backplane interconnect is functioning correctly. The ESB-11 provides the internal communication backbone between I/O modules and the controller, and any degradation in bus integrity will affect the performance of newly installed analog output modules regardless of their individual condition.

Terminal wiring compatibility is the next critical checkpoint. The AAI543-S00 is designed to interface with the ATA4D-00 terminal board, which provides the physical connection point between field instrument cables and the module’s I/O channels. Before removing the legacy module, technicians should photograph and document all existing wiring connections, confirm terminal numbering against the as-built drawings, and verify that field cable insulation and shielding remain intact. In many retrofit scenarios, the terminal board itself can be retained, significantly reducing field wiring labor and the risk of miswiring during the swap.

Power budget verification is essential when adding or replacing modules in an existing rack. The PW482-10 power supply module, commonly deployed in CENTUM VP field control stations, has a defined output capacity that must accommodate all installed I/O modules simultaneously. Engineers should calculate the total current draw of all modules in the rack — including analog input modules such as the AAI143-S00, analog I/O combination modules such as the AAI841-S00, and any digital I/O modules present — to confirm that the power supply margin remains within specification after the AAI543-S00 is installed.

Module address assignment must be confirmed in the engineering station before the replacement module is brought online. Using the CENTUM VP engineering environment connected to the CP451-10 field control unit, the technician should verify that the slot address assigned to the AAI543-S00 matches the configuration database entry for the outgoing module. Mismatched addresses will cause the controller to report a hardware fault and prevent the module from participating in the control loop. In systems where the ADV551-P00 processor module manages multiple I/O nodes, address conflicts across nodes must also be checked to avoid cascading communication errors.

Communication link integrity between the field control station and the supervisory layer should be validated using the ANB10D-400 node bus interface or equivalent network diagnostic tools. The ADV151-P00 communication module, where installed, handles the translation between the field bus and the plant network, and its configuration should be reviewed to ensure that the analog output tags associated with the AAI543-S00 channels are correctly mapped in the process database. HMI graphics built in the CENTUM VP human interface station should also be reviewed to confirm that faceplate displays, trend groups, and alarm setpoints referencing the affected output channels remain correctly linked after the module swap.

For facilities managing I/O expansion as part of a broader control system upgrade, the EC401-10 engineering and communication node provides a structured pathway for adding new I/O capacity while maintaining backward compatibility with existing CENTUM VP infrastructure. Integrating the AAI543-S00 within an expansion strategy allows facilities to standardize on ruggedized analog output hardware across both legacy and newly commissioned control cabinets, simplifying spare parts inventory management and reducing the number of distinct module types that maintenance teams must be trained to handle.

Downtime Control During System Migration

Minimizing unplanned downtime during a module replacement is a primary concern for any facility operating safety-critical or continuous-process automation systems. The AAI543-S00 retrofit process is designed to support a structured hot-swap or planned-outage approach, depending on the redundancy configuration of the installed system. In redundant field control station configurations, the analog output function can often be transferred to a standby module or controller path while the primary module is replaced, allowing the process to continue operating within defined safety limits throughout the maintenance window.

Where a brief process interruption is unavoidable, pre-staging the replacement module and completing all documentation, address verification, and wiring checks before the outage window begins is essential. The AAI543-S00 is shipped pre-tested and functionally verified, which eliminates the need for bench calibration before installation and reduces the time from module receipt to in-service operation. Each unit undergoes a comprehensive pre-shipment functional test that validates analog output accuracy, channel isolation, and communication response across the full operating range, ensuring that the module will perform correctly from the moment it is powered up in the field.

Preserving the original program logic stored in the CP451-10 controller is non-negotiable during any hardware replacement. Engineers should create a verified backup of the controller database — including all function block configurations, loop tuning parameters, interlock logic, and alarm setpoints — before beginning the physical swap. This backup serves as both a recovery resource and a reference document for post-installation verification. Once the AAI543-S00 is installed and the controller is brought back online, a structured loop check should be performed on each output channel to confirm that the 4–20 mA signal reaches the correct field device at the correct value, and that the HMI display reflects the expected process variable response.

Field calibration verification should be completed using a calibrated loop calibrator connected at the terminal board, with the engineering station in online monitoring mode. Any deviation from expected output values should be investigated and corrected before the process is returned to automatic control. Maintaining a detailed record of the pre- and post-replacement calibration results supports regulatory compliance documentation and provides a baseline for future maintenance intervals.

Retrofit Support FAQ

Q: Is the AAI543-S00 a direct replacement for other Yokogawa analog output modules in the AAI500 series?
A: The AAI543-S00 is designed for direct slot-compatible replacement within CENTUM VP and CENTUM CS 3000 field control stations that support the AAI500 series form factor. Compatibility with specific predecessor models should be confirmed against the installed rack configuration and the engineering station’s hardware database. In most cases, the module can be swapped without modifying field wiring or controller software, provided the slot address and terminal board assignments are verified before installation.

Q: What pre-shipment testing is performed on the AAI543-S00 before delivery?
A: Every AAI543-S00 unit supplied by NINERMAS undergoes a comprehensive functional test prior to shipment. This includes verification of analog output accuracy across all channels, channel isolation testing, backplane communication response, and environmental stress screening where applicable. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q: How should module address conflicts be resolved when replacing an AAI543-S00 in a multi-node CENTUM VP system?
A: Module address conflicts in multi-node systems are resolved through the CENTUM VP engineering station by reviewing the hardware configuration database for the affected field control unit. The technician should confirm that the slot address assigned to the replacement AAI543-S00 matches the outgoing module’s address entry exactly, and that no duplicate addresses exist across the node bus. If the ADV551-P00 processor module manages multiple I/O nodes, each node’s address space should be reviewed independently to prevent cross-node conflicts.

Q: What is the lead time and inventory availability for the AAI543-S00?
A: NINERMAS maintains reserved inventory of the AAI543-S00 to support urgent retrofit and emergency replacement requirements. Standard lead times for in-stock units are significantly shorter than OEM procurement channels, which is critical for facilities managing unplanned outages or time-sensitive maintenance windows. Contact our sales team for current stock status and to discuss long-term supply agreements that can provide guaranteed inventory availability aligned with your planned maintenance schedule.
