Yokogawa AAI143-H03 Retrofit-Compatible Analog Input Module

Yokogawa AAI143-H03 Retrofit-Compatible Analog Input Module for Legacy Systems

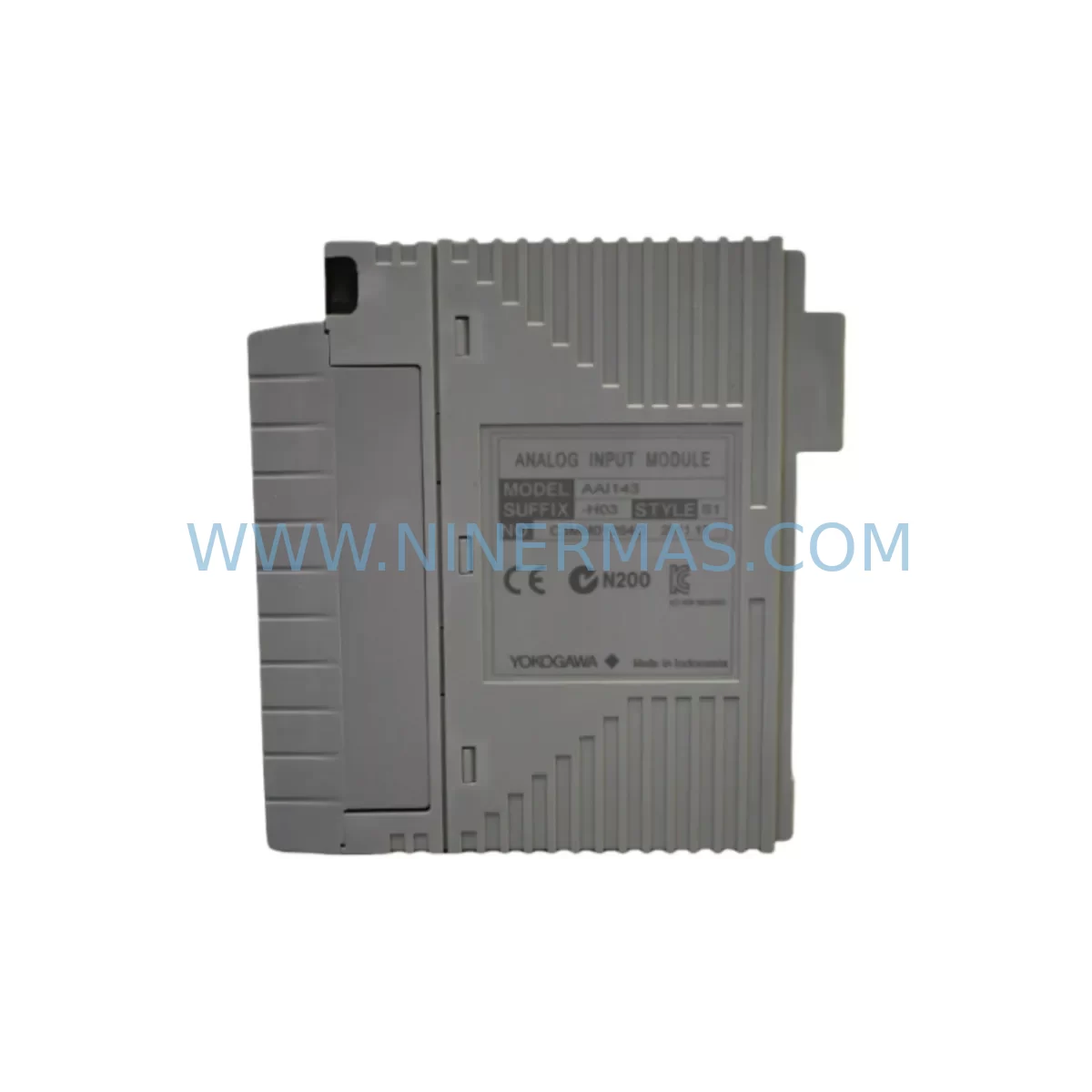

The Yokogawa AAI143-H03 is a multi-channel analog input module designed for the CENTUM VP and CS 3000 distributed control system platforms. As aging process plants face increasing pressure to extend the operational life of their automation infrastructure, the AAI143-H03 has become a critical spare part and retrofit component for facilities running legacy Yokogawa DCS architectures. This module accepts standard 4–20 mA field signals from transmitters, flow meters, pressure sensors, and temperature converters, and delivers high-resolution analog data to the controller via the internal I/O bus. For plants that cannot justify a full DCS migration, sourcing a verified replacement AAI143-H03 is often the most cost-effective path to restoring system integrity and maintaining process continuity.

NINERMAS supplies the AAI143-H03 as a retrofit-compatible replacement unit, fully tested prior to shipment and backed by a 12-month warranty. Each unit is verified against Yokogawa’s published I/O specifications to confirm channel count, signal range, resolution, and backplane interface compatibility before dispatch. Our inventory is maintained to support urgent breakdown scenarios as well as planned maintenance shutdowns, with lead times communicated at the time of inquiry.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the AAI143-H03 within an operating CENTUM VP or CS 3000 system requires careful pre-work to avoid unplanned process interruptions. Before the replacement window, engineers should export the current I/O configuration from the CENTUM VP Engineering environment and confirm the module’s slot address, channel assignments, and tag database entries. Field wiring connected to the terminal block assembly should be documented, including signal polarity, shielding continuity, and any intrinsic safety barriers or signal isolators installed in the loop.

In many retrofit scenarios, the AAI143-H03 is replaced alongside related infrastructure components. The nest power supply module — commonly a PW481 or similar Yokogawa power unit — should be inspected for load capacity, particularly when the I/O nest is operating near its rated current draw. If the nest is also hosting communication modules such as the ALR111 or ESB bus coupler cards, their status should be confirmed stable before and after the analog input module swap.

For plants migrating from CS 3000 to CENTUM VP, the AAI143-H03 is frequently retained as a compatible I/O module during phased migration, allowing the field wiring and terminal infrastructure to remain unchanged while the controller and network layers are upgraded. In these projects, the FCS (Field Control Station) is typically replaced with a CENTUM VP-compatible unit such as the AFV10D or AFV30D, while the I/O nest and analog input modules continue to serve the field instruments without rewiring. This approach significantly reduces migration cost and downtime.

Where the existing I/O nest is being decommissioned as part of a broader control cabinet upgrade, the AAI143-H03 may be relocated to a new nest assembly. In this case, the backplane connector alignment, nest grounding, and cabinet ventilation clearance must all be verified. If the new cabinet layout introduces longer cable runs between the nest and field junction boxes, signal integrity should be validated — particularly for low-level 4–20 mA loops operating near the minimum current threshold.

Plants upgrading their HMI layer from CENTUM CS 3000 HIS stations to CENTUM VP HIS or Exaopc-based OPC interfaces should confirm that all analog input tags associated with the AAI143-H03 are correctly mapped in the new HMI project. Alarm setpoints, engineering unit conversions, and trend historian links should be verified in the CENTUM VP builder before the new HMI goes live. In parallel, any HART-enabled field devices connected to the analog input channels should be confirmed compatible with the module’s HART pass-through capability, if applicable to the H03 variant in use.

For facilities managing a broader spare parts lifecycle program, the AAI143-H03 is often stocked alongside complementary modules including the AAI141-H03 (analog input, alternative channel configuration), AAI543-H03 (analog output module), AAT141-S00 (analog I/O combination module), and the AMM12W multi-point analog module. Communication infrastructure components such as the ALR111 BRAIN/HART multiplexer and the AIP587 I/O interface module are also commonly reviewed during the same retrofit planning cycle. Maintaining a verified inventory of these modules ensures that a single-module failure does not cascade into an extended production outage.

Downtime Control During System Migration

Minimizing downtime during an AAI143-H03 replacement begins with preparation, not execution. The replacement itself — physically swapping the module in the I/O nest — typically takes under 15 minutes for a trained instrument technician. The time-consuming elements are the pre-work: configuration backup, tag verification, loop isolation, and post-replacement signal confirmation.

Where the process allows, the affected analog input channels should be placed in manual control or bypassed at the DCS level before the module is removed. This prevents false alarms, spurious shutdowns, or control upsets caused by the momentary loss of input signal during the swap. The CENTUM VP system supports channel-level bypass and manual setpoint hold functions that can be activated from the HIS operator station without requiring engineering-level access.

After the replacement module is seated and the I/O configuration is re-downloaded from the engineering environment, each channel should be verified by comparing the live DCS reading against a calibrated field reference — either a loop calibrator injecting a known 4–20 mA signal or a confirmed stable process reading from an adjacent transmitter. Any channel showing an out-of-range or frozen reading should be investigated before the bypass is lifted.

For planned maintenance shutdowns, NINERMAS recommends having the replacement AAI143-H03 on-site and pre-inspected at least 48 hours before the maintenance window. This allows time to confirm the module’s physical condition, verify the firmware or hardware revision matches the installed unit, and resolve any procurement or logistics issues before the clock starts on the shutdown. Our team can provide pre-shipment test documentation and revision confirmation to support your maintenance planning process.

In multi-nest control cabinets where several I/O modules are being replaced in a single shutdown, sequencing the replacements by nest and by FCS node reduces the risk of configuration errors. Replacing all modules in one nest before moving to the next — and re-downloading and verifying each nest’s configuration before proceeding — creates a clear audit trail and simplifies fault isolation if a problem is discovered during commissioning.

Retrofit Support FAQ

Q1: Is the AAI143-H03 a direct drop-in replacement for the unit currently installed in my CENTUM VP or CS 3000 system?
For same-series replacements within CENTUM VP or CS 3000 I/O nests, the AAI143-H03 is designed as a direct slot-compatible replacement. No backplane adapter or wiring modification is required. However, you should confirm the hardware revision of the installed unit and the replacement unit are compatible, and re-download the I/O configuration from the CENTUM VP Engineering environment after installation to ensure the module is correctly recognized by the FCS.

Q2: What pre-shipment testing does NINERMAS perform on the AAI143-H03 before dispatch?
Each AAI143-H03 supplied by NINERMAS undergoes channel-level functional testing to verify analog input signal reception, channel isolation, and backplane communication integrity. A test report is available on request. Units are inspected for physical condition, connector integrity, and component-level anomalies before packaging. Our 12-month warranty covers functional failure under normal operating conditions from the date of shipment.

Q3: Can the AAI143-H03 be used during a phased migration from CS 3000 to CENTUM VP?
Yes. The AAI143-H03 is compatible with both CS 3000 and CENTUM VP I/O nest architectures, making it a practical choice for phased migration projects where the field wiring and I/O infrastructure are retained while the controller and network layers are upgraded. This approach avoids the cost and risk of rewiring field instruments and allows the migration to proceed in stages aligned with planned shutdown windows.

Q4: What is the typical lead time, and do you maintain stock of the AAI143-H03?
NINERMAS maintains inventory of the AAI143-H03 to support both urgent breakdown replacements and planned maintenance programs. Lead time depends on current stock levels and your delivery location. Please contact our team at sale@ninermas.com or +0086 187 5021 5667 for a real-time stock confirmation and delivery estimate. For facilities with recurring spare parts requirements, we offer long-term supply arrangements to ensure availability aligned with your maintenance schedule.
