YOKOGAWA AAI135-H03 S1 Retrofit-Compatible Analog Input

YOKOGAWA AAI135-H03 S1 Retrofit-Compatible Analog Input Module for Legacy Systems

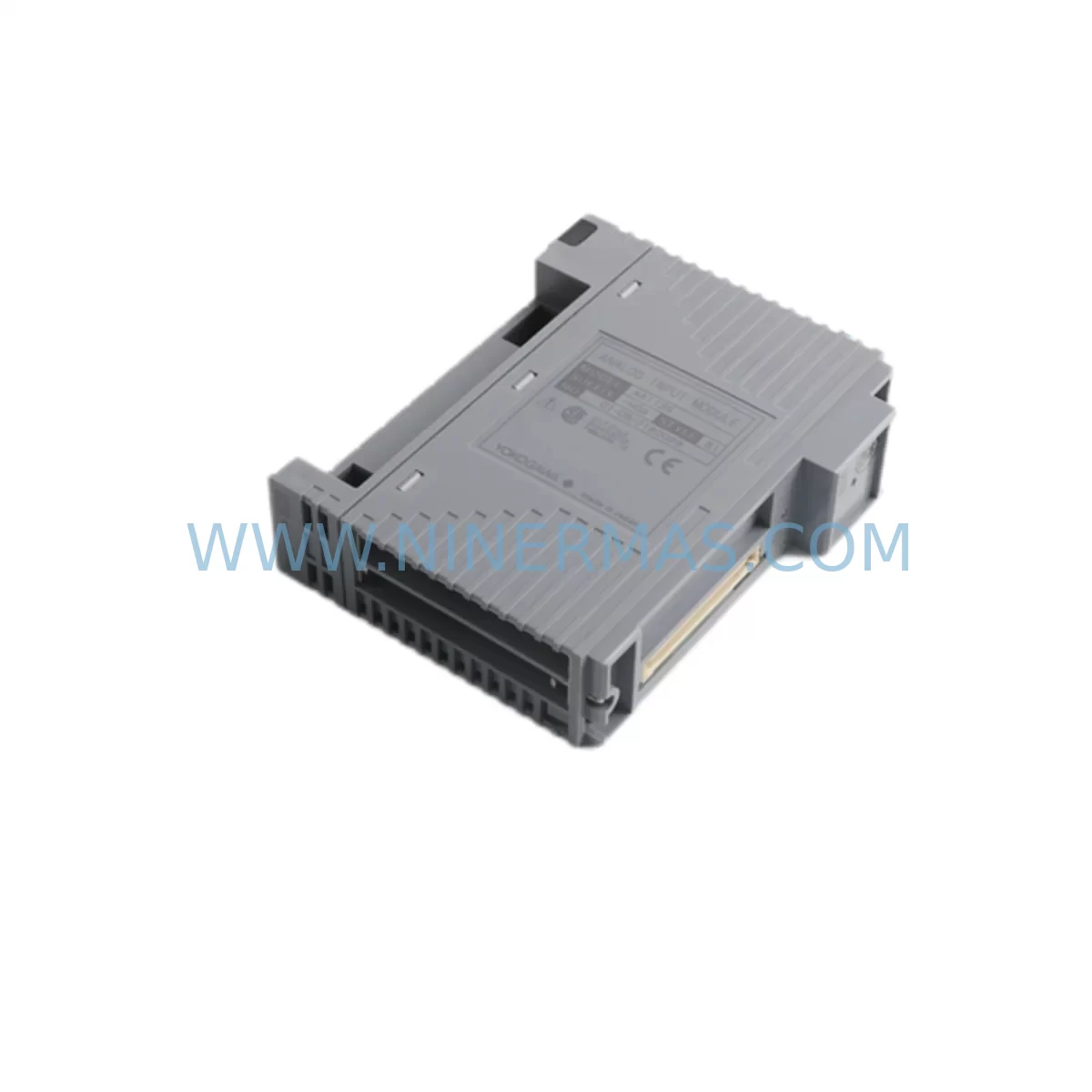

The YOKOGAWA AAI135-H03 S1 is a high-reliability analog input module engineered for seamless integration into both active CENTUM VP distributed control systems and legacy CENTUM CS/CS 3000 platforms undergoing modernization. As industrial facilities face the challenge of maintaining aging automation infrastructure while minimizing production disruption, the AAI135-H03 S1 serves as a proven retrofit solution — enabling engineers to replace end-of-life analog input cards without redesigning the control architecture, rewriting function blocks, or reconfiguring field wiring.

The module accepts standard 4–20 mA analog signals from field transmitters, including pressure, temperature, flow, and level instruments commonly deployed in continuous process industries. Its H03 suffix designates the high-density, high-isolation variant, making it particularly suited for applications where signal integrity must be maintained across long cable runs or in environments with elevated electromagnetic interference from variable frequency drives, large motor starters, or high-voltage bus systems.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the AAI135-H03 S1 within an operating CENTUM VP or CENTUM CS 3000 system requires a structured approach to avoid unplanned shutdowns and preserve control logic integrity. Before physical installation, engineers should audit the existing FCS node backplane to confirm available slot positions and verify that the installed PW481 or PW482 node power supply unit has sufficient current headroom to support the replacement module alongside existing I/O cards in the same nest.

Field wiring connected to the legacy analog input card should be documented at the terminal board level — particularly for installations using TB series marshalling terminal boards or YOKOGAWA MTB multi-pair terminal blocks, where channel-to-terminal mapping may differ between module generations. Signal cables from field-mounted HART transmitters, including pressure transmitters and temperature converters, must be verified for correct polarity and loop resistance before the new module is energized.

On the software side, the CENTUM VP Engineering Environment must be used to reassign I/O builder tags to the new module’s physical slot address. If the system previously used a CENTUM CS 3000 R3 configuration, engineers should confirm that function block connections referencing the old AAI135 module are remapped correctly, and that any SCS (Safety Control Station) interlocks referencing analog input values from this module are validated in simulation mode before live commissioning.

For facilities running parallel control architectures, the ACM11 communication module or ALR111 alarm module connected to the same FCS node should be checked for compatibility with the updated I/O configuration. In multi-node systems, the BCV021 bus coupler linking the I/O nest to the Vnet/IP control network should also be inspected to ensure firmware compatibility with the replacement module’s communication protocol version.

Where HMI screens reference analog input tags from the AAI135-H03 S1, CENTUM VP’s HIS (Human Interface Station) graphic displays should be reviewed to confirm that trend displays, alarm setpoints, and faceplates continue to reference the correct tag names after the I/O builder update. This step is frequently overlooked during rapid replacement scenarios and can result in operators monitoring stale or disconnected data points.

NINERMAS supplies the AAI135-H03 S1 with full pre-shipment functional testing, including analog signal injection across all 16 channels to verify accuracy and isolation integrity. Each unit ships with a 12-month warranty and is available from in-stock inventory, supporting both planned maintenance windows and emergency replacement scenarios where minimizing downtime is critical.

Downtime Control During System Migration

One of the primary concerns when replacing analog input modules in a live process environment is the risk of extended downtime during the changeover. The AAI135-H03 S1‘s direct slot compatibility with the CENTUM VP FCS I/O nest means that physical installation can typically be completed within a single planned maintenance window, without requiring structural changes to the control cabinet or field junction boxes.

To further reduce migration risk, engineers should prepare a pre-tested spare module with the correct I/O builder configuration loaded and verified offline using YOKOGAWA’s engineering workstation tools before the maintenance window begins. This approach — sometimes called hot-swap preparation — allows the physical replacement to proceed as a straightforward card swap, with software tag reassignment completed and validated in advance.

Where the process cannot tolerate even brief analog input interruptions, facilities may consider temporarily routing critical signals through a signal isolator or signal conditioner installed in the marshalling cabinet, maintaining loop continuity while the primary module is replaced. After installation, a structured loop check using a HART communicator or loop calibrator should be performed on each channel before returning the FCS node to automatic control mode.

NINERMAS provides technical documentation support for AAI135-H03 S1 installations, including wiring diagrams, I/O builder configuration guidance, and commissioning checklists. Our inventory is maintained to support both single-unit emergency replacements and multi-unit planned retrofit projects, with fast dispatch available for urgent site requirements.

Retrofit Support FAQ

Q1: Is the AAI135-H03 S1 a direct drop-in replacement for older AAI135 series modules?
The AAI135-H03 S1 is designed for direct slot replacement within YOKOGAWA CENTUM VP and CENTUM CS 3000 FCS I/O nests. Physical dimensions and backplane connector pinouts are compatible with the standard AAI135 module family. However, engineers should verify the I/O builder slot address assignment and confirm that function block tag references are updated in the CENTUM VP Engineering Environment before returning the node to service. Minor firmware differences between module generations may require an I/O builder rebuild if the system was originally configured on an older CENTUM CS 3000 R2 or R3 platform.

Q2: What pre-shipment testing does NINERMAS perform on the AAI135-H03 S1?
Every AAI135-H03 S1 unit supplied by NINERMAS undergoes full functional testing prior to dispatch. This includes analog signal injection across all 16 input channels, verification of channel-to-channel isolation, and confirmation of backplane communication interface integrity. Test records are available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can the AAI135-H03 S1 be used in a CENTUM VP system running Vnet/IP communication?
Yes. The AAI135-H03 S1 is fully compatible with CENTUM VP systems operating on the Vnet/IP control network. The module communicates via the FCS node bus backplane, which interfaces with the Vnet/IP network through the FCS controller. No additional communication adapters are required. Confirm that the FCS controller firmware version supports the AAI135-H03 S1 module type in the I/O builder module library.

Q4: What is NINERMAS’s long-term supply commitment for the AAI135-H03 S1?
NINERMAS maintains dedicated inventory of the AAI135-H03 S1 to support both planned maintenance programs and emergency replacement requirements. We specialize in sourcing and supplying discontinued and hard-to-find YOKOGAWA spare parts, ensuring that facilities running legacy CENTUM systems can continue to source critical I/O modules without being forced into premature full-system upgrades. Contact our team at sale@ninermas.com or +0086 187 5021 5667 for availability and lead time confirmation.
