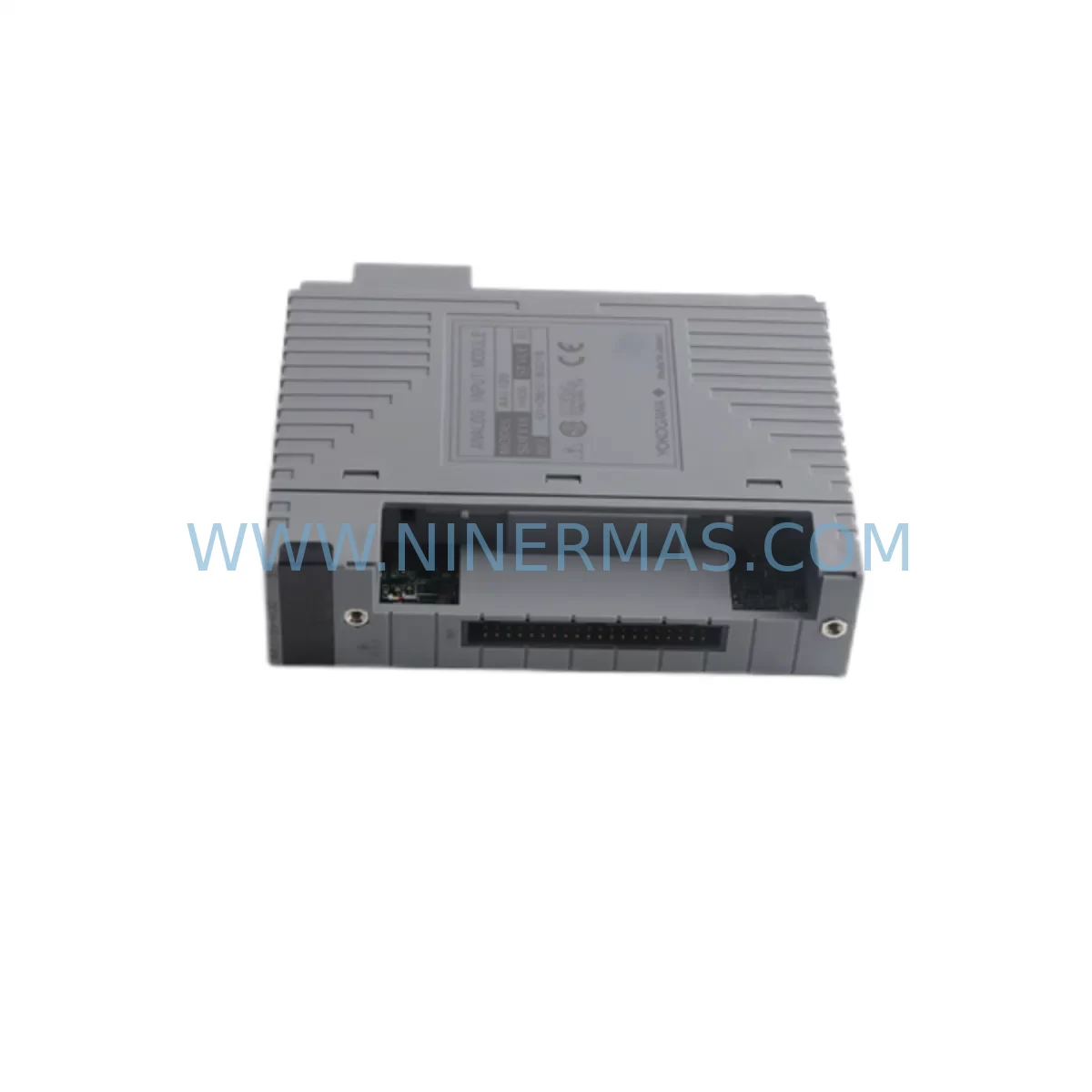

The YOKOGAWA AAI135-H00 S1 is a high-density analog input module designed for the CENTUM VP distributed control system platform. As a critical spare part in process automation environments — including oil and gas, petrochemical, power generation, and chemical manufacturing — this module plays a central role in maintaining continuous loop control, signal acquisition, and process monitoring across aging and active production lines alike.

For maintenance engineers managing DCS infrastructure, having a verified, service-ready AAI135-H00 S1 in the spare parts inventory is a fundamental risk mitigation strategy. Unplanned module failures in analog input channels can trigger process shutdowns, compromise safety interlocks, and result in costly production losses. Sourcing a pre-tested replacement unit in advance — rather than waiting for a failure event — is the most effective way to control downtime exposure and protect operational continuity.

The AAI135-H00 S1 supports 16-channel 4–20 mA analog input with HART communication capability, making it compatible with a wide range of field transmitters including pressure, temperature, flow, and level instruments. Before installing a replacement unit, maintenance teams should verify the field wiring terminal assignments against the existing I/O map, confirm that the module address and slot position in the CENTUM VP node unit match the original configuration, and ensure that the HART pass-through settings are correctly preserved in the engineering station.

During annual shutdowns or scheduled maintenance windows, it is common practice to inspect not only the AAI135-H00 S1 itself but also the surrounding infrastructure within the same I/O node. This includes checking the YOKOGAWA AAB841 analog output module installed in adjacent slots, verifying the condition of the ANB10D node unit backplane for signs of corrosion or connector wear, and testing the PW481 or PW482 power supply modules that feed the I/O node. A degraded power supply is a common root cause of intermittent analog input faults that are often misdiagnosed as module failures.

Signal integrity is another key consideration. In environments with high electromagnetic interference — such as motor control centers or variable frequency drive cabinets — the 4–20 mA signals feeding the AAI135-H00 S1 may require signal isolators or surge protection barriers. Reviewing the condition of terminal blocks, cable shields, and grounding connections at the marshalling cabinet is an essential step before commissioning a replacement module. Loose or corroded terminals on the TB series terminal boards connected to the AAI135-H00 S1 can introduce noise or open-circuit faults that persist even after the module is replaced.

For facilities running CENTUM VP alongside legacy CENTUM CS 3000 infrastructure, the AAI135-H00 S1 is part of a broader migration and coexistence strategy. Procurement engineers should note that the module’s firmware revision must be compatible with the FCS (Field Control Station) software version in use. When ordering a replacement, always confirm the suffix code — in this case S1 — which indicates the specific hardware revision and option configuration. Substituting an incorrect suffix variant can result in configuration errors or reduced channel availability.

In addition to the module itself, a comprehensive spare parts plan for a CENTUM VP node should include the AAI143-S or AAI141-S as alternative analog input variants for different channel densities, the ACF11 communication interface module for Vnet/IP connectivity, and the AIP829 or AIP835 I/O interface modules used in larger node configurations. Keeping at least one spare of each critical module type — particularly those with long lead times from the manufacturer — is a best practice endorsed by most process safety and reliability frameworks.

Ninermas supplies the YOKOGAWA AAI135-H00 S1 as a fully tested, service-ready spare part with a 12-month warranty. Each unit undergoes functional verification prior to shipment, including channel-by-channel signal response testing and visual inspection of connectors and PCB components. Units are packaged in anti-static protective materials and shipped with documentation confirming test results and part authenticity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a CENTUM VP system goes well beyond replacing a single analog input module. When the AAI135-H00 S1 is identified as a fault point or scheduled for preventive replacement, the maintenance window should be used to conduct a broader inspection of the control node and associated field circuits.

Start with the power distribution path: the PW481 and PW482 power supply modules should be load-tested and their output voltages verified under normal operating conditions. A marginal power supply that passes a no-load bench test may still fail under the full current draw of a populated I/O node. Next, inspect the ANB10D backplane for physical damage, oxidized contacts, or loose module retention clips — backplane faults are a leading cause of intermittent communication errors between the FCS and I/O modules.

At the field wiring level, check the TB series terminal boards for tightness, corrosion, and correct shield grounding. For HART-enabled loops, verify that the HART modem or multiplexer — if used — is correctly configured for the channel assignments on the AAI135-H00 S1. If the facility uses a YOKOGAWA HART multiplexer or a third-party HART interface, confirm that the device address mapping is updated after module replacement.

For nodes that also contain analog output channels, inspect the AAB841 analog output module and its associated field wiring for signs of loop resistance drift or output calibration errors. In mixed I/O nodes, a failing analog output channel can introduce ground loops that affect the signal quality on adjacent analog input channels, including those served by the AAI135-H00 S1.

Communication continuity should also be verified. The ACF11 Vnet/IP communication module and its redundant counterpart should be checked for link status, packet error rates, and firmware version alignment with the FCS. A communication module running outdated firmware may cause intermittent data dropouts that are difficult to distinguish from analog input module faults during fault isolation.

Finally, review the HMI alarm history and trend data for the channels associated with the AAI135-H00 S1 prior to replacement. Patterns of intermittent high or low alarms, signal noise, or sudden zero readings can help pinpoint whether the fault is in the module, the field wiring, the transmitter, or the power supply — saving significant diagnostic time during the replacement procedure.

Site Replacement Workflow

Replacing the YOKOGAWA AAI135-H00 S1 in a live CENTUM VP system requires careful preparation to minimize downtime and avoid configuration errors. The following workflow reflects best practices for field replacement in process plant environments:

1. Pre-Replacement Preparation: Export the current I/O configuration from the CENTUM VP engineering station, including channel assignments, tag names, HART device addresses, and alarm setpoints. Confirm the slot number and node address of the module to be replaced. Notify the control room operator and place affected loops in manual mode or bypass safety interlocks as required by the site’s management of change procedure.

2. Module Removal: Power down the node unit if a hot-swap procedure is not supported for this module type. Disconnect field wiring terminal boards carefully, labeling each connector if not already marked. Remove the AAI135-H00 S1 from its slot and inspect the backplane connector for damage before inserting the replacement unit.

3. Replacement Installation: Insert the new AAI135-H00 S1 into the correct slot. Reconnect terminal boards and verify wiring continuity with a loop tester before powering up. Power on the node unit and confirm that the FCS recognizes the module at the correct address. Download the I/O configuration from the engineering station if required by the FCS software version.

4. Commissioning and Verification: Return each loop to automatic mode one at a time, verifying signal values against field instrument readings. Check HART communication status for each channel if applicable. Review the HMI for correct tag display and alarm function. Document the replacement in the site maintenance management system with the new module’s serial number and test report.

This structured approach typically allows a single-module replacement to be completed within a two- to four-hour maintenance window, minimizing production impact and ensuring full system restoration before the end of the shift.

Spare Parts Support FAQ

Q1: Is the YOKOGAWA AAI135-H00 S1 compatible with both CENTUM VP and CENTUM CS 3000 systems?
The AAI135-H00 S1 is designed for the CENTUM VP platform. While some CENTUM CS 3000 node units share physical form factors, software and firmware compatibility must be verified against your specific FCS version before installation. Contact our technical team with your system version details for confirmation.

Q2: What does the S1 suffix indicate, and can I substitute a different suffix variant?
The S1 suffix denotes a specific hardware revision and option configuration of the AAI135-H00 module. Substituting a different suffix variant may result in reduced channel availability, configuration errors, or incompatibility with your FCS software. Always specify the full part number including suffix when ordering.

Q3: How is the unit tested before shipment?
Each AAI135-H00 S1 supplied by Ninermas undergoes a full functional test including channel-by-channel 4–20 mA signal verification, HART communication check, and visual PCB inspection. A test report is included with each shipment. Units are packaged in anti-static materials to prevent damage during transit.

Q4: What warranty and long-term supply support does Ninermas provide?
All units carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Ninermas maintains stock of YOKOGAWA CENTUM VP spare parts including the AAI135-H00 S1 and related modules to support long-term maintenance programs. Contact us for volume pricing, scheduled delivery agreements, and multi-year supply contracts.

—
