Yaskawa CPS-520F2 Retrofit-Compatible Battery for Legacy Systems

Yaskawa CPS-520F2 Retrofit-Compatible Battery for Legacy DX200, MP300 and MP350 Control Systems

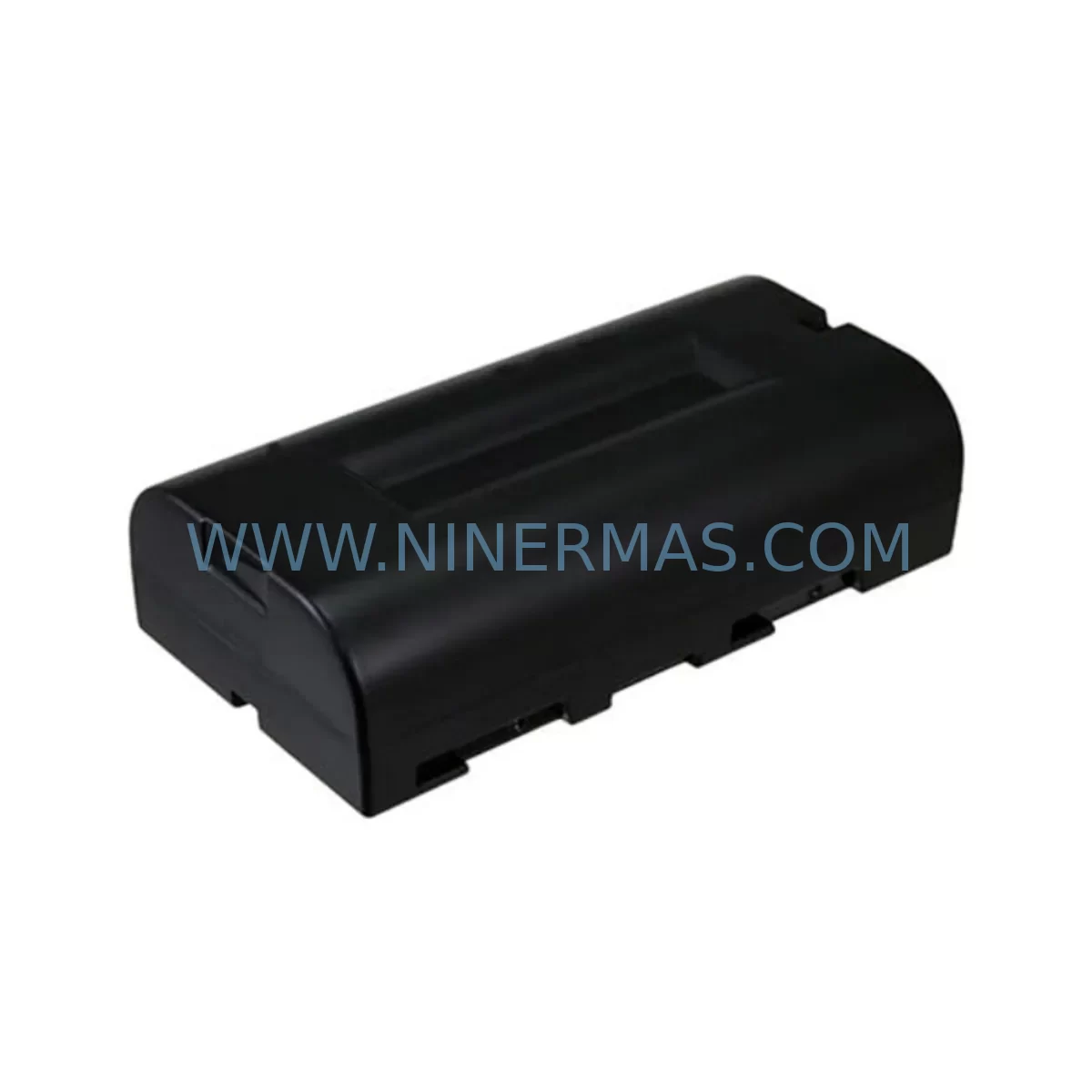

The Yaskawa CPS-520F2 (also referenced as JZNC-YPS21-E and part number 50999-2922R08) is a direct-replacement memory backup battery unit designed for Yaskawa DX200 robot controllers, MP300 machine controllers, and MP350 motion controllers. As these platforms age and original battery assemblies reach end-of-life, sourcing a verified, pre-tested replacement becomes critical to maintaining program retention, axis calibration data, and system clock integrity across the entire control cabinet. NINERMAS supplies this battery unit with a 12-month warranty and full pre-shipment electrical testing, ensuring that every unit shipped is ready for immediate installation without additional bench verification.

The CPS-520F2 battery assembly is responsible for retaining SRAM-based job data, tool calibration offsets, I/O assignment tables, and communication parameter settings stored within the DX200 controller’s CPU board. When this battery fails or degrades below threshold voltage, the controller will generate a battery alarm (typically alarm code 4100 or 4101 on DX200 platforms), and all retained data is at risk of loss on the next power cycle. Proactive replacement during scheduled maintenance windows — rather than reactive replacement after an alarm — is strongly recommended to protect accumulated calibration data and avoid unplanned downtime.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a battery replacement or broader DX200 controller retrofit, it is essential to treat the CPS-520F2 as one component within a larger system health review. Before initiating the replacement, maintenance engineers should perform a full job data backup using the JZRCR-YPP01-1 programming pendant or via the DX200’s built-in USB backup function. This ensures that all robot programs, tool data, and I/O assignments stored on the JANCD-YCP01-E CPU board are protected against any data loss during the battery swap.

In aging DX200 installations, the battery replacement is frequently performed alongside other preventive maintenance tasks. Engineers often inspect the JZNC-YPS01-E power supply unit for capacitor degradation, check the JANCD-XCP01C-1 robot control board for corrosion or connector wear, and verify that the HW0470360-A servo amplifier connections remain secure. If the system is also being upgraded from an older NX100 or XRC controller platform to DX200, the battery replacement is part of a broader migration that includes updating the SGDV-series servo drives, re-mapping I/O through the JZRCR-YPP01-1 pendant, and verifying that the MP3300 CPU module (where applicable in MP300/MP350 hybrid architectures) retains its motion program library.

For installations where the DX200 controller shares a control cabinet with Yaskawa MP300 or MP350 machine controllers, the battery replacement scope may extend to the MP300’s own SRAM backup cell. Engineers should confirm whether the MP300 CPU module uses the same CPS-520F2 battery or a separate cell, as some cabinet configurations use a shared power supply rail. The JZRCR-APP01-1 application board and associated I/O expansion modules should also be inspected for firmware version compatibility if the controller software is being updated as part of the retrofit. Communication links — including EtherNet/IP connections to upstream SCADA systems and DeviceNet links to field I/O — should be documented before any power interruption to ensure rapid restoration after the battery replacement is complete.

Where the retrofit scope includes upgrading the teach pendant from the legacy JZRCR-YPP01-1 to a newer DX200-compatible pendant, engineers should verify that all custom HMI screens and macro programs are exported and re-imported after the hardware change. Signal isolators installed between the DX200 I/O board and field sensors should be checked for correct voltage range settings, as incorrect isolation levels can cause false alarms after a controller restart. Programming cables used for offline backup and parameter transfer should be confirmed compatible with the DX200 USB or RS-232 interface before the maintenance window begins.

Downtime Control During System Migration

Minimizing unplanned downtime during a CPS-520F2 battery replacement requires a structured pre-maintenance checklist. The recommended sequence begins with a full data backup — all robot jobs, system parameters, tool calibration data, and I/O tables — stored on an external USB drive or network share. This backup protects the original program logic and ensures that even in the event of unexpected data loss, the system can be restored to its pre-maintenance state within minutes rather than hours.

The physical battery replacement itself is typically a 15–30 minute procedure on a DX200 controller, provided the correct CPS-520F2 unit is on hand before the maintenance window opens. NINERMAS maintains in-stock inventory of this battery assembly to support same-day or next-day dispatch, reducing the risk of extended downtime caused by sourcing delays. After installation, the controller should be powered on and the battery alarm status verified on the DX200 alarm display. If the alarm clears and the system clock retains its value, the replacement is confirmed successful. If job data was lost due to a deeply discharged battery, the pre-maintenance backup can be restored via the programming pendant in under 30 minutes for most standard DX200 configurations.

For production lines where continuous operation is critical, a spare CPS-520F2 battery unit should be held in local inventory as a cold standby. NINERMAS offers reserved inventory programs for high-volume customers, ensuring that replacement batteries are allocated and held against specific site requirements, with guaranteed lead times and priority dispatch. This approach aligns with best practices for spare parts lifecycle management in safety-critical automation environments, where the cost of unplanned downtime far exceeds the cost of maintaining a small buffer stock of consumable components.

Retrofit Support FAQ

Q1: Is the CPS-520F2 a direct drop-in replacement for the JZNC-YPS21-E on DX200 controllers?
Yes. The CPS-520F2 and JZNC-YPS21-E are cross-referenced part numbers for the same battery assembly used in Yaskawa DX200, MP300, and MP350 controllers. The connector and mounting configuration are identical, making it a direct plug-in replacement with no wiring or bracket modification required.

Q2: What pre-shipment testing is performed on each unit?
Every CPS-520F2 unit supplied by NINERMAS undergoes electrical testing prior to shipment, including open-circuit voltage verification and connector integrity checks. Units that do not meet specification are rejected before dispatch. A 12-month warranty is provided from the shipment date, covering manufacturing defects and premature failure under normal operating conditions.

Q3: Should I back up robot data before replacing the battery?
Yes, always. While the battery replacement procedure on DX200 controllers is designed to be performed with the controller powered off, a deeply discharged battery may have already caused partial data loss. Performing a full backup via the JZRCR-YPP01-1 programming pendant or USB backup function before the replacement ensures that all job data, tool offsets, and system parameters can be restored if needed.

Q4: Is stock available for immediate dispatch, and what are the lead times?
NINERMAS maintains in-stock inventory of the CPS-520F2 / JZNC-YPS21-E battery assembly to support urgent replacement requirements. Standard orders are dispatched within 1–2 business days. Reserved inventory programs are available for customers requiring guaranteed stock allocation for planned maintenance schedules or multi-site rollouts. Contact our team to discuss long-term supply commitments and volume pricing.
