KUKA MFC2-IC3 00-125-236 Service-Ready Spare Part

KUKA MFC2-IC3 00-125-236 Service-Ready Spare Part for Industrial Maintenance

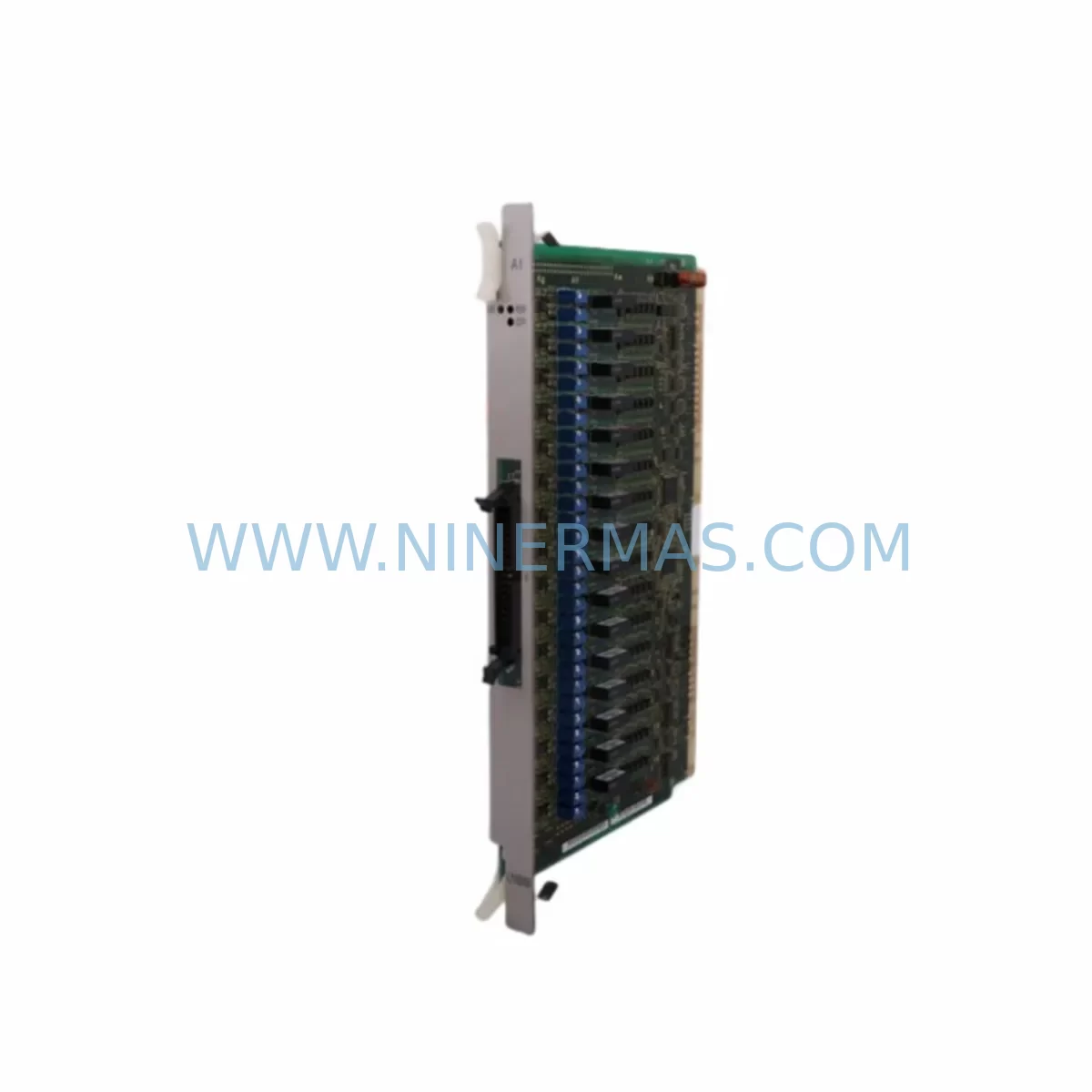

The KUKA MFC2-IC3 (Part No. 00-125-236, cross-reference 00-108-766) is a critical controller interface board within the KUKA MFC2 series, designed for use in KUKA KRC2 robot controller cabinets. This board manages motion field communication between the robot’s main computer and drive systems, making it a high-priority spare part for any facility operating KUKA industrial robots in continuous production environments.

At NINERMAS, every MFC2-IC3 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and shipped with a 12-month warranty. We maintain long-term stock programs for MFC2 series components to support planned maintenance, emergency replacement, and multi-site spare parts inventory strategies.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a KUKA MFC2-IC3 (00-125-236) fault is identified — typically surfaced through KRC2 error codes related to axis communication loss, drive initialization failure, or fieldbus timeout — the replacement workflow extends beyond the board itself. A disciplined maintenance engineer will treat this event as a trigger for a broader cabinet inspection to prevent secondary failures and minimize total downtime.

Begin by verifying the KRC2 internal 24 VDC power supply module. Voltage instability or ripple on the internal power rail is a leading cause of premature MFC2 board failure. If the power supply shows signs of aging — capacitor bulge, output voltage drift, or thermal discoloration — it should be replaced concurrently with the MFC2-IC3 to avoid repeat failures within weeks of the repair.

Next, inspect the KRC2 backplane and card cage. Connector oxidation, bent pins, or cracked PCB traces on the backplane can cause intermittent communication errors that mimic MFC2 board faults. Clean all edge connectors with isopropyl alcohol and verify seating torque on all board retaining screws before commissioning the replacement MFC2-IC3.

The DSE-IBS (Drive System Electronics – InterBus) communication board and the RDC (Resolver-to-Digital Converter) card operate in close coordination with the MFC2-IC3. If axis position feedback errors persist after MFC2 replacement, these boards should be evaluated next. Stocking a spare RDC card alongside the MFC2-IC3 is a widely adopted practice in facilities running multiple KRC2 cabinets.

Review the servo drive amplifier modules (KSD or equivalent) connected downstream of the MFC2 interface. Drive faults that repeatedly trip after MFC2 replacement often indicate degraded IGBT modules or DC bus capacitors within the drive itself. A pre-planned spare drive module reduces the risk of extended downtime during fault isolation.

The KCP (KUKA Control Panel / teach pendant) connection and its interface cable should also be inspected. A damaged KCP cable can generate communication errors that are incorrectly attributed to the MFC2 board. Verify cable continuity and connector integrity as part of the standard replacement checklist.

For facilities with DeviceNet, PROFIBUS, or EtherNet/IP fieldbus integration, inspect the corresponding fieldbus communication module installed in the KRC2 cabinet. Fieldbus modules that share the backplane with the MFC2-IC3 can be affected by the same power or signal integrity issues that caused the original board failure.

Finally, review the cabinet cooling system — fan units, filter mats, and heat exchanger condition. Thermal stress is the primary long-term degradation mechanism for KRC2 controller boards. Replacing the MFC2-IC3 without addressing a blocked filter mat or failed cabinet fan will result in accelerated wear on the new board. A complete spare parts kit for a KRC2 cabinet should include at minimum: MFC2-IC3, RDC card, internal power supply, one servo drive module, KCP cable, and a set of cabinet fan units.

Site Replacement Workflow

Step 1 — Fault Confirmation: Log the KRC2 error codes displayed on the KCP teach pendant. MFC2-related faults typically appear as axis group communication errors or initialization timeouts. Cross-reference with KUKA error code documentation to confirm MFC2-IC3 as the root cause before ordering.

Step 2 — Safe Isolation: Follow LOTO (Lockout/Tagout) procedures. Power down the KRC2 cabinet fully, discharge the DC bus on all servo drives, and wait for the capacitor discharge indicator to clear before opening the cabinet door.

Step 3 — Board Removal: Document the existing board position, cable routing, and connector labeling with photographs before disconnection. The MFC2-IC3 is backplane-mounted; release the retaining latch, disconnect any ribbon or signal cables, and slide the board out of the card slot.

Step 4 — Compatibility Verification: Confirm the replacement MFC2-IC3 (00-125-236 or 00-108-766) matches the hardware revision of the removed board. Check the KRC2 software version to ensure firmware compatibility. NINERMAS provides hardware revision details upon request prior to shipment.

Step 5 — Installation and Commissioning: Insert the replacement board into the card slot, secure the retaining latch, and reconnect all cables in the documented sequence. Power up the KRC2 cabinet and monitor the KCP for successful initialization. Run a mastering check on all robot axes before returning the system to production.

Step 6 — System Validation: Execute a full cycle test at reduced speed before resuming normal production speed. Log the replacement event in the maintenance management system (CMMS) and update the spare parts inventory record.

Spare Parts Support FAQ

Q1: Is the KUKA MFC2-IC3 00-125-236 compatible with all KRC2 cabinet variants?
The MFC2-IC3 is designed for the KUKA KRC2 controller platform. Compatibility depends on the specific KRC2 hardware generation and software version installed. NINERMAS recommends providing your KRC2 serial number and software version when ordering to allow pre-shipment compatibility verification. The cross-reference part number 00-108-766 covers an earlier hardware revision of the same board function.

Q2: What testing is performed before shipment?
Every MFC2-IC3 unit dispatched by NINERMAS undergoes functional verification testing prior to shipment. This includes power-on initialization checks and communication interface validation. A test report is available upon request. All units are shipped with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Q3: Can NINERMAS support long-term or scheduled spare parts supply for MFC2 series components?
Yes. NINERMAS operates long-term stock programs for KUKA MFC2 series components, including the MFC2-IC3, RDC cards, and associated KRC2 spare parts. Procurement engineers managing multi-site KUKA robot fleets can arrange scheduled delivery agreements, consignment stock, or annual supply contracts. Contact sale@ninermas.com to discuss volume pricing and supply continuity arrangements.

Q4: What is the recommended spare parts holding strategy for facilities with multiple KRC2 cabinets?
For facilities operating five or more KRC2 cabinets, industry best practice recommends holding a minimum of one MFC2-IC3 board per ten cabinets as on-site critical stock. Pair this with one RDC card, one internal power supply module, and one set of servo drive modules per production line. This inventory posture supports same-shift fault recovery without waiting for emergency freight, which is the primary driver of extended unplanned downtime in robot-dependent production environments.
