Yaskawa SGM-02U3B4L Retrofit AC Servo Motor for Legacy Systems

Yaskawa SGM-02U3B4L Retrofit AC Servo Motor for Legacy Systems

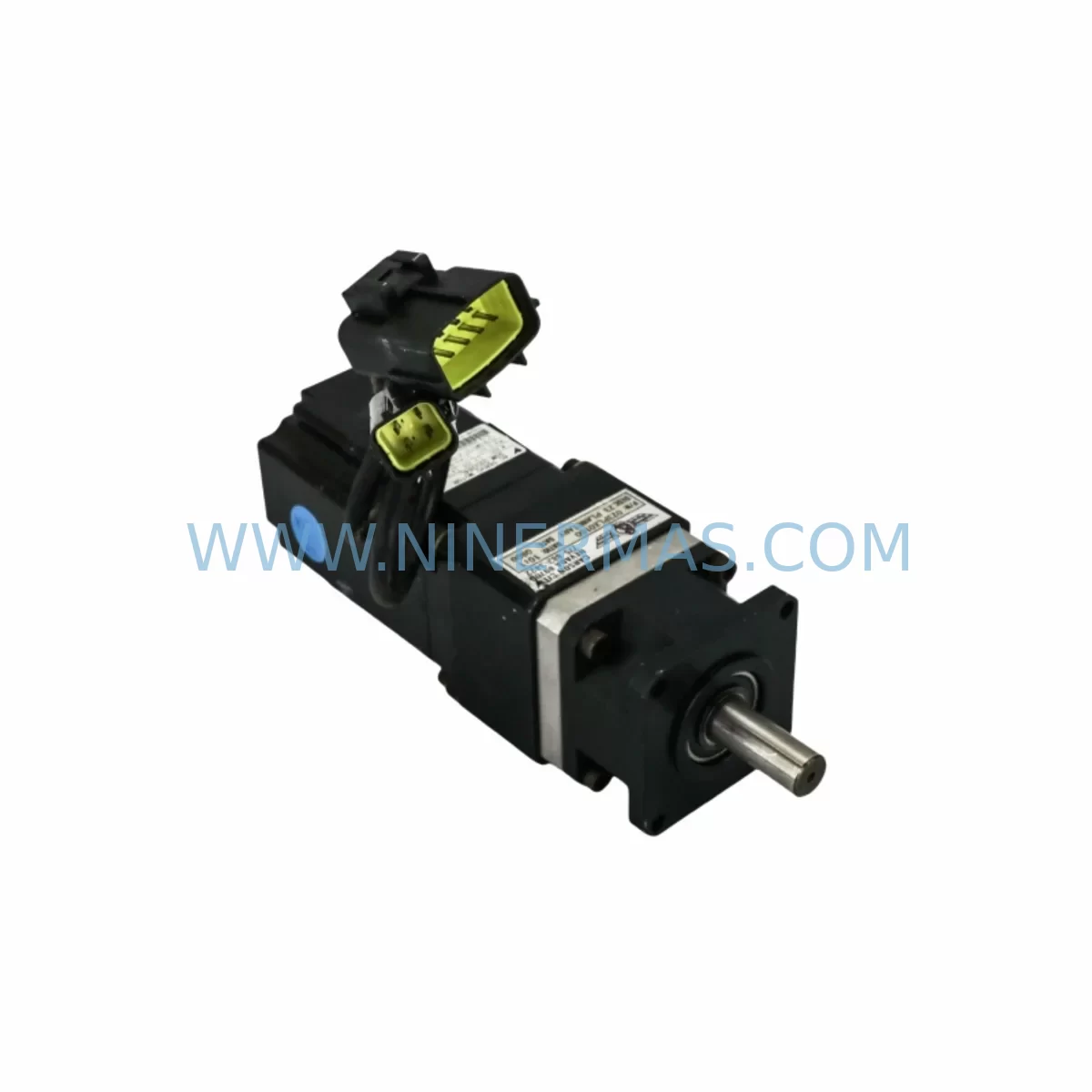

The Yaskawa SGM-02U3B4L is a Sigma series AC servo motor designed for precision motion control in industrial automation environments. As legacy production lines age and original equipment manufacturers discontinue support for older servo platforms, the SGM-02U3B4L has become a critical retrofit and replacement component for facilities seeking to extend the operational life of their existing control infrastructure without committing to a full system overhaul. This unit is fully compatible with Yaskawa Sigma series servo amplifiers and is widely deployed in applications ranging from CNC machining centers and robotic assembly lines to packaging equipment, semiconductor handling systems, and precision positioning stages.

NINERMAS maintains verified stock of the SGM-02U3B4L with pre-shipment functional testing completed on every unit. Each motor ships with a 12-month warranty covering manufacturing defects and performance deviations from factory specifications. Reserved inventory programs are available for customers requiring long-term supply continuity across multi-site retrofit projects.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the SGM-02U3B4L into a legacy automation system requires a structured pre-installation assessment covering power capacity, terminal wiring, backplane interface, module addressing, program compatibility, HMI screen mapping, communication link verification, installation space confirmation, and field commissioning procedures.

Begin by auditing the existing servo amplifier. In most Sigma series installations, the SGM-02U3B4L is paired with a SGDM-02ADA or SGDH-02AE servo drive. Before swapping the motor, confirm that the amplifier firmware version supports the encoder resolution of the replacement unit. If the original motor used an incremental encoder and the replacement carries an absolute encoder, the SGDH-02AE will require parameter Pn002 to be updated to enable absolute encoder mode, and a JUSP-BA01 battery backup unit must be installed to retain absolute position data across power cycles.

Terminal wiring is the most common source of commissioning delays during SGM series motor replacements. The encoder cable — typically a JZSP-CMP00-03 or JZSP-CMP11-03 depending on connector style — must be routed without sharp bends and shielded from high-voltage power cables. The motor power cable, such as the JZSP-CSP01-03, should be inspected for insulation integrity before reuse. If the original cable shows signs of heat damage or connector wear, replacement is strongly recommended to avoid intermittent faults during initial run-up.

For systems using a CP-9200SH motion controller or similar Yaskawa machine controller platform, verify that the axis parameter file stored in the controller references the correct motor code for the SGM-02U3B4L. Incorrect motor codes will cause the drive to apply wrong current limits and torque constants, resulting in positioning errors or overcurrent faults. Back up the existing parameter file before making any changes.

If the retrofit involves expanding I/O capacity alongside the motor replacement, consider whether additional modules such as a JUSP-NS100 DeviceNet communication module or supplementary I/O expansion cards are required. In rack-based systems, backplane slot addressing must be confirmed before powering up to avoid address conflicts with existing modules. HMI screens referencing axis status, speed feedback, or torque monitoring should be reviewed to ensure tag names and register addresses remain consistent after the motor swap.

For installations where an SGM-02A314 or similar variant was previously installed, dimensional cross-referencing is essential. While the SGM series maintains a consistent flange pattern across many frame sizes, shaft length and keyway dimensions can vary between sub-models. A SGDS-02A01A servo drive used in newer Sigma-5 adjacent installations may require a different cable set and parameter initialization sequence compared to older SGDM-series amplifiers.

All units supplied by NINERMAS undergo pre-shipment functional testing including no-load run verification, encoder signal integrity check, and insulation resistance measurement. A test report is available upon request and can be used to support incoming inspection procedures at the customer’s facility.

Downtime Control During System Migration

Minimizing unplanned downtime during a servo motor replacement is a primary concern for maintenance teams operating in continuous production environments. A structured migration approach — beginning with a complete backup of the existing servo amplifier parameters, PLC program, and HMI project files — ensures that the original control logic can be restored rapidly if commissioning issues arise.

Where production schedules permit, a staged replacement strategy is recommended. This involves pre-configuring the replacement SGM-02U3B4L and its associated amplifier offline, verifying encoder feedback signals and drive parameter settings on a test bench before the unit is installed in the machine. This approach reduces the time the production line is offline to the mechanical swap and cable reconnection, typically achievable within a planned maintenance window.

During the cutover, maintain field control continuity by keeping the PLC in a safe hold state rather than a full power-down where possible. This preserves I/O states and reduces the risk of process upsets in adjacent equipment. After motor installation, perform a low-speed jog test before enabling full-speed automatic operation. Verify that position feedback, torque limits, and speed references match pre-replacement baseline values recorded during the initial audit.

NINERMAS supports urgent retrofit requirements with priority dispatch for in-stock units. Reserved inventory agreements are available for customers managing multi-axis or multi-site replacement programs, ensuring consistent supply without lead time exposure.

Retrofit Support FAQ

Q1: Is the SGM-02U3B4L a direct drop-in replacement for other SGM series motors?
The SGM-02U3B4L is dimensionally and electrically compatible with other 200W SGM series motors sharing the same frame size and encoder type. However, customers should verify shaft dimensions, encoder resolution, and connector style against the original unit before installation. NINERMAS technical support can assist with cross-reference confirmation.

Q2: What wiring adaptations are required when replacing an older SGM motor?
In most cases, existing JZSP-series encoder and power cables can be reused if they are in good condition. Connector pinouts are consistent across the SGM series for the same amplifier family. If the amplifier is also being upgraded — for example, from a SGDM to a SGDH — new cables matched to the amplifier’s connector specification will be required.

Q3: How is the motor commissioned after installation?
After mechanical installation and cable connection, the servo amplifier parameters should be verified against the motor nameplate data. Key parameters include motor code, encoder type, rated current, and speed limits. A JOG operation at reduced speed should be performed first to confirm encoder direction and feedback integrity before enabling automatic operation from the PLC or motion controller.

Q4: What warranty and inventory support does NINERMAS provide?
Every SGM-02U3B4L unit supplied by NINERMAS carries a 12-month warranty from the date of shipment, covering manufacturing defects and performance deviations from factory specifications. Pre-shipment test reports are available on request. Reserved inventory programs are offered for customers requiring guaranteed supply across extended retrofit projects, with lead time commitments available upon inquiry.

—
