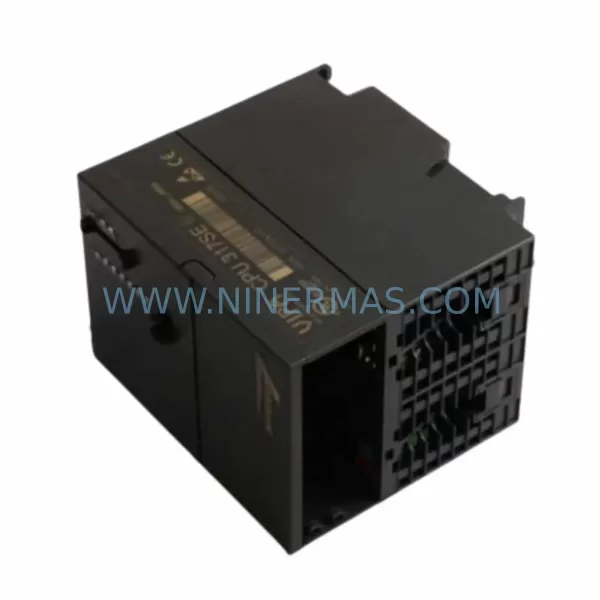

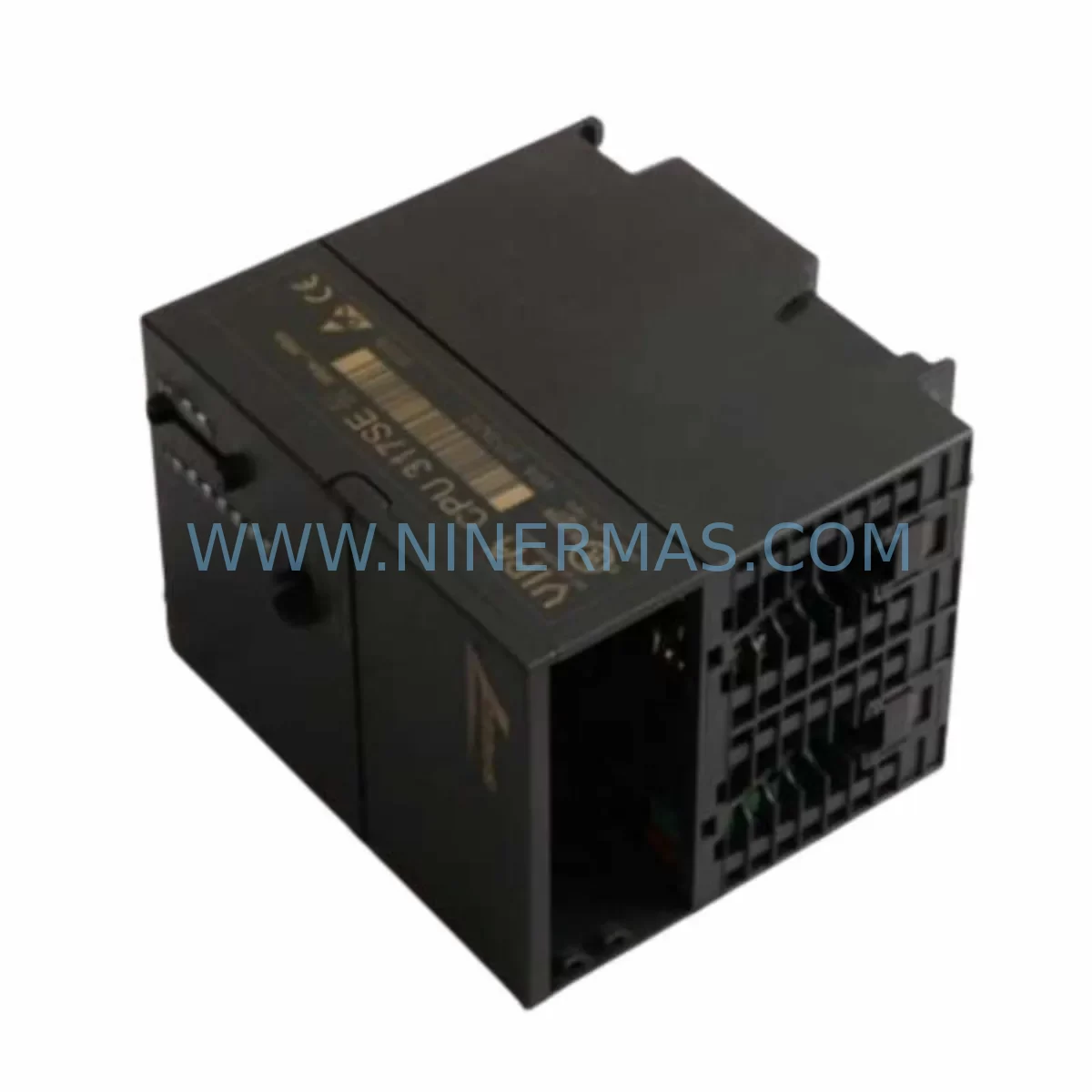

VIPA CPU 313SC 313-6CF03: Service-Ready Spare Part for Industrial Maintenance

The VIPA CPU 313SC 313-6CF03 is a high-performance central processing unit designed for the VIPA System 300S PLC platform, widely deployed across discrete manufacturing, process automation, and utility control systems. For maintenance engineers managing aging control infrastructure, sourcing a verified, service-ready CPU 313SC 313-6CF03 is critical to minimizing unplanned downtime and restoring production continuity. This unit is supplied as an original spare, pre-shipment tested, and backed by a 12-month warranty — making it a reliable choice for both emergency replacement and planned spare parts inventory programs.

The 313-6CF03 variant integrates onboard I/O, a compact SPEED7 processor core, and full compatibility with STEP 7 programming environments, enabling drop-in replacement without reprogramming overhead in most field scenarios. Its robust design supports 24V DC supply rails, standard DIN rail mounting, and direct backplane integration within VIPA 300S racks — reducing installation time during critical maintenance windows.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the VIPA CPU 313SC 313-6CF03 in a live control cabinet, a disciplined maintenance approach requires more than a direct CPU swap. Maintenance engineers should treat this replacement as an opportunity to audit the surrounding electrical and control architecture to prevent cascading failures after restart.

Begin with the power supply module feeding the 300S rack — the VIPA PS 307 or equivalent 24V DC rail supply should be load-tested before the new CPU is energized. A degraded power supply is a common root cause of CPU faults that are misdiagnosed as CPU failures. Alongside the power supply, inspect the backplane bus connector and the rack itself (VIPA UR series) for oxidation, mechanical stress, or damaged bus contacts, as these can cause intermittent communication errors after a CPU replacement.

The onboard MPI/PROFIBUS DP port on the 313-6CF03 connects directly to field devices and HMI panels. Before commissioning the replacement CPU, verify the PROFIBUS cable termination resistors, check the DP slave addresses, and confirm that the VIPA OP or TP series HMI panel firmware is compatible with the restored CPU configuration. A mismatch in GSD files or DP configuration can prevent the network from initializing correctly.

For the onboard digital I/O section, inspect the 24V DC field wiring, terminal blocks, and any interposing relays connected to the CPU’s output channels. Relay modules such as the VIPA IM or third-party Phoenix Contact or Weidmüller relay terminal assemblies should be checked for contact wear, especially in high-cycle applications. Signal isolators on analog input channels feeding the CPU should also be verified for calibration drift if the system has been offline for an extended period.

If the system uses expansion I/O via VIPA SM modules (digital input, digital output, or analog I/O), confirm that the module addresses and slot assignments in the hardware configuration match the physical rack layout. A common error after CPU replacement is a mismatch between the stored STEP 7 hardware configuration and the actual installed modules, which triggers a CPU STOP fault on first startup. Fuse elements protecting individual I/O channels and the 24V distribution rail should be inspected and replaced as part of the maintenance cycle.

For facilities running long-lifecycle systems, maintaining a structured spare parts kit alongside the CPU 313SC 313-6CF03 is strongly recommended. A practical kit includes: a matched power supply module, at least one digital I/O expansion module, a set of PROFIBUS connectors with integrated termination, a spare MMC memory card with the current program backup, and a set of terminal block jumpers and fuse holders for the control cabinet. This approach supports rapid recovery from multi-component failures without waiting for individual part procurement.

Site Replacement Workflow

Replacing the VIPA CPU 313SC 313-6CF03 on-site follows a structured sequence to minimize downtime and ensure system integrity:

Step 1 — Program Backup: Before removing the existing CPU, extract the current program from the MMC memory card and verify the backup against the last known-good version in your document management system. If the CPU is non-responsive, the MMC card can often be read directly.

Step 2 — Safe Isolation: De-energize the control cabinet following your site LOTO procedure. Confirm 24V DC supply rails are isolated before disconnecting the CPU from the backplane.

Step 3 — Module Removal and Inspection: Remove the faulty CPU and inspect the backplane connector for damage. Clean the connector with appropriate contact cleaner if oxidation is present.

Step 4 — Replacement Installation: Install the VIPA CPU 313SC 313-6CF03 replacement unit. Insert the MMC card with the verified program backup. Confirm the MPI address and PROFIBUS DP configuration match the original settings.

Step 5 — Power-Up and Verification: Re-energize the rack and monitor the CPU status LEDs. A successful startup shows RUN mode with no SF (System Fault) or BF (Bus Fault) indicators. Verify I/O channel status via the HMI or STEP 7 online diagnostics before releasing the system to production.

Step 6 — Documentation: Record the replacement in your maintenance log, update the spare parts inventory, and initiate a reorder for the consumed spare to maintain buffer stock levels.

Spare Parts Support FAQ

Q1: Is the VIPA CPU 313SC 313-6CF03 compatible with Siemens S7-300 hardware racks?
The VIPA 313-6CF03 is designed for VIPA System 300S racks and is mechanically and electrically compatible with standard S7-300 form factor racks in most configurations. However, full compatibility depends on the specific rack model and bus connector type. We recommend confirming your rack model before ordering. Our technical team can assist with compatibility verification.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional and electrical testing. Warranty claims are supported with replacement or repair, subject to inspection. The warranty period begins from the date of shipment.

Q3: Can you support long-term or volume supply commitments for this part?
Yes. NINERMAS offers long-term supply programs for critical spare parts including the CPU 313SC 313-6CF03. Volume pricing, scheduled delivery, and stock commitment agreements are available for MRO procurement teams managing multi-site or multi-year maintenance contracts. Contact our sales team to discuss your requirements.

Q4: How is the unit tested before shipment?
Every unit is subject to a pre-shipment test protocol that includes power-on verification, I/O channel functional check, communication port test, and visual inspection for physical damage. Test records are available upon request for quality-critical procurement processes.
