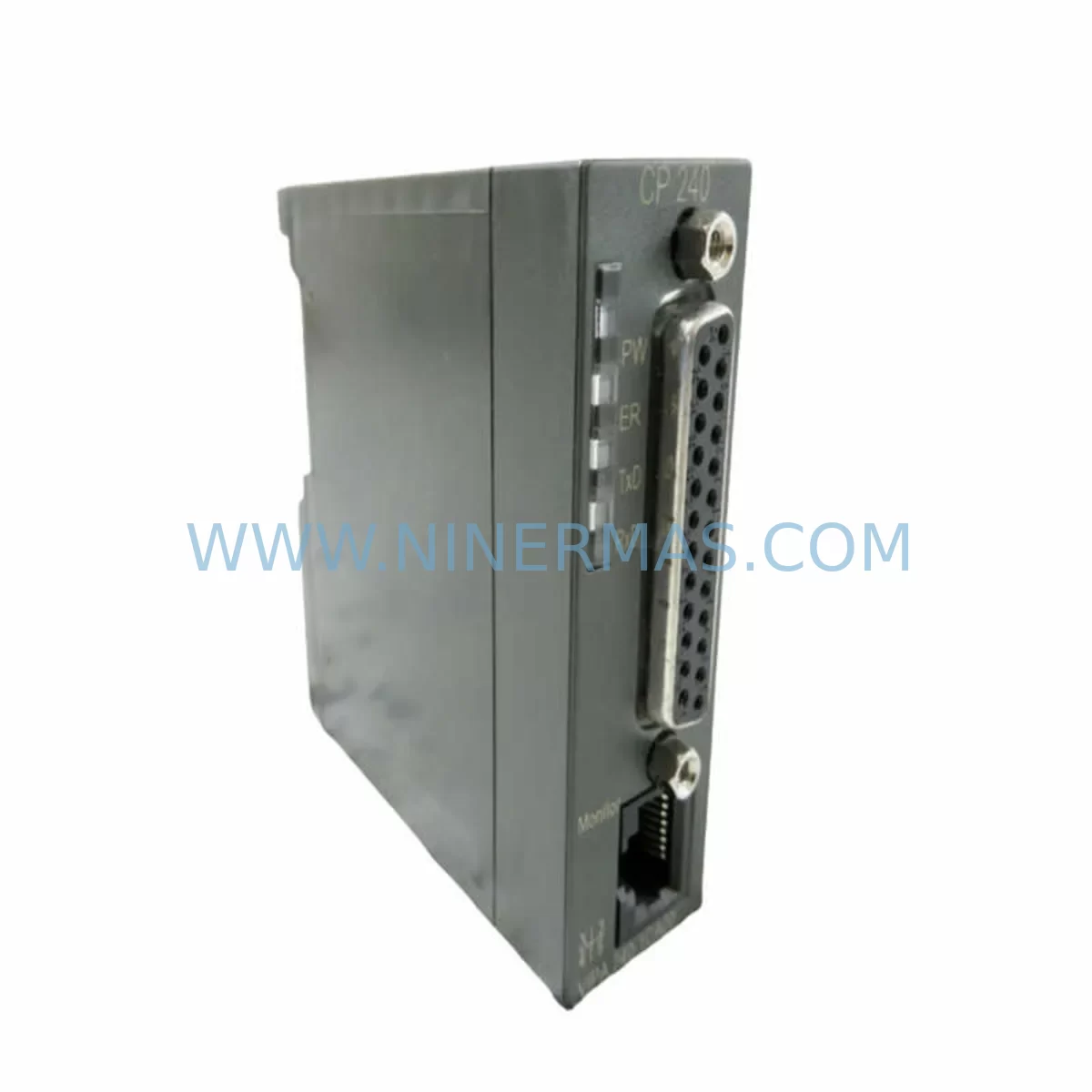

The VIPA 240-1CA00 is an original Communication Processor module designed for the VIPA SPEED7 PLC platform — one of the most widely deployed high-performance automation architectures in discrete manufacturing, process control, and critical infrastructure environments. As production lines age and OEM support windows close, maintaining a verified spare of the 240-1CA00 becomes a cornerstone of any responsible maintenance strategy. Unplanned downtime caused by a failed communication processor can cascade across an entire control cabinet, halting I/O scanning, disrupting fieldbus communication, and triggering safety shutdowns that take hours to recover from.

NINERMAS supplies the VIPA 240-1CA00 as a service-ready, tested spare part — sourced from authorized channels, inspected before dispatch, and backed by a 12-month warranty. Whether you are building a preventive spare parts inventory, responding to an emergency breakdown, or planning an annual overhaul, this module ships ready for immediate installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A communication processor failure rarely occurs in isolation. When the VIPA 240-1CA00 is flagged during a fault diagnostic — whether through a PROFIBUS DP bus error, an MPI timeout, or a CPU diagnostic buffer alarm — the maintenance window that follows is the right moment to audit the entire control cabinet for wear-related risk. Experienced maintenance engineers treat a CP replacement as a trigger for a broader inspection sweep.

Start with the VIPA SPEED7 CPU module (e.g., CPU 315-2AG23 or CPU 317-4NF12) that hosts the 240-1CA00 on the same backplane. Verify firmware revision compatibility and check the CPU’s internal diagnostic log for any co-occurring faults. Next, inspect the VIPA System 200V power supply module (e.g., PS 307 equivalent or VIPA 24 VDC rail PSU) — a marginal power supply is a common root cause of intermittent CP communication errors that are misdiagnosed as module failure.

On the fieldbus side, check the PROFIBUS DP cable termination resistors and the bus connector at both ends of the segment. A degraded termination plug or a cracked DP cable sheath can produce the same symptom as a failed 240-1CA00. If the cabinet also contains a VIPA 240-1BA00 or 240-1CA10 CP variant on a parallel PROFIBUS segment, inspect those simultaneously — shared bus infrastructure means a wiring fault will affect all nodes.

For cabinets running mixed I/O architectures, verify the VIPA IM 253 or IM 208 interface modules that extend the backplane to remote I/O racks. A failing interface module can generate bus errors that appear to originate from the CP. Similarly, check any VIPA FM 050 or FM 150 function modules installed in adjacent slots — slot-to-slot bus integrity is critical in the System 200V architecture.

On the signal side, inspect 24 VDC input/output modules (e.g., VIPA 221-1BF00 DI or 222-1HF00 DO) for blown fuses or damaged field wiring that may have caused transient overcurrents on the backplane bus. If the cabinet includes signal isolators or galvanic separators on analog loops, verify their output ranges — a drifting isolator can corrupt process values and trigger spurious CP resets.

Finally, document the PROFIBUS DP device address of the 240-1CA00 before removal. Incorrect address configuration after replacement is the single most common cause of extended downtime during a CP swap. Keep a laminated configuration card inside the cabinet door listing all DP node addresses, baud rates, and GSD file versions for every slave device on the segment.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Before powering down, use the VIPA SPEED7 programming software (STEP 7 or VIPA-compatible TIA Portal configuration) to export the current hardware configuration and note the 240-1CA00 slot assignment, DP master parameters, and any configured connections. Save this to a USB drive kept in the cabinet.

Step 2 — Safe isolation: Follow your site LOTO (Lockout/Tagout) procedure. De-energize the control cabinet and discharge any residual bus voltage. The System 200V backplane is bus-powered; confirm 0 V on the backplane connector before module extraction.

Step 3 — Module swap: Remove the failed 240-1CA00 by releasing the DIN rail latch and sliding the module out of its slot. Insert the replacement VIPA 240-1CA00 into the same slot. The module is keyed by slot position — do not force-fit into an adjacent slot.

Step 4 — Configuration restore: Power up the CPU and download the saved hardware configuration. Verify that the DP master system comes online and all slave devices report active status. Check the CPU diagnostic buffer for any residual faults.

Step 5 — Functional test: Run a short I/O scan cycle and confirm that all PROFIBUS DP slaves are communicating correctly. Verify process values on the HMI (e.g., a connected VIPA TP 608 or compatible Siemens TP700 panel) match field sensor readings before returning the line to production.

Step 6 — Spare replenishment: Log the replacement in your CMMS and immediately reorder a replacement spare to restore your cold-standby inventory. NINERMAS supports long-term supply agreements for critical SPEED7 components to ensure you are never left without a backup.

Spare Parts Support FAQ

Q1: Is the VIPA 240-1CA00 supplied by NINERMAS a new original module or a refurbished unit?
All VIPA 240-1CA00 units supplied by NINERMAS are original spare parts — new or service-ready condition sourced from authorized supply chains. Each unit undergoes pre-shipment functional verification. A 12-month warranty is provided from the date of invoice, covering manufacturing defects and functional failures under normal operating conditions.

Q2: How do I confirm compatibility with my existing SPEED7 CPU and backplane before ordering?
The 240-1CA00 is designed for the VIPA System 200V backplane and is compatible with SPEED7 CPU variants including the 315, 317, and 318 series. Provide your CPU part number and firmware version when placing your order — NINERMAS will confirm slot compatibility and any firmware prerequisites before shipment. We also recommend cross-referencing the GSD file version required by your DP master configuration.

Q3: What is NINERMAS’s lead time and can you support long-term supply agreements for this module?
In-stock units ship within 1–3 business days with full pre-shipment test documentation. For customers managing multi-site maintenance programs or annual overhaul schedules, NINERMAS offers long-term supply agreements with committed stock reservation, fixed pricing, and priority dispatch. Contact sale@ninermas.com to discuss a tailored spare parts program for your SPEED7 fleet.

Q4: What should I do if the replacement 240-1CA00 does not resolve the PROFIBUS communication fault?
If the fault persists after module replacement, the root cause is likely in the fieldbus wiring, termination, or a slave device rather than the CP itself. Check PROFIBUS cable continuity, termination resistor status at both segment ends, and the diagnostic status of each DP slave. NINERMAS technical support can assist with fault isolation guidance. If the module is confirmed non-functional on arrival, our 12-month warranty covers full replacement at no additional cost.
