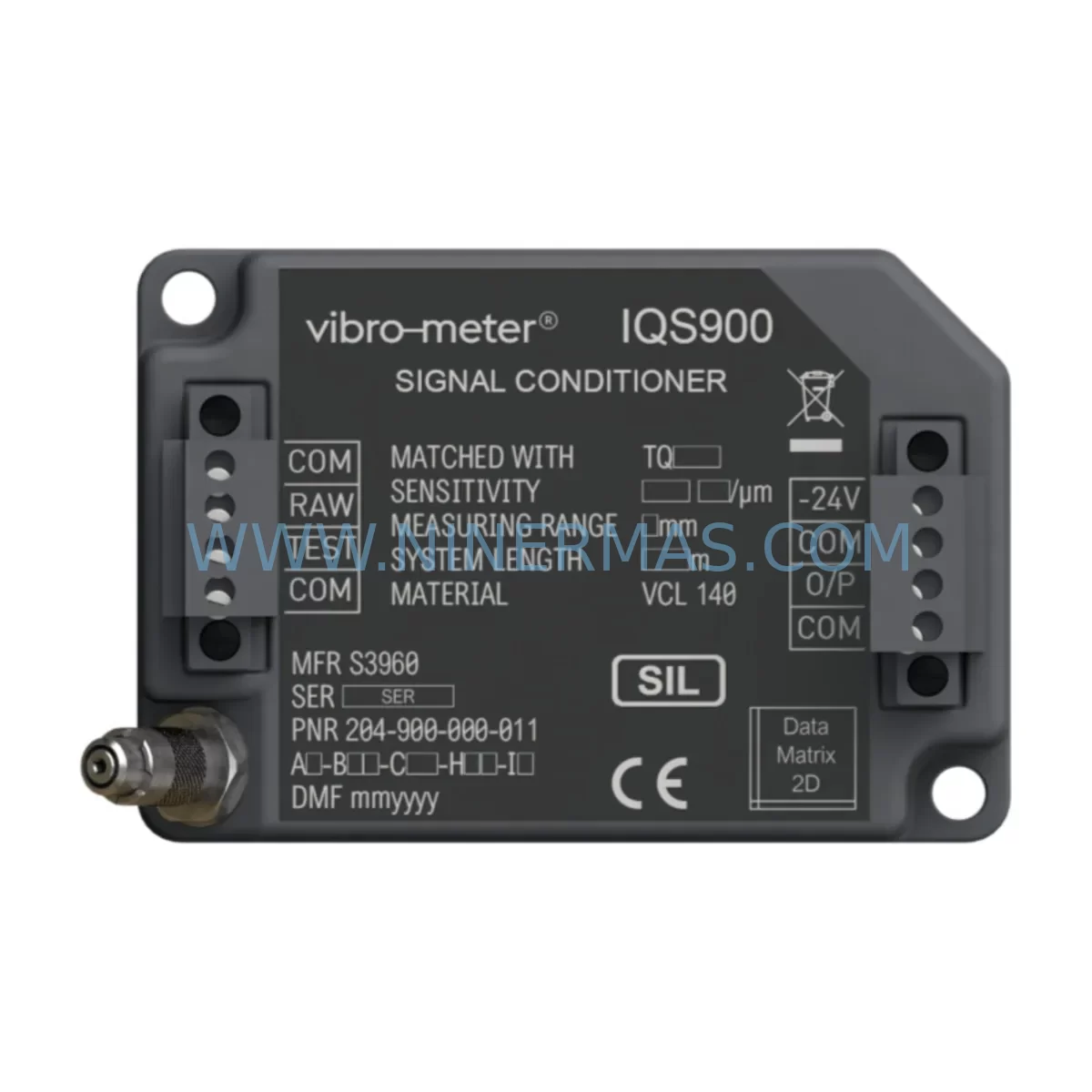

VIBRO-METER IQS900 204-900-000-011 Safety-Reliable Vibration Monitor

VIBRO-METER IQS900 204-900-000-011 Safety-Reliable Vibration Monitor for Critical Control Sites

The VIBRO-METER IQS900 (Part No. 204-900-000-011, Configuration: A1-B21-C1-H10-I0) is a ruggedized, high-precision vibration monitoring module engineered for the most demanding industrial safety environments. Designed to operate continuously in critical control sites — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, port machinery, and marine propulsion systems — the IQS900 delivers uninterrupted vibration signal acquisition and processing where control interruption is simply not an option.

Built on VIBRO-METER’s proven IQS platform, this module integrates seamlessly into safety instrumented systems (SIS), distributed control systems (DCS), and standalone condition monitoring architectures. Its ruggedized housing and advanced signal conditioning circuitry make it the preferred choice for engineers who demand zero-compromise reliability in high electromagnetic interference (EMI), dust-laden, moisture-prone, high-temperature, and high-vibration environments.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a modern industrial control cabinet serving a critical process line, the VIBRO-METER IQS900 204-900-000-011 functions as the frontline sensor intelligence layer, converting raw mechanical vibration data into actionable safety signals before they reach the PLC or safety controller. When paired with a VIBRO-METER VM600 rack-based monitoring system, the IQS900 feeds conditioned vibration data into a centralized protection architecture capable of triggering emergency shutdowns within milliseconds of detecting abnormal bearing wear, rotor imbalance, or shaft misalignment.

To protect the IQS900 and its associated signal chain from power-line disturbances, engineers typically install a Phoenix Contact QUINT-PS 24VDC redundant power supply alongside a Weidmüller surge protection device (SPD) at the cabinet’s power entry point. This combination eliminates voltage spikes and transient surges that could otherwise corrupt vibration signal baselines or cause false trip events in the safety interlock circuit.

For communication integrity in high-EMI environments — such as those found near large variable frequency drives (VFDs) or high-voltage switchgear — the IQS900’s Modbus RTU output is best routed through a Moxa NPort serial device server or an HMS Anybus communicator gateway, ensuring that vibration alarm data reaches the DCS historian and SCADA system without packet loss or signal drift. In installations where the IQS900 monitors multiple machine trains simultaneously, a VIBRO-METER CM3 signal multiplexer or equivalent channel expansion module can be integrated to scale the monitoring architecture without introducing additional wiring complexity.

On the safety relay side, the IQS900’s alarm output is typically wired into a Pilz PNOZ safety relay or a Schmersal SRB series safety module, forming a certified safety interlock loop that meets IEC 62061 and ISO 13849 requirements. This ensures that any vibration threshold breach — whether caused by bearing failure, cavitation, or mechanical looseness — results in a controlled, safe machine stop rather than a catastrophic unplanned shutdown.

For installations in dust-laden or moisture-prone environments such as cement plants or coastal marine facilities, the IQS900 is frequently deployed alongside LAPP ÖLFLEX CLASSIC 110 shielded cables and Rittal AX series stainless steel enclosures, providing a complete field-to-cabinet protection system that resists corrosion, ingress, and mechanical damage over extended service intervals.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous hydrocarbon processing, the IQS900 monitors critical rotating equipment — compressors, pumps, and turbines — providing early warning of mechanical degradation before it escalates into a process safety event. Its high EMI immunity ensures reliable operation in environments saturated with radio frequency interference from wireless instrumentation and high-power motor drives.

Power Generation (Thermal & Hydro): Turbine shaft vibration monitoring is a mandatory safety requirement in power plants. The IQS900’s ruggedized design and wide operating temperature range make it suitable for both steam turbine bearing housings and hydro generator shaft monitoring, where continuous uptime is directly tied to grid stability.

Mining & Mineral Processing: Conveyor drives, crushers, and ball mills operate under extreme mechanical stress and heavy dust loading. The IQS900’s IP65-rated housing and vibration-resistant construction allow it to deliver accurate condition monitoring data even in the harshest underground or open-pit mining environments.

Water & Wastewater Treatment: Pump station reliability is critical to municipal water supply continuity. The IQS900 enables predictive maintenance of submersible and centrifugal pumps, reducing unplanned outages and the risk of sewage overflow events caused by pump failure.

Metallurgy & Steel Production: Rolling mills and continuous casting lines demand vibration monitoring systems that can withstand intense heat, scale, and mechanical shock. The IQS900’s ruggedized platform is engineered to maintain signal accuracy under these conditions, protecting both equipment and personnel.

Port Machinery & Marine Systems: Ship propulsion systems, crane drives, and offshore platform equipment require vibration monitoring solutions that meet marine classification society standards. The IQS900’s robust construction and wide humidity tolerance make it a reliable choice for shipboard and port automation safety systems.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the IQS900 204-900-000-011?
The 12-month warranty covers all manufacturing defects, signal conditioning hardware failures, and output accuracy deviations attributable to component or assembly faults. Each unit undergoes pre-shipment functional testing including signal output verification, power input range testing, and communication interface validation before dispatch.

Q2: Is the IQS900 204-900-000-011 compatible with existing VIBRO-METER VM600 and MPC4 systems?
Yes. The IQS900 is designed within the VIBRO-METER modular monitoring ecosystem and is compatible with VM600 rack systems and MPC4 monitoring cards. Configuration code A1-B21-C1-H10-I0 specifies the exact input, output, and communication options — please verify your existing rack and backplane compatibility before installation, or contact our technical team for confirmation.

Q3: Can this module be used in SIL-rated safety instrumented systems?
The IQS900 platform is designed for integration into safety-critical monitoring loops and is suitable for use in SIL-assessed architectures when applied in accordance with IEC 61511 functional safety engineering practices. Customers requiring formal SIL certification documentation should request the relevant safety manual and FMEDA report at the time of order.

Q4: What is the long-term supply and replacement support availability?
NINERMAS maintains stock of the IQS900 204-900-000-011 and key VIBRO-METER IQS platform variants to support both new project installations and emergency spare part replacement requirements. Our supply chain is structured to support long-term industrial maintenance programs, with typical lead times confirmed at the time of inquiry. For urgent replacement needs, expedited shipping options are available.
