Triconex MP 3101S2 Retrofit Processor for Legacy Systems

Triconex MP 3101S2 Retrofit Processor for Legacy Systems: Seamless Compatibility for Aging Tricon TMR Platforms

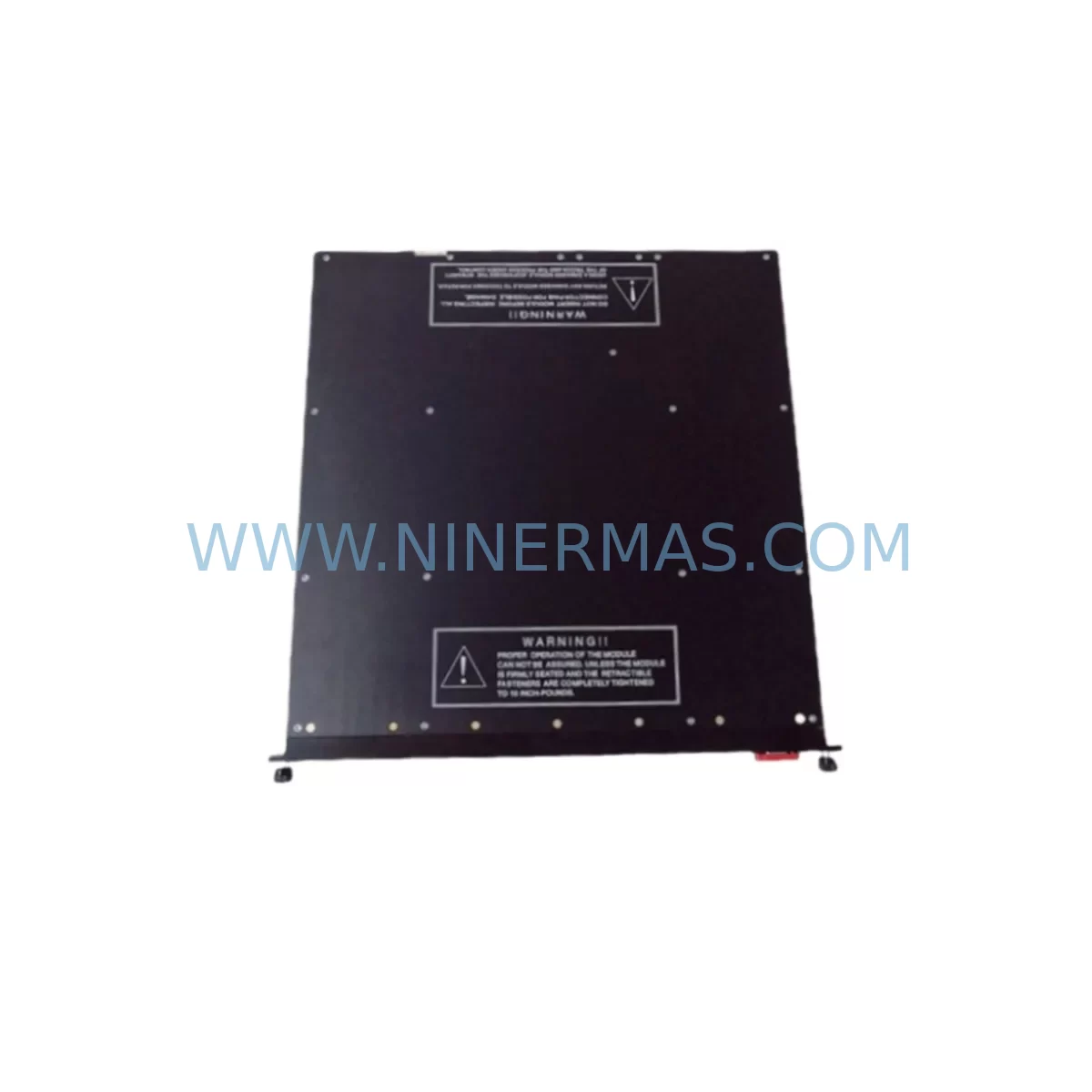

The Triconex MP 3101S2 is a ruggedized Main Processor module engineered for the Tricon Triple Modular Redundant (TMR) safety system platform — one of the most widely deployed safety instrumented systems (SIS) in oil & gas, petrochemical, power generation, and heavy manufacturing environments. As legacy Tricon systems approach end-of-life and original spare parts become increasingly scarce, the MP 3101S2 serves as a critical retrofit-compatible replacement that enables facilities to extend the operational lifespan of their existing safety architecture without committing to a full system overhaul.

NINERMAS maintains verified in-stock inventory of the MP 3101S2, pre-shipment tested and backed by a 12-month warranty, ensuring your retrofit project proceeds with confidence and minimal procurement risk.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the MP 3101S2 in an operational Tricon TMR environment requires careful pre-engineering to avoid unplanned shutdowns and logic disruption. The processor module sits at the heart of the TMR architecture, coordinating all three redundant processing legs and managing I/O communication across the chassis backplane. Before initiating a swap, maintenance engineers must audit the full control cabinet configuration.

Start by documenting the existing chassis layout. In a typical Tricon installation, the main chassis — such as the Tricon 3006 or 3008 chassis — houses the MP module alongside a range of I/O and communication modules. Common co-installed modules include the Triconex 3625 Analog Input Module, which handles 4–20 mA field signals from pressure transmitters and flow meters, and the Triconex 3636R Relay Output Module, which drives final control elements such as solenoid valves and motor starters. These modules communicate with the MP 3101S2 via the TMR backplane bus, and their address assignments must be preserved during the processor replacement.

Digital I/O modules such as the Triconex 3503E Digital Input Module and Triconex 3504E Digital Output Module are frequently found in the same rack and must be re-validated after the new processor is seated. The MP 3101S2 manages the voter logic that compares signals across all three TMR legs — any mismatch in I/O module addressing or slot configuration will trigger diagnostic faults that must be cleared before the system returns to RUN mode.

Communication infrastructure also requires attention. If the existing installation uses a Triconex TCM 4351B Tricon Communication Module or a Triconex 4119A Enhanced Intelligent Communication Module (EICM) for Modbus TCP/IP or OPC connectivity to the plant DCS or historian, these links must be re-established and tested after the processor swap. HMI screens connected via TriStation or third-party SCADA platforms should be verified for tag mapping continuity.

For installations that include pulse counting or high-speed input applications, the Triconex 3511 Pulse Input Module should be checked for compatibility with the replacement processor firmware. Similarly, if the system includes analog output control loops, the Triconex 3700A Analog Input Module configuration should be reviewed against the new processor’s I/O map to confirm signal scaling is preserved.

Power supply capacity is a frequently overlooked factor. The chassis PSU — whether a standard Tricon power supply or a redundant pair — must be confirmed to have sufficient headroom to support the MP 3101S2 alongside all installed I/O modules. Insufficient power budget is a common root cause of intermittent processor faults in retrofitted systems.

Finally, confirm physical installation space within the control cabinet. The MP 3101S2 occupies a single slot in the Tricon chassis, but cable routing, terminal block clearance, and ventilation requirements must be assessed before the replacement module is installed on-site.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a processor module in a live TMR safety system. The Tricon platform’s triple-redundant architecture provides a significant advantage: in many configurations, a single processor leg can be taken offline for maintenance while the remaining two legs continue to execute the safety application — a capability known as online maintenance mode.

Before initiating the replacement, use TriStation 1131 to perform a full application backup, capturing the current program logic, I/O configuration, node addresses, and voter settings. Store this backup in a secure, version-controlled location. This backup is your recovery baseline if the new module requires re-commissioning from scratch.

During the physical swap, follow Triconex lockout/tagout procedures and confirm that the chassis is in the correct maintenance state before removing the MP 3101S2. After seating the replacement module, allow the processor to complete its self-diagnostic cycle before attempting to load the application. The TriStation 1131 software will indicate when the module is ready to accept a program download.

Post-installation, re-validate all TMR voter channels, confirm I/O module communication, and verify that all Modbus or OPC communication links to the DCS and HMI are re-established. Conduct a full functional test of all safety logic paths before returning the system to normal operation. Document the replacement event, including the module serial number, firmware version, and test results, for your maintenance records and regulatory compliance file.

NINERMAS ships the MP 3101S2 with a pre-shipment functional test report, reducing on-site commissioning risk and supporting your downtime control objectives.

Retrofit Support FAQ

Q1: Is the MP 3101S2 a direct drop-in replacement for the MP 3101 and MP 3101S?
A: Yes. The MP 3101S2 is backward-compatible with the MP 3101 and MP 3101S in the same Tricon chassis slot. The S2 suffix denotes enhanced EMI shielding for harsh industrial environments. Firmware version compatibility should be verified against your existing TriStation 1131 project file before installation.

Q2: Does NINERMAS provide pre-shipment testing for the MP 3101S2?
A: Yes. Every MP 3101S2 unit shipped by NINERMAS undergoes functional testing prior to dispatch. A test report is included with the shipment. All units are covered by a 12-month warranty from the date of shipment.

Q3: What communication protocols does the MP 3101S2 support, and will my existing HMI connections work after replacement?
A: The MP 3101S2 supports Modbus RTU, Modbus TCP/IP, and TriStation 1131 programming connectivity. Existing HMI and DCS communication links configured via TCM or EICM modules should be re-validated after the processor swap. In most cases, communication is restored without reconfiguration once the application is reloaded.

Q4: How long does NINERMAS typically hold stock of the MP 3101S2, and what is the lead time?
A: NINERMAS maintains a dedicated inventory of end-of-life and hard-to-source Triconex spare parts, including the MP 3101S2. In-stock units are typically dispatched within 1–3 business days. For large-quantity or long-term supply agreements, contact our team to discuss reserved inventory arrangements.
