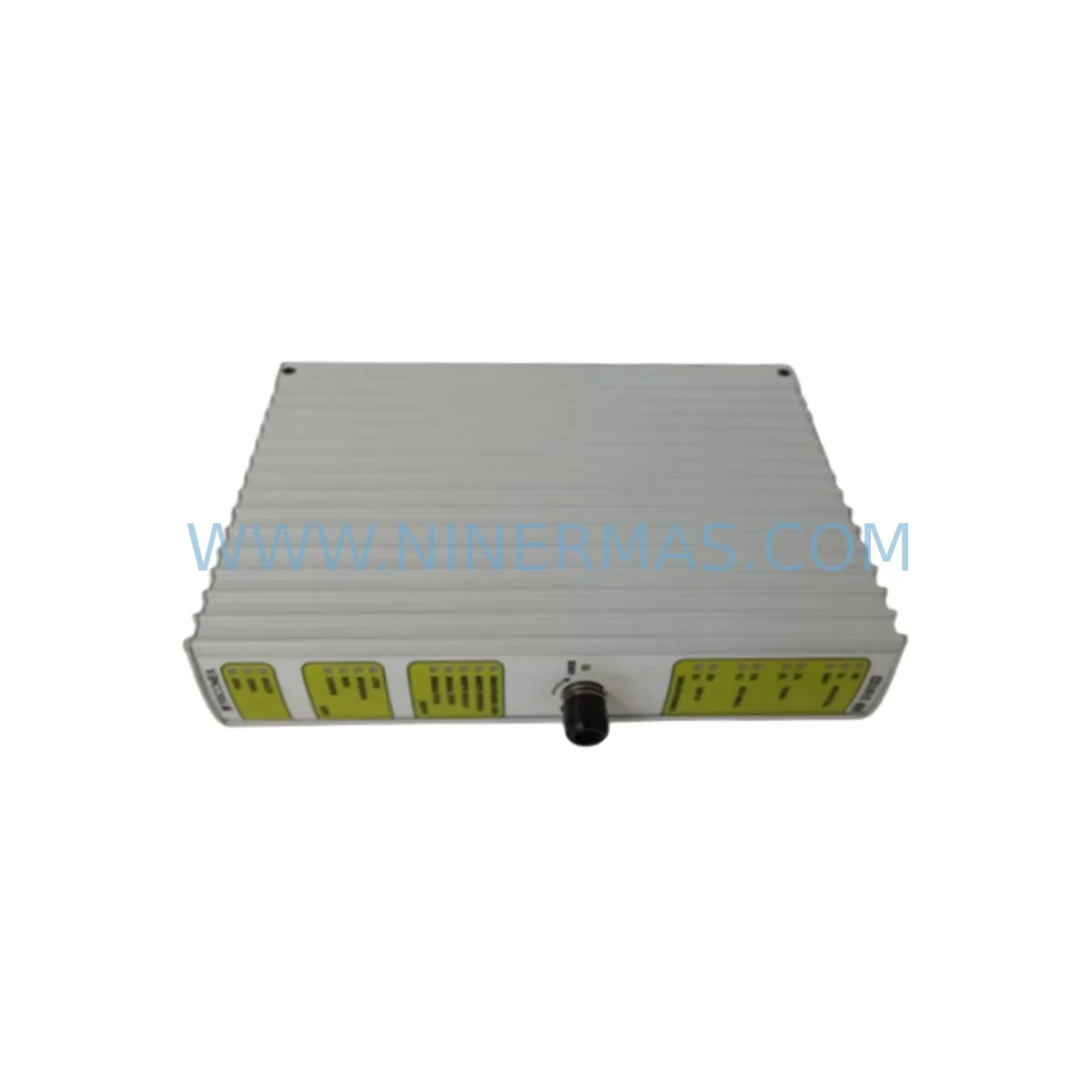

The Triconex MP3101S2 is a main processor module designed for the Tricon Safety Instrumented System (SIS) platform — one of the most widely deployed triple modular redundant (TMR) safety controllers in the global process industry. For maintenance engineers and procurement teams managing aging Tricon v9 and v10 safety systems, the MP3101S2 represents a critical spare that must be available before a fault occurs, not after. NINERMAS maintains verified stock of the MP3101S2 with full pre-shipment testing and a 12-month warranty, ensuring your safety loop stays operational without extended lead times or sourcing uncertainty.

The MP3101S2 operates as the central processing unit within the Tricon chassis, executing the safety application program, managing I/O communication across the backplane, and maintaining TMR voting logic across all three processing legs. When this module fails or degrades, the entire safety function is at risk. Proactive spare parts management — keeping at least one MP3101S2 in your on-site inventory — is the single most effective way to reduce unplanned shutdown duration in SIS-protected facilities.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the MP3101S2 is rarely an isolated task. Experienced maintenance engineers know that when a main processor is pulled for replacement, it is the right moment to inspect and verify the condition of every module sharing the same chassis. A comprehensive maintenance review should include the Tricon power supply modules PS6101S2 and PS6201S2, which provide redundant 24 VDC to the backplane — any voltage ripple or aging capacitor in these units can cause intermittent processor resets that are difficult to diagnose remotely.

The Tricon communication module TCM4351B or TCM4352B should also be inspected during the same maintenance window. These modules handle Modbus TCP and peer-to-peer communication between Tricon nodes; a degraded communication module can cause false diagnostics that mimic processor faults. Similarly, the Tricon digital input modules DI3401 and DI3801 should be verified for correct field wiring continuity and terminal block integrity — loose terminals on these modules are a common source of spurious trips in high-vibration environments.

For facilities running Triconex TriStation 1131 programming software, ensure the programming cable and interface adapter are available on-site before beginning any processor swap. The TriStation connection is required to download the safety application program to the replacement MP3101S2 and to verify that the TMR voting logic is functioning correctly across all three legs after installation.

Procurement teams should also consider stocking the Tricon analog input module AI3351 and the relay output module RO3421 as part of a broader SIS spare parts strategy. These modules are frequently requested alongside main processor replacements because they share the same backplane and are subject to the same aging cycle. Maintaining a documented spare parts list that covers the full Tricon chassis — processor, power, I/O, and communication — is the foundation of a defensible maintenance program under IEC 61511.

NINERMAS supplies all of the above Triconex components from verified stock, with individual pre-shipment testing and serialized documentation. This allows your maintenance team to order a complete chassis refresh kit in a single purchase order, reducing procurement lead time and administrative overhead.

Site Replacement Workflow

Replacing the MP3101S2 in a live Tricon system requires careful sequencing to maintain safety function continuity. The TMR architecture allows one processor leg to be replaced while the other two continue voting, but this must be done within the diagnostic coverage window defined in your site-specific SIS documentation.

Step 1 — Pre-Replacement Verification: Confirm the replacement MP3101S2 firmware revision matches the existing installed modules. Mismatched firmware between TMR legs can cause voting discrepancies. NINERMAS provides firmware version documentation with every MP3101S2 shipment.

Step 2 — Program Backup: Use TriStation 1131 to create a full program backup before removing any module. Store the backup on an isolated engineering workstation, not on the plant network.

Step 3 — Module Swap: Remove the faulty MP3101S2 from its chassis slot. Inspect the backplane connector for bent pins or contamination. Insert the replacement module and allow the Tricon system to perform its automatic self-test sequence.

Step 4 — Program Download and Verification: Download the safety application to the new processor leg using TriStation 1131. Verify that all three TMR legs show green status and that the system diagnostic display confirms full TMR operation.

Step 5 — Field I/O Verification: Confirm that all digital and analog I/O channels are reading correctly after the replacement. Pay particular attention to any channels that were in a forced or bypassed state during the maintenance window — these must be restored to automatic mode before returning the safety function to service.

NINERMAS technical support is available to assist with pre-replacement planning, firmware compatibility checks, and post-installation verification guidance.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the MP3101S2 supplied by NINERMAS?
Every MP3101S2 shipped by NINERMAS carries a 12-month warranty from the date of delivery. This covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with priority turnaround to minimize your system downtime.

Q2: How is the MP3101S2 tested before shipment?
Each unit undergoes a full functional test on a Tricon-compatible test bench before dispatch. The test verifies processor boot sequence, backplane communication, TMR voting logic, and diagnostic self-test completion. A test report is available upon request.

Q3: Is the MP3101S2 compatible with both Tricon v9 and v10 chassis?
Yes. The MP3101S2 is designed for use in Tricon v9 and v10 main chassis configurations. Compatibility with specific firmware revisions and chassis slot assignments should be confirmed against your site’s Tricon system documentation before installation. NINERMAS can assist with compatibility verification based on your existing system configuration.

Q4: Can NINERMAS supply the MP3101S2 as part of a broader Tricon spare parts package?
Yes. NINERMAS maintains stock of a wide range of Triconex Tricon components including power supply modules, communication modules, digital and analog I/O modules, and relay output modules. Multi-item orders are consolidated into a single shipment with unified documentation, simplifying your receiving and inventory process. Contact our team for a consolidated spare parts quotation.
