Triconex 3502E Safety-Reliable Digital Input for Critical Control Sites

Triconex 3502E Safety-Reliable Digital Input Module for Critical Control Sites

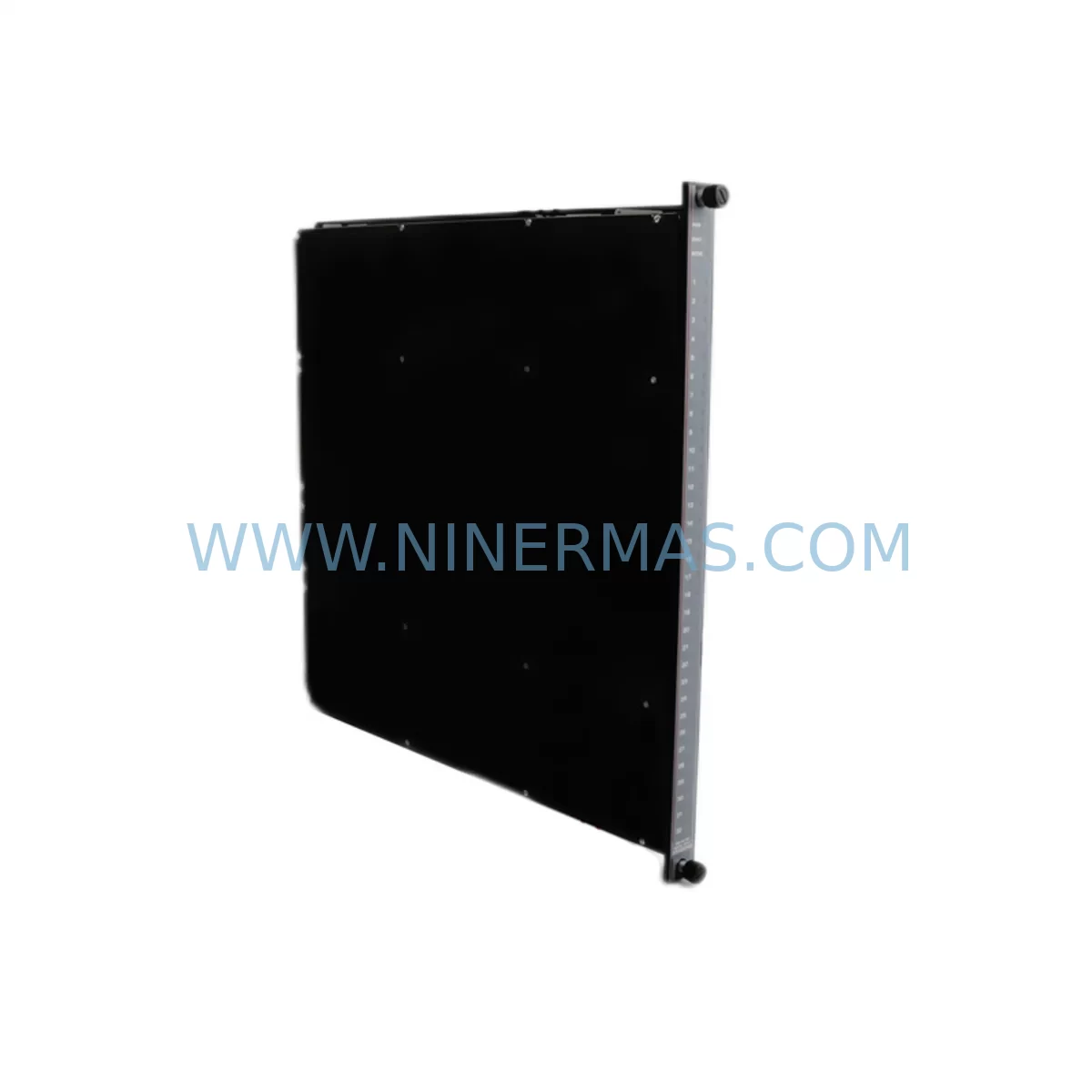

The Triconex 3502E is a high-integrity digital input module engineered for deployment within Tricon Triple Modular Redundant (TMR) safety systems. Designed to meet the demanding requirements of Safety Instrumented Systems (SIS) operating in continuous production environments, the 3502E delivers consistent, fault-tolerant signal acquisition across 32 channels of discrete digital input. Its architecture is purpose-built to eliminate single points of failure in critical interlock and emergency shutdown (ESD) circuits, making it an indispensable component in any safety-critical control cabinet.

In high-consequence industrial environments — including petrochemical processing, power generation, offshore platforms, and heavy metallurgical operations — the reliability of digital input acquisition directly determines the integrity of the entire safety loop. The 3502E addresses this challenge through its TMR voting logic, which continuously cross-checks input states across three independent processing legs. This design ensures that even in the event of a single-channel fault, the module continues to deliver accurate process data to the Tricon controller without triggering spurious trips or masking genuine hazardous conditions.

Field installations frequently expose digital input modules to elevated electromagnetic interference (EMI) generated by variable frequency drives (VFDs), large motor starters, and high-current bus bars. The 3502E incorporates robust signal isolation and filtering circuitry that maintains input signal integrity under these conditions, preventing the signal drift and false state transitions that can compromise interlock reliability. In dusty, humid, or thermally stressed environments — such as those found in cement plants, mining operations, and coastal marine facilities — the module’s industrial-grade construction ensures stable operation across its full rated temperature and humidity range.

Unplanned shutdowns in continuous process industries carry severe financial and safety consequences. A degraded or failed digital input module that goes undetected can allow a hazardous process condition to persist unrecognized, or alternatively, trigger a spurious ESD that halts production unnecessarily. The 3502E’s online diagnostics and fault annunciation capabilities allow maintenance teams to identify module-level issues during normal operation, supporting a planned replacement strategy rather than an emergency response. This capability is especially valuable when paired with the Triconex 3000 Chassis and Triconex 3008 Main Processor, which together provide the system-level redundancy and diagnostic visibility required for high-availability SIS architectures.

For control engineers specifying spare parts programs, the 3502E integrates seamlessly within existing Tricon system configurations without requiring software reconfiguration or system downtime when replaced using hot-swap procedures supported by the Tricon platform. This characteristic is critical for facilities operating under continuous production mandates where scheduled maintenance windows are limited. Complementary modules such as the Triconex 3503E Digital Output Module and Triconex 3700A Analog Input Module are commonly stocked alongside the 3502E to ensure complete coverage of the I/O subsystem within a single safety loop.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

A robust Tricon-based safety cabinet is only as reliable as its weakest I/O component. The 3502E serves as the primary field signal acquisition point for digital process inputs — field switches, valve position feedback, pressure switch contacts, and emergency stop circuits — feeding verified state data into the TMR voting logic of the Triconex 3008 Main Processor. When the 3502E is operating correctly, the processor receives consistent, cross-validated input states that form the basis for all safety function decisions.

Power supply integrity is equally critical. Voltage fluctuations and transient surges on the 24 VDC supply rail can induce false input states or damage module circuitry. Pairing the 3502E with a Triconex 8312 Power Supply Module and a dedicated surge protection device on the field wiring terminals significantly reduces the risk of power-related input errors. In cabinets where multiple I/O modules share a common backplane, the Triconex 3000 Chassis provides the structural and electrical foundation that maintains signal integrity across all installed modules.

Communication continuity between the Tricon controller and the supervisory DCS or SCADA layer is maintained through the Triconex 4351B Enhanced Intelligent Communication Module (EICM), which handles Modbus and other protocol exchanges without interrupting the safety execution cycle. In facilities where the safety system must interface with a Distributed Control System, the Triconex 4119A Hiway Interface Module provides the necessary protocol bridge, ensuring that process data from the 3502E’s input channels is accurately reflected in the operator’s control view.

For digital output control — actuating solenoid valves, motor contactors, or ESD valve pilots based on the input states acquired by the 3502E — the Triconex 3503E Digital Output Module provides the corresponding output capability within the same TMR architecture. Where analog process variables such as flow, pressure, or temperature must also be monitored within the same safety loop, the Triconex 3700A Analog Input Module and Triconex 3805E Analog Output Module extend the system’s sensing and control range without compromising the TMR integrity of the overall architecture.

Maintaining a pre-tested spare inventory of the 3502E alongside these complementary modules — including the Triconex 3624 Termination Assembly for field wiring connections — ensures that any I/O subsystem fault can be resolved within a single maintenance shift, minimizing the duration of any safety system impairment and supporting compliance with functional safety management requirements under IEC 61511.

Critical Industrial Safety Applications

Petrochemical and Refining: In hydrocarbon processing facilities, the 3502E monitors field-mounted pressure switches, high-level switches, and flame detector contacts that feed directly into burner management systems (BMS) and high-integrity pressure protection systems (HIPPS). Its TMR voting architecture ensures that a single field device failure or wiring fault does not cause a spurious shutdown of a fired heater or distillation column, while simultaneously guaranteeing that a genuine hazardous condition triggers the required protective action.

Power Generation: Thermal and combined-cycle power plants rely on Tricon-based ESD systems to protect turbine-generators, boiler feed systems, and high-pressure steam circuits. The 3502E acquires discrete status signals from turbine overspeed detectors, lube oil pressure switches, and generator protection relays, providing the safety controller with the verified input data required to execute protective trips within the required response time.

Mining and Mineral Processing: In underground and surface mining operations, conveyor interlock systems, crusher protection circuits, and ventilation safety systems depend on reliable digital input acquisition. The 3502E’s tolerance for dusty, vibration-prone environments and its online diagnostic capability make it well-suited for these applications, where access for maintenance is restricted and unplanned downtime carries significant operational cost.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use Tricon-based safety systems to protect chemical dosing systems, high-pressure pump stations, and UV disinfection equipment. The 3502E monitors valve position feedback and pump run/fail signals, ensuring that the safety controller has accurate process state information even in the humid, chemically aggressive environments typical of water treatment infrastructure.

Metallurgy and Steel Production: Electric arc furnaces, continuous casting lines, and rolling mill drives generate extreme levels of electromagnetic interference. The 3502E’s optical isolation and EMI filtering maintain input signal integrity in these environments, preventing the false trips and missed detections that can result from signal corruption in high-EMI control cabinets.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the Triconex 3502E?
All Triconex 3502E modules supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are supported by our technical team, and replacement units are dispatched promptly to minimize any impact on your safety system availability.

Q2: What pre-shipment testing is performed on the 3502E?
Each unit undergoes a full functional test prior to dispatch, verifying channel-by-channel input response, diagnostic output, and backplane communication integrity. Test records are available upon request. This process ensures that the module arrives at your facility ready for installation without requiring additional bench testing.

Q3: Is the 3502E compatible with all Tricon TMR system configurations?
The 3502E is designed for use within the Triconex Tricon 3000 Series TMR platform. It is compatible with the 3000 Series Chassis and interfaces with the 3008 Main Processor. Compatibility with specific system firmware versions should be confirmed against your site’s system documentation. NINERMAS technical support can assist with compatibility verification prior to order placement.

Q4: Can NINERMAS support long-term spare parts supply for the 3502E?
Yes. NINERMAS maintains ongoing stock of the Triconex 3502E and related Tricon I/O modules to support long-term spare parts programs for facilities with extended maintenance cycles. We can assist with multi-unit procurement planning, consignment stock arrangements, and scheduled replenishment to ensure your safety system spare parts inventory remains current and available when needed.
