TRICONEX 3000510-180 Safety-Reliable Termination Board

TRICONEX 3000510-180: Safety-Reliable Termination Board for Critical Industrial Control Sites

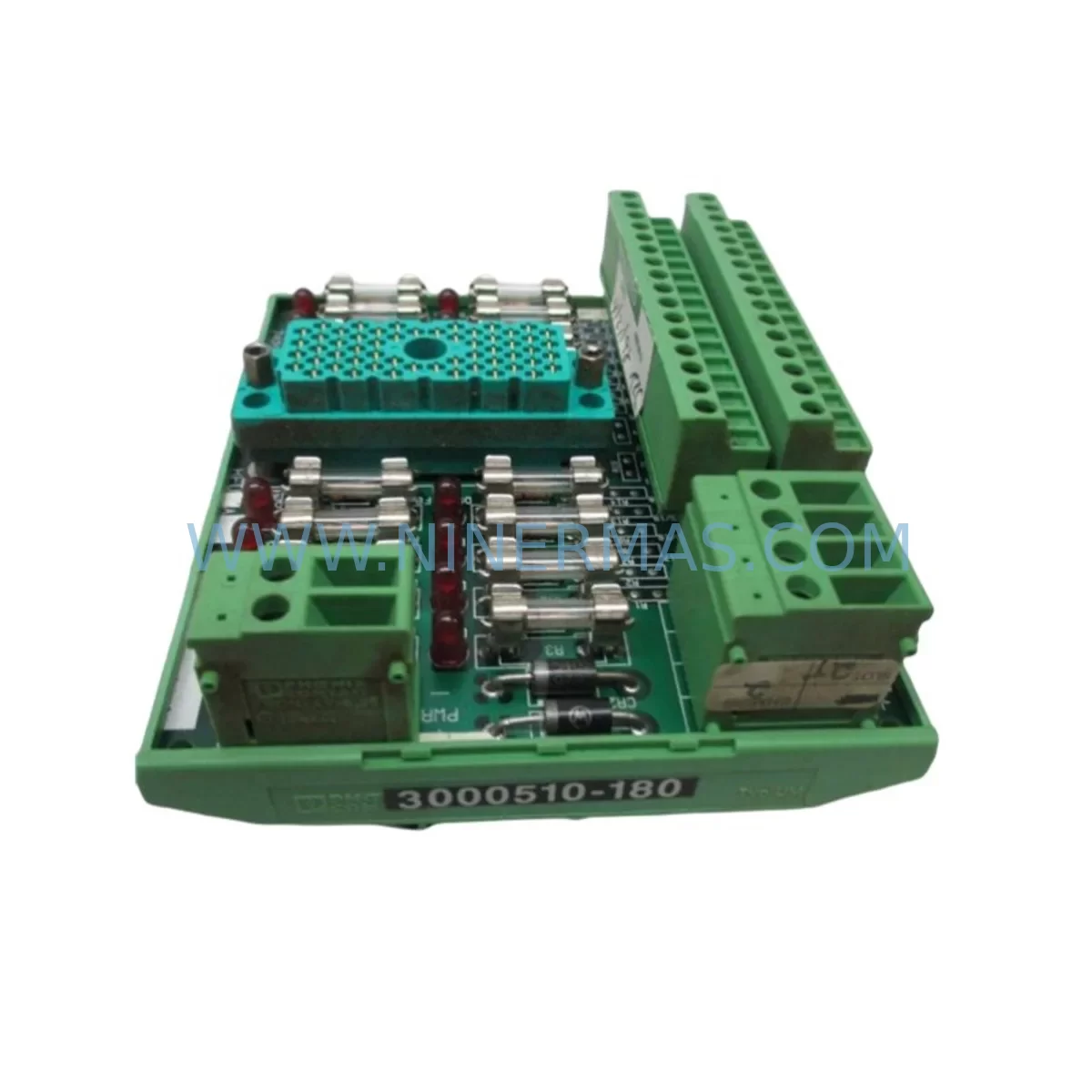

The TRICONEX 3000510-180 is a high-integrity termination board engineered for deployment in safety-critical industrial control environments. Designed to interface seamlessly with the Triconex Triple Modular Redundant (TMR) safety system architecture, this termination board delivers the signal integrity, mechanical robustness, and long-term reliability demanded by continuous process industries. Whether installed in a petrochemical interlock panel, a power generation safety loop, or a mining emergency shutdown (ESD) cabinet, the 3000510-180 provides a stable, low-resistance termination point that minimizes the risk of signal drift, wiring faults, and unplanned control interruptions.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In high-stakes control cabinets serving continuous production lines, every component in the safety loop must perform without compromise. The TRICONEX 3000510-180 termination board anchors the field wiring interface of the Tricon TMR architecture, ensuring that signals from field instruments — pressure transmitters, temperature sensors, valve position switches, and emergency stop circuits — arrive at the safety PLC with full fidelity and zero ambiguity.

When paired with the TRICONEX 3008 Main Chassis and 3703E Digital Input Module, the 3000510-180 forms a tightly integrated I/O termination assembly that eliminates loose-wire faults and reduces the risk of spurious trips caused by poor contact resistance. In power-sensitive cabinets, the TRICONEX 8312 Power Supply Module provides regulated, redundant DC power to the backplane, while the 3000510-180 ensures that field-side wiring remains isolated and properly grounded — critical for suppressing surge and transient voltages in environments near large motors, variable frequency drives (VFDs), or high-voltage switchgear.

For installations in high electromagnetic interference (EMI) zones — such as those adjacent to arc furnaces, induction heaters, or radio frequency equipment — the shielded termination design of the 3000510-180 works in concert with the TRICONEX 3625 Communication Module and 3721 Analog Input Module to maintain signal integrity across the entire safety loop. Signal drift and noise-induced false readings are among the leading causes of nuisance shutdowns in process plants; the 3000510-180’s low-impedance termination architecture directly addresses this risk.

In dusty, humid, or chemically aggressive environments — common in cement plants, fertilizer production, and offshore platforms — the 3000510-180 is typically housed within sealed, climate-controlled enclosures alongside the TRICONEX 3805E Digital Output Module and 3700A Analog Input Module. These modules, when properly terminated through the 3000510-180, maintain reliable output switching to final control elements such as solenoid valves, motor starters, and safety relays, even under prolonged exposure to vibration and thermal cycling.

For communication-intensive safety architectures integrating HART, Modbus, or TriStation protocol, the 3000510-180 provides a clean, interference-free termination foundation that supports the TRICONEX 4351B Enhanced Intelligent Controller (EICM) in maintaining uninterrupted supervisory communication. Any degradation at the field wiring termination level can propagate upstream as communication anomalies or watchdog faults — risks that the 3000510-180 is specifically designed to prevent.

Critical Industrial Safety Applications

The TRICONEX 3000510-180 termination board is deployed across the most demanding safety-critical industries worldwide:

Petrochemical & Refining: Used in Emergency Shutdown (ESD) and Fire & Gas (F&G) systems at crude distillation units, hydrocracker reactors, and LNG storage terminals. The board’s robust termination ensures that SIL 2/3-rated safety functions execute without signal loss during high-pressure, high-temperature process upsets.

Electric Power Generation: Installed in turbine protection panels and boiler management systems at coal-fired, gas turbine, and nuclear auxiliary facilities. The 3000510-180 supports reliable trip signal transmission to turbine trip solenoids and generator protection relays, preventing catastrophic overspeed or overpressure events.

Mining & Mineral Processing: Deployed in conveyor interlock systems, crusher protection circuits, and ventilation safety controls in underground and open-pit mining operations. Its vibration tolerance and wide temperature range make it suitable for harsh surface and subsurface environments.

Water & Wastewater Treatment: Integrated into pump protection, chemical dosing interlock, and overflow prevention systems at municipal and industrial water treatment plants. The 3000510-180 ensures that critical shutdown signals reach actuators reliably, even in high-humidity pump rooms.

Metallurgy & Steel Production: Used in electric arc furnace (EAF) safety interlocks, rolling mill emergency stops, and ladle handling protection systems. The board’s EMI resistance is essential in environments with intense electromagnetic fields generated by high-current furnace electrodes.

Port & Marine Applications: Installed in cargo loading arm ESD systems, ship-to-shore interlock panels, and ballast control safety circuits. The 3000510-180 supports reliable operation in salt-air, high-vibration marine environments.

Safety and Quality FAQ

Q1: What warranty does the TRICONEX 3000510-180 come with?
A: Every 3000510-180 termination board supplied by NINERMAS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Our warranty support includes technical consultation, replacement coordination, and documentation assistance to minimize your site downtime.

Q2: How is the 3000510-180 tested before shipment?
A: Each unit undergoes a comprehensive pre-shipment inspection protocol including visual inspection for physical integrity, continuity and insulation resistance testing of all termination points, functional verification against TRICONEX compatibility specifications, and ESD-safe packaging for safe transit. A test report is available upon request.

Q3: Is the 3000510-180 compatible with my existing Tricon TMR system?
A: The 3000510-180 is designed for use within the Triconex Tricon TMR platform and is compatible with Tricon v9 and v10 chassis configurations, as well as Trident and Tri-GP safety system variants. If you require confirmation of compatibility with a specific chassis revision or I/O module combination, our technical team can verify against your system’s bill of materials.

Q4: Can NINERMAS guarantee long-term supply of the 3000510-180 for ongoing maintenance?
A: Yes. NINERMAS maintains dedicated inventory of legacy and current-generation TRICONEX components, including the 3000510-180, to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts programs. We provide lead-time commitments and can arrange blanket order agreements for customers with recurring demand.
