TOSHIBA V2PCAP01 H1932131 S10PC Service-Ready Spare Part

TOSHIBA V2PCAP01 H1932131 S10PC Service-Ready Spare Part

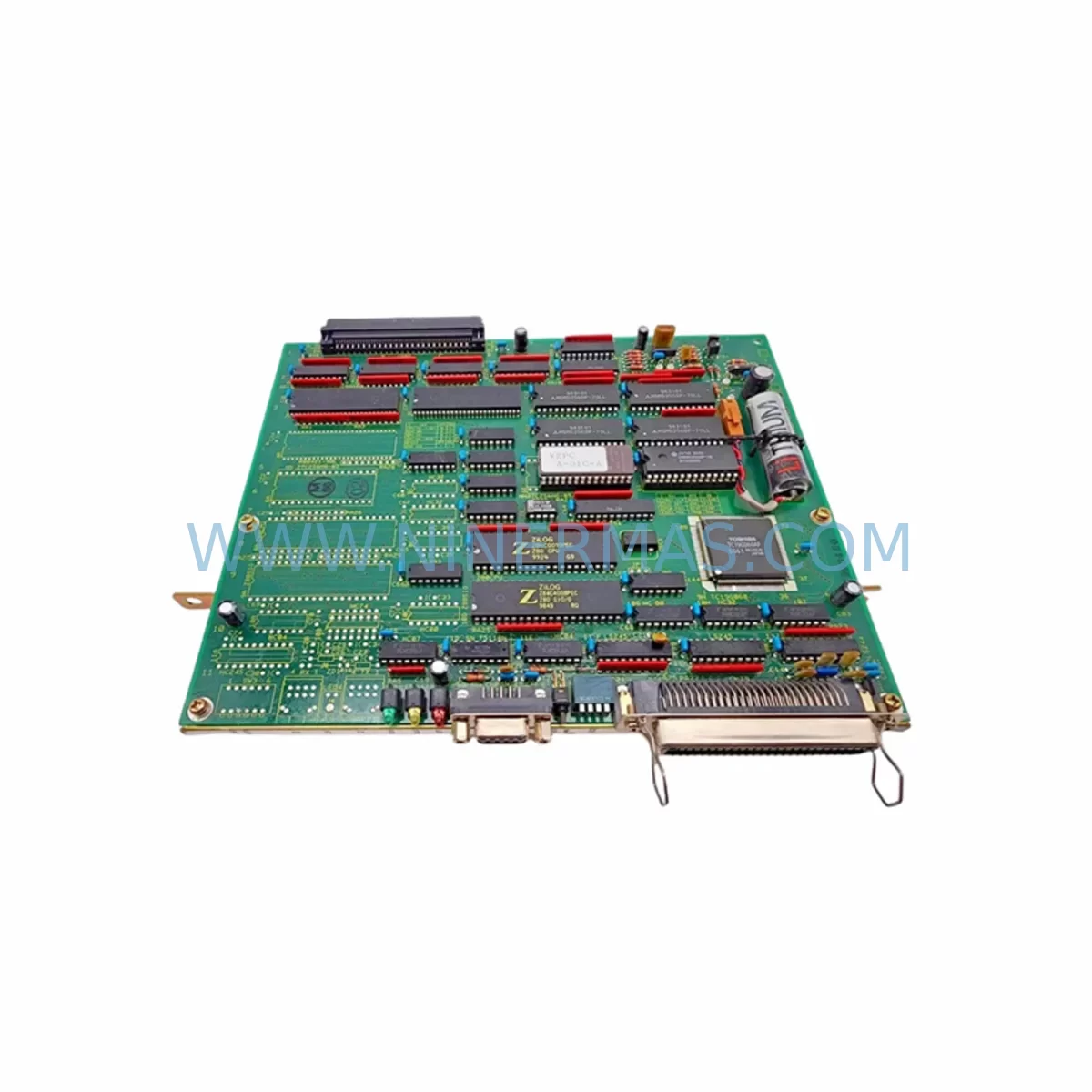

The TOSHIBA V2PCAP01 H1932131 S10PC is an original spare part module designed for the TOSHIBA S10 Series Programmable Controller platform — one of the most widely deployed legacy PLC systems in process automation, utilities, and heavy manufacturing across Asia-Pacific and global industrial facilities. As production lines continue to rely on end-of-life S10 Series control architectures, maintaining a verified stock of service-ready modules such as the V2PCAP01 H1932131 S10PC is essential for minimizing unplanned downtime and sustaining operational continuity.

This module serves as a critical interface and processing component within the S10PC sub-system, supporting CPU communication, backplane signal routing, and system coordination functions. When this component degrades or fails, the consequences can range from intermittent I/O faults and communication dropouts to complete controller shutdown — events that carry significant production loss risk in continuous-process environments. Sourcing a verified original replacement from a reliable spare parts supplier is the most effective strategy for rapid fault recovery.

At NINERMAS, every V2PCAP01 H1932131 S10PC unit is individually inspected, function-tested, and shipped with a 12-month warranty. Our inventory is sourced from original TOSHIBA supply channels and decommissioned-but-functional industrial systems, ensuring authenticity and compatibility with your existing S10 Series control cabinet configuration.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the V2PCAP01 H1932131 S10PC in a TOSHIBA S10 Series control cabinet, maintenance engineers should treat the intervention as a full cabinet health check rather than a single-component swap. The S10 Series architecture integrates tightly coupled modules, and a failure in the CPU or interface card often signals stress on adjacent components that may be approaching end-of-service life.

Begin by inspecting the S10 Series power supply module (typically a dedicated DC 24V or AC/DC converter unit mounted in the same rack). Voltage ripple or insufficient current capacity is a common root cause of CPU module degradation. Alongside the power supply, verify the condition of the S10 backplane bus connector and rack chassis — oxidized or loose backplane contacts can cause intermittent communication faults that mimic CPU failure.

Next, audit the S10 Series I/O modules connected to the same rack. Digital input modules, digital output modules, and analog I/O cards in the S10 family share the backplane bus with the CPU module; a shorted output channel or failed I/O card can place abnormal load on the CPU interface. Similarly, inspect any installed communication modules — such as the TOSHIBA S10 Series T-Link or FL-net network interface cards — for firmware integrity and connector condition.

For systems using signal isolation modules between field instruments and the S10 I/O rack, verify that isolator output levels remain within the specified input range of the S10 analog modules. Degraded signal isolators are a frequent but overlooked contributor to erratic PLC behavior. Also check terminal blocks and wiring harnesses within the control cabinet — loose terminations on 24VDC control circuits or field signal wiring can introduce noise that stresses the CPU module over time.

If the S10 system interfaces with an HMI panel (such as a TOSHIBA V-Series or compatible third-party operator panel), confirm that the serial or Ethernet communication link is stable after module replacement. HMI communication timeouts are a common post-replacement symptom caused by address or baud rate mismatches. Finally, inspect any installed surge protection devices and fuse holders on the incoming power rail — these are often overlooked during routine maintenance but are critical for protecting the CPU module from transient voltage events.

Procurement engineers should consider stocking at minimum one spare V2PCAP01 H1932131 S10PC alongside complementary S10 Series components including power supply modules, I/O expansion cards, and communication interface modules. Given the end-of-life status of the S10 platform, long lead times and limited availability make proactive inventory management essential for risk control.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the V2PCAP01 H1932131 S10PC, back up the current PLC program and parameter data using the TOSHIBA S10 programming tool or compatible software. Confirm the replacement module’s part number, reference number (H1932131), and sub-model (S10PC) match the installed unit exactly. Verify that the new module has passed pre-shipment functional testing.

Step 2 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure. De-energize the S10 control cabinet and allow capacitors in the power supply module to discharge fully before handling any rack-mounted modules. Ground yourself with an ESD wrist strap before touching the V2PCAP01 module.

Step 3 — Module Removal and Inspection: Carefully extract the failed V2PCAP01 H1932131 S10PC from the backplane slot. Inspect the backplane connector pins for damage, corrosion, or debris. Clean the slot with compressed air if necessary before inserting the replacement module.

Step 4 — Replacement and Restart: Seat the new V2PCAP01 H1932131 S10PC firmly into the backplane slot. Re-energize the cabinet and observe the module’s status indicators during boot. Restore the backed-up PLC program and verify I/O mapping, communication links, and HMI connectivity before returning the system to production.

Step 5 — Post-Replacement Documentation: Record the replacement date, module serial number, and test results in your maintenance log. Update your spare parts inventory and initiate a reorder for the next standby unit to maintain buffer stock continuity.

Spare Parts Support FAQ

Q1: Is the V2PCAP01 H1932131 S10PC an original TOSHIBA part or a compatible replacement?
All V2PCAP01 H1932131 S10PC units supplied by NINERMAS are original TOSHIBA spare parts — not aftermarket or compatible substitutes. Each unit is sourced from verified supply channels and undergoes individual inspection and functional testing prior to shipment. We do not supply counterfeit or rebranded components.

Q2: What warranty and testing does NINERMAS provide with this module?
Every V2PCAP01 H1932131 S10PC ships with a 12-month warranty from the date of shipment. Pre-shipment testing includes power-on verification and functional checks to confirm the module operates within original TOSHIBA specifications. Detailed test records are available upon request for quality assurance documentation.

Q3: How do I confirm compatibility with my existing TOSHIBA S10 Series system?
Compatibility is confirmed by matching the full part number (V2PCAP01), reference number (H1932131), and sub-model designation (S10PC) against your installed module’s label or your system’s bill of materials. If you are uncertain, contact our technical team at sale@ninermas.com with your cabinet model number and existing module label photograph for verification before ordering.

Q4: Can NINERMAS support long-term supply for S10 Series spare parts beyond a single order?
Yes. NINERMAS maintains an active sourcing network for end-of-life TOSHIBA S10 Series components. We support blanket purchase orders, scheduled delivery agreements, and multi-SKU spare parts kitting for maintenance teams managing legacy S10 installations. Contact us to discuss a long-term supply arrangement tailored to your annual maintenance schedule and inventory strategy.
