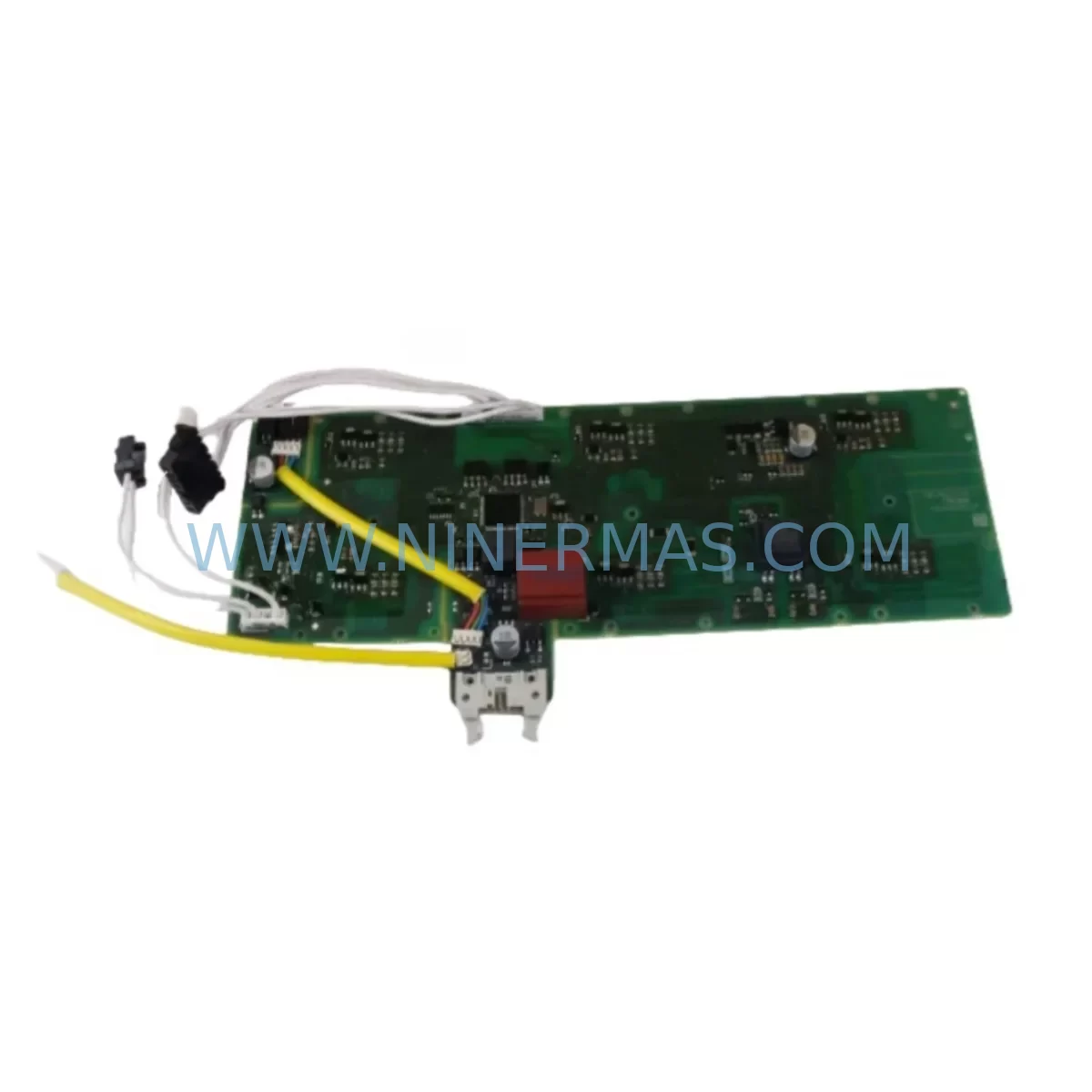

The Siemens A5E03894525 is a ruggedized power module designed for the SINAMICS PM240 and PM340 drive series, engineered to sustain reliable motor control in demanding industrial environments including high-vibration, high-humidity, and thermally stressed installations. As a critical component in variable-speed drive systems across process industries, this power module is a high-priority spare for maintenance engineers managing aging SINAMICS infrastructure. Sourced as an original-grade replacement, the A5E03894525 supports rapid site restoration, minimises unplanned downtime, and integrates directly into existing PM240/PM340 drive frames without firmware reconfiguration in most standard applications.

For maintenance and procurement engineers operating in petrochemical, water treatment, mining, cement, or discrete manufacturing environments, holding a pre-tested A5E03894525 in your spare parts inventory is a proven strategy for reducing mean time to repair (MTTR) on critical drive assets. This module ships after full pre-dispatch functional verification and is backed by a 12-month warranty, providing confidence for both emergency replacement and planned overhaul cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the A5E03894525 power module in a SINAMICS PM240 or PM340 drive, a thorough site inspection of the surrounding electrical system is essential to prevent repeat failures and ensure safe recommissioning. Maintenance engineers should begin by verifying the DC bus capacitors within the drive frame — capacitor degradation is a common co-failure mode in aged SINAMICS units and should be assessed before energising a new power module.

The SINAMICS CU240E-2 or CU310-2 Control Unit paired with this power module should be inspected for firmware version compatibility and parameter backup integrity. If the control unit has been in service for more than five years, consider holding a spare CU240 or CU310 alongside the A5E03894525 to avoid a secondary outage. Similarly, the BOP-2 Basic Operator Panel or any connected HMI interface should be checked for communication faults that may have contributed to the original drive trip.

On the power supply side, inspect the incoming line reactor (e.g., Siemens 6SL3203 series) and EMC line filter for signs of overheating or insulation breakdown. These components protect the power module from line-side transients and their condition directly affects the service life of the replacement A5E03894525. The output motor cable and motor terminal box should also be checked for insulation resistance before reconnection — a degraded cable can cause immediate IGBT stress on the new module.

For I/O and signal integrity, verify the digital input/output terminal block wiring on the control unit, particularly any safety-relevant STO (Safe Torque Off) wiring connected via the PM240’s X13 terminal. Loose or corroded terminals in the STO circuit are a known cause of nuisance drive faults. If the installation includes a Siemens PROFIBUS DP or PROFINET communication module (e.g., CBE20 or CB20), confirm that the network address and baud rate settings are preserved in the parameter backup before powering up.

Thermal management components deserve particular attention in ruggedised installations. Inspect the cabinet cooling fan units, air filters, and any heat exchanger or air conditioner fitted to the control cabinet. Blocked airflow is a primary cause of power module thermal shutdown and premature failure. For sites with high ambient dust or chemical exposure, a scheduled filter replacement interval should be established as part of the preventive maintenance plan.

Finally, review the 24 VDC auxiliary power supply feeding the control unit and any connected I/O modules. An unstable auxiliary supply can cause erratic drive behaviour that is often misdiagnosed as a power module fault. Holding a spare SITOP PSU100S or equivalent 24 VDC DIN-rail power supply in the maintenance kit is a low-cost insurance against extended downtime during fault diagnosis.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Isolate the drive from the main supply and apply LOTO (Lockout/Tagout) procedure. Allow a minimum of 5 minutes for DC bus discharge before opening the drive enclosure. Verify zero voltage on the DC bus terminals using a calibrated multimeter.

Step 2 — Parameter Backup: If the control unit is still functional, upload the full parameter set to a PC using STARTER or Startdrive commissioning software, or save to the integrated SD card slot on the CU240/CU310. This backup is critical for rapid recommissioning after module swap.

Step 3 — Module Removal: Disconnect all power and signal connectors from the existing PM240/PM340 power module following the sequence specified in the Siemens SINAMICS PM240 Operating Instructions (document A5E33838102). Label all connectors before removal to prevent reconnection errors.

Step 4 — A5E03894525 Installation: Mount the replacement module into the drive frame, ensuring correct mechanical seating and torque on all fixing screws. Reconnect all power, motor, and signal connectors in reverse removal order. Verify STO wiring continuity before closing the enclosure.

Step 5 — Recommissioning: Restore the parameter backup to the control unit. Perform a no-load test run before reconnecting the motor load. Monitor drive diagnostics via the BOP-2 or SCADA/DCS interface for the first 30 minutes of operation to confirm stable thermal and electrical performance.

This structured workflow reduces recommissioning time, eliminates common wiring errors, and ensures the replacement A5E03894525 operates within its rated parameters from first energisation — minimising the risk of infant mortality failure on the new module.

Spare Parts Support FAQ

Q1: Is the A5E03894525 a direct drop-in replacement for the original PM240/PM340 power module?
A: Yes, the A5E03894525 is designed as a direct mechanical and electrical replacement for the corresponding PM240/PM340 frame. No hardware modification is required. However, always cross-reference the drive frame size and voltage rating against your existing unit’s nameplate data before installation to confirm full compatibility.

Q2: What pre-shipment testing is performed on this module?
A: Each A5E03894525 unit undergoes functional verification prior to dispatch, including power-on self-test and output stage integrity checks. A test report is available on request. Units are packed in anti-static, shock-protected packaging to maintain condition during international transit.

Q3: Can NINERMAS support long-term or scheduled supply of this spare part?
A: Yes. NINERMAS offers long-term B2B supply agreements for the A5E03894525 and related SINAMICS PM240/PM340 components. Scheduled delivery programs, consignment stock arrangements, and annual maintenance kit packages are available for industrial customers with recurring spare parts requirements. Contact our team to discuss a tailored supply plan.

Q4: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of delivery. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the module’s rated parameters. NINERMAS provides technical support for warranty claims and can arrange advance replacement to minimise site downtime.
