Siemens 6SE7034-6EC85-0JA0 Service-Ready Spare Part

Siemens 6SE7034-6EC85-0JA0 Service-Ready Spare Part: Spare Part Replacement & Downtime Risk Control

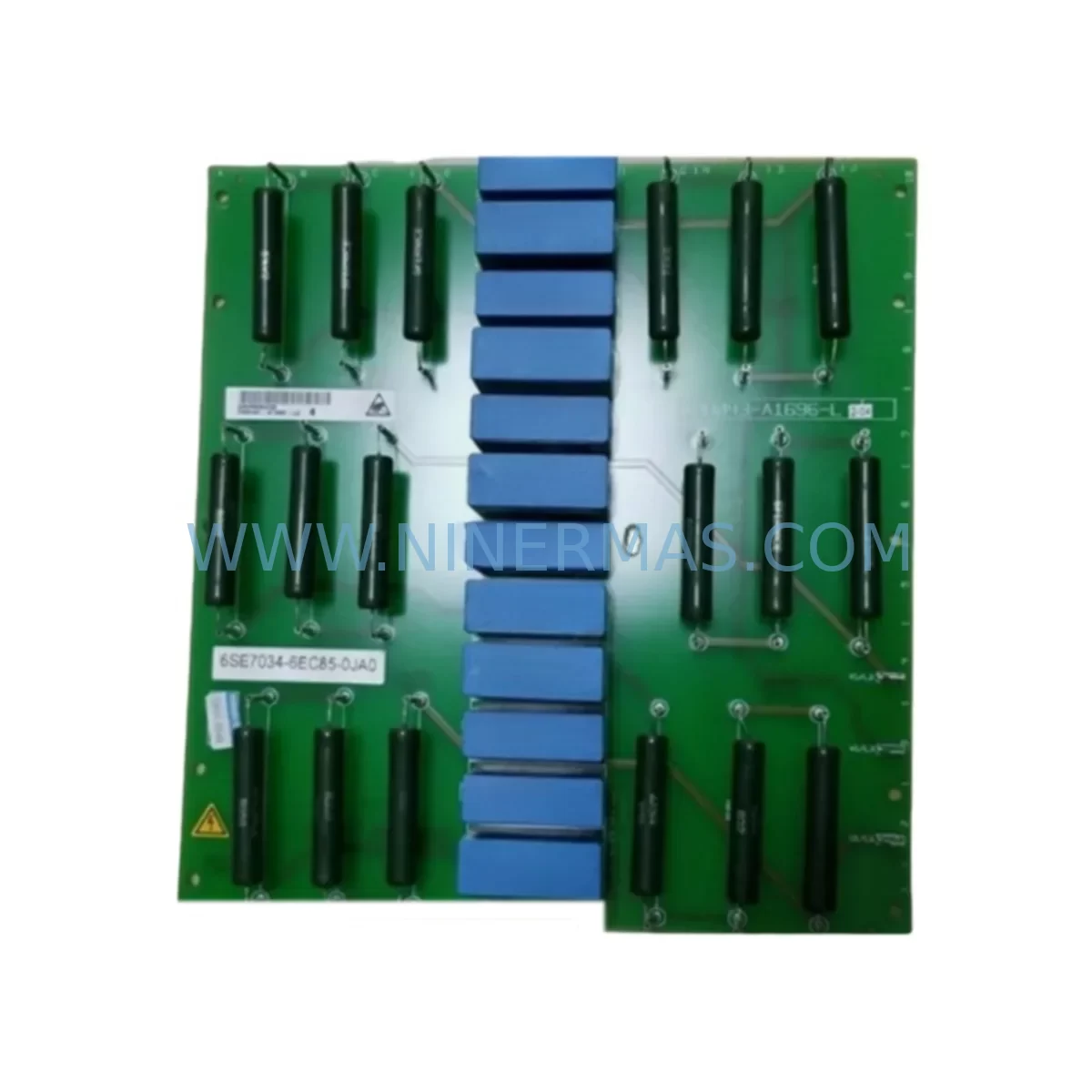

The Siemens 6SE7034-6EC85-0JA0 is a ruggedized AC drive module from the SIMOVERT MASTERDRIVES series, engineered for demanding industrial environments including high-vibration, high-dust, and wide-temperature-range applications. As a service-ready spare part, this unit is essential for maintenance engineers managing continuous production lines, automated assembly systems, and process-critical motor control applications where unplanned downtime carries significant operational and financial risk.

Sourced as an original Siemens component, the 6SE7034-6EC85-0JA0 is fully compatible with existing MASTERDRIVES MC and VC control architectures. Each unit undergoes pre-shipment functional testing to verify output integrity, communication readiness, and thermal performance before dispatch. With a 12-month warranty and long-term supply commitment, procurement engineers can confidently include this part in annual MRO budgets and emergency spare inventories.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 6SE7034-6EC85-0JA0 drive module in a MASTERDRIVES cabinet, a thorough site inspection of the surrounding electrical system is critical to prevent repeat failures and ensure stable recommissioning. Maintenance engineers should treat this replacement as an opportunity to audit the entire drive circuit.

Begin with the DC bus capacitor bank and pre-charge resistor assembly — these components age in parallel with the drive module and are common sources of secondary failure after a drive replacement. Inspect the 6SE7090-0XX84-0KA0 braking resistor or equivalent braking chopper unit for signs of thermal stress or open-circuit conditions, particularly in applications with frequent deceleration cycles.

Check the input line reactor (e.g., 4EP3600-series or equivalent) and EMC input filter for continuity and insulation integrity. A degraded line reactor can introduce harmonic distortion that shortens the replacement drive’s service life. Similarly, inspect the output dV/dt filter or sine-wave filter if long motor cable runs are present, as reflected wave voltage can damage the new module’s output IGBTs.

On the control side, verify the CU (Control Unit) — such as the 6SE7090-0XX84-2FK0 or compatible CU board — for firmware version compatibility with the replacement power unit. Mismatched firmware between the CU and power section is a common commissioning error that causes fault codes and prevents the drive from running. Also inspect the CBP2 PROFIBUS communication board and its fiber-optic or copper interface connections to the SIMATIC S7 PLC or DCS controller.

Review the 24 VDC auxiliary power supply feeding the control electronics — units such as the SITOP PSU100S or equivalent should be load-tested to confirm stable output under full control board load. Inspect terminal blocks and control wiring for loose connections, insulation breakdown, or corrosion, especially in humid or chemically aggressive environments where the ruggedized 6SE7034-6EC85-0JA0 is typically deployed.

For I/O integrity, test all digital input and output channels on the CU board, including enable signals, fault reset lines, and speed reference inputs. If the system uses analog speed references (0–10 V or 4–20 mA), verify signal isolation and check for ground loops that could cause erratic speed control. Where signal isolators are installed between the PLC and drive, confirm their output accuracy and response time.

Finally, inspect the cabinet cooling system — fan units, air filters, and heat exchanger elements — as thermal management is the primary factor in drive longevity in ruggedized installations. Replacing the drive module without servicing a blocked filter or failed cabinet fan will result in premature failure of the new unit.

Site Replacement Workflow

The 6SE7034-6EC85-0JA0 is a direct replacement for earlier MASTERDRIVES power units of equivalent frame size and power rating. Before installation, confirm the DC bus voltage rating, motor cable cross-section, and control unit firmware version against the existing system documentation. If the original unit’s parameter set was saved via the DriveMonitor or STARTER commissioning tool, upload the parameter file to the replacement unit before energizing to minimize recommissioning time.

Isolate the drive cabinet using the main isolator and verify zero-voltage on the DC bus using a calibrated meter before removing the faulty module — residual DC bus charge can persist for several minutes after power-off. Install the replacement module, reconnect all power and control terminals per the original wiring diagram, and perform a controlled test run at reduced speed before returning the drive to full production load. Document the replacement in the site maintenance log and update the spare parts inventory accordingly.

For legacy systems where the original MASTERDRIVES series has been discontinued, the 6SE7034-6EC85-0JA0 provides a cost-effective path to extend system life without the capital expenditure and reengineering risk of a full drive system upgrade. This approach is particularly valuable in industries such as cement, mining, paper, and chemical processing, where installed base equipment may have decades of remaining mechanical service life.

Spare Parts Support FAQ

Q1: Is the 6SE7034-6EC85-0JA0 compatible with my existing MASTERDRIVES control unit?
A: The 6SE7034-6EC85-0JA0 power section is compatible with standard MASTERDRIVES CU boards operating in MC (Motion Control) and VC (Vector Control) modes. Compatibility depends on the CU firmware version and frame size matching. We recommend providing your existing CU part number and firmware version for confirmation before ordering.

Q2: What pre-shipment testing is performed on this spare part?
A: Each unit is functionally tested prior to shipment, including DC bus charge/discharge verification, IGBT gate drive integrity check, and communication interface validation. A test report is available upon request. All units are shipped with protective packaging to prevent transit damage.

Q3: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions as specified in the Siemens MASTERDRIVES technical documentation. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside rated parameters. Warranty claims are supported with replacement or repair at no additional cost.

Q4: Can you support long-term or repeat procurement of this part number?
A: Yes. We maintain stock and sourcing channels for the 6SE7034-6EC85-0JA0 and related MASTERDRIVES components to support ongoing MRO programs. Volume pricing and scheduled delivery agreements are available for procurement engineers managing multi-site maintenance contracts. Contact us to discuss your annual spare parts requirements.
