SEMIKRON SEMIX353GB126V1 Retrofit-Compatible IGBT Module

SEMIKRON SEMIX353GB126V1 Retrofit-Compatible IGBT Module for Legacy Systems

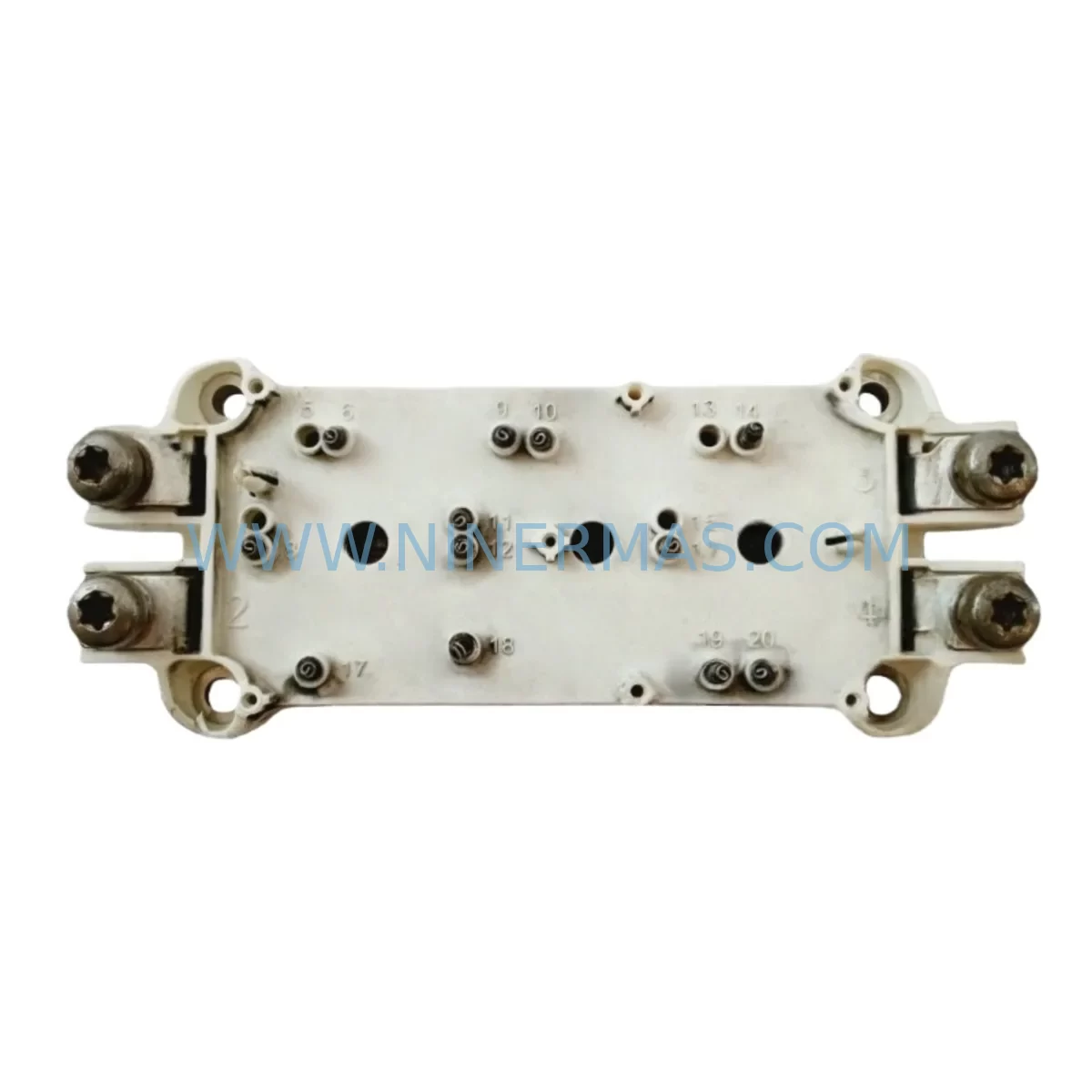

The SEMIKRON SEMIX353GB126V1 is a high-performance IGBT power module engineered for demanding industrial power conversion applications. As a direct retrofit-compatible replacement for legacy drive systems, inverter cabinets, and power conditioning equipment, this module enables engineers and maintenance teams to restore full operational capability without redesigning existing power stages or control architectures. NINERMAS maintains verified stock of the SEMIX353GB126V1 with full pre-shipment testing and a 12-month warranty, ensuring your retrofit project proceeds with confidence and minimal downtime risk.

The SEMIX353GB126V1 belongs to SEMIKRON’s proven SEMIX series — a platform widely adopted across industrial motor drives, regenerative converters, UPS systems, traction inverters, and medium-voltage power electronics. Its robust package format, standardized mounting footprint, and well-documented electrical characteristics make it a preferred choice when replacing discontinued or end-of-life modules in existing control cabinets where physical space, busbar geometry, and gate driver compatibility must all be preserved.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the SEMIX353GB126V1 requires systematic verification of every interface between the new module and the surrounding power and control architecture. Begin by confirming the DC link voltage and capacitor bank condition — degraded DC bus capacitors in legacy inverter cabinets are a common cause of premature IGBT failure after module replacement. If the existing system uses a SEMIKRON SKHI 22A or SKHI 61 gate driver board, verify that gate resistance values and interlock timing remain within specification for the SEMIX353GB126V1’s switching characteristics.

For systems built around older SEMIKRON SKM350GB126D or SKM400GB126D modules, the SEMIX353GB126V1 offers a physically and electrically compatible upgrade path. Confirm busbar hole spacing, terminal torque values, and heatsink flatness before installation. Apply fresh thermal interface material — do not reuse the original compound — and verify contact pressure uniformity across the module base plate.

In drive cabinets where the SEMIX353GB126V1 operates alongside SEMIKRON SKKD 81/16 rectifier diode modules or SKB rectifier bridges, inspect the entire power stack for signs of thermal stress or electrolytic degradation. Replacing only the failed IGBT module without auditing adjacent components is a common retrofit mistake that leads to repeat failures within months.

Control-side compatibility is equally important. If the inverter uses a DSP-based control board communicating via fiber optic links to the gate driver stage, confirm that the optical signal levels and propagation delays remain within tolerance after the module swap. Systems using SEMIKRON SKYPER 32 PRO R or similar advanced driver platforms may require parameter re-verification after module replacement to ensure overcurrent protection thresholds are correctly calibrated for the new module’s saturation voltage characteristics.

For legacy systems where the original programming was developed on platforms such as Siemens S7-300 or ABB ACS800 drive controllers, the IGBT module replacement itself does not affect PLC logic or HMI screen configurations — but the commissioning team should perform a full load test cycle and monitor current waveforms, temperature rise, and switching noise before returning the system to production. Where signal isolators or current transducers are installed in the feedback loop, verify that their calibration has not drifted during the downtime period.

NINERMAS supplies not only the SEMIX353GB126V1 but also a range of complementary power electronics components to support complete cabinet retrofits, including gate driver boards, snubber capacitors, DC bus capacitors, thermal interface materials, and compatible rectifier modules — enabling a single-source procurement approach that simplifies logistics and reduces retrofit project risk.

Downtime Control During System Migration

Minimizing production downtime during an IGBT module replacement is a primary concern for plant engineers managing continuous process lines, rolling mills, pump stations, or compressor drives. The SEMIX353GB126V1’s standardized SEMIX package format is a significant advantage here — because the mounting footprint, terminal positions, and gate driver interface are consistent with the SEMIX platform family, an experienced technician can complete the physical swap in under two hours when all preparatory steps have been completed in advance.

Effective downtime control begins before the maintenance window opens. Pre-stage the replacement SEMIX353GB126V1 alongside all required consumables: thermal paste, torque wrench, busbar hardware, and a calibrated gate driver test fixture if available. Download and archive the existing drive parameter set from the control unit before powering down — this protects against parameter loss during the outage and allows rapid recommissioning. If the system uses a SEMIKRON SEMISTACK or similar pre-assembled power stack, photograph the existing wiring and busbar layout before disassembly.

During the swap, isolate the DC link fully and verify zero voltage with a calibrated meter before touching any power terminals. After installing the SEMIX353GB126V1, perform a low-voltage gate driver test before applying full DC bus voltage — this confirms gate signal integrity and rules out wiring errors before high-energy switching begins. Restore drive parameters from the archived set, perform a no-load run, then a partial-load run, and monitor IGBT junction temperature via the NTC thermistor output before returning to full production load.

NINERMAS ships the SEMIX353GB126V1 with full pre-shipment electrical testing documentation, so you can proceed to installation with confidence that the module meets SEMIKRON’s original performance specifications. Our 12-month warranty covers the replacement module for the full post-installation period, providing ongoing protection against latent defects and supporting your maintenance team’s long-term reliability objectives.

Retrofit Support FAQ

Q1: Is the SEMIX353GB126V1 a direct drop-in replacement for other SEMIX series modules?
The SEMIX353GB126V1 shares the standard SEMIX package footprint and is electrically compatible with other SEMIX-platform modules of similar voltage and current ratings. However, always verify collector current rating, gate threshold voltage, and NTC thermistor characteristics against your specific application requirements before installation. NINERMAS technical support can assist with cross-reference confirmation.

Q2: What pre-shipment testing does NINERMAS perform on the SEMIX353GB126V1?
Every SEMIX353GB126V1 unit shipped by NINERMAS undergoes full electrical verification including Vce(sat) measurement, gate leakage test, and insulation resistance check. Test results are available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can the SEMIX353GB126V1 be used with existing SEMIKRON gate driver boards without modification?
In most cases, yes — the SEMIX353GB126V1 is compatible with standard SEMIKRON SKHI-series and SKYPER-series gate drivers. Confirm gate resistance values and deadtime settings are appropriate for the module’s switching speed. If your existing driver board is from a third-party manufacturer, provide the driver specifications to NINERMAS for compatibility review.

Q4: What is NINERMAS’s long-term supply commitment for the SEMIX353GB126V1?
NINERMAS maintains ongoing inventory of the SEMIX353GB126V1 and actively sources stock to support customers with long-term maintenance contracts and multi-year retrofit programs. Contact our team at sale@ninermas.com to discuss scheduled supply agreements, volume pricing, and priority allocation for critical spare parts programs.
