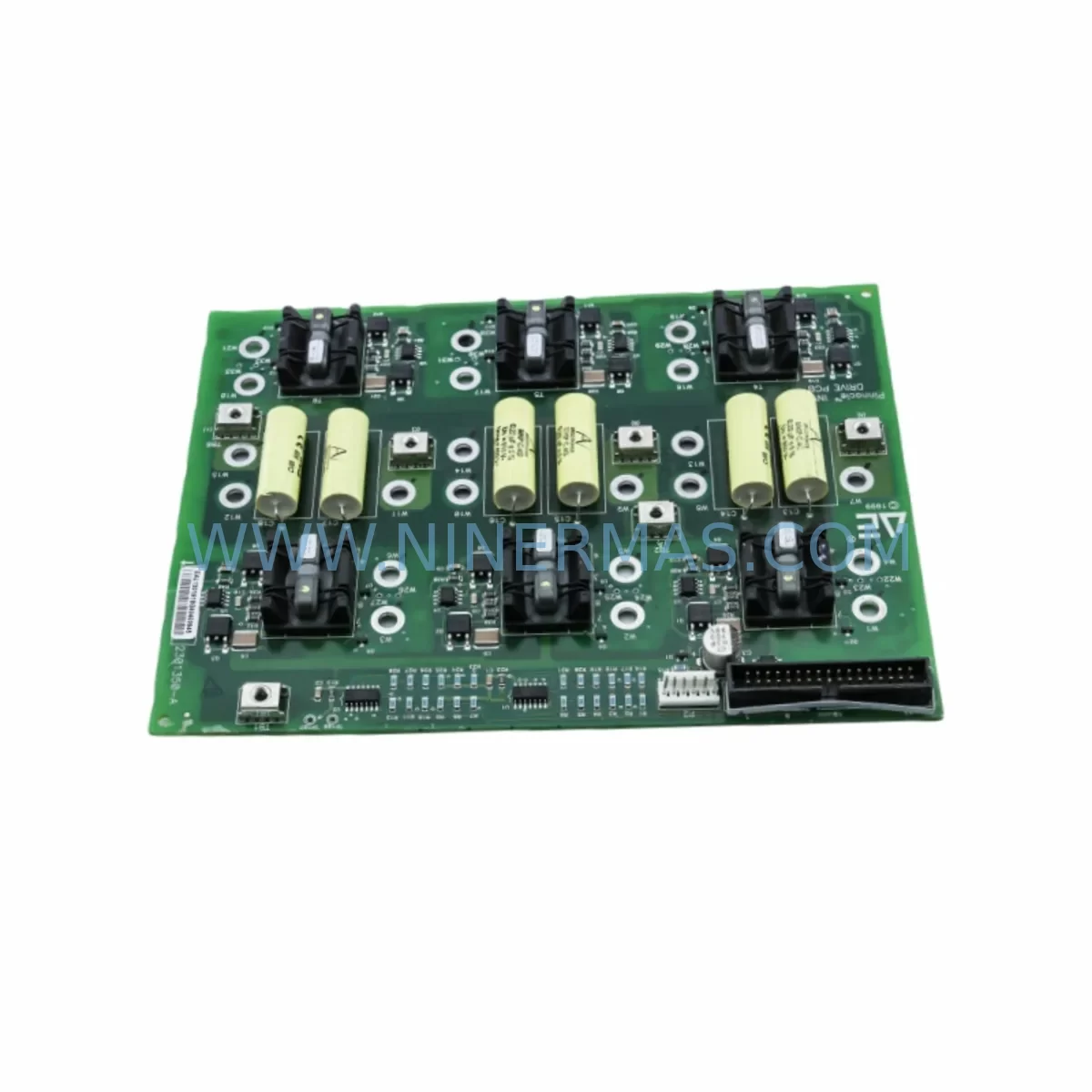

The Advanced Energy 2301350-A is an original PCB assembly designed for the Pinnacle series high-frequency inverter drive platform. Cross-referenced under part numbers 90157017, 173733-001, TTLD13-11, FIMS-F 3881-020024-12, this board serves as a critical control and power interface component within Advanced Energy’s precision power delivery systems — widely deployed in semiconductor fabrication, industrial plasma processing, and high-precision RF power applications.

For maintenance engineers managing aging Pinnacle drive systems, sourcing a verified, service-ready 2301350-A replacement is often the fastest path to restoring production uptime. NINERMAS maintains dedicated stock of this PCB, pre-tested prior to shipment and backed by a 12-month warranty, ensuring your replacement arrives ready to install without additional bench validation delays.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 2301350-A PCB in a Pinnacle inverter drive, a thorough cabinet inspection is essential to prevent repeat failures and ensure full system restoration. Maintenance engineers should treat this replacement as an opportunity to audit the entire power delivery chain.

Begin by inspecting the DC bus capacitor bank — capacitor degradation is a leading cause of PCB stress in high-frequency inverter platforms. Measure capacitance and ESR values before reinstalling the new board. Simultaneously, check the IGBT gate driver board (commonly referenced alongside the 2301350-A in Pinnacle drive BOMs) for signs of thermal damage or gate signal irregularities, as a failed gate driver can destroy a replacement PCB within hours of commissioning.

The fiber optic communication link between the control board and the power stage should be inspected for connector contamination or cable bend radius violations — degraded fiber links cause intermittent fault codes that are frequently misdiagnosed as PCB failures. Alongside this, verify the control interface PCB and its ribbon cable connections, as loose or corroded connectors are a common source of signal integrity issues in aging Pinnacle chassis.

On the power input side, inspect the EMI filter module and input fuse assembly for continuity and thermal discoloration. A compromised filter can introduce conducted noise that stresses the replacement board. The cooling fan assembly — often overlooked during emergency repairs — should be tested for correct airflow direction and RPM; inadequate cooling is a primary driver of premature PCB failure in high-duty-cycle applications.

For systems integrated into a larger DCS or PLC architecture, confirm that the analog I/O signal conditioner and thyristor firing board are operating within specification. Signal drift from these components can cause the Pinnacle drive to operate outside its designed parameters, placing undue stress on the newly installed 2301350-A. Finally, inspect the backplane connector and terminal block wiring for oxidation, loose crimps, or insulation breakdown — particularly in high-humidity or chemically aggressive environments.

Procuring a secondary 2301350-A as a cold standby spare is strongly recommended for facilities running continuous or 24/7 production schedules. NINERMAS can support multi-unit orders with reserved inventory agreements to ensure long-term supply continuity for end-of-life Advanced Energy components.

Site Replacement Workflow

Step 1 — Isolation & Lockout: De-energize the Pinnacle drive chassis and follow LOTO procedures. Allow the DC bus to fully discharge (verify with a calibrated meter) before opening the cabinet.

Step 2 — Documentation: Photograph all wiring, connector positions, and board orientation before removal. Record the existing fault codes from the drive’s diagnostic interface.

Step 3 — Board Removal: Disconnect all ribbon cables, fiber optic connectors, and power headers from the existing 2301350-A. Note any thermal paste or mechanical standoff configurations.

Step 4 — Compatibility Verification: Confirm the replacement 2301350-A matches the revision level required by your chassis. Cross-check against the cross-reference numbers (90157017 / 173733-001 / TTLD13-11 / FIMS-F 3881-020024-12) if the primary part number label is damaged.

Step 5 — Installation & Re-commissioning: Install the replacement board, reconnect all connectors in documented sequence, and restore power. Monitor drive output parameters and fault logs for a minimum of 30 minutes under load before returning the system to full production.

Step 6 — Post-Replacement Audit: Update the maintenance log with the replacement date, new board serial number, and any ancillary components serviced. Schedule a follow-up inspection at 90 days.

Spare Parts Support FAQ

Q1: Is the 2301350-A still available as a new original part, or is it a refurbished unit?
NINERMAS stocks original Advanced Energy 2301350-A PCBs sourced from authorized channels and legacy inventory. Each unit undergoes functional verification prior to shipment. Condition is clearly stated on the order confirmation. Refurbished units, when available, are clearly identified and priced accordingly.

Q2: How do I confirm compatibility with my specific Pinnacle drive chassis revision?
Cross-reference your existing board’s part number against the listed alternatives: 90157017, 173733-001, TTLD13-11, and FIMS-F 3881-020024-12. If your chassis uses any of these numbers, the 2301350-A is the correct replacement. For chassis-level revision queries, contact our technical team at sale@ninermas.com with your drive serial number.

Q3: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact NINERMAS with your order number and a description of the failure mode. Replacement or repair will be arranged within 5 business days of claim approval.

Q4: Can NINERMAS support long-term or multi-unit procurement for the 2301350-A?
Yes. For facilities managing multiple Pinnacle drive systems or planning scheduled overhauls, NINERMAS offers reserved inventory agreements to guarantee supply continuity. Multi-unit pricing and lead time commitments are available upon request. Contact sale@ninermas.com or call +0086 187 5021 5667 to discuss your procurement requirements.
