Advanced Energy CEX-RFG-1250 Service-Ready Industrial Spare Part

Advanced Energy CEX-RFG-1250 Service-Ready Industrial Spare Part: Spare Replacement and Downtime Risk Control

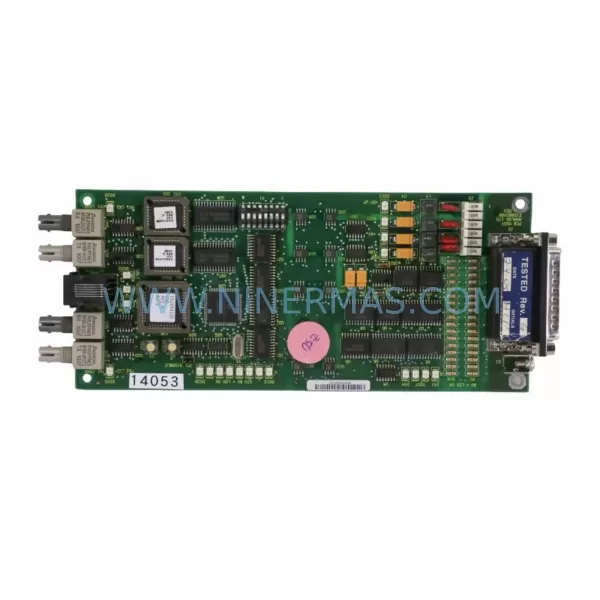

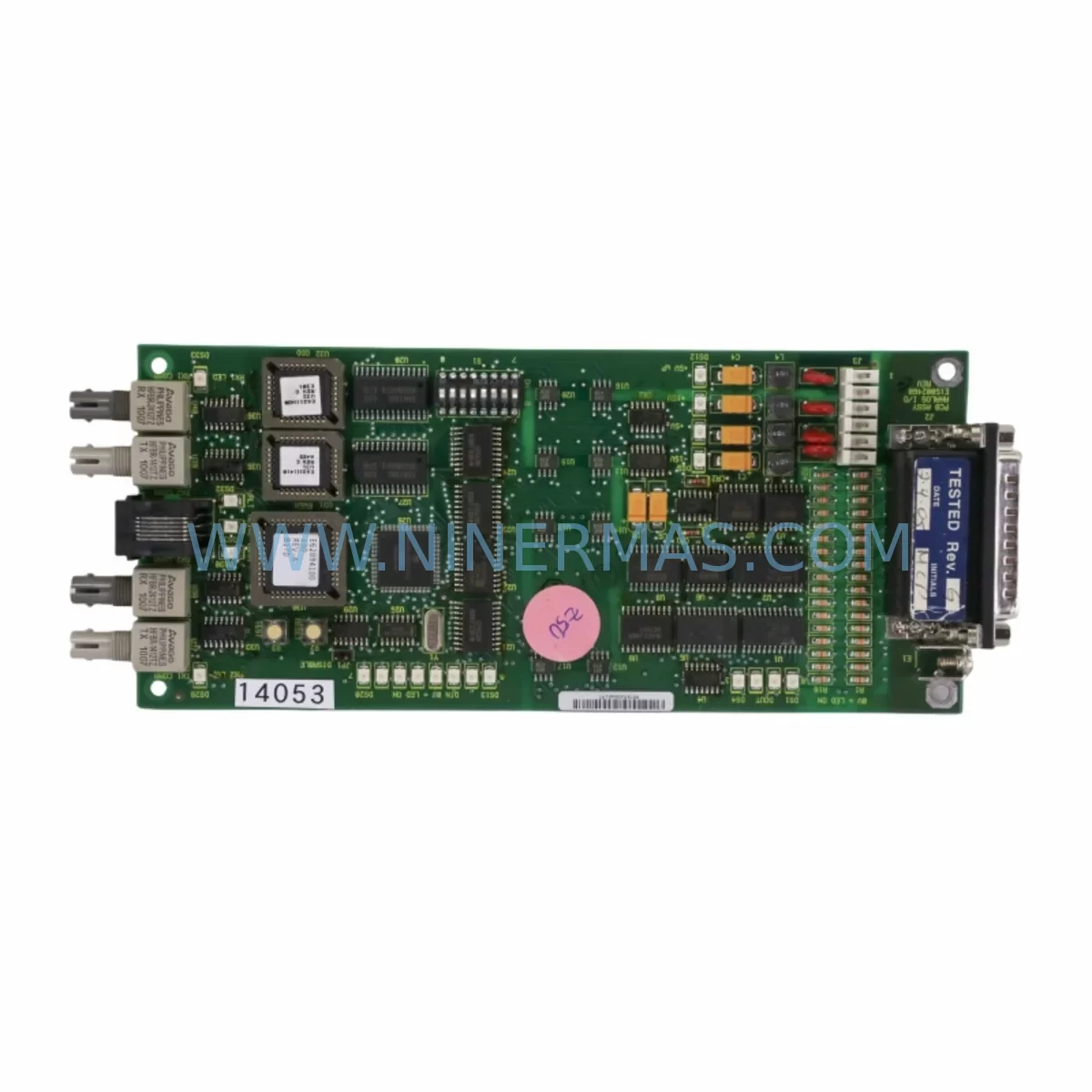

The Advanced Energy CEX-RFG-1250 (part numbers 2305155-A, 2305107-B, and 2305145-C) is a critical PCB control board used in Advanced Energy RFG1250-series RF generator platforms widely deployed across semiconductor fabrication, industrial plasma processing, and precision power delivery systems. When this board fails, the entire RF generator becomes inoperative, halting production lines and triggering costly unplanned downtime. Maintaining a service-ready spare of the CEX-RFG-1250 in your on-site inventory is one of the most effective strategies for minimizing mean time to repair (MTTR) and protecting continuous operation.

NINERMAS stocks original Advanced Energy CEX-RFG-1250 boards sourced from verified supply channels. Each unit undergoes pre-shipment functional inspection and is dispatched with a 12-month warranty, giving maintenance engineers and procurement teams the confidence to plan long-term spare parts strategies around this component.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a CEX-RFG-1250 board failure is identified during routine inspection or fault isolation, the replacement process should not be treated in isolation. The RFG1250 RF generator is an integrated system, and a board-level fault often indicates stress on adjacent components that may be approaching end-of-life. A thorough maintenance plan should address the following areas concurrently.

The RF output power supply module feeding the CEX-RFG-1250 should be inspected for voltage ripple and output stability. Degraded DC bus performance is a common upstream cause of PCB control board failures in RF generator platforms. Similarly, the Advanced Energy 2305145-C interface board — a companion component in the same control stack — should be verified for signal integrity before the replacement board is commissioned.

Maintenance engineers should also inspect the I/O signal conditioning board within the generator enclosure. Faulty I/O channels can cause erroneous fault triggers that mimic PCB failure symptoms, leading to unnecessary board replacements. Checking the interlock relay module and associated 24VDC control power supply is equally important, as relay contact wear or power supply sag can corrupt control signals to the CEX board.

For systems integrated into a larger PLC or DCS architecture, the communication interface module — typically a DeviceNet, Profibus, or EtherNet/IP gateway card — should be tested for packet loss or timeout errors that may have contributed to the generator fault condition. The HMI panel connected to the RFG1250 system should also be checked: display artifacts, unresponsive touchscreens, or communication dropouts on the HMI are often early indicators of a degraded control network that stresses the CEX-RFG-1250 board.

Terminal blocks and wiring harnesses within the control cabinet deserve attention during any board-level replacement. Loose or corroded terminals on the signal isolation barrier between the RF generator and the plant control system can introduce ground loops that accelerate PCB degradation. Fuse holders and miniature circuit breakers protecting the generator’s control circuits should be tested for continuity and replaced if showing signs of thermal stress.

Finally, the backplane connector and card-edge contacts on the CEX-RFG-1250 slot should be cleaned with appropriate contact cleaner before installing the replacement board. Oxidized backplane contacts are a frequent cause of intermittent faults that return shortly after a board swap, wasting both time and spare parts budget.

Site Replacement Workflow

Replacing the CEX-RFG-1250 in the field follows a structured sequence designed to minimize downtime and ensure system compatibility is maintained throughout the process.

Step 1 — Fault Confirmation: Before ordering a replacement, confirm the fault is board-specific. Use the RFG1250 diagnostic interface to retrieve active fault codes. Codes indicating control board communication failure, watchdog timeout, or internal reference voltage out-of-range are strong indicators of a CEX-RFG-1250 fault rather than a peripheral component issue.

Step 2 — Safe Isolation: De-energize the RF generator following your site’s lockout/tagout (LOTO) procedure. Allow adequate discharge time for internal capacitors before opening the enclosure. Verify zero-energy state with a calibrated meter before handling the PCB.

Step 3 — Board Removal and Documentation: Photograph the existing board orientation, connector positions, and any jumper or DIP switch settings before removal. These settings must be replicated on the replacement CEX-RFG-1250 to maintain system compatibility with the existing RFG1250 configuration.

Step 4 — Replacement Installation: Install the service-ready CEX-RFG-1250 board, ensuring all connectors are fully seated and the backplane contacts are clean. Restore any jumper or switch settings documented in Step 3.

Step 5 — Commissioning and Verification: Re-energize the system and perform a controlled power-on sequence. Monitor RF output power, reflected power, and control system feedback for at least one full production cycle before returning the generator to full production duty. Log the replacement in your maintenance management system (CMMS) with the new board’s serial number and warranty start date.

This workflow is applicable whether you are replacing an end-of-life CEX-RFG-1250 on a legacy RFG1250 platform or performing a proactive swap as part of a scheduled annual overhaul. The goal is always the same: restore system compatibility, reduce unplanned downtime, and extend the operational life of the RF generator asset.

Spare Parts Support FAQ

Q1: Is the CEX-RFG-1250 compatible with all RFG1250 variants, including units with part numbers 2305107-B and 2305145-C?
A: Yes. The CEX-RFG-1250 board is the common control PCB across the RFG1250 platform family. Part numbers 2305155-A, 2305107-B, and 2305145-C represent revision or configuration variants of the same board assembly. NINERMAS can advise on revision compatibility based on your generator’s serial number and firmware version before shipment.

Q2: What pre-shipment testing is performed on each CEX-RFG-1250 unit?
A: Each board undergoes a functional inspection covering power rail integrity, communication interface continuity, and visual inspection for component damage or thermal stress. Units that do not pass inspection are not dispatched. A 12-month warranty is provided from the date of shipment, covering defects in materials and workmanship under normal operating conditions.

Q3: How should procurement engineers manage long-term supply risk for the CEX-RFG-1250, given that the RFG1250 platform is an aging product line?
A: For end-of-life or legacy platforms, the recommended strategy is to secure a minimum of one to two spare boards per installed generator, held in a controlled storage environment. NINERMAS maintains reserved inventory agreements for high-volume customers, allowing procurement teams to lock in stock and pricing for multi-year supply horizons. Contact our team to discuss a long-term supply arrangement tailored to your installed base.

Q4: What is the recommended storage condition for a CEX-RFG-1250 spare held in inventory?
A: Store the board in its original anti-static packaging in a dry, temperature-controlled environment (typically 15–35°C, relative humidity below 70%, non-condensing). Avoid storage near strong electromagnetic fields or chemical vapors. Inspect the board annually for any signs of corrosion or packaging degradation, and rotate stock on a first-in, first-out basis to ensure the oldest units are deployed first.
