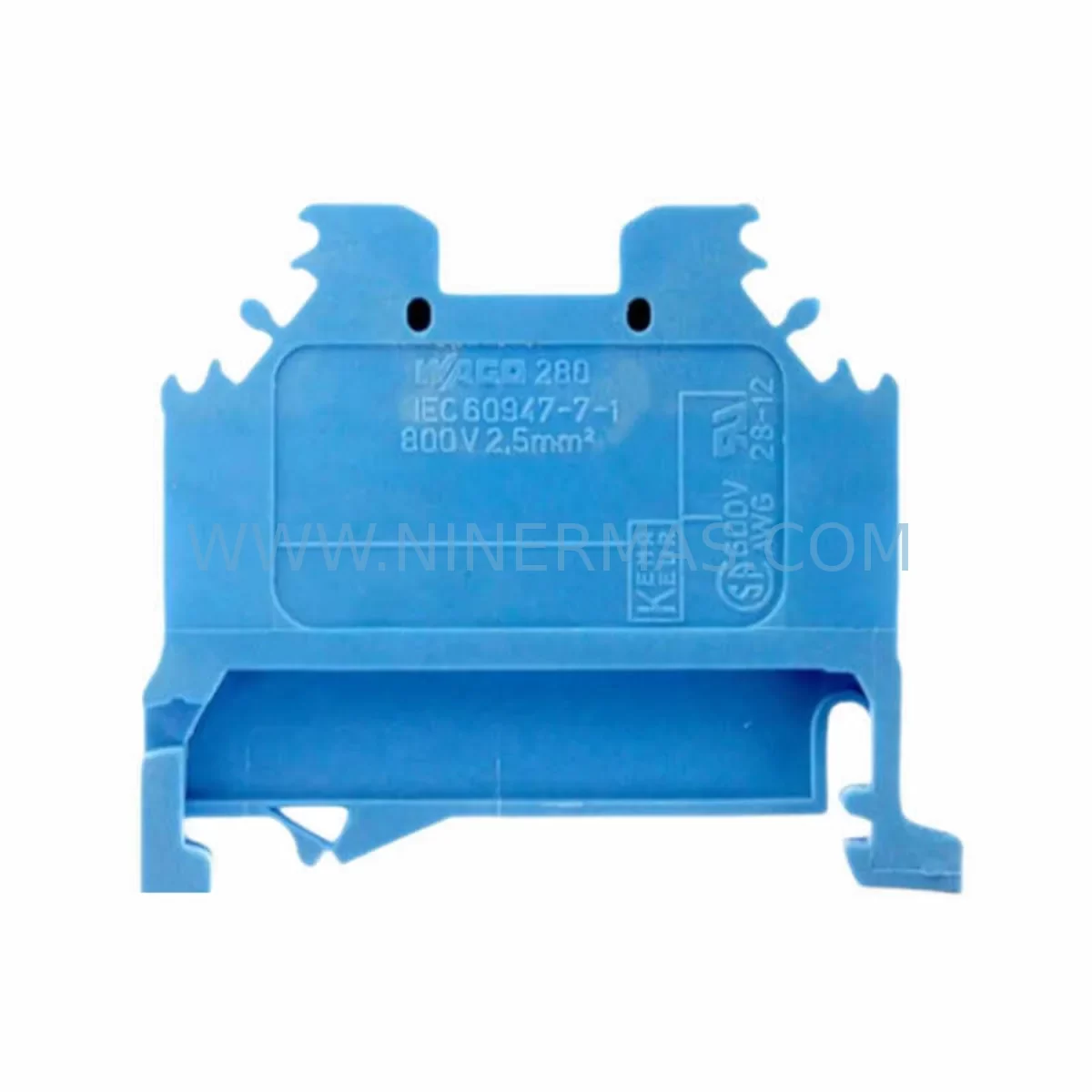

WAGO 280-104 Retrofit-Compatible Through Terminal Block

WAGO 280-104 Retrofit-Compatible Through Terminal Block for Legacy Automation Systems

The WAGO 280-104 is a screw-clamp through terminal block belonging to WAGO’s widely deployed 280 Series, engineered for DIN rail mounting in industrial control cabinets, junction boxes, and field panel assemblies. As legacy automation systems age and OEM support for older wiring infrastructure is phased out, the 280-104 remains a critical spare part and direct retrofit solution for engineers managing long-lifecycle control platforms. Whether you are replacing worn or corroded terminals in an existing PLC cabinet, expanding I/O wiring capacity in a legacy Siemens S5 or S7 installation, or rebuilding a control panel originally wired with WAGO 280 Series components, the 280-104 provides a dimensionally and electrically compatible drop-in solution without requiring panel redesign or re-labeling of existing wire markers.

The 280 Series terminal block platform has been installed across thousands of industrial sites globally, including process plants, discrete manufacturing lines, water treatment facilities, and building automation systems. The 280-104 specifically supports through-wiring configurations where a single conductor passes through the terminal for distribution or daisy-chain connections. Its compact pitch and standardized DIN rail footprint make it directly interchangeable with existing 280 Series assemblies, reducing retrofit labor time and eliminating the need for custom adapter brackets or modified DIN rail sections.

For retrofit projects involving legacy Schneider Electric Modicon TSX or Premium PLC racks, the 280-104 is frequently used in the field wiring zone of the control cabinet alongside WAGO 280-101 end brackets, 280-900 jumper links, and 280-402 test plug adapters to maintain signal isolation and circuit traceability. When upgrading older ABB AC500 or S800 I/O marshalling panels, engineers often retain the existing 280 Series terminal rail while replacing only failed or degraded individual blocks, making the 280-104 an essential line-replaceable unit (LRU) for minimizing panel downtime.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the WAGO 280-104 into a legacy control system begins with a thorough audit of the existing terminal rail assembly. Before ordering replacement blocks, engineers should document the current terminal count per rail section, the wire gauge and insulation color coding in use, and the position of any WAGO 280-900 jumper bridges or 280-401 shorting links that create common potential groups across multiple terminals. Removing a terminal block from a live rail without first isolating the jumper group can inadvertently open a shared neutral or common reference, causing unexpected faults in connected field devices.

In control cabinets housing Siemens ET 200S or ET 200M distributed I/O stations, the field wiring terminal zone is typically separated from the I/O module zone by a grounding terminal row. The 280-104 is commonly used in this field wiring zone to terminate 4–20 mA analog signals, 24 VDC digital inputs, and RTD sensor leads before they are routed to the I/O module connectors. When replacing terminals in this zone, it is important to maintain the original wire labeling using WAGO 280-Series compatible marker carriers to ensure that the field wiring documentation remains accurate after the retrofit.

For projects involving YOKOGAWA CENTUM VP or CS 3000 DCS marshalling cabinets, the 280-104 is used in the intermediate terminal zone between the field junction box cables and the DCS I/O card connectors. In these installations, signal isolation is often provided by dedicated signal isolators or WAGO 857 Series isolation amplifiers mounted on the same DIN rail. Replacing the through terminals without disturbing the isolator wiring requires careful sequencing: disconnect the field side first, replace the terminal block, re-terminate the field conductor, and verify signal continuity before reconnecting the DCS side.

In GE Fanuc Series 90-30 or VersaMax PLC panels, the 280-104 is frequently found in the power distribution zone, where 24 VDC supply rails are distributed to multiple I/O modules via terminal blocks before connecting to the module power connectors. When upgrading these panels, engineers should also inspect the adjacent WAGO 280-107 PE ground terminals and 280-102 neutral terminals to ensure that the entire terminal assembly is in serviceable condition. Replacing only the failed 280-104 while leaving degraded adjacent terminals in place can lead to recurring faults within a short period after the retrofit.

Honeywell Experion PKS and TDC 3000 legacy systems often use marshalling cabinets with high terminal density. In these environments, the compact pitch of the WAGO 280 Series is a key advantage, allowing engineers to maintain the original wiring density without expanding the cabinet footprint. When planning a terminal replacement in these cabinets, confirm that the replacement 280-104 blocks are sourced from the same production generation to ensure consistent pitch alignment across the terminal rail. Mixed-generation terminal assemblies can create small pitch mismatches that complicate the installation of WAGO 280-Series end plates and partition plates.

Downtime Control During System Migration

Minimizing production downtime during a terminal block retrofit requires a structured approach that preserves the original control logic and field wiring integrity throughout the replacement process. The first step is to prepare a complete wire-by-wire photograph of the existing terminal assembly before any disconnection begins. This photographic record, combined with the existing panel wiring diagram, provides a reliable reference for re-termination and eliminates the risk of transposed connections that could cause I/O mapping errors or field device faults after the retrofit.

Where the process allows, terminal replacement should be performed on a circuit-by-circuit basis rather than removing all terminals simultaneously. This approach keeps the majority of the control system operational while individual circuits are taken out of service for the terminal replacement. For critical control loops — such as emergency shutdown (ESD) circuits, motor control interlocks, or safety instrumented system (SIS) inputs — coordinate the replacement window with the site safety officer and ensure that the affected field devices are placed in a safe state before disconnection.

After re-termination, perform a point-to-point continuity test on each replaced circuit using a calibrated loop tester before restoring power to the panel. For analog signal circuits, verify the 4–20 mA loop current at the I/O module input to confirm that the new terminal connection has not introduced additional loop resistance that could affect signal accuracy. For digital input circuits, confirm the correct logic state at the PLC or DCS I/O card before releasing the circuit back to automatic control. This structured commissioning sequence ensures that the retrofit is completed with full confidence in the integrity of each replaced connection, reducing the risk of post-retrofit faults that could require additional unplanned downtime.

NINERMAS maintains ready stock of the WAGO 280-104 to support urgent retrofit and breakdown maintenance requirements. All units are pre-shipment tested for continuity and insulation resistance, and are supplied with a 12-month warranty from the date of shipment. For large-quantity retrofit projects, long-term supply agreements and reserved stock programs are available to ensure uninterrupted availability throughout the project duration.

Retrofit Support FAQ

Q1: Is the WAGO 280-104 a direct replacement for existing 280 Series through terminals in my panel?
Yes. The 280-104 is dimensionally and electrically identical to the original WAGO 280 Series through terminal block specification. It mounts on standard 35 mm DIN rail and accepts the same conductor cross-sections as the original assembly. No panel modification or re-labeling of adjacent terminals is required for a direct 1:1 replacement.

Q2: What pre-shipment testing is performed on WAGO 280-104 units supplied by NINERMAS?
All WAGO 280-104 units supplied by NINERMAS undergo pre-shipment continuity testing and insulation resistance verification before dispatch. Units are inspected for mechanical integrity, screw clamp condition, and DIN rail locking mechanism function. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can the WAGO 280-104 be used alongside WAGO 280-900 jumper links and 280-402 test plug adapters in an existing terminal assembly?
Yes. The 280-104 is fully compatible with WAGO 280 Series accessories including 280-900 jumper bridges, 280-402 test plug adapters, 280-401 shorting links, and 280-Series marker carriers. These accessories can be transferred from the old terminal block to the replacement 280-104 without modification, preserving the existing circuit grouping and test access configuration.

Q4: What is the lead time for WAGO 280-104, and are long-term supply agreements available?
NINERMAS maintains ready stock of the WAGO 280-104 for immediate dispatch. For retrofit projects requiring large quantities or phased delivery schedules, long-term supply agreements with reserved inventory allocation are available. Contact our sales team to discuss project-specific supply terms, pricing, and delivery scheduling to support your retrofit timeline.
