Advanced Energy 3152225-035A Retrofit-Compatible RF Generator

Advanced Energy 3152225-035A Retrofit-Compatible RF Generator: Seamless Upgrade for Legacy MDX-10K Systems

The Advanced Energy 3152225-035A is a retrofit-compatible RF generator module engineered for direct integration into legacy MDX-10K platform installations. Configured as AP1415S-2PW-MVE4, this unit addresses the growing demand for reliable spare parts and drop-in replacements in semiconductor processing, industrial plasma, and thin-film deposition environments where the original MDX-10K series has reached end-of-life or is no longer available through standard distribution channels. For maintenance engineers and system integrators managing aging production lines, sourcing a verified, pre-tested 3152225-035A module is critical to avoiding extended downtime and protecting capital investment in existing control infrastructure.

Advanced Energy’s MDX series has been a cornerstone of RF power delivery in industrial automation for decades. As the MDX-10K transitions out of active production, facilities relying on this platform face increasing pressure to locate compatible replacement modules, validate electrical compatibility, and execute controlled retrofits without disrupting ongoing production schedules. The 3152225-035A module — with its AP1415S power amplifier stage, dual-power (2PW) configuration, and MVE4 interface — is one of the most sought-after spare components for sustaining MDX-10K system uptime.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 3152225-035A into an existing MDX-10K installation requires a structured pre-retrofit assessment. Before removing the outgoing module, engineers should document all parameter settings stored in the Advanced Energy Navigator II controller, including power setpoints, ramp rates, interlock thresholds, and recipe-linked calibration offsets. These values are not automatically retained during a module swap and must be manually re-entered or restored from a saved configuration file.

Power capacity verification is the first mechanical checkpoint. The MDX-10K chassis power bus must support the dual-power (2PW) draw of the 3152225-035A. In installations where the existing module was a single-power variant, the internal power distribution board — often shared with adjacent MDX-500 or MDX-1K modules in multi-bay racks — may require a capacity upgrade before the new module can be safely energized. Confirm bus ratings against the chassis documentation before proceeding.

Terminal wiring and backplane interface validation is equally critical. The MVE4 connector on the 3152225-035A must align with the backplane interface of the host chassis. Facilities that have previously operated MDX-5K or MDX-20K modules in adjacent bays should verify that no cross-bay wiring modifications were made that could affect the MVE4 signal path. Signal isolators installed between the RF generator output and downstream process controllers — common in older plasma etch and CVD tool configurations — should be inspected for impedance compatibility with the AP1415S amplifier stage.

Communication link integrity must be confirmed before the system is returned to production. The MDX-10K platform typically communicates with the host process controller via RS-232 or RS-485, depending on the tool generation. In facilities where the host controller has been upgraded to a newer Siemens S7-1500 PLC or a Beckhoff CX series IPC, a protocol gateway or updated communication module may be required to bridge the legacy serial interface to the modern Ethernet-based control network. Module address settings must match the address previously assigned to the outgoing unit to avoid conflicts with other devices on the same communication bus.

For installations that include an AE RFX-600 or similar automatic matching network, the impedance matching parameters stored in the matching network controller must be re-validated after the RF generator module is replaced. Changes in the output impedance characteristics of the new 3152225-035A — even within specification — can shift the matching network’s tuning point, requiring a fresh auto-tune cycle under process conditions. HMI screens on the tool’s operator panel, whether running on a legacy Omron NS-series touch panel or a more recent Mitsubishi GOT2000 display, should be checked to confirm that all RF power readback values and alarm displays are updating correctly from the new module.

I/O expansion modules connected to the MDX-10K’s digital I/O interface — such as interlock status outputs, arc detection signals, and power-good indicators — should be tested individually after the module swap. In multi-zone plasma systems, these signals are often routed through a Yokogawa safety relay or a dedicated I/O expansion rack, and any wiring changes made during the retrofit must be verified against the original wiring diagram before the system is re-energized.

Downtime Control During System Migration

Minimizing production downtime during an RF generator module replacement requires advance preparation and a disciplined execution sequence. The most effective approach is to complete all pre-swap documentation — parameter backup, wiring diagram review, and spare parts staging — during a scheduled maintenance window rather than during an unplanned breakdown response. Having a verified 3152225-035A module on-site before the outgoing unit fails is the single most impactful step a maintenance team can take to reduce mean time to repair.

During the physical swap, the original program logic stored in the host PLC or process controller is not affected by the RF generator module replacement, provided that no communication address changes are introduced. Engineers should confirm that the module address DIP switch or firmware address setting on the 3152225-035A matches the address of the outgoing unit before powering up the chassis. A mismatch at this stage will cause the host controller to report a communication fault and may trigger a system-wide interlock, extending the downtime window unnecessarily.

Post-installation commissioning should follow a defined sequence: power-on self-test, communication link verification, RF output calibration at reduced power, interlock function test, and finally a full-power process run under controlled conditions. This sequence protects both the new module and the process chamber from damage caused by premature full-power operation before all parameters have been verified. Maintaining a written commissioning checklist — signed off by the responsible engineer — also provides a traceable record for quality and warranty purposes.

For facilities operating continuous production lines where even a brief interruption is costly, a hot-standby spare strategy is recommended. Keeping one verified 3152225-035A module in reserve, stored in its original anti-static packaging in a controlled environment, ensures that the next replacement can be completed within a single shift rather than waiting for international shipping lead times.

Retrofit Support FAQ

Q1: Is the 3152225-035A a direct replacement for all MDX-10K variants?

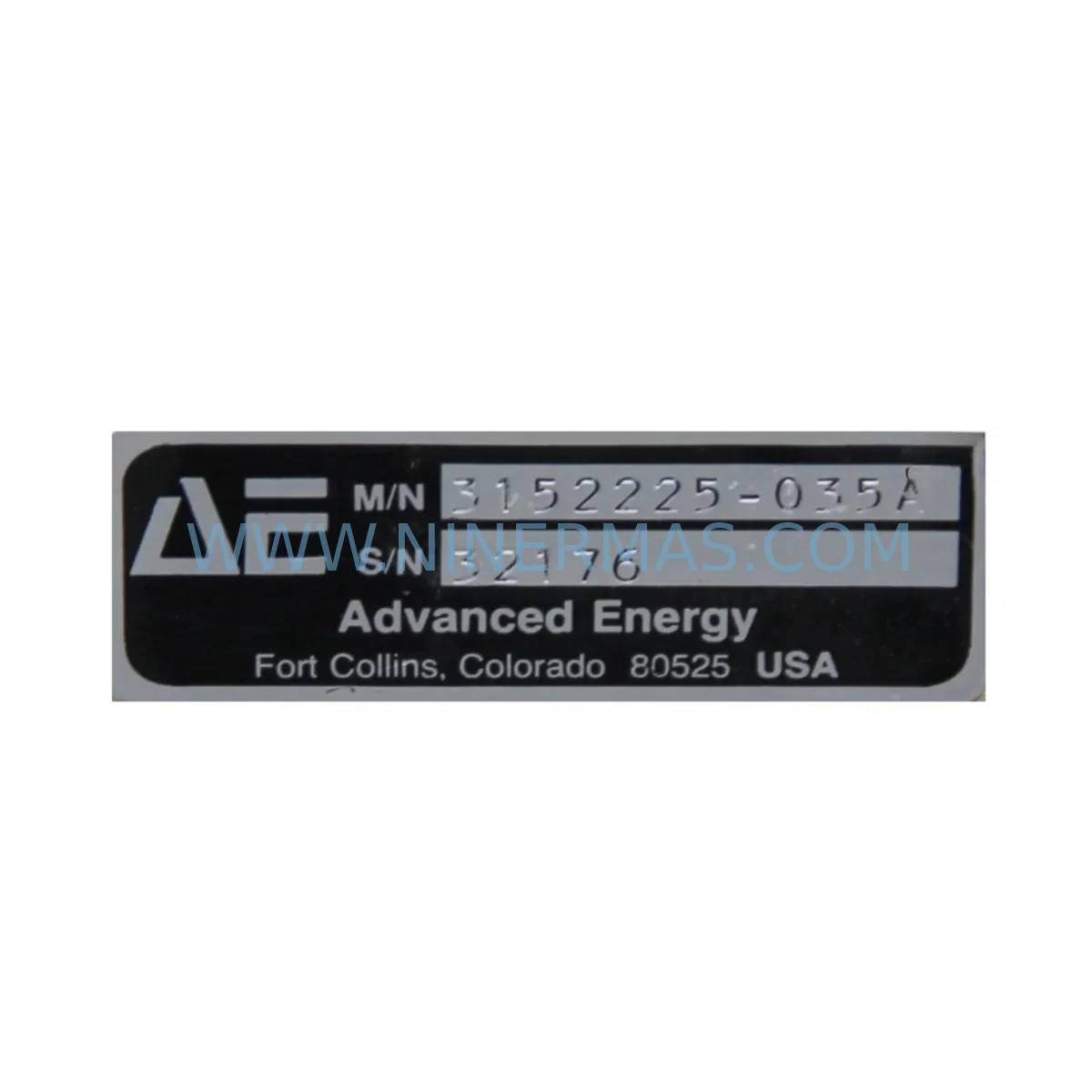

The 3152225-035A in AP1415S-2PW-MVE4 configuration is a direct replacement for MDX-10K units sharing the same configuration code. Before ordering, confirm the configuration label on the outgoing module. Units with different amplifier stages (e.g., AP1415S-1PW or AP1415S-MVE3) require a compatibility review. Contact our technical team with your existing module’s full part number for confirmation.

Q2: What commissioning steps are required after installation?
After physical installation, restore all saved parameter settings to the host controller, verify the communication link, and run the MDX-10K’s built-in auto-tune sequence. Confirm RF output power at 25%, 50%, and 100% setpoints against the calibration record of the outgoing module. Check all interlock outputs and arc detection signals before returning the system to production.

Q3: Is the unit tested before shipment, and what does the 12-month warranty cover?
Yes. Every 3152225-035A unit is fully tested for RF output accuracy, power regulation stability, and communication response before dispatch. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of delivery. It does not cover damage resulting from incorrect installation, overvoltage, or operation outside the specified environmental range.

Q4: What is the typical lead time, and do you maintain stock?
We maintain reserved inventory of the 3152225-035A to support urgent replacement requirements. Standard orders ship within 3–5 business days. For large-quantity or long-term supply agreements, contact our procurement team to discuss reserved stock arrangements and extended supply commitments aligned with your maintenance planning cycle.
