LEM LF1005-S/SP36 Retrofit-Compatible Current Transducer

LEM LF1005-S/SP36 Retrofit-Compatible Current Transducer for Legacy Automation Systems

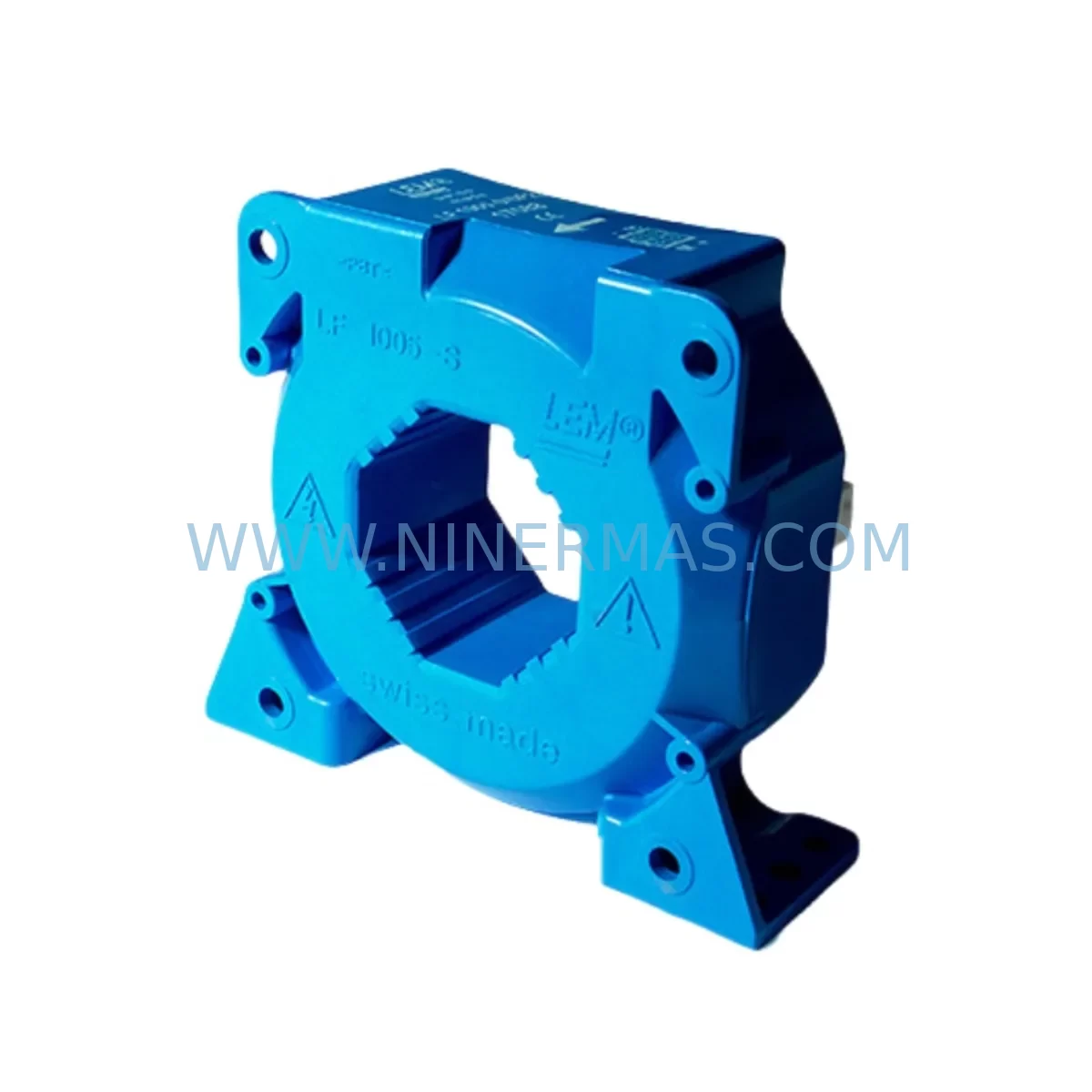

The LEM LF1005-S/SP36 is a closed-loop Hall effect current transducer engineered for high-accuracy AC/DC current measurement in demanding industrial environments. As part of LEM’s proven LF Series, this transducer is widely deployed in legacy drive systems, servo controllers, UPS infrastructure, and industrial power conversion equipment. NINERMAS maintains verified stock of the LF1005-S/SP36 to support retrofit projects, spare parts programs, and end-of-life system continuations where original procurement channels have been discontinued or lead times are unacceptable.

With a nominal measuring range of 1005 A and a secondary output configuration matched to SP36 interface requirements, the LF1005-S/SP36 integrates directly into existing control cabinet layouts without requiring PCB redesign or signal conditioning modifications. For automation engineers managing aging production lines, this transducer represents a reliable, drop-in solution that preserves original program logic, HMI screen mappings, and fieldbus communication integrity.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the LEM LF1005-S/SP36 into a legacy automation system requires a structured pre-installation audit. Engineers should begin by confirming the power supply architecture within the control cabinet. The LF Series transducer family draws from a bipolar ±15 V DC rail — a supply commonly shared with signal conditioning modules, analog I/O cards, and isolated amplifier boards. If the existing LEM LRS 15-1000 or equivalent dual-rail power supply is operating near capacity, adding or replacing a transducer may require a supplementary PSU or load redistribution across the cabinet’s terminal blocks.

Terminal wiring is the next critical checkpoint. The SP36 secondary output connector uses a defined pin assignment that must be matched against the receiving end — typically an analog input card on a Siemens SINAMICS or ABB ACS880 drive, or a dedicated current feedback module on a legacy motion controller. Mismatched wiring polarity will invert the feedback signal and trigger overcurrent faults or runaway conditions during commissioning. Always verify against the original wiring diagram and cross-check with the drive’s parameter list for current transducer input scaling.

For systems using a Siemens S7-300 or S7-400 PLC with analog input modules such as the SM 331 or SM 334, the transducer’s output signal range must be confirmed against the module’s configured input range. If the legacy program uses a fixed scaling block tied to the original transducer’s sensitivity, the engineer must update the scaling factor in the PLC program to reflect the LF1005-S/SP36 output characteristics — without this step, current readings on the HMI will be inaccurate even if the hardware installation is correct.

Backplane and rack clearance is particularly relevant in compact control cabinets where the original transducer was mounted adjacent to PROFIBUS DP communication modules, CP 343-1 Ethernet cards, or IM 360/361 interface modules for multi-rack configurations. The LF1005-S/SP36 shares the standard LF Series PCB footprint, but engineers should confirm that the primary conductor aperture aligns with the existing bus bar routing — especially in retrofits where the original bus bar has been modified or re-routed during previous maintenance cycles.

I/O address mapping should be reviewed before the system is powered up. In distributed I/O architectures using ET 200M or ET 200S remote I/O stations, the analog input channel assigned to the current transducer must retain its original hardware address to avoid forcing a full program re-download. Where address conflicts exist due to hardware changes, a partial download targeting only the affected function block is recommended to minimize disruption to other running processes.

Signal isolation is another consideration in high-noise industrial environments. If the original installation included a Phoenix Contact MACX MCR or Weidmüller ACT20P signal isolator between the transducer output and the PLC analog input, the same isolator should be retained in the retrofit. Removing the isolator to simplify wiring can introduce ground loop interference that degrades measurement accuracy and may cause intermittent faults in the drive’s current regulation loop.

Downtime Control During System Migration

Minimizing production downtime during a current transducer replacement requires advance preparation and a disciplined changeover sequence. Before the maintenance window begins, the engineer should back up the complete PLC program — including all data blocks, function blocks, and hardware configuration — using STEP 7 or TIA Portal, depending on the controller generation. This backup protects against accidental program loss if the CPU enters STOP mode during the hardware swap.

The recommended sequence for replacing the LF1005-S/SP36 in a live production environment is: isolate the drive or inverter from the load, de-energize the control cabinet, discharge any residual voltage on the DC bus, remove the primary conductor from the transducer aperture, disconnect the SP36 secondary connector, extract the old transducer, install the new LF1005-S/SP36, reconnect the secondary connector, re-route the primary conductor, and restore power in a controlled sequence. The entire physical swap typically takes under 30 minutes for a prepared technician.

After power restoration, the drive should be started in local manual mode before returning to automatic or remote control. This allows the technician to verify the current feedback signal on the drive’s diagnostic display or via the HMI current monitoring screen before the system resumes production. Any offset error detected at this stage should be corrected using the drive’s built-in transducer offset calibration parameter rather than by adjusting the PLC scaling block — this preserves the integrity of the original program logic and avoids unintended side effects on other control loops that reference the same analog input.

For systems where a cold restart is not acceptable — such as continuous process lines or critical infrastructure — NINERMAS can support pre-shipment functional testing of the LF1005-S/SP36 against customer-specified acceptance criteria. This reduces on-site commissioning time and provides documented evidence of transducer performance before the unit enters the field.

Retrofit Support FAQ

Q1: Is the LEM LF1005-S/SP36 a direct drop-in replacement for discontinued LF Series variants?
Yes. The LF1005-S/SP36 is designed to the same mechanical footprint and electrical interface as the LF Series platform. For most legacy installations, no PCB modification or wiring change is required beyond confirming the SP36 connector pin assignment matches the existing harness. NINERMAS recommends a pre-installation wiring audit for any system where the original documentation is incomplete or has been modified.

Q2: What commissioning steps are required after installation?
After physical installation, perform a zero-offset calibration using the drive or controller’s built-in calibration routine with no primary current flowing. Verify the output signal at rated current against the transducer’s datasheet sensitivity specification. Confirm that the HMI current display matches the measured value from a calibrated clamp meter. Document the calibration result and update the maintenance record before returning the system to production.

Q3: Can NINERMAS supply the LF1005-S/SP36 with pre-shipment functional testing?
Yes. NINERMAS offers pre-shipment functional testing for spare parts orders where customers require documented acceptance evidence. Testing covers output signal accuracy, supply current draw, and connector integrity. A test report is provided with the shipment. This service is particularly recommended for critical applications where on-site commissioning time is constrained.

Q4: What warranty coverage applies to the LEM LF1005-S/SP36 supplied by NINERMAS?
All LEM LF1005-S/SP36 units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and verified performance failures under normal operating conditions. NINERMAS maintains inventory to support warranty replacements with short lead times, minimizing production impact in the event of a warranty claim.
