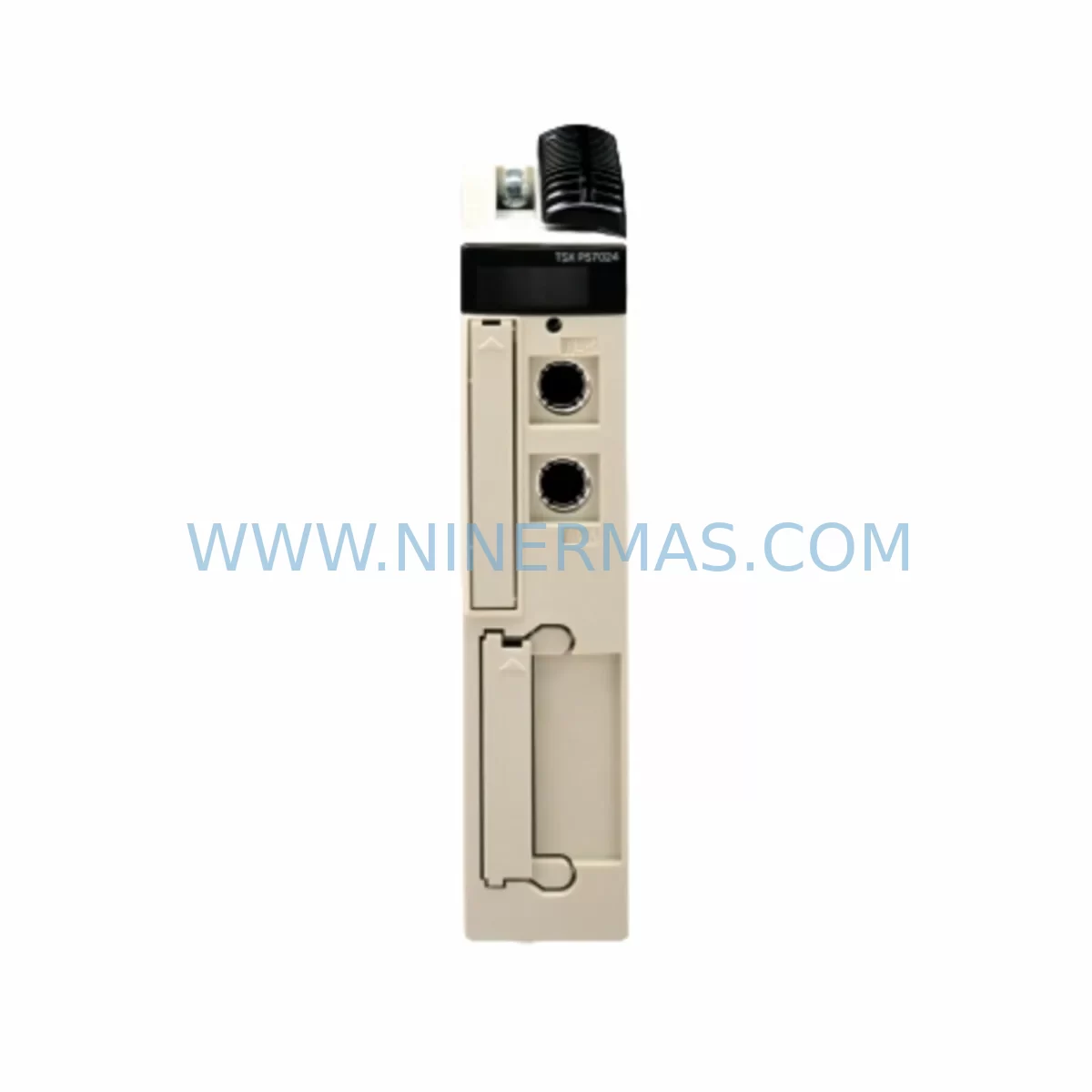

The Schneider Electric TSXP57103M is a high-performance CPU module designed for the Modicon Premium PLC platform — one of the most widely deployed programmable logic controller families in process and discrete manufacturing environments across Europe, Asia, and the Americas. As legacy automation systems approach end-of-life and original spare parts become increasingly scarce, the TSXP57103M has emerged as a critical component in retrofit, upgrade, and system continuity programs for facilities that cannot afford unplanned downtime or full platform migration.

NINERMAS maintains verified stock of the TSXP57103M, sourced through authorized distribution and secondary market channels, with each unit subject to pre-shipment functional testing and a 12-month warranty covering defects in materials and workmanship. Our supply program is designed to support long-term lifecycle extension for Modicon Premium installations, providing procurement teams and maintenance engineers with a reliable, documented source for this discontinued or allocation-constrained module.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a TSXP57103M in an active production environment requires careful pre-planning across multiple system layers. The CPU module sits at the heart of the Modicon Premium rack, coordinating all I/O scanning, program execution, and communication tasks. Before initiating a swap, engineers must audit the existing rack configuration — typically a TSX RKY6 or TSX RKY8 backplane — and document the slot assignments of all installed modules, including analog input cards such as the TSX AEY414, digital output modules like the TSX DSY16T2, and any specialty modules such as the TSX CAY21 motion control card or TSX SCY21601 serial communication module.

Power supply capacity is a frequent oversight in retrofit projects. The TSX PSY3500M or TSX PSY5500M power supply modules must be verified against the total rack load, including the replacement CPU and any newly added I/O expansion modules. If the existing power supply is operating near its rated capacity, a parallel supply or rack reconfiguration may be required before the CPU swap proceeds.

Communication architecture must also be reviewed. Many Modicon Premium installations rely on Uni-Telway networks connecting operator panels, drives, and remote I/O stations. The TSXP57103M’s onboard Uni-Telway port and any installed PCMCIA communication cards — such as the TSX FPP10 Fipio card or TSX MBP100 Modbus Plus card — must be reconfigured or re-addressed after the CPU replacement. Ethernet-connected systems using a TSX ETY110 or TSX ETY210 module will require IP address and routing table verification in Unity Pro before the system is returned to service.

For facilities running HMI systems such as Magelis XBTGT or legacy Magelis XBT panels, the communication driver and station address settings must be confirmed against the replacement CPU’s port configuration. Mismatched station addresses are a common cause of post-retrofit communication failures that extend commissioning time unnecessarily.

I/O module addressing in the Modicon Premium platform is rack-slot based. After installing the TSXP57103M, the Unity Pro or PL7 Pro project file must be opened and the hardware configuration verified to ensure all I/O addresses match the physical rack layout. Any discrepancy between the software configuration and the physical installation will prevent the CPU from entering RUN mode. Engineers should retain a backup of the original .STU project file and the PLC memory backup before beginning the swap.

Downtime Control During System Migration

Minimizing production downtime during a TSXP57103M replacement requires a structured pre-outage preparation protocol. The most effective approach is to complete all software preparation — including project file backup, hardware configuration export, and communication parameter documentation — during normal production hours, so that the physical swap can be executed within a single planned maintenance window.

Before powering down the rack, engineers should use Unity Pro’s online monitoring functions to capture the current state of all retentive data areas, including %MW memory words and %KW constant words that may store calibration values, setpoints, or recipe parameters. These values should be exported and stored externally, as they may not survive a CPU replacement if the battery-backed RAM is discharged or if the replacement unit ships without a charged backup battery.

The physical swap itself — removing the existing TSXP57103M and installing the replacement unit — typically takes under 15 minutes in a well-organized rack. The majority of retrofit time is consumed by post-installation verification: confirming that the CPU enters RUN mode, that all I/O modules are recognized, that communication links to remote stations and HMI panels are restored, and that the process is responding correctly to control outputs. A structured commissioning checklist, prepared in advance, is the single most effective tool for compressing this verification phase and returning the system to production quickly.

For critical processes where even a brief interruption is unacceptable, a hot-standby configuration using a redundant Modicon Premium rack with a TSXP57103M in each chassis can eliminate unplanned downtime entirely. NINERMAS can supply matched pairs of tested TSXP57103M units for redundant installations, with documentation confirming firmware version alignment between the primary and standby CPUs.

Retrofit Support FAQ

Q1: Is the TSXP57103M a direct drop-in replacement for the same SKU installed in my existing Modicon Premium rack?
Yes. The TSXP57103M is a same-SKU replacement and will physically install into any compatible TSX Premium rack slot without mechanical modification. However, you must verify that the firmware version of the replacement unit is compatible with your existing Unity Pro or PL7 Pro project file. NINERMAS provides firmware version information with each unit and can assist with version matching on request.

Q2: What pre-shipment testing does NINERMAS perform on the TSXP57103M?
Each TSXP57103M unit undergoes a functional power-on test, communication port verification, and visual inspection for physical damage before shipment. A test record is maintained for each unit and is available to customers on request. Units that do not pass functional testing are not shipped. All shipped units are covered by a 12-month warranty from the date of delivery.

Q3: Can the TSXP57103M communicate with third-party devices using Modbus RTU or Modbus TCP?
Yes. The Modicon Premium platform supports Modbus RTU via the onboard Uni-Telway/Modbus serial port and Modbus TCP via an installed TSX ETY Ethernet module. Configuration is performed in Unity Pro using the communication function blocks. If your installation uses a TSX SCY21601 serial module for Modbus RTU to third-party drives or instruments, the communication parameters (baud rate, parity, station address) must be re-entered after the CPU replacement if they are not stored in the project file.

Q4: What is the lead time and inventory availability for the TSXP57103M?
NINERMAS maintains stock of the TSXP57103M and can typically ship within 3–5 business days for standard orders. For urgent requirements, expedited shipping is available. For long-term maintenance programs or bulk procurement, we offer inventory reservation agreements that guarantee supply availability over a defined period. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to discuss your specific requirements.
