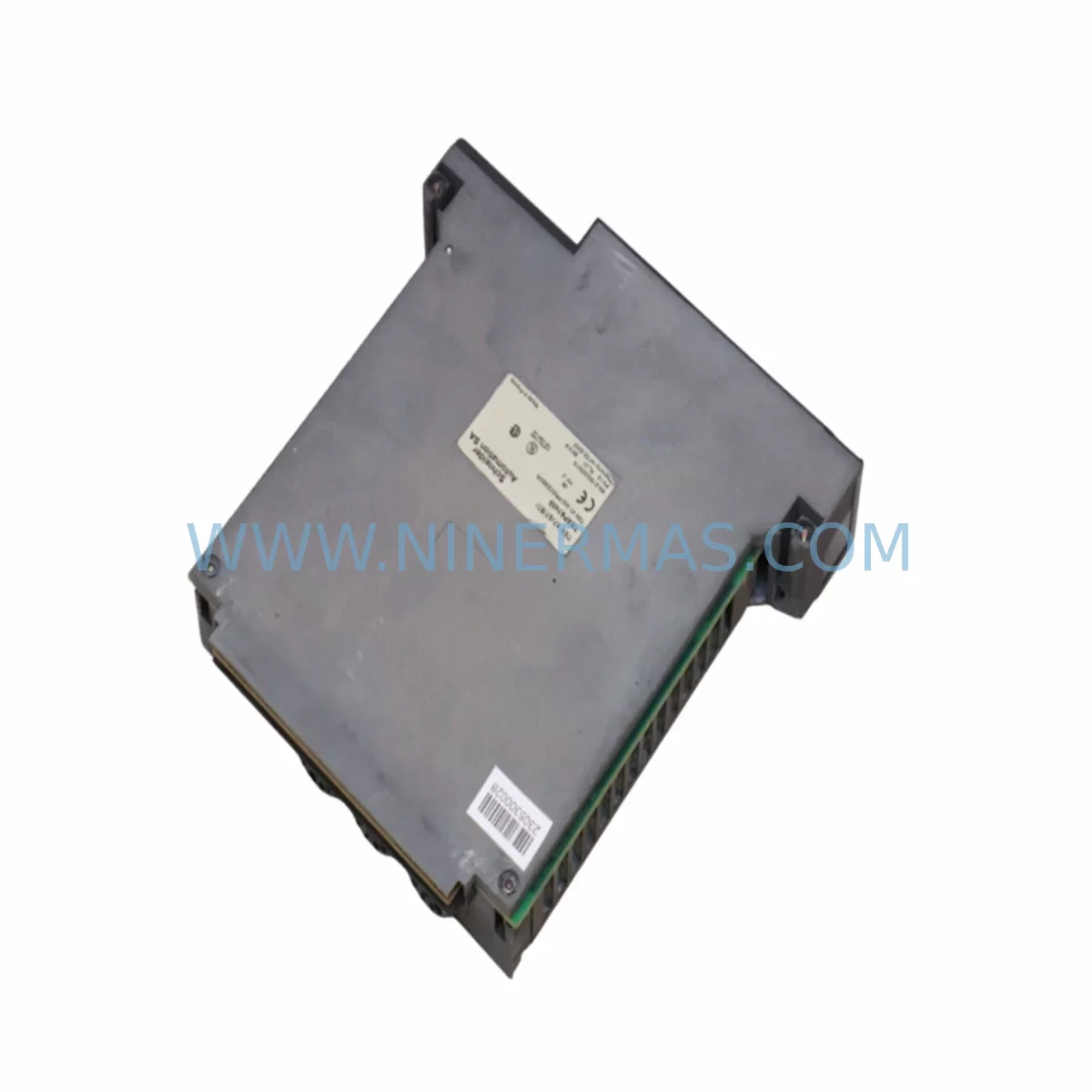

The Schneider Electric TSXP47455 is a high-performance processor module engineered for the TSX Premium PLC platform — one of the most widely deployed control architectures in industrial automation across manufacturing, utilities, water treatment, and process industries. As legacy TSX Premium systems approach end-of-life and original Schneider Electric production of the TSXP47455 has been discontinued, procurement engineers and maintenance teams face increasing pressure to source verified replacement units that maintain full backward compatibility with existing racks, I/O configurations, and application programs.

NINERMAS supplies the TSXP47455 as a retrofit-compatible spare, fully tested prior to shipment, backed by a 12-month warranty, and available from in-stock inventory to support urgent maintenance windows and planned system upgrades alike.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a TSXP47455 in a live production environment requires careful pre-migration planning to avoid unplanned downtime and configuration errors. The process typically begins with a full audit of the existing rack assembly. Engineers should document the current slot assignments across the TSXRKY rack — noting the positions of analog input modules such as the TSXAEY800, digital output modules like the TSXDSY32T2, and any specialty modules including TSXCAY33 motion control cards or TSXSCY21601 serial communication modules. Each of these modules retains its I/O addressing relative to the rack slot, so physical slot positions must be preserved during the processor swap.

Power supply capacity is a critical checkpoint. The TSXPSY2600M or TSXPSY5500M power supply modules installed in the rack must be verified against the updated power budget that includes the TSXP47455. If the existing power supply is operating near its rated output, the replacement processor’s consumption profile should be compared carefully — particularly in racks that also host TSXETY110 Ethernet communication modules or TSXSCP114 PCMCIA communication cards, both of which add to the overall rack load.

Before physically swapping the processor, the existing PL7 Pro application program must be archived in full, including all data blocks, function blocks, animation tables, and I/O symbol tables. If the site is transitioning to Unity Pro for future maintainability, the PL7-to-Unity conversion utility should be run in a test environment first, with particular attention to derived function blocks (DFBs) and structured text sections that may require manual review. The TSXP47455 supports both environments, making it a practical bridge module during phased software migrations.

Communication link continuity is another area requiring pre-swap verification. If the TSXP47455 is serving as the Modbus master or Uni-Telway network head, all slave device addresses — including variable speed drives, remote I/O drops, and third-party instruments — must be documented. After the swap, the communication parameters stored in the processor’s application (baud rate, parity, station address) must be re-confirmed against the network topology. Where Ethernet connectivity is involved via an embedded port or a TSXETY410 module, IP address assignments and routing table entries should be recorded before the outage window begins.

HMI screen validation is frequently overlooked in processor retrofit projects. Magelis terminals connected via Uni-Telway or Ethernet will re-establish communication automatically after the processor restarts, but variable address mapping should be spot-checked against the HMI project to confirm that no address offsets were introduced during the program re-download. This is especially relevant when the replacement TSXP47455 is loaded with a program that was previously compiled on a different firmware revision.

Downtime Control During System Migration

Minimizing production interruption during a TSXP47455 swap requires a structured outage plan. The recommended approach is to schedule the physical replacement during a planned maintenance window — typically a shift changeover or a scheduled production break — rather than responding reactively to a module failure. Pre-staging the replacement unit with the verified application program loaded and tested on a bench rack (using a TSXRKY4EX evaluation rack if available) allows the field swap to be completed in under 30 minutes in most installations.

Before powering down the rack, the control system’s current operating state should be captured: record all active setpoints, PID tuning parameters stored in %MW data words, and any retentive data blocks that are not automatically saved to the processor’s battery-backed RAM. The TSXP47455 includes battery-backed memory retention, but the battery condition of the replacement unit should be verified prior to installation — NINERMAS performs a pre-shipment battery check as part of the standard outgoing test procedure.

Once the replacement processor is installed and the rack is powered, the startup sequence should be monitored via the PL7 Pro or Unity Pro online diagnostic interface. Confirm that all I/O modules are recognized, that the communication modules (including any TSXSCY21601 or TSXETY110 units in the rack) have re-established their links, and that the application program has entered RUN mode without fault codes. A structured post-swap checklist — covering I/O status, communication link health, HMI reconnection, and a short supervised production run — reduces the risk of latent issues surfacing after the maintenance window closes.

For sites where even a brief planned outage is operationally difficult, NINERMAS can support hot-standby migration planning discussions and advise on whether a redundant TSX Premium configuration using a TSXP47455 paired with a TSXSYN•• synchronization module is applicable to the installation.

Retrofit Support FAQ

Q1: Is the TSXP47455 a direct drop-in replacement for earlier TSX Premium processor variants?
The TSXP47455 is mechanically and electrically compatible with the TSX Premium rack family (TSXRKY series). However, firmware and memory capacity differences between processor generations mean that the existing PL7 Pro application should be validated for compatibility before go-live. NINERMAS recommends a bench test with the replacement unit prior to field installation.

Q2: What pre-shipment testing does NINERMAS perform on the TSXP47455?
Each TSXP47455 unit supplied by NINERMAS undergoes power-on functional verification, communication port integrity checks, and battery condition assessment before dispatch. Units are shipped with a test report and are covered by a 12-month warranty from the date of invoice.

Q3: Can the TSXP47455 be programmed with Unity Pro, or is PL7 Pro required?
The TSXP47455 supports programming via PL7 Pro natively. Unity Pro can also be used with the TSX Premium platform via the Unity Pro import/conversion path, though Schneider Electric’s conversion utility should be used to migrate existing PL7 projects. NINERMAS can advise on software version compatibility based on the specific firmware revision of the supplied unit.

Q4: What is the lead time and stock availability for the TSXP47455?
NINERMAS maintains in-stock inventory of the TSXP47455 to support urgent maintenance requirements. Standard lead time for in-stock units is 3–7 business days for international shipment. For large-quantity procurement or long-term spare parts programs, contact NINERMAS to discuss reserved stock arrangements and volume pricing.
