Schneider TSXP4720 Retrofit-Compatible CPU for Legacy Systems

Schneider TSXP4720 Retrofit-Compatible CPU for Legacy Systems

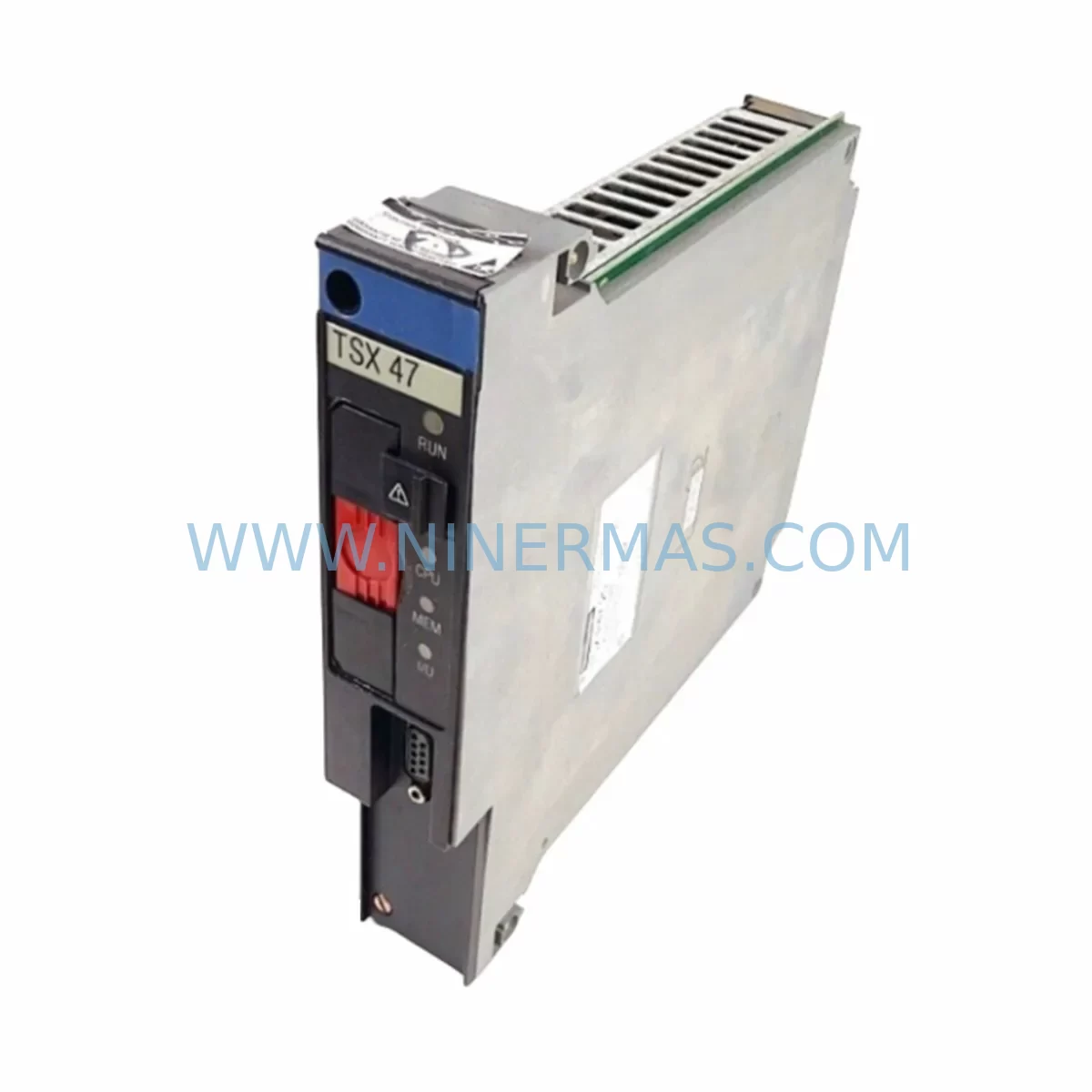

The Schneider Electric TSXP4720 is a high-performance CPU module from the TSX Premium series, designed to serve as a direct retrofit-compatible replacement for aging Schneider automation platforms. As industrial facilities face increasing pressure to modernize legacy control infrastructure without full system overhauls, the TSXP4720 offers a proven migration path that preserves existing rack architecture, terminal wiring, and program logic while delivering improved processing reliability. Whether you are replacing a failed unit, executing a planned spare-parts lifecycle extension, or upgrading a control cabinet as part of a broader automation modernization initiative, the TSXP4720 is engineered to minimize disruption and reduce total retrofit cost.

The TSX Premium platform remains one of the most widely deployed Schneider PLC families across process industries, discrete manufacturing, and infrastructure applications. The TSXP4720 CPU is compatible with the standard TSX Premium rack backplane, allowing it to slot directly into existing installations without requiring rack replacement or major rewiring. Engineers planning a retrofit should verify the backplane slot count and confirm that the existing TSX RKY rack — whether a 4-slot, 8-slot, or 12-slot configuration — is compatible with the TSXP4720’s addressing scheme and power budget requirements.

Power supply compatibility is a critical first step in any TSXP4720 retrofit. The existing TSX PSY power supply module must be assessed for output capacity, particularly when additional I/O modules are being added as part of the upgrade. In installations where the original power supply is undersized or aging, replacement with a compatible TSX PSY unit should be planned concurrently to avoid post-installation instability. Terminal wiring on existing I/O modules — including TSX DEY digital input modules and TSX DSY digital output modules — typically does not require modification when the TSXP4720 is installed as a like-for-like CPU replacement, which significantly reduces field labor time and the risk of wiring errors during commissioning.

Program compatibility is a central concern for maintenance engineers. Applications developed in PL7 Pro or Unity Pro for earlier TSX Premium CPUs are generally transferable to the TSXP4720 with minimal modification, though engineers should validate function block library versions and confirm that any custom-coded sections remain syntactically compatible. Backup of the original program to a PC via the TSX PCX programming cable or USB-to-serial adapter should be completed before any hardware swap. Module addressing must be re-verified after installation, particularly in systems where the rack configuration has been modified or where remote I/O drops are connected via TSX ETY Ethernet modules or TSX SCY serial communication modules.

For facilities running SCADA or HMI systems connected to the TSX Premium controller, communication link continuity is essential. The TSXP4720 supports standard Modbus and Uni-Telway protocols, ensuring compatibility with existing Magelis HMI panels and third-party SCADA platforms. Engineers should confirm that the HMI screen variable mapping remains intact after the CPU swap and perform a full communication test before returning the system to production. In installations where Ethernet connectivity is provided through a TSX ETY 110 or TSX ETY 210 module, IP addressing and rack slot configuration should be documented prior to the retrofit and restored immediately after installation.

Installation space confirmation is straightforward for the TSXP4720, as it occupies a standard TSX Premium CPU slot and does not require additional DIN rail space or cabinet modifications. However, engineers should inspect the control cabinet for adequate ventilation, particularly in high-ambient-temperature environments, and verify that cable management around the CPU slot allows for clean extraction and reinsertion without disturbing adjacent modules such as TSX AEY analog input modules or TSX CAY motion control modules.

All TSXP4720 units supplied by NINERMAS COMPANY LIMITED undergo pre-shipment functional testing to verify module initialization, memory integrity, and communication port operation. Each unit is shipped with a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions. Inventory is maintained to support both emergency replacement orders and planned procurement programs, with lead times confirmed at the time of order.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful TSXP4720 retrofit begins with a structured pre-installation audit. The first step is to document the existing rack configuration, recording the slot positions of all installed modules — including the TSX PSY power supply, any TSX SCY serial communication modules, TSX ETY Ethernet modules, TSX DEY and TSX DSY I/O modules, and any TSX AEY analog input modules. This documentation serves as the baseline for post-installation verification and significantly reduces commissioning time.

Signal isolation requirements should be assessed for any analog loops connected to TSX AEY modules, particularly in environments with high electrical noise from variable frequency drives or large motor starters. Where signal integrity is a concern, inline signal isolators may be recommended to protect the new CPU from transient interference during the transition period. Similarly, any TSX CAY motion control modules in the rack should be tested independently after the CPU swap to confirm that axis parameters and cam profiles have been correctly retained in the program backup.

For systems using remote I/O over Fipio or Modbus Plus networks, the TSXP4720 retrofit plan should include a communication link test at each remote drop before the system is returned to automatic mode. Remote I/O racks connected via TSX FPP Fipio cables should be inspected for cable integrity and termination resistance, as aging cables in legacy installations are a common source of intermittent faults that may be incorrectly attributed to the new CPU module.

Programming cable availability is a practical consideration that is often overlooked. Engineers should confirm that a compatible TSX PCX cable or USB adapter is available on-site before the retrofit date, as program upload and download are required steps in the swap procedure. Having a verified backup of the application program stored on a local PC — not only on the CPU’s internal memory — is a non-negotiable prerequisite for any planned or emergency TSXP4720 replacement.

Downtime Control During System Migration

Minimizing production downtime during a TSXP4720 swap requires advance preparation and a clearly defined cutover sequence. The recommended approach is to perform all pre-installation steps — program backup, rack documentation, power supply assessment, and communication parameter recording — during a scheduled maintenance window or during a period of reduced production load, so that the physical swap itself can be completed in the shortest possible time.

Before powering down the rack, the operator should confirm that all field devices are in a safe state and that any interlocked processes have been properly isolated. The existing CPU should be extracted only after the rack power supply has been de-energized and the discharge period has elapsed. The TSXP4720 replacement unit should be inserted into the CPU slot, secured, and the rack powered up in a controlled sequence. Initial diagnostics should be observed on the CPU status LEDs before attempting program download.

Once the program has been successfully loaded and the CPU has entered RUN mode, a systematic I/O check should be performed — verifying digital inputs via TSX DEY modules, digital outputs via TSX DSY modules, and analog signals via TSX AEY modules — before releasing the system to automatic control. HMI communication should be confirmed by verifying that all Magelis screen variables are updating correctly and that no communication fault alarms are active. This structured approach typically allows a TSXP4720 swap to be completed within a two-to-four-hour maintenance window, depending on system complexity.

For facilities where continuous operation is critical, NINERMAS recommends maintaining a pre-tested TSXP4720 spare unit on-site as part of a proactive spare-parts program. This eliminates procurement lead time from the downtime equation and ensures that emergency replacements can be executed immediately upon failure detection.

Retrofit Support FAQ

Q1: Is the TSXP4720 a direct replacement for other TSX Premium CPU models?
The TSXP4720 is designed for use within the TSX Premium platform and is physically compatible with standard TSX RKY racks. Functional compatibility with specific predecessor CPU models depends on memory capacity, I/O addressing, and program structure. NINERMAS recommends sharing your existing CPU part number and program version for a compatibility assessment before ordering.

Q2: What wiring changes are required when installing the TSXP4720?
In a like-for-like CPU slot replacement, no wiring changes to I/O modules are required. Terminal blocks on TSX DEY, TSX DSY, and TSX AEY modules remain undisturbed. Communication cables connected to TSX ETY or TSX SCY modules should be disconnected before the swap and reconnected after the new CPU is installed and powered.

Q3: Does NINERMAS provide pre-shipment testing for the TSXP4720?
Yes. Every TSXP4720 unit is functionally tested prior to shipment, covering module initialization, internal memory verification, and communication port operation. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and operational failures under normal industrial use conditions.

Q4: What is the typical lead time and inventory availability?
NINERMAS maintains stock of the TSXP4720 to support both planned procurement and emergency replacement requirements. Lead times vary by order volume and destination. Contact our sales team at sale@ninermas.com or +0086 187 5021 5667 for current stock status and delivery confirmation.
