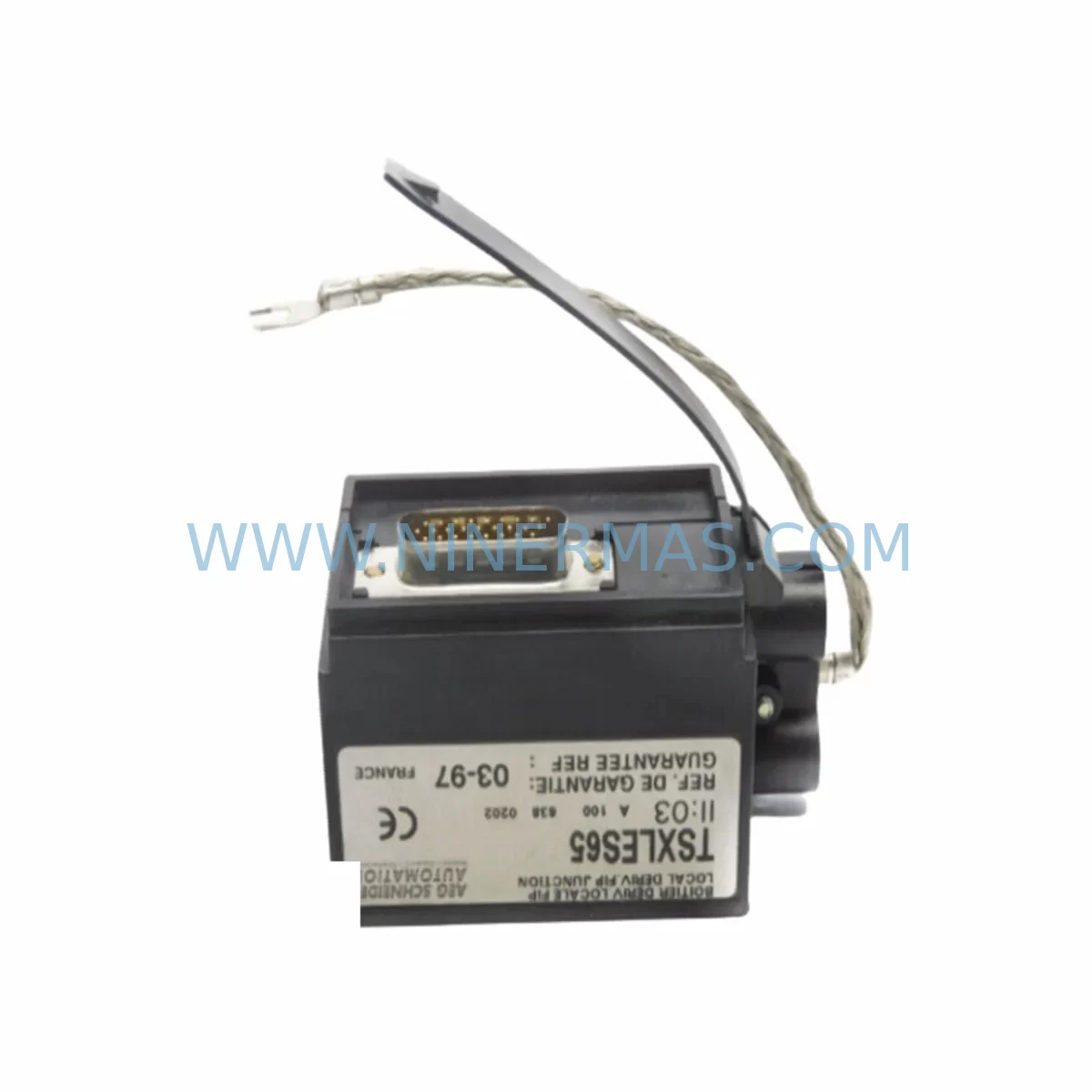

The Schneider Electric TSXLES65 is an original extension connector module designed for the TSX Micro and TSX Premium PLC series — two of the most widely deployed programmable logic controller platforms in global industrial automation. As production lines age and OEM support windows narrow, maintaining a verified stock of the TSXLES65 becomes a critical element of any proactive maintenance strategy. Whether you are managing a continuous process plant, a discrete manufacturing line, or a legacy control cabinet retrofit, this connector module ensures seamless I/O expansion and system integrity without requiring a full PLC platform migration.

At NINERMAS, every TSXLES65 unit is sourced as an original Schneider Electric component, individually inspected, and shipped with a 12-month warranty. Our supply chain is structured to support long-term procurement commitments, making us a reliable partner for maintenance engineers and procurement teams managing multi-site spare parts programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a TSXLES65 extension connector is flagged during a control cabinet inspection or fails during a fault isolation routine, the replacement scope rarely ends with the connector alone. Experienced maintenance engineers know that a failed or degraded extension connector is often a symptom of broader electrical stress within the rack assembly. A thorough site assessment should include the following components in the same inspection cycle:

Begin with the TSX rack backplane (such as TSXRKY4 or TSXRKY6) — connector wear is frequently caused by backplane pin degradation or rack vibration. Simultaneously verify the TSX power supply module (e.g., TSXPSY2600M or TSXPSY5500M), as voltage instability is a leading cause of connector and module stress. Check all TSX digital I/O modules (e.g., TSXDEY16D2, TSXDSY16T2) seated in the extended rack for proper seating and signal continuity.

For systems using TSX analog I/O modules (e.g., TSXAEY414, TSXASY410), inspect signal isolation integrity — degraded extension connectors can introduce ground loops that corrupt analog readings. If the cabinet includes Modicon communication modules such as the TSXSCP114 (serial) or TSXETY110 (Ethernet), verify that the extension bus is not introducing latency or communication faults. In multi-rack configurations, the inter-rack cable (TSXCBP215 or TSXCBP415) should also be inspected for insulation damage or connector oxidation.

Do not overlook terminal blocks and wiring harnesses connected to I/O modules in the extended rack — loose terminations are a common source of intermittent faults that are misdiagnosed as PLC module failures. If the system includes signal isolators or surge protection devices on analog or digital inputs, verify their condition as part of the same maintenance window. Finally, check fuse holders and miniature circuit breakers protecting the 24VDC control circuit — a nuisance trip history often correlates with connector degradation events.

Stocking the TSXLES65 alongside these associated components in your spare parts inventory reduces mean time to repair (MTTR) and eliminates the risk of extended downtime caused by sequential part failures discovered only after the first replacement is complete.

Site Replacement Workflow

Step 1 — Isolation: Place the PLC in STOP mode via the programming terminal (Unity Pro or PL7 Pro). De-energize the rack power supply and lock out the control cabinet per your site LOTO procedure.

Step 2 — Documentation: Photograph the existing connector orientation, cable routing, and any labeling before removal. Record the firmware version of the CPU module (e.g., TSXP572634M) to confirm compatibility with the replacement connector.

Step 3 — Removal: Carefully disengage the TSXLES65 from the rack backplane using the ejector levers. Inspect the vacated slot for debris, oxidation, or bent pins on the backplane side.

Step 4 — Installation: Seat the replacement TSXLES65 firmly until the ejector levers click into the locked position. Reconnect all I/O wiring per the documented configuration. Restore power and verify the power supply LED status.

Step 5 — Verification: Bring the PLC back to RUN mode. Monitor the I/O status table in Unity Pro or PL7 Pro for any fault flags. Perform a full I/O scan cycle and confirm all extended rack modules report correctly. Log the replacement in your CMMS with the part number, serial number, and date.

This workflow minimizes downtime to under 30 minutes for a trained technician and ensures full system compatibility is restored without requiring a PLC program reload or hardware reconfiguration.

Spare Parts Support FAQ

Q1: Is the TSXLES65 compatible with both TSX Micro and TSX Premium racks?
Yes. The TSXLES65 is designed for use across the TSX Micro and TSX Premium rack families. Always verify the rack reference (e.g., TSXRKY4, TSXRKY6, TSXRKY8EX) against your system documentation before installation to confirm slot compatibility and bus extension requirements.

Q2: How do I verify the unit is genuine before installation?
All TSXLES65 units supplied by NINERMAS are original Schneider Electric components. Each unit undergoes pre-shipment functional testing and is shipped with inspection documentation. You can verify authenticity by checking the Schneider Electric part label, date code, and CE/UL markings on the module housing.

Q3: What is the lead time and long-term supply availability?
NINERMAS maintains dedicated stock of the TSXLES65 to support long-term spare parts programs. Standard orders ship within 3–5 business days. For volume procurement or annual blanket orders, contact our sales team to discuss priority allocation and guaranteed supply agreements.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. NINERMAS provides direct warranty support — no third-party RMA routing required.
