Schneider TSXAEY414 Retrofit-Compatible Analog Input Module

Schneider TSXAEY414 Retrofit-Compatible Analog Input Module for Legacy Systems

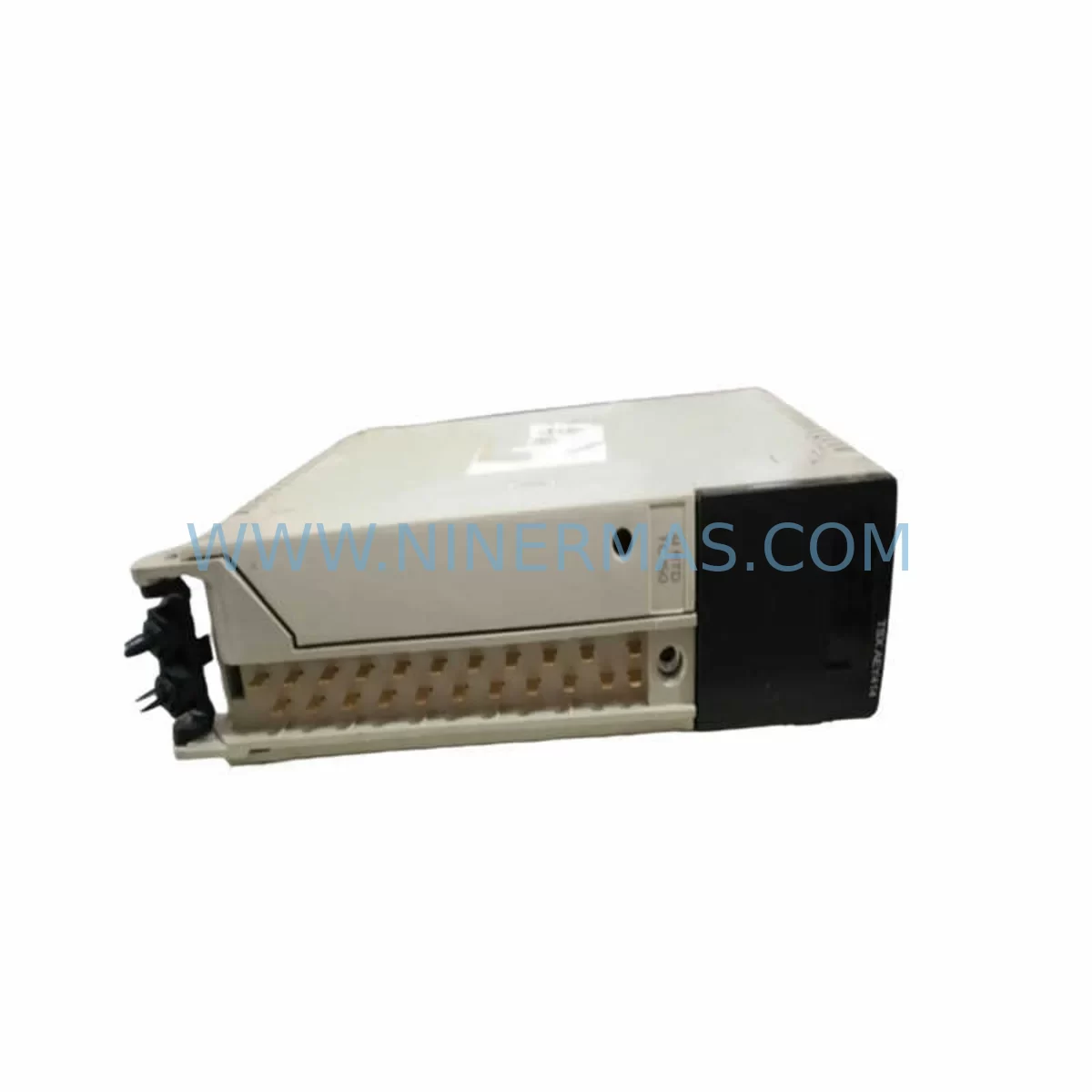

The Schneider Electric TSXAEY414 is a 4-channel analog input module designed for the Modicon TSX Premium PLC platform — one of the most widely deployed mid-range automation controllers in process industries across Europe, Asia, and the Americas. As the TSX Premium series has reached end-of-life status, the TSXAEY414 has become a critical spare part for facilities that must maintain continuous production without committing to a full control system overhaul. This module accepts voltage and current analog signals (0–10 V, 0–20 mA, 4–20 mA) from field instruments including pressure transmitters, flow meters, temperature sensors, and level transducers, converting them to high-resolution digital values for the Premium CPU to process in real time.

For engineers managing legacy automation infrastructure, the TSXAEY414 represents a proven, drop-in replacement that eliminates the need to re-engineer rack layouts, rewire terminal blocks, or reprogram Unity Pro or PL7 Pro application logic. Each unit supplied by NINERMAS undergoes pre-shipment functional testing to verify channel accuracy, signal conditioning integrity, and backplane communication before dispatch. A 12-month warranty is included with every unit, providing procurement teams and maintenance managers with the confidence needed to approve spare part purchases for critical production lines.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a TSXAEY414 in a live production environment requires careful pre-planning across several dimensions. Before removing the failed or degraded module, maintenance engineers should document the existing I/O configuration using Unity Pro or PL7 Pro, noting the module’s rack address, slot position, and channel-by-channel scaling parameters. The front connector — typically a 20-pin HE10 plug — can be unplugged and transferred directly to the replacement unit, preserving field wiring continuity and reducing rewiring time to near zero in most installations.

Rack compatibility is the first checkpoint. The TSXAEY414 is designed for the TSX Premium rack family, including the TSXRKY4EX, TSXRKY6EX, and TSXRKY8EX racks. Engineers should verify that the rack’s power supply module — commonly a TSXPSY2600M or TSXPSY5500M — has sufficient residual capacity to support the replacement module, particularly in fully populated racks where power budgets are tight. If the rack PSU is already at or near its rated output, a PSU upgrade should be planned in parallel.

On the CPU side, the TSXP574634M and related TSXP57 family processors communicate with the TSXAEY414 via the Premium backplane bus. After physical installation, the module must be declared in the I/O configuration within Unity Pro or PL7 Pro. If the application was originally developed in PL7 Pro and has since been migrated to Unity Pro, engineers should verify that analog channel data types and scaling blocks (SCALE function blocks) remain correctly mapped to the new module instance. Failure to re-validate scaling can result in process variable drift that is difficult to diagnose at the field level.

For facilities that also operate TSXDEY16D2 digital input modules or TSXDSY16T2 digital output modules in the same rack, the replacement of the TSXAEY414 should be coordinated with a broader rack health audit. Aging backplane connectors, oxidized terminal contacts, and degraded front connector latches are common failure contributors in TSX Premium installations that have been in service for more than ten years. Addressing these issues during a planned TSXAEY414 replacement minimizes the risk of secondary failures shortly after the primary repair.

Where the control system includes a TSXSCP114 or TSXSCP111 serial communication module for Modbus RTU or character mode communication with field devices, engineers should confirm that the communication module’s slot address is not affected by the I/O reconfiguration triggered by the analog module replacement. Similarly, if a TSXETY110 Ethernet TCP/IP module is installed for SCADA connectivity, its network parameters and module address should be verified post-replacement to ensure uninterrupted data acquisition.

HMI screens connected to the TSX Premium system — whether running on a XBTGT5330 Magelis panel or a PC-based SCADA via OFS (OPC Factory Server) — should be tested after the replacement to confirm that analog tag values are displaying correctly and that alarm thresholds are triggering as expected. A brief functional test of each of the four analog channels using a calibrated signal generator (4–20 mA loop calibrator) is strongly recommended before returning the system to automatic mode.

For sites where the TSXAEY414 is part of a safety-related analog measurement loop — such as a high-pressure shutdown or high-temperature interlock — the replacement procedure should follow the site’s Management of Change (MOC) process, including a documented functional safety test before the loop is returned to service. NINERMAS can supply technical datasheets and wiring diagrams to support MOC documentation upon request.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary driver behind maintaining a stock of TSXAEY414 spare modules. In continuous process industries — including petrochemical, power generation, water treatment, and metals processing — an unplanned analog input failure can trigger a process shutdown within minutes if the affected measurement is part of a critical control loop. Having a tested, warranted replacement unit available on-site or available for next-day dispatch from a reliable supplier is the most effective downtime mitigation strategy available to maintenance teams managing legacy TSX Premium systems.

For planned maintenance windows, the TSXAEY414 replacement can typically be completed within 30 to 60 minutes by a qualified automation technician, assuming the front connector wiring harness is reused and the I/O configuration backup is available. The most time-consuming step is usually the Unity Pro or PL7 Pro configuration update and the subsequent functional verification of all four analog channels. NINERMAS recommends that customers maintain a current backup of their application program and I/O configuration, stored off-controller, to eliminate configuration recovery time from the critical path of any emergency repair.

Where a full TSX Premium platform migration to a newer Schneider Electric architecture — such as the Modicon M340 or Modicon M580 — is planned for the medium term, the TSXAEY414 serves as a bridge solution that keeps the existing system operational during the migration planning and engineering phase. This approach avoids the risk of forcing an unplanned platform migration under emergency conditions, which typically results in extended downtime, higher engineering costs, and increased commissioning risk. A controlled, phased migration — supported by reliable spare parts supply for the legacy platform — is consistently the lower-risk and lower-cost path for most industrial facilities.

Retrofit Support FAQ

Q1: Is the TSXAEY414 a direct drop-in replacement for a failed analog input module in my TSX Premium rack?
Yes. The TSXAEY414 is a direct replacement for the same part number. It installs into any I/O slot in a TSX Premium rack (TSXRKY series) and is recognized automatically by the TSXP57 CPU family. After installation, you must re-declare the module in your Unity Pro or PL7 Pro I/O configuration and verify channel scaling parameters before returning the loop to service.

Q2: What pre-shipment testing does NINERMAS perform on the TSXAEY414?
Every TSXAEY414 unit dispatched by NINERMAS undergoes functional testing prior to shipment. This includes backplane communication verification, channel signal conditioning checks across the supported input ranges (voltage and current), and visual inspection of the front connector and module housing. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can the TSXAEY414 be used with both Unity Pro and PL7 Pro programming environments?
Yes. The TSXAEY414 is compatible with both Unity Pro (all versions) and PL7 Pro (v4.x and later). If your application was originally developed in PL7 Pro and has been migrated to Unity Pro, verify that analog channel data types and SCALE function block parameters are correctly mapped after the module replacement. No firmware update is required on the module itself.

Q4: What is NINERMAS’s stock availability and lead time for the TSXAEY414?
NINERMAS maintains inventory of the TSXAEY414 to support urgent spare part requirements. Standard lead time for in-stock units is 3–7 business days for international shipments. For customers with recurring demand or multi-site maintenance programs, NINERMAS can discuss scheduled supply agreements to ensure consistent availability. Contact sale@ninermas.com or +0086 187 5021 5667 for current stock status and pricing.
