Schneider LXM05BD34N4 Service-Ready Industrial Spare Part

Schneider LXM05BD34N4 Service-Ready Industrial Spare Part: Spare Replacement and Downtime Risk Control

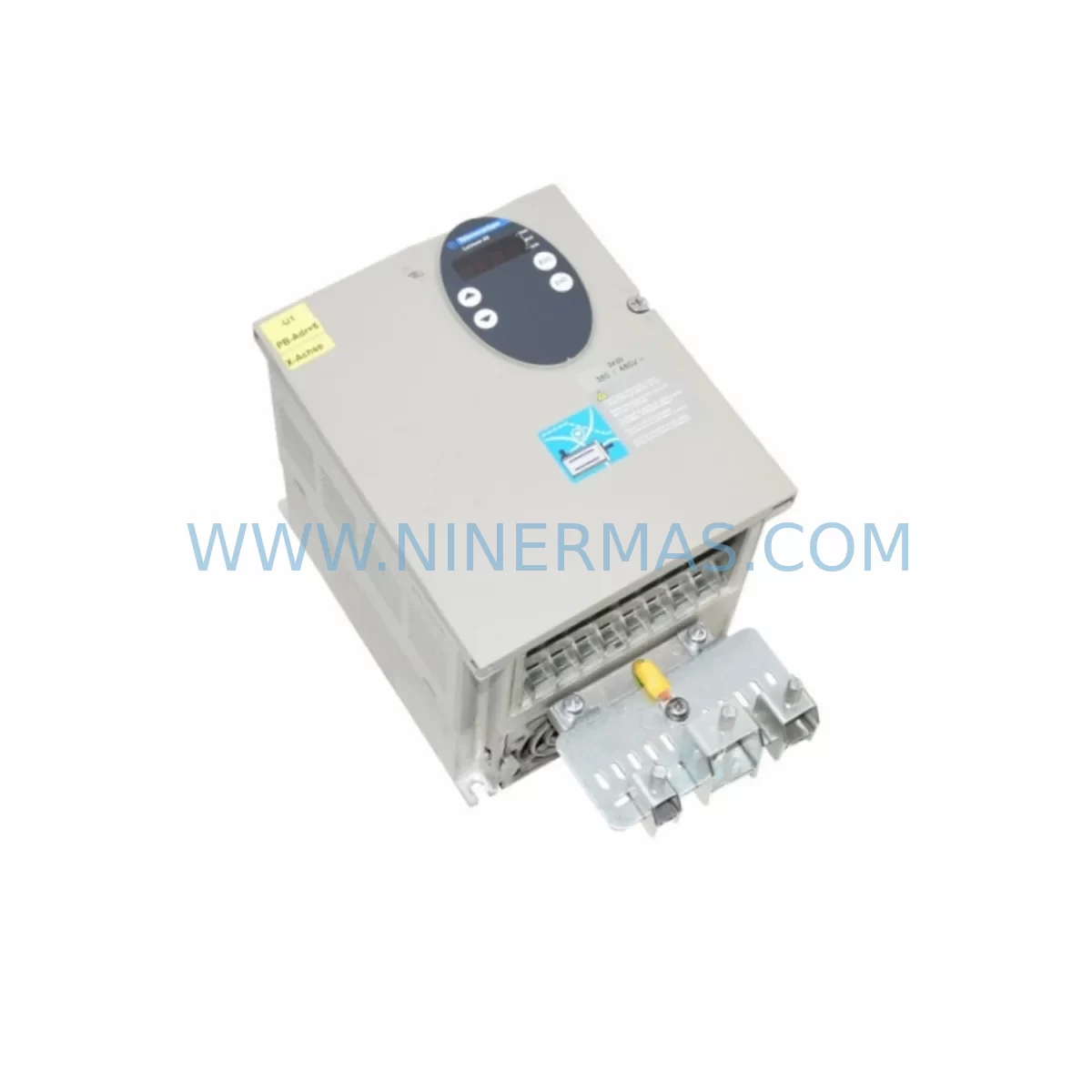

The Schneider Electric LXM05BD34N4 is a three-phase AC servo drive from the Lexium 05 series, designed for precision motion control in demanding industrial environments. As a service-ready spare part, this unit is pre-tested, verified for compatibility, and held in long-term stock to support maintenance engineers and procurement teams managing critical production lines. Whether you are responding to an unplanned drive fault, executing a scheduled annual overhaul, or building a strategic spare parts inventory for a multi-axis servo system, the LXM05BD34N4 delivers the reliability and traceability required for industrial-grade replacement.

Servo drives are among the highest-risk single points of failure in automated production systems. A failed drive can halt an entire production cell within seconds. Having a verified, service-ready LXM05BD34N4 on the shelf — or available for next-day dispatch — is the most effective insurance against extended unplanned downtime. NINERMAS maintains dedicated stock of this unit with full pre-shipment electrical testing and a 12-month warranty covering all supplied components.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the LXM05BD34N4 in a live production environment requires a structured approach that goes beyond swapping the drive unit itself. Maintenance engineers should treat a servo drive replacement as an opportunity to audit the entire motion control circuit and associated cabinet components to prevent secondary failures and ensure long-term system stability.

Begin with the 24 V DC control power supply feeding the drive’s logic section. Units such as the ABL8RPS24100 or ABL8FEQ24100 filtered power supply should be inspected for output ripple and load capacity before the new drive is commissioned. A degraded control power supply is a common root cause of intermittent drive faults that are often misdiagnosed as drive failures.

Next, inspect the motor feedback cable. The VW3M3501 encoder cable and associated connectors are subject to mechanical fatigue in high-cycle applications. A damaged or intermittently open encoder cable will cause immediate position errors on the replacement drive, leading to unnecessary re-diagnosis time. Replace the cable if there is any visible wear, kinking, or connector corrosion.

The power connection cable between the drive and the servo motor — such as the VW3A1104 motor power cable — should also be checked for insulation integrity and connector seating. Loose or degraded power connections generate heat and can cause overcurrent faults on the new drive within hours of commissioning.

For multi-axis systems using a Modicon M340 or M580 PLC platform, verify the status of the BMXCPS3500 rack power supply and the BMXNOE0100 Ethernet communication module. CANopen or Ethernet/IP communication errors between the PLC and the new drive are a frequent commissioning issue when the network infrastructure has not been audited alongside the drive replacement. Check bus termination resistors and cable shielding continuity.

Digital I/O modules such as the BMXDDI1602 should be tested for correct signal levels on all enable, fault reset, and reference input channels connected to the drive. A stuck or floating digital input can prevent the drive from entering the enabled state, which is often misread as a drive hardware fault during initial commissioning of the replacement unit.

Safety circuits deserve particular attention. If the installation uses a safety relay such as the XPSAC5121 or a similar Preventa series device to manage the drive’s Safe Torque Off (STO) input, verify that the safety relay output contacts are clean and within specification. Worn relay contacts are a silent failure mode that can cause the drive to remain in STO state even after a successful hardware replacement.

Terminal blocks — particularly NSYTRV22 or equivalent DIN rail terminal strips — should be inspected for loose screws, oxidized contacts, and correct wire ferrule crimping. Loose control wiring is responsible for a disproportionate share of post-replacement faults in servo drive cabinets. Torque all terminals to specification during the replacement procedure.

Finally, if the system includes an HMI panel for operator control or parameter display, verify that the drive parameters have been correctly restored from backup before returning the machine to production. Schneider SoMove software should be used to upload the saved parameter file to the LXM05BD34N4 and confirm all axis tuning values, limit settings, and communication addresses match the original configuration.

Site Replacement Workflow

The LXM05BD34N4 is a direct form-fit-function replacement for any existing Lexium 05 BD34N4 unit installed in the field. The replacement procedure is designed to minimize downtime and maintain full system compatibility without requiring PLC program modifications or mechanical changes to the motor mounting.

Step 1 — Isolation and Lockout: Isolate the drive from mains supply and 24 V control power. Apply lockout/tagout per site safety procedures. Allow the DC bus capacitors to discharge fully (minimum 5 minutes after isolation) before opening the cabinet.

Step 2 — Parameter Backup Verification: Confirm that a current parameter backup exists in SoMove or on the site’s maintenance management system before removing the faulty unit. If no backup exists, attempt to read parameters from the faulty drive before disconnection if the drive is still partially functional.

Step 3 — Cable Labeling and Disconnection: Label all motor power, encoder, control, and communication cables before disconnection. Photograph the wiring layout for reference. Disconnect cables in reverse order: communication first, then control I/O, then encoder, then motor power, then mains supply.

Step 4 — Mechanical Removal and Installation: Remove the faulty LXM05BD34N4 from the panel. Install the service-ready replacement unit in the same mounting position. Reconnect all cables in the correct order, verifying connector orientation and locking mechanisms.

Step 5 — Parameter Restore and Commissioning: Upload the saved parameter file using SoMove. Verify all axis parameters, communication addresses, and safety function settings. Perform a low-speed jog test before returning the axis to full production speed. Document the replacement in the site maintenance log with the new unit’s serial number and warranty start date.

This workflow applies equally to planned preventive replacements and emergency corrective maintenance scenarios. Maintaining a pre-configured spare LXM05BD34N4 with parameters pre-loaded reduces emergency replacement time to under 30 minutes in most installations.

Spare Parts Support FAQ

Q1: Is the LXM05BD34N4 supplied as an original Schneider Electric unit?
Yes. All units supplied by NINERMAS are original Schneider Electric components sourced from authorized distribution channels or verified surplus stock. Each unit undergoes full pre-shipment electrical testing to confirm functionality before dispatch. A 12-month warranty is provided from the date of shipment, covering all electrical and mechanical defects under normal operating conditions.

Q2: How do I verify compatibility with my existing Lexium 05 installation before ordering?
The LXM05BD34N4 is compatible with all standard Lexium 05 series installations using BSH or BMH series servo motors with three-phase 380–480 V AC supply. Confirm the existing drive’s nameplate part number matches LXM05BD34N4 exactly. If your installation uses a variant with a different current rating or communication option, contact NINERMAS at sale@ninermas.com with your existing drive’s full nameplate data for compatibility confirmation before ordering.

Q3: What is the recommended spare parts inventory strategy for Lexium 05 servo drives?
For production lines with two or more Lexium 05 axes, NINERMAS recommends holding a minimum of one LXM05BD34N4 spare per five installed drives, with a maximum replenishment lead time of 48 hours. For critical single-axis applications where downtime cost exceeds USD 5,000 per hour, a dedicated on-site spare is strongly recommended. NINERMAS can support reserved inventory agreements with guaranteed stock allocation and fixed pricing for 12-month periods.

Q4: What testing is performed before shipment, and what documentation is provided?
Each LXM05BD34N4 unit is tested for correct power-up sequence, DC bus voltage regulation, output phase balance, encoder interface functionality, and CANopen communication response before dispatch. A test report is available upon request. Units are shipped with anti-static packaging, desiccant, and a warranty certificate. Tracking information and export documentation are provided for all international shipments.
