Schneider LC1D09M7C Spare Part for Industrial Maintenance

Schneider LC1D09M7C Spare Part for Industrial Maintenance

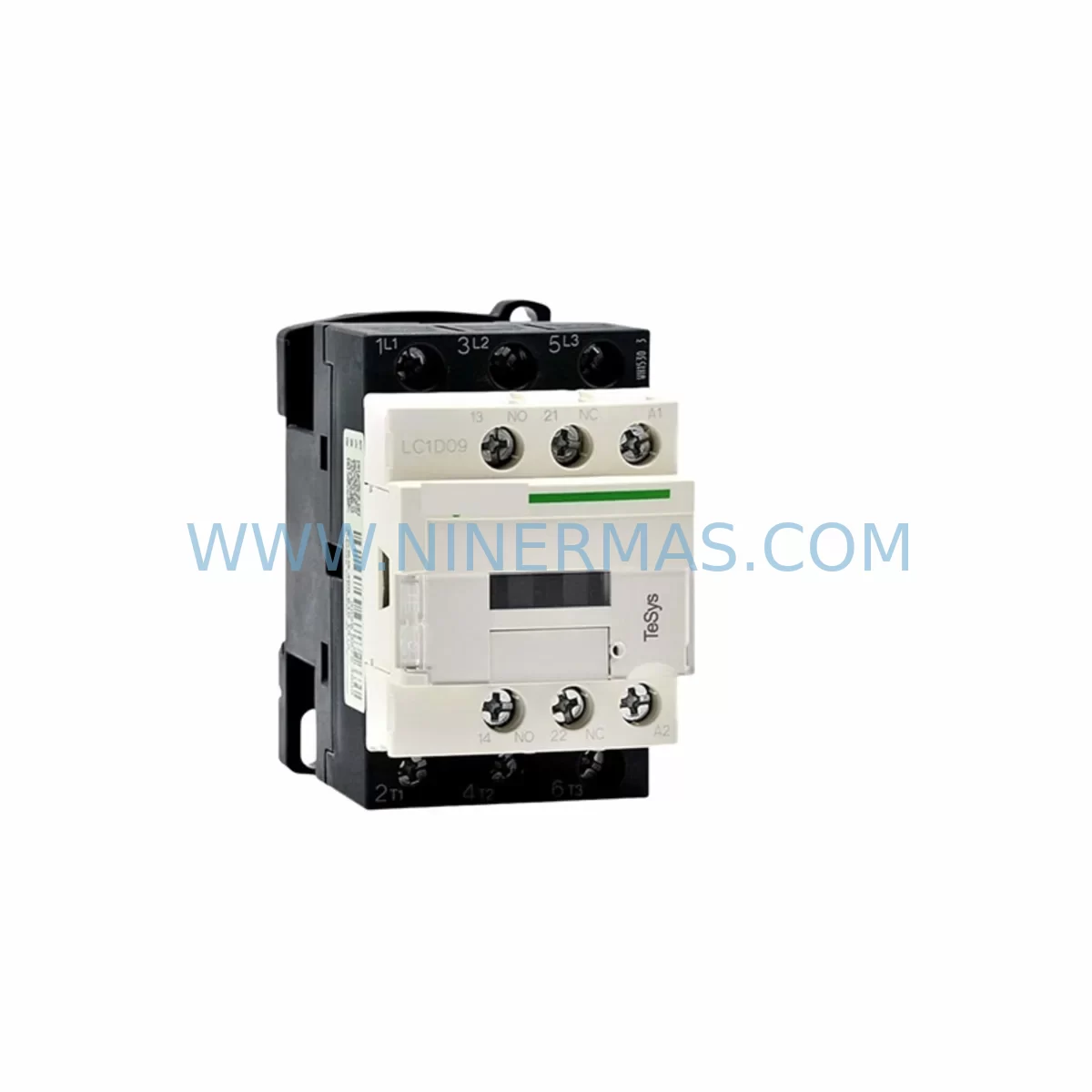

The Schneider Electric LC1D09M7C is a 9A three-pole AC contactor from the TeSys D series, engineered for reliable motor control and switching applications in industrial automation environments. As a service-ready spare part stocked by NINERMAS, this unit supports rapid field replacement to minimize unplanned downtime and restore production continuity. Whether you are managing a scheduled annual overhaul, responding to an emergency fault, or building a preventive maintenance inventory, the LC1D09M7C delivers the original electrical performance and dimensional compatibility required for seamless drop-in installation.

Designed for control cabinet integration, the LC1D09M7C operates on a 220V AC coil (M7 suffix) and is rated for AC-3 duty at 4kW / 400V, making it suitable for direct-on-line motor starters, reversing contactors, and star-delta switching circuits. Its compact DIN-rail footprint and standardized terminal layout allow maintenance engineers to complete a replacement in minimal time without rewiring or panel modification.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the LC1D09M7C in the field, a disciplined maintenance engineer will treat the contactor swap as an opportunity to audit the surrounding electrical circuit. The coil circuit feeding the LC1D09M7C typically draws control power from a 24V DC or 220V AC auxiliary supply — verifying the integrity of the control transformer or SMPS power supply module (such as the Schneider ABL8REM24030 or equivalent 24VDC rail-mount PSU) prevents a repeat failure caused by voltage fluctuation or ripple.

Upstream of the contactor, the motor branch circuit protection should be inspected. The GV2ME series manual motor starter or a GV3P thermal-magnetic circuit breaker paired with the LC1D09M7C forms a coordinated protection assembly. Confirm that the overload relay — commonly the LRD12 or LRD14 for 9A applications — has not drifted in its trip threshold and reset it or replace it if thermal memory has been compromised by repeated overloads.

On the load side, check the terminal blocks (such as Schneider NSYTRV or Phoenix Contact UK series) for signs of oxidation, loose crimps, or heat discoloration. Damaged terminal blocks adjacent to a failed contactor are a common secondary fault that is overlooked during emergency replacements. Similarly, inspect the control wiring ferrules and verify that the auxiliary contact wiring feeding the PLC digital input module — whether a Modicon M340 BMX DDI 3202K or a TM5 distributed I/O slice — is intact and correctly terminated.

For systems using a Schneider Altivar ATV312 or ATV320 variable speed drive in bypass mode, confirm that the bypass contactor interlock logic is functioning correctly after the LC1D09M7C replacement. A miswired interlock can result in simultaneous energization of the drive output and the bypass contactor, causing immediate drive fault or equipment damage. Review the CAD relay or Zelio logic module controlling the interlock sequence if the panel uses a dedicated safety relay such as the Schneider XPSAF or XPSMF series.

Communication continuity should also be verified. If the motor starter is monitored via a TeSys T motor management relay (LTM R) connected to a Modbus RTU or CANopen network, confirm that the LTM R retains its configuration parameters after power cycling. Spare a TeSys T controller in your inventory alongside the LC1D09M7C to avoid extended downtime if the management relay itself has been damaged by the fault event that caused the contactor failure.

NINERMAS maintains long-term stock of the LC1D09M7C and associated TeSys D accessories, supporting procurement engineers who need to establish multi-year blanket orders or emergency call-off agreements for critical production lines. All units are pre-tested before shipment and covered by a 12-month warranty from the date of delivery.

Site Replacement Workflow

Step 1 — Isolation & Lockout: De-energize the motor branch circuit at the upstream MCCB or GV3P motor circuit breaker. Apply LOTO (Lockout/Tagout) per site safety procedure. Verify absence of voltage at the LC1D09M7C main terminals using a calibrated CAT III multimeter.

Step 2 — Document Wiring: Photograph or sketch the existing coil wiring (A1/A2), main power terminals (1/L1, 3/L2, 5/L3, 2/T1, 4/T2, 6/T3), and auxiliary contact wiring (13/14 NO) before disconnection. Cross-reference against the panel schematic.

Step 3 — Remove Legacy Unit: Disconnect all wiring. Release the DIN rail locking tab and slide the old LC1D09M7C off the rail. If the overload relay (LRD) is clipped directly to the contactor, unclip it carefully and inspect its condition before reuse.

Step 4 — Install Replacement: Clip the new LC1D09M7C onto the DIN rail. Re-attach the LRD overload relay. Reconnect all wiring per the documented layout. Torque main terminals to 2.5 Nm and auxiliary terminals to 1.2 Nm as specified in the TeSys D installation guide.

Step 5 — Functional Test: Re-energize the control circuit only. Manually energize the coil via the control circuit and verify main contact closure with a continuity tester. Check auxiliary contact state change at the PLC input. Restore full power and run the motor under no-load, then full-load conditions. Log the replacement in the maintenance management system (CMMS).

Compatibility Note: The LC1D09M7C is a direct replacement for LC1-D09M7, LC1D09M7 (without suffix C), and is dimensionally compatible with the TeSys D mounting footprint used across the LC1D09 through LC1D38 range. It is not interchangeable with TeSys F (LC1F) or TeSys K (LC1K) series without panel modification.

Spare Parts Support FAQ

Q1: Is the LC1D09M7C covered by a warranty when purchased from NINERMAS?
Yes. All LC1D09M7C units supplied by NINERMAS carry a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing. In the event of a warranty claim, NINERMAS provides replacement or credit resolution within the warranty period.

Q2: Can the LC1D09M7C replace older LC1-D09M7 variants without panel modification?
Yes. The current LC1D09M7C is the direct successor to earlier LC1-D09M7 variants and maintains identical mounting dimensions, terminal layout, and coil voltage (220V AC). No panel rewiring or DIN rail modification is required for a like-for-like replacement.

Q3: Does NINERMAS support long-term or blanket purchase orders for the LC1D09M7C?
Yes. NINERMAS supports multi-year blanket orders and call-off agreements for the LC1D09M7C and associated TeSys D accessories. This is particularly suited to procurement engineers managing spare parts programs for large fleets of motor control centers or distributed production lines where consistent supply is critical to maintenance planning.

Q4: How is the LC1D09M7C tested before shipment?
Each unit is inspected for physical integrity, coil continuity, and main contact resistance before packaging. Units are shipped in original or equivalent protective packaging with export-grade cushioning available on request. A test report can be provided for quality-critical procurement requirements.
