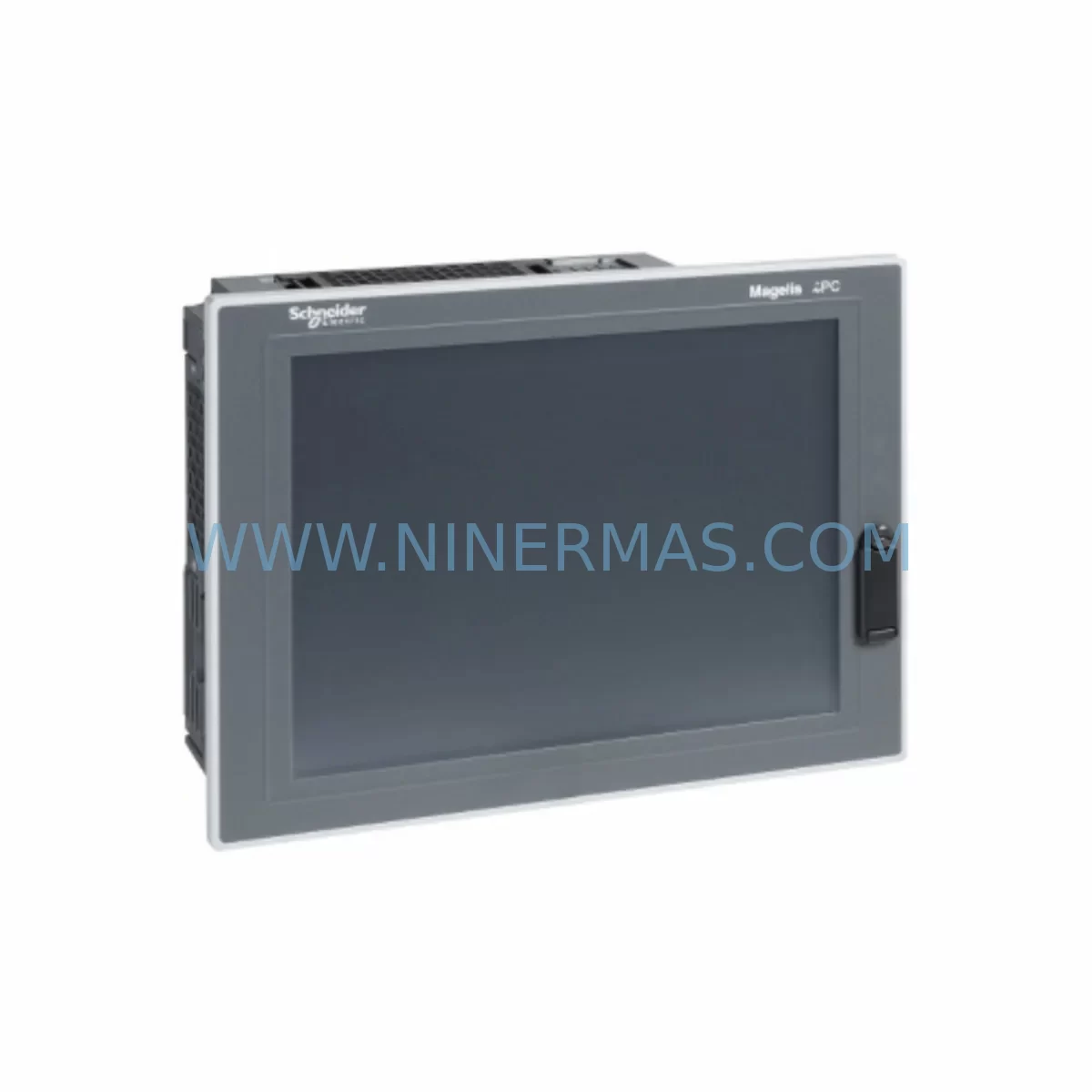

The Schneider Electric HMIPUH6A0701 is a ruggedized industrial panel PC from the Magelis iPC HMIPUH series, engineered for demanding automation environments where legacy HMI platforms are reaching end-of-life. As industrial facilities face increasing pressure to modernize aging control architectures — including discontinued Magelis XBT, XBTGT, and older HMIG-series terminals — the HMIPUH6A0701 provides a structurally compatible, performance-forward upgrade path that minimizes engineering rework and reduces total migration risk.

This unit is particularly well-suited for retrofit projects involving legacy Schneider Electric Modicon M340, Premium, and Quantum PLC platforms, where the existing HMI layer must be replaced without disrupting the underlying control logic or field wiring. The HMIPUH6A0701 supports Ethernet/IP, Modbus TCP, and serial communication protocols, enabling seamless integration into both modern and legacy network topologies without requiring a full control system overhaul.

NINERMAS maintains verified stock of the HMIPUH6A0701 with a 12-month warranty, pre-shipment functional testing, and export documentation support for cross-border procurement. Each unit is inspected against Schneider Electric’s original hardware specifications before dispatch.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the HMIPUH6A0701 into an existing control cabinet begins with a thorough site survey. Engineers should document the existing panel cutout dimensions, available DIN rail space, and the routing of existing signal cables before ordering. In most legacy installations, the original HMI terminal was wired directly to a Modicon M340 CPU (e.g., BMXP342020) or a Premium TSX57 processor via a dedicated serial or Ethernet link. The HMIPUH6A0701 supports both connection types, but the communication driver must be reconfigured in Vijeo Designer to match the target PLC’s protocol and station address.

Power supply verification is a critical pre-installation step. The HMIPUH6A0701 draws power from a 24 VDC rail, and the existing Phaseo ABL8 power supply module or equivalent must be confirmed to have sufficient residual capacity — typically a minimum of 3A headroom — after accounting for all other panel loads. If the existing supply is marginal, a supplementary ABL8REM24030 or similar 24 VDC/3A DIN-rail PSU should be added to the cabinet before commissioning.

Terminal block wiring from the legacy HMI to field devices — including discrete I/O signals routed through Advantys STB island bus modules or TM3 expansion I/O modules — generally does not require re-termination, as the HMIPUH6A0701 communicates with the PLC over the network layer rather than directly to field wiring. However, any hardwired alarm outputs or operator pushbutton inputs previously connected to the old HMI’s onboard I/O must be re-routed to the PLC’s BMX DDI 1602 or equivalent discrete input module.

For installations using CANopen or Profibus DP fieldbus backbones, the HMIPUH6A0701 does not natively terminate these buses — a dedicated BMXNOC0401 Ethernet communication module or a TSXPBY100 Profibus master module in the PLC rack handles protocol translation. The HMI connects to the PLC exclusively via Ethernet TCP/IP in these architectures, simplifying the HMI-side configuration while preserving the existing fieldbus topology.

Screen resolution and Vijeo Designer project migration deserve careful attention. Legacy XBT or HMIG projects must be converted and re-validated in Vijeo Designer 6.x before deployment. Variable addresses, alarm thresholds, and trend historian configurations should be verified against the live PLC data block to ensure tag mapping integrity. Where the original project used Uni-Telway serial addressing, these references must be remapped to Modbus TCP equivalents during the migration.

Backplane and rack considerations apply when the HMIPUH6A0701 is deployed alongside a BMX XBP 0800 8-slot rack or a TSX RKY 12EX extension rack. The panel PC itself is rack-independent — it mounts in the cabinet door or a dedicated panel cutout — but its Ethernet connection to the rack-mounted CPU must be routed through the cabinet’s internal Ethernet switch or directly to the CPU’s Ethernet port, depending on network topology.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any HMI retrofit project. The recommended approach for HMIPUH6A0701 installations is a parallel commissioning strategy: the new panel PC is fully configured, IP-addressed, and Vijeo Designer project-loaded on the bench before the scheduled maintenance window. During the cutover, the legacy HMI is powered down, physically removed, and the HMIPUH6A0701 is installed and connected within the same maintenance window — typically achievable in under four hours for a single-HMI cabinet.

To protect the original PLC program logic, no changes should be made to the Modicon M340 or Premium PLC application during the HMI swap. The PLC continues to execute its existing ladder or function block program throughout the migration. Only the HMI communication configuration — IP address, protocol, and tag mapping — is modified on the HMI side. This approach ensures that field control continuity is maintained and that the risk of introducing PLC-side faults during the HMI replacement is eliminated.

A pre-cutover checklist should include: confirmation of the HMIPUH6A0701’s IP address assignment and subnet compatibility with the plant network; verification that the Vijeo Designer runtime project loads correctly and all critical alarm pages display as expected; confirmation that the 24 VDC power supply output is within tolerance under load; and a functional test of all operator interface elements — pushbuttons, setpoint entry fields, trend displays, and alarm acknowledgment — before the maintenance window closes.

Post-installation, a 30-minute supervised run at normal production speed is recommended before returning the line to full autonomous operation. Any residual communication faults — typically caused by IP address conflicts or incorrect Modbus unit ID settings — can be resolved quickly with access to the Vijeo Designer configuration tool and the PLC programming software on a laptop connected to the plant network.

Retrofit Support FAQ

Q1: Is the HMIPUH6A0701 a direct drop-in replacement for the HMIGTO5310 or HMIGTO6310?
The HMIPUH6A0701 is functionally compatible as an HMI replacement but is not a mechanical drop-in — the panel cutout dimensions differ. An adapter plate is typically required to fill the gap between the new unit’s bezel and the existing cutout. Communication and software compatibility is maintained through Vijeo Designer project migration.

Q2: What commissioning steps are required after installation?
After physical installation and 24 VDC power connection, assign the unit’s IP address via the Windows network settings, load the pre-validated Vijeo Designer runtime project, confirm PLC communication (Modbus TCP or Ethernet/IP), and verify all screen pages, alarms, and data displays against the live PLC. Total commissioning time is typically 1–3 hours for a pre-configured unit.

Q3: Does NINERMAS provide pre-shipment testing for the HMIPUH6A0701?
Yes. Every HMIPUH6A0701 unit shipped by NINERMAS undergoes a functional power-on test and hardware inspection before dispatch. Units are supplied with a 12-month warranty covering hardware defects. Test reports are available upon request for quality-critical procurement.

Q4: What is the typical lead time and stock availability?
NINERMAS maintains verified inventory of the HMIPUH6A0701. Standard orders are processed within 1–3 business days. For urgent retrofit projects requiring same-week dispatch, contact our sales team directly to confirm current stock status and expedited shipping options.
