Schneider GV2-ME22C Retrofit-Compatible Motor Breaker

Schneider GV2-ME22C Retrofit-Compatible Motor Breaker for Legacy Systems

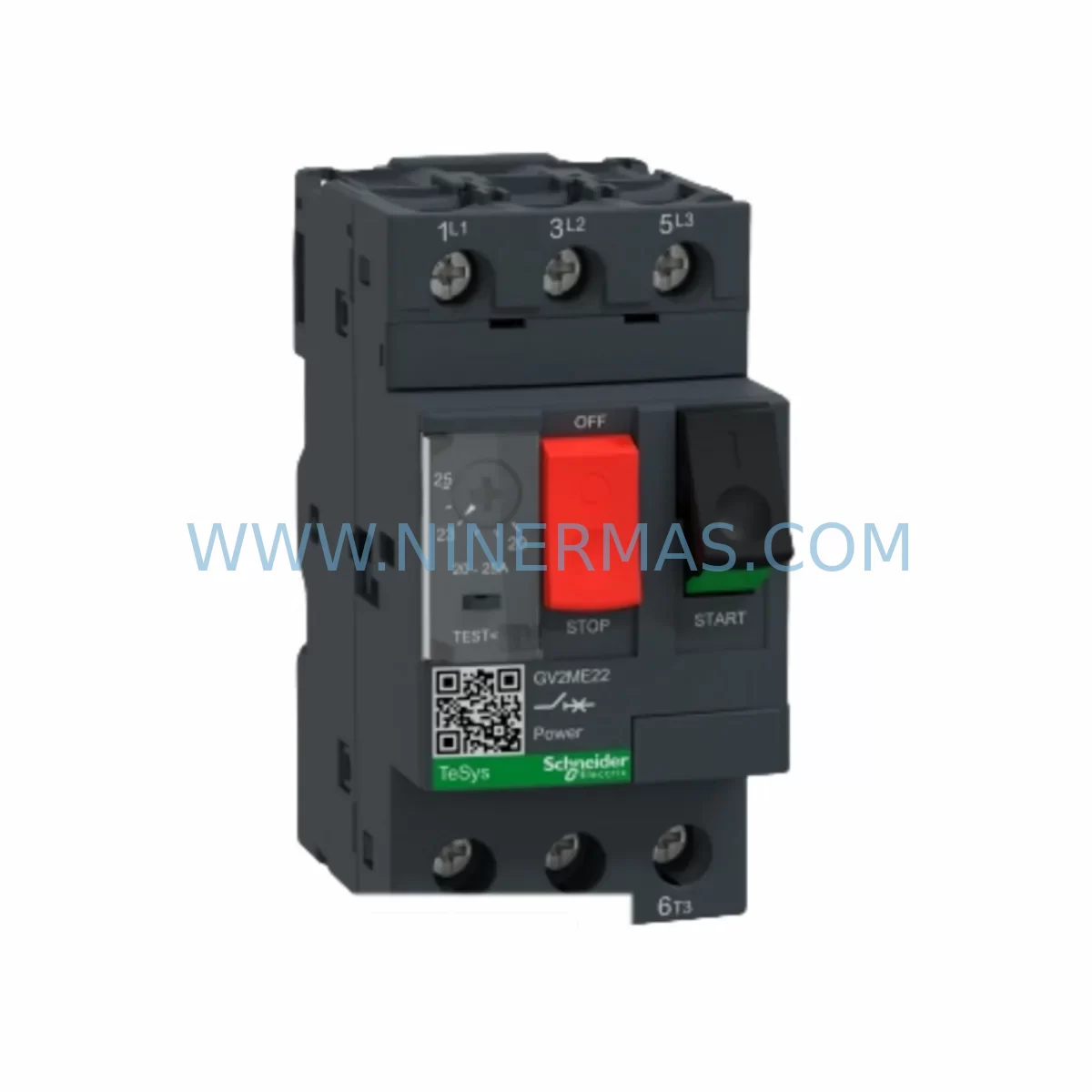

The Schneider Electric GV2-ME22C is a 20–25A thermal-magnetic motor circuit breaker from the TeSys GV2-ME series, engineered for direct-on-line motor protection in industrial control panels. As legacy automation systems age and original components reach end-of-life, the GV2-ME22C remains one of the most sought-after retrofit-compatible replacements for motor branch circuit protection across manufacturing, process, and utilities sectors. Whether you are upgrading a dated MCC (Motor Control Center), replacing a tripped or failed breaker in a running production line, or building a spare parts buffer for long-term system continuity, the GV2-ME22C delivers the same footprint, terminal layout, and trip characteristics as the original — enabling smooth, low-risk substitution without panel redesign.

For maintenance engineers managing legacy Schneider Electric control architectures, the GV2-ME22C integrates directly into existing TeSys GV2 mounting bases and is compatible with standard GV2-AN11 auxiliary contact blocks and GV2-AF auxiliary fault signal modules, preserving existing wiring and DIN rail configurations. Procurement engineers sourcing for planned shutdowns or emergency restocking will find this unit available with pre-shipment functional testing and a 12-month warranty covering operational defects under normal industrial service conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful GV2-ME22C retrofit extends beyond swapping the breaker itself. In most legacy motor control panels, the GV2-ME22C operates as part of a coordinated protection chain that includes upstream iC60N or C60N miniature circuit breakers for feeder protection, downstream LC1-D series contactors (such as the LC1-D25 or LC1-D32) for motor switching, and LRD series overload relays where separate thermal protection is required. Before finalizing the retrofit, engineers should verify that the existing 24VDC or 110VAC control power supply feeding the contactor coil remains within specification, as aging power supply modules in legacy panels are a common secondary failure point.

Terminal block integrity is equally critical. In panels that have been in service for 10 or more years, Linergy or Phoenix Contact-style terminal strips adjacent to the motor branch circuit may show signs of thermal discoloration or loose clamping torque — conditions that can cause nuisance tripping or intermittent faults after a new breaker is installed. A pre-commissioning inspection of the PE/ground bus bar and incoming cable lug connections is strongly recommended.

For systems using Modicon M340 or M580 PLCs with motor management via TeSys T motor management relays or TeSys U starter-controllers, the GV2-ME22C retrofit should be accompanied by a review of the associated I/O mapping in the PLC program. If the original GV2-ME22C was wired to a GV2-AN11 auxiliary contact block feeding a digital input module (such as a BMX DDI 1602 or equivalent), the new unit must be confirmed to have the same auxiliary contact configuration before the panel is re-energized.

In facilities running Vijeo Designer or Unity Pro / EcoStruxure Control Expert HMI environments, motor status symbols linked to the GV2-ME22C trip signal should be validated against the new wiring before returning the motor to automatic control. Communication links between the motor control panel and the supervisory SCADA layer — whether via Modbus RTU, Modbus TCP, or Profibus DP — should be tested for continuity after the retrofit to confirm no address conflicts or signal interruptions were introduced during the panel work.

Downtime Control During System Migration

Minimizing downtime during a GV2-ME22C replacement requires a structured pre-outage preparation protocol. Before the scheduled maintenance window, engineers should photograph the existing terminal wiring, record the current dial position, and confirm the motor FLA (Full Load Amperage) from the motor nameplate to validate the 20–25A range is appropriate for the application. If the motor FLA is at the upper boundary of the GV2-ME22C range, consider whether the GV2-ME32C (25–32A) would provide a safer operating margin — a decision that should be made before the outage, not during it.

During the swap, the replacement GV2-ME22C should be bench-tested for trip function using a portable current injection tester before installation. This eliminates the risk of installing a unit with a latent defect and having to repeat the outage. Once installed, the breaker should be set to the OFF position before re-energizing the panel, then manually reset and tested through one full motor start cycle under load before returning to automatic operation.

For facilities with redundant motor circuits or soft-starter bypass configurations, the retrofit can often be performed with the parallel circuit carrying the load, reducing the production impact to near zero. In single-motor critical applications — such as cooling water pumps, compressors, or conveyor drives — pre-positioning a tested spare GV2-ME22C in the panel room before the outage is the most effective downtime control measure available. NINERMAS maintains stocking inventory of the GV2-ME22C to support emergency same-day dispatch requirements for exactly these scenarios.

Retrofit Support FAQ

Q1: Is the GV2-ME22C a direct drop-in replacement for an existing GV2-ME22C in my panel?
Yes. The GV2-ME22C is a self-replacing part number — the physical dimensions, DIN rail mounting footprint, terminal positions, and current adjustment range are identical across production batches. No panel modification, adapter plate, or wiring change is required for a same-part-number swap. Confirm the current dial is set to match the motor FLA after installation.

Q2: What pre-shipment testing does NINERMAS perform on the GV2-ME22C?
Each unit undergoes a functional trip test (thermal and magnetic trip verification), terminal continuity check, and visual inspection for mechanical integrity before dispatch. Test records are available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can the GV2-ME22C be used with GV2-ME series accessories from older production runs?
Yes. The GV2-ME22C is compatible with the full range of GV2-ME series accessories, including GV2-AN11 (1NO+1NC auxiliary), GV2-AN20 (2NO auxiliary), GV2-AF01 (fault signal), and GV2-AZ01 (alarm contact). These accessories clip directly onto the breaker body without modification and are interchangeable across GV2-ME production generations.

Q4: What is the long-term supply availability for the GV2-ME22C?
NINERMAS maintains a dedicated stocking program for TeSys GV2-ME series components to support long-term maintenance contracts and annual shutdown planning. Customers with recurring demand can arrange forward stock commitments with fixed lead times. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to discuss volume pricing and supply agreements.
