Schneider GV2-ME10C Retrofit Motor Protector for Legacy Systems

Schneider GV2-ME10C Retrofit Motor Protector for Legacy Systems

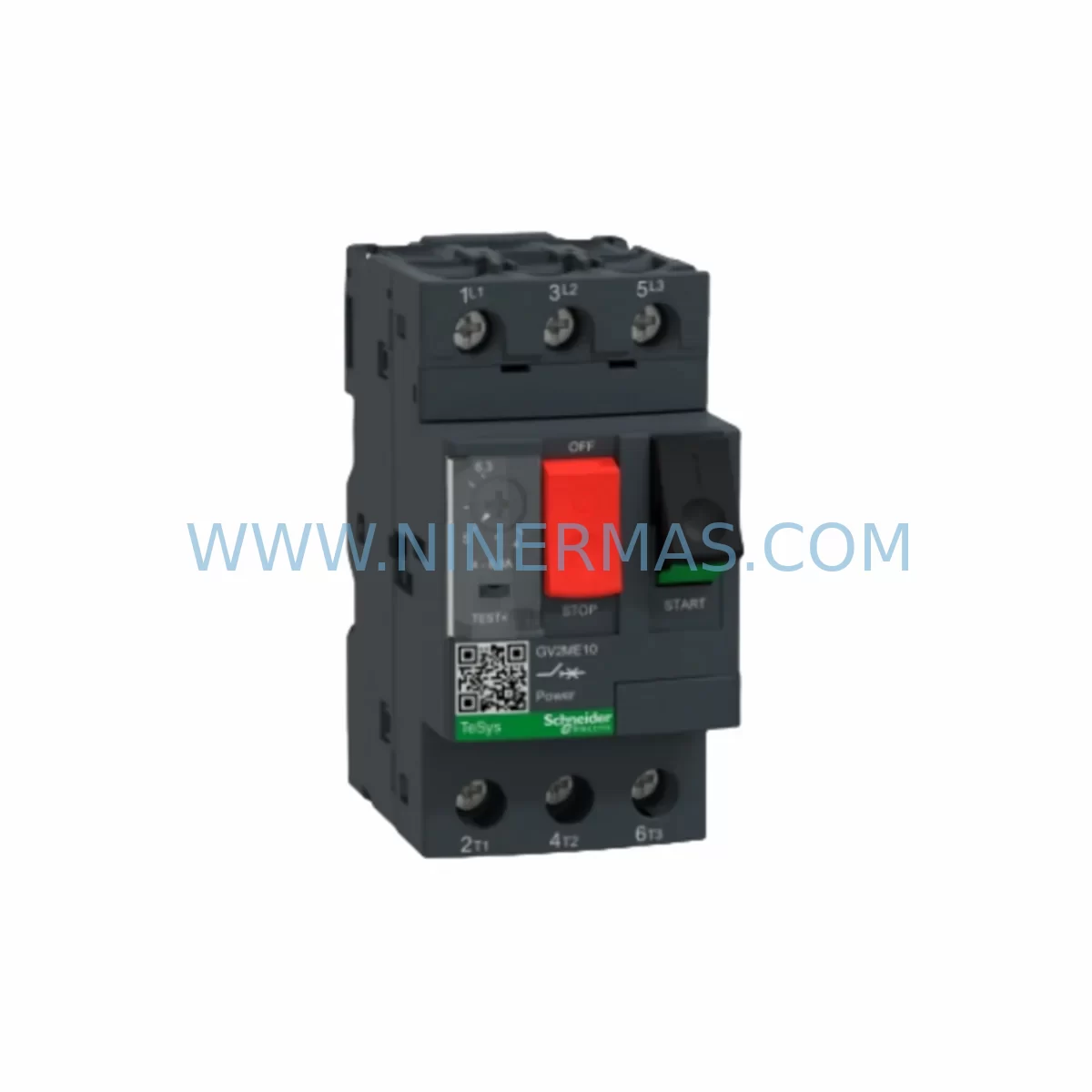

The Schneider Electric GV2-ME10C is a thermal-magnetic manual motor starter and protector rated for 4–6.3A, belonging to the proven TeSys GV2-ME series. Designed for direct-on-line motor protection in industrial control panels, this unit is a critical retrofit component for aging automation systems where original motor protection devices have reached end-of-life or are no longer available through standard distribution channels. Whether you are upgrading a legacy motor control center (MCC), replacing a failed protector in a running production line, or consolidating spare parts inventory for long-term lifecycle support, the GV2-ME10C delivers reliable, field-proven performance with minimal downtime risk.

In retrofit and modernization projects, the GV2-ME10C is commonly installed alongside TeSys LC1-D09 or LC1-D12 contactors to form a complete motor starter assembly. Engineers replacing older GV2-ME08C or GV2-ME14C units in adjacent current ranges should verify the exact trip class and current setting before substitution. The GV2-ME10C mounts directly onto standard 35mm DIN rail and is compatible with GV2-A11 auxiliary contact blocks and GV2-AN11 signal contacts for remote fault indication — both of which are frequently retained from the original installation to minimize rewiring effort.

For panel builders working within Modicon M340, Premium, or Quantum PLC environments, the GV2-ME10C integrates cleanly into existing motor control logic without requiring program modifications, provided the auxiliary contact wiring to the PLC digital input module — such as a BMX DDI 1602 or equivalent discrete input card — is preserved. Confirm terminal block assignments against the original panel schematic before energizing.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the GV2-ME10C into a legacy control system requires a structured pre-installation review. Begin by auditing the existing motor starter assembly: identify whether the current installation uses a GV2-ME series or an older GV2-P series protector, as the terminal layout and auxiliary contact attachment method differ. If the panel uses a GV2-P10 with a rotary handle, a direct swap to GV2-ME10C is possible but requires removal of the handle mechanism and confirmation that the panel door cutout is no longer needed.

In multi-motor control panels, the GV2-ME10C is frequently installed in groups, each protecting an individual motor circuit. When replacing multiple units simultaneously, label each protector with the motor tag number before removal to prevent cross-wiring during reinstallation. Power supply capacity should be reviewed at the Phaseo ABL8 or ABL7 24VDC power supply level — adding replacement protectors with auxiliary contacts increases the control circuit load, and the existing power supply must have sufficient residual capacity to support all auxiliary contact coils and PLC input loads.

For systems using Zelio Logic SR2 or SR3 smart relays as local motor sequencing controllers, verify that the fault output from the GV2-ME10C auxiliary contact is correctly mapped to the relay input. In older installations, this wiring may have been routed through a XMLA pressure switch or a XCKJ limit switch interlock — confirm the full interlock chain is intact before returning the motor to service.

Where the motor control system interfaces with a Magelis HMIGTO or XBTGT HMI terminal, check that the motor run/fault status tags in the HMI project are sourced from the correct PLC data addresses. A replacement GV2-ME10C does not alter PLC logic, but if the auxiliary contact wiring was modified during the swap, the corresponding input bit address must be verified against the HMI tag database to ensure accurate fault annunciation on the operator screen.

For installations using Canopen or Modbus RTU communication to a motor management gateway, such as the TeSys U LU9GC3, confirm that the device node address and baud rate settings are preserved after the hardware swap. Communication parameters are stored in the gateway, not the protector itself, so no reconfiguration is typically required — but a communication health check after power-up is recommended before resuming automatic operation.

Downtime Control During System Migration

Minimizing production downtime during a GV2-ME10C replacement requires advance preparation and a clear sequence of steps. Before scheduling the maintenance window, confirm that a tested replacement unit is on-site and that all required tools — including a calibrated torque screwdriver, terminal ferrule crimper, and a multimeter for continuity verification — are available at the panel location.

The recommended replacement sequence is: isolate the motor circuit at the upstream isolator or circuit breaker, photograph the existing wiring before disconnection, remove the auxiliary contact block (GV2-A11 or GV2-AN11) intact without disconnecting its wiring, release the DIN rail clip and remove the failed GV2-ME10C, install the replacement unit, reattach the auxiliary contact block, reconnect power terminals in the original sequence, set the current dial to the motor nameplate FLA, and perform a manual trip test before closing the contactor.

To protect the original program logic in the associated PLC — whether a Modicon M340 BMX P34 or a Twido TWDLCAE40DRF — place the controller in STOP mode before isolating the motor circuit. This prevents spurious fault conditions from propagating through the control program and triggering unintended outputs on other motor circuits sharing the same PLC rack. After the replacement is complete and the motor has been verified running at correct speed and current, return the PLC to RUN mode and confirm all HMI status indicators reflect normal operation.

For critical production lines where even a brief interruption is unacceptable, consider pre-staging a complete motor starter assembly — GV2-ME10C plus LC1-D contactor plus auxiliary blocks — on a spare DIN rail section, fully wired and tested offline. This allows the swap to be completed in under five minutes by exchanging the entire assembly rather than individual components.

Retrofit Support FAQ

Q1: Is the GV2-ME10C a direct replacement for the GV2-ME10 (without the C suffix)?
Yes. The “C” suffix denotes the standard screw terminal version for the current production series. The GV2-ME10C is the current catalog replacement for earlier GV2-ME10 variants. Terminal layout, current range, and DIN rail mounting are identical. Retain all existing auxiliary contact blocks and wiring.

Q2: Can the GV2-ME10C be used to replace a GV2-P10 in the same panel position?
Yes, with minor panel modifications. The GV2-ME10C has the same current range (4–6.3A) as the GV2-P10 but uses a push-button reset instead of a rotary handle. The panel door cutout for the rotary handle must be blanked off. Terminal wiring is compatible. Confirm breaking capacity requirements — the GV2-P series offers higher Icu ratings in some configurations.

Q3: What pre-shipment testing is performed on each GV2-ME10C unit?
Each unit undergoes functional verification including manual trip actuation, reset operation, and auxiliary contact continuity check before shipment. Units are supplied with a test record. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the shipment date.

Q4: How quickly can replacement stock be supplied for urgent breakdown situations?
In-stock units are available for same-day or next-business-day dispatch depending on order confirmation time. For ongoing maintenance programs requiring guaranteed stock availability, long-term supply agreements with fixed lead times can be arranged. Contact our team directly to discuss consignment stock or blanket order options for high-criticality sites.
