Schneider Electric XBTGK2330 Service-Ready Spare Part

Schneider Electric XBTGK2330 Service-Ready Spare Part for Industrial Maintenance

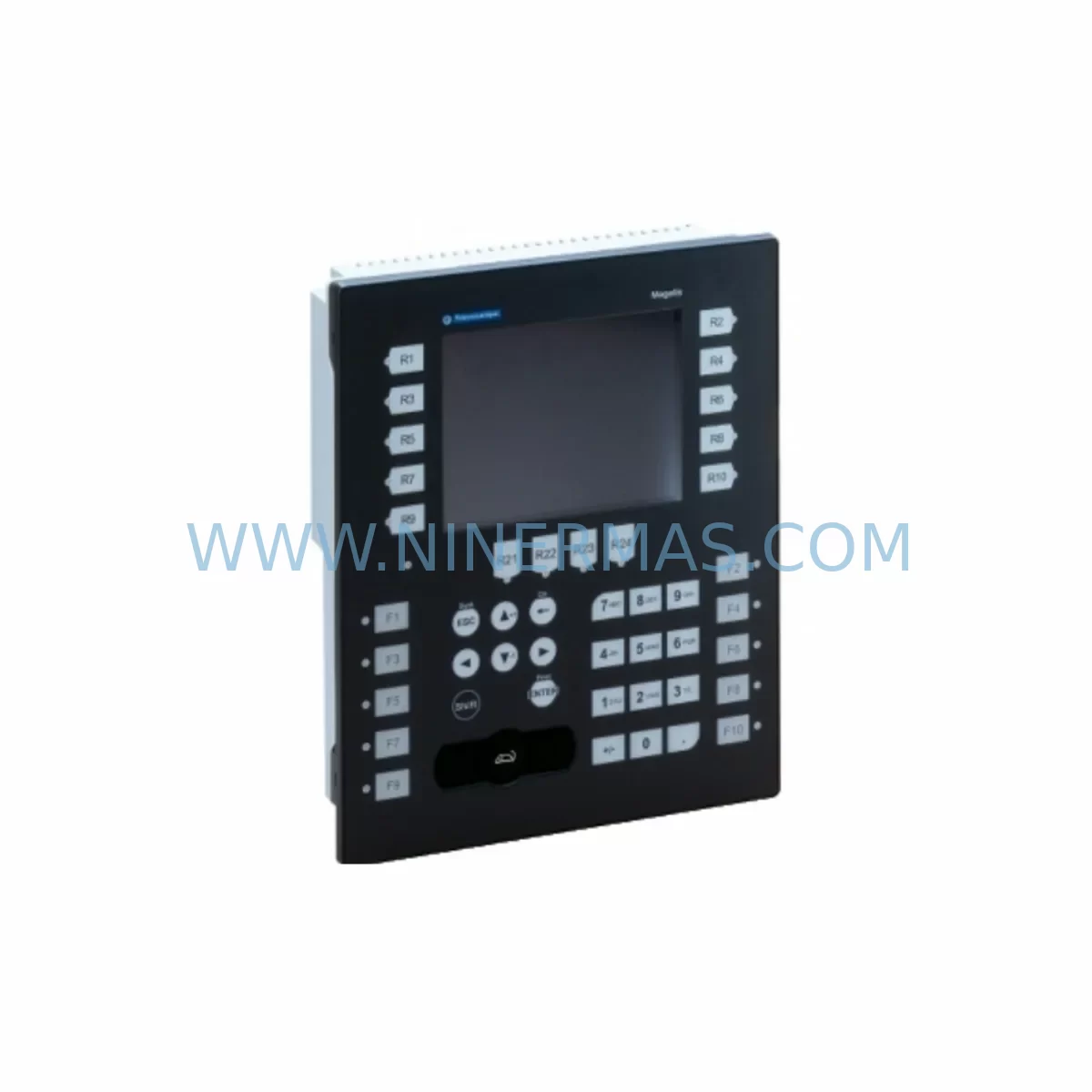

The Schneider Electric XBTGK2330 is a Magelis series Human-Machine Interface (HMI) panel designed for demanding industrial environments. As a service-ready spare part, the XBTGK2330 is a critical component for maintenance engineers managing process control systems, discrete manufacturing lines, and legacy automation architectures where minimizing unplanned downtime is a top operational priority. Whether you are executing a planned annual overhaul, responding to an emergency panel failure, or building a strategic spare parts inventory for a multi-line facility, the XBTGK2330 delivers the compatibility, reliability, and long-term supply assurance that industrial procurement teams require.

The Magelis XBTGK2330 integrates directly into Schneider Electric control architectures, supporting communication with Modicon M340, Modicon Premium, and Modicon Quantum PLC platforms via standard serial and Ethernet interfaces. Its compatibility with existing cabinet wiring, power supply rails, and communication backbones makes it a preferred replacement for aging or failed HMI units without requiring full system redesign. For maintenance engineers, this means faster site replacement, reduced engineering hours, and a lower total cost of downtime recovery.

Every XBTGK2330 unit supplied by NINERMAS undergoes pre-shipment functional testing to verify display integrity, communication port operation, and power input performance. Units are shipped with a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions. Long-term supply programs are available for facilities requiring committed stock agreements across multi-year maintenance cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the XBTGK2330 in a control cabinet or operator station, a thorough maintenance inspection of the surrounding electrical and control components is strongly recommended. Maintenance engineers and procurement teams should treat an HMI replacement as an opportunity to audit the full operator interface circuit and associated control infrastructure.

Begin by verifying the 24 V DC power supply feeding the XBTGK2330 — units such as the Schneider Electric ABL8REM24030 or equivalent regulated DIN-rail power supplies should be checked for output voltage stability, ripple, and thermal performance. A degraded power supply is a common root cause of HMI display anomalies and communication dropouts that are often misdiagnosed as panel failures.

Inspect the serial communication cable and connector integrity between the XBTGK2330 and the connected PLC or controller. RS-232C and RS-485 cables in high-vibration or high-temperature environments are prone to insulation fatigue and connector oxidation. Replacing communication cables alongside the HMI panel eliminates a frequent source of intermittent faults post-replacement.

For systems using a Modicon M340 CPU (such as the BMX P34 2020 or BMX P34 2030), confirm that the PLC firmware version is compatible with the XBTGK2330 Vijeo Designer application version loaded on the replacement panel. Firmware mismatches can cause communication initialization failures that delay restart.

Review the status of I/O modules in the same rack or cabinet — particularly digital input modules (e.g., BMX DDI 1602) and digital output modules (e.g., BMX DDO 1602) that interface with the process being monitored via the HMI. A panel replacement is an ideal time to verify I/O module LED status, check for blown fuses on output channels, and confirm terminal block torque on field wiring.

Check relay output modules and interposing relays in the control circuit. Schneider Electric Zelio relay modules and Preventa safety relays associated with the operator station should be inspected for contact wear, coil resistance, and correct operation. Relay failures in the control circuit can cause process anomalies that appear as HMI communication errors.

Inspect the Ethernet switch or communication hub if the XBTGK2330 is connected via Ethernet to a SCADA or DCS network. Managed switches such as the Schneider Electric ConneXium series should be checked for port link status, firmware currency, and physical connector condition. A faulty switch port can prevent the replacement HMI from establishing network communication.

For facilities running Modicon Quantum or Premium PLCs, verify the communication module (e.g., 140 NOE 771 01 Ethernet module or TSX ETY 110 for Premium) is operating correctly and that the IP address configuration for the new XBTGK2330 unit is correctly assigned before commissioning.

Finally, review the UPS (Uninterruptible Power Supply) protecting the operator station. Industrial UPS units from APC by Schneider Electric or equivalent should be load-tested to confirm battery capacity is sufficient to support a controlled shutdown in the event of a mains power interruption during the replacement commissioning period.

Site Replacement Workflow

The XBTGK2330 is designed as a direct replacement for failed or end-of-life Magelis GK series HMI panels. The following workflow is recommended to minimize downtime and ensure system compatibility during site replacement:

Step 1 — Pre-Replacement Preparation: Download and archive the existing HMI application from the installed panel using Vijeo Designer software before powering down. Confirm the application version, PLC driver configuration, and communication parameters (baud rate, parity, station address). If the existing panel is non-functional, retrieve the application backup from your site documentation or engineering archive.

Step 2 — Power Isolation: Isolate the 24 V DC supply to the HMI panel at the cabinet isolator or MCB. Apply lockout/tagout (LOTO) procedures per site safety policy. Verify zero voltage at the panel power terminals before proceeding.

Step 3 — Physical Removal and Installation: Remove the failed XBTGK2330 from the panel cut-out by releasing the mounting clamps from the rear. Disconnect the power connector, communication cable(s), and any USB or CF card accessories. Install the replacement XBTGK2330 into the same cut-out, reconnect all cables in the correct sequence, and secure the mounting clamps to the specified torque.

Step 4 — Application Transfer and Configuration: Transfer the archived HMI application to the replacement panel via USB or Ethernet using Vijeo Designer. Verify communication settings match the connected PLC. Power up the panel and confirm display initialization, PLC communication link status, and alarm/event log functionality.

Step 5 — Functional Verification: Conduct a full I/O check from the HMI operator screens. Confirm all process values, setpoints, and alarm thresholds are displaying correctly. Document the replacement in the site maintenance log with the new unit serial number and installation date to support the 12-month warranty period.

Spare Parts Support FAQ

Q1: Is the XBTGK2330 still available as a new original spare part?
Yes. NINERMAS maintains stock of the Schneider Electric XBTGK2330 as a service-ready spare part for industrial maintenance applications. Each unit is sourced from authorized supply channels and undergoes pre-shipment functional testing covering display, communication ports, and power input. Long-term supply programs with committed stock agreements are available for facilities requiring guaranteed availability across multi-year maintenance cycles. Contact sale@ninermas.com for stock confirmation and lead time.

Q2: How do I verify compatibility between the XBTGK2330 and my existing PLC or control system?
The XBTGK2330 is compatible with Schneider Electric Modicon M340, Premium, and Quantum PLC platforms via RS-232C, RS-485, and Ethernet communication drivers supported in Vijeo Designer. For third-party PLC compatibility (Siemens S7, Mitsubishi MELSEC, Omron, etc.), verify the available driver list in your installed Vijeo Designer version. NINERMAS technical support can assist with compatibility confirmation based on your existing system configuration — provide your PLC model, firmware version, and current HMI application version when enquiring.

Q3: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and operational failures under normal industrial operating conditions, including display failure, communication port malfunction, and power input circuit faults. The warranty period begins from the date of shipment. To initiate a warranty claim, contact sale@ninermas.com with your order reference, unit serial number, installation date, and a description of the fault. NINERMAS will arrange return, inspection, and replacement or repair within the agreed service timeline.

Q4: Can NINERMAS support bulk procurement and long-term spare parts inventory programs for the XBTGK2330?
Yes. NINERMAS offers bulk procurement pricing and long-term supply agreements for the XBTGK2330 and related Magelis series HMI components. Committed stock programs allow facilities to reserve inventory against future maintenance demand, reducing procurement lead time risk for critical spare parts. Annual blanket orders with phased delivery schedules are supported. Contact our procurement team at sale@ninermas.com or +0086 187 5021 5667 to discuss your facility’s spare parts requirements and volume pricing.
